Key Features
- Superlite aluminium frame, agile comfort geometry
- Bosch Performance Line CX Gen4 drive unit
- Bosch Powertube 625 battery
- RockShox Recon Silver RL Air eMTB approved fork

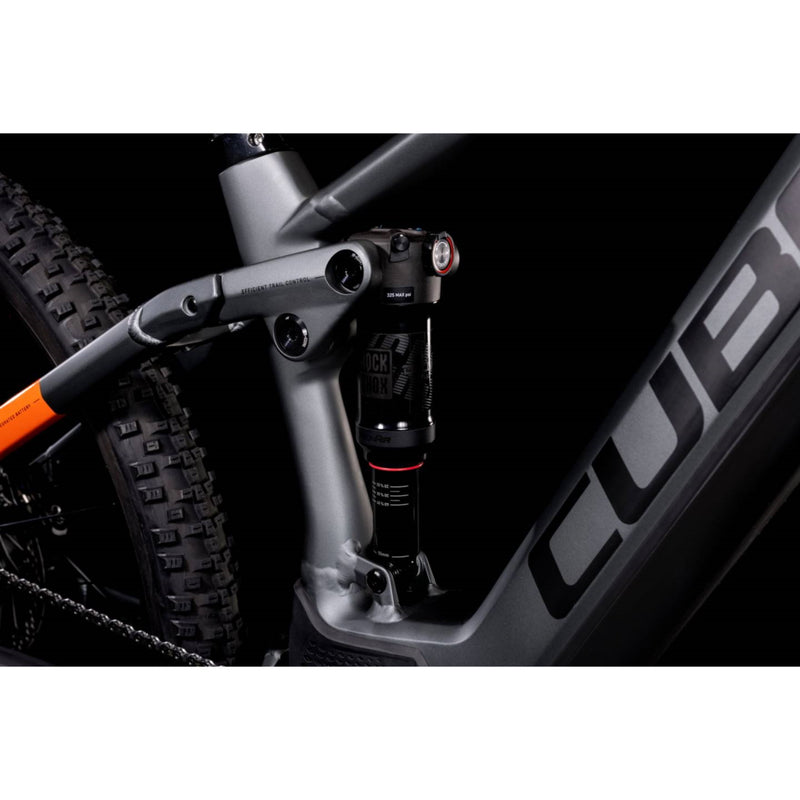

- RockShox Deluxe Select, Trunnion Mount shock
- Shimano Deore 1x12 speed drivetrain
- Shimano MT400 hydraulic brakes with 203mm rotors
- Schwalbe Smart Sam 2.6” tyres, 27.5” or 29” size depending
With comfortable, ground-hugging suspension combined with intuitive handling and reliable, fuss-free performance at an approachable price, the Stereo Hybrid 120 Pro is everything you need for trail adventures. The superlight aluminium frame incorporates Gravity Casting Technology as well as Agile Comfort Geometry and Efficient Comfort Control and cleanly integrates Bosch’s fourth generation CX drive unit and a large capacity 625Wh battery. Spec’d with Shimano’s easy-to-use Deore 1×12 gears for simple and reliable trail-taming power. Four-piston Shimano hydraulic disc brakes with oversized rotors provide exceptional stopping power for rowdy trail sessions. The RockShox Recon Silver RL Air, eMTB approved 120mm fork is paired with a RockShox Deluxe Select shock with rebound adjust. Schwalbe’s grippy 2.6” tyres will ensure you’re always in control and with Cubes size split system sizes XS and SM roll on 27.5” wheels while larger sizes roll on 29er to ensure the perfect fit for every rider.
| Accessories: | Kickstand/Fender/Carrier Mounting Points |
|---|---|
| Battery: | Bosch PowerTube 625 / Charger: Bosch 2A / Battery Lock: Abus Art.-Nr. 64444 |
| Battery brand: | Shimano |
| Battery model: | STePS E8036 |
| Battery size range: | 600-649 W-h |
| Battery size watt hours: | 625 |
| Brakes: | Shimano BR-MT420, Hydr. Disc Brake (203/203) |
| Brake type: | Hydraulic Disc Brake |
| Cassette: | 12 Speed |
| Chain: | Shimano CN-M6100 |
| Chainset: | Single |
| Colour: | Flash grey 'n' Orange |

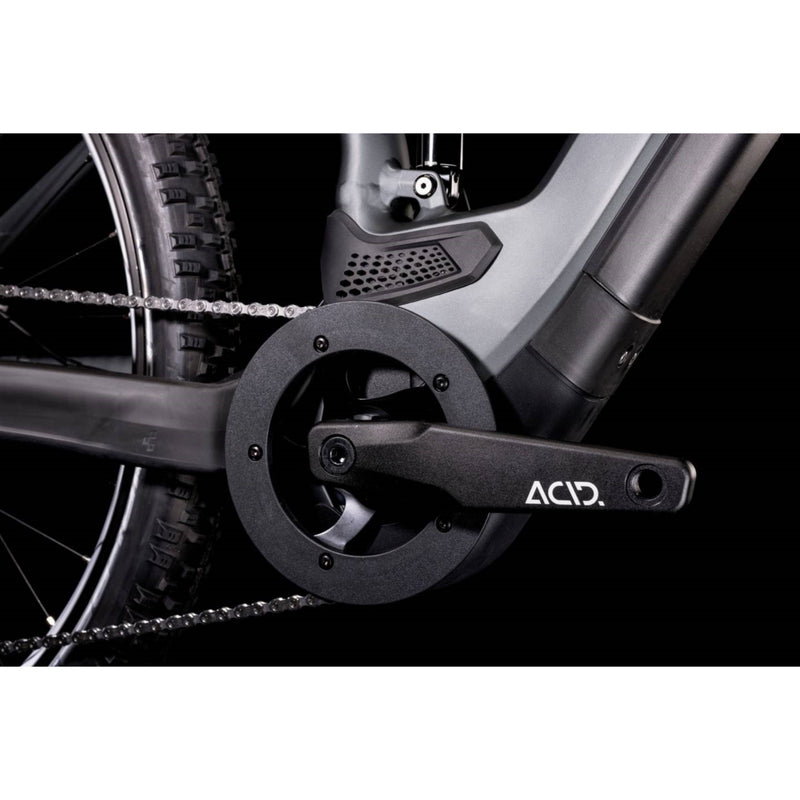

| Crankset: | ACID E-Crank, 170mm, 38T |
| Derailleur rear: | Shimano Deore RD-M6100-SGS, ShadowPlus, 12-Speed |
| Display: | Bosch Purion |
| Fork: | RockShox Recon Silver RL Air, Tapered, 15x110mm, eMTB Approved, 120mm, Lockout |
| Fork brand: | RockShox |
| Fork material: | Alloy |
| Frame: | Aluminum Superlite, Gravity Casting Technology, Efficient Comfort Control, FSP 4-Link, Agile Comfort Geometry, Boost 148, Full Integrated Battery, Kickstand/Fender/Carrier Mounting Points |
| Frame material: | Alloy |
| Freewheel: | Shimano Deore CS-M6100, 10-51T Cassette |
| Front travel: | 120mm |
| Gender: | Unisex |
| Grip: | Natural Fit All Terrain |
| Grips: | Natural Fit All Terrain |
| Groupset: | Shimano Deore |
| Groupset brand: | Shimano |
| Handlebar: | Newmen Evolution SL 318.25, 760mm |
| Handlebars: | Newmen Evolution SL 318.25, 760mm |
| Handlebar stem: | CUBE Performance Stem E-MTB, 31.8mm |
| Headset: | 27.5: ACROS AZX-1032, BlockLock 120°, Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm) // 29: ACROS AZX-1030, Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm) |
| Hubs: | FRONT: Shimano HB-MT400-B, 15mm, Boost, Centerlock / REAR: Shimano FH-MT410-B, 12mm, Boost, Centerlock |
| Mips rated: | false |
| Motor brand: | Bosch |
| Motor drive type: | Mid Drive |
| Motor drive unit: | Bosch Drive Unit Performance Line CX Cruise Gen4 US |
| Motor model: | Performance CX Gen 4 |
| Motor torque: | 85 |
| Motor torque range: | 80-89 Nm |
| Pedals: | CUBE PP MTB |
| Puncture resistant: | false |
| Range: | 73 |
| Rear travel: | 120mm |
| Rim: | CUBE EX30, 32H, Disc, Tubeless Ready |
| Rims: | CUBE EX30, 32H, Disc, Tubeless Ready |
| Saddle: | Natural Fit Sequence |
| Season: | 2022 |
| Seatpost: | CUBE Performance Post, 30.9mm |
| Seat clamp: | CUBE Screwlock Semi Integrated, 34.9mm |
| Seat post: | CUBE Performance Post, 30.9mm |
| Shifters: | Shimano Deore SL-M6100-IR, Direct Attach, Rapidfire-Plus |
| Shock: | RockShox Deluxe Select, 185x55mm (27.5: 165x45mm), Rebound Adjust, Trunnion Mount / Top: 54mm Trunnion Mount, Bottom: 30x8mm |
| Speeds: | 1 x 12 |
| Stem: | CUBE Performance Stem E-MTB, 31.8mm |
| Tubeless ready: | false |
| Tyre front: | Schwalbe Smart Sam, Active, 2.6 |
| Tyre rear: | Schwalbe Smart Sam, Active, 2.6 |
| Use type: | Trail |
| Wheel size: | 29" / 27.5" (Varies by Frame Size) |
| Stereo Hybrid 120 Pro | |||||
|---|---|---|---|---|---|
| Frame Size | XS-15" | S-17" | M-18" | L-20" | XL-22" |
| Seat Tube | 370 | 395 | 420 | 465 | 515 |
| Top Tube Horizontal | 573.3 | 573.3 | 590 | 611 | 636 |
| Seat Tube Angle | 75.3 | 75.3 | 75.3 | 75.3 | 75.3 |
| Head Tube Angle | 67 | 67 | 67 | 67 | 67 |
| Chain Stays | 490 | 490 | 490 | 490 | 490 |
| Head Tube | 119 | 119 | 127 | 137 | 152 |
| Wheelsbase | 1204 | 1204 | 1223 | 1245 | 1272 |
| BB-Height to Hub | -17.5 | -17.5 | -37.5 | -37.5 | -37.5 |
| Rear Suspension | 120 | 120 | 120 | 120 | 120 |
| Standover Height [mm] - 50mm | 763 | 765 | 807 | ||
| Standover Height [mm] - 80mm | 769 | 783 | 781 | 783 | 821 |
| Reach | 428 | 428 | 431 | 449 | 470 |
| Stack | 581 | 581 | 622 | 632 | 645 |
| Wheelsize | 27.5 | 27.5 | 29 | 29 | 29 |
Cube Stereo Bike Sizing Chart
