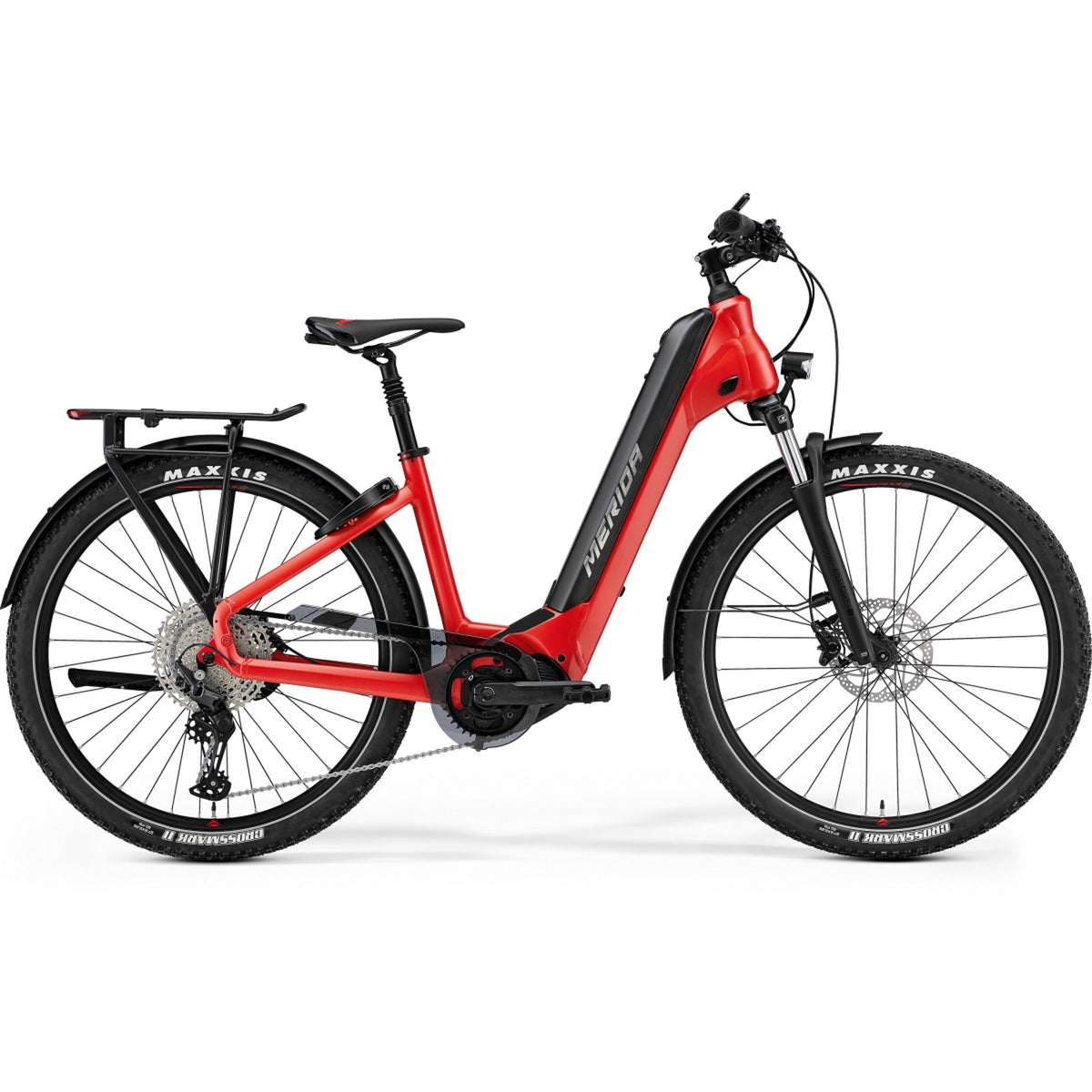

Merida Espresso CC 600 EQ Electric Bike 630wh Battery Silk Red/Black
5% Best Price Guarantee
If you find a cheaper price, we will beat it by 5%*
- Applies to any cheaper price found in New Zealand.
- When the competitor's final price inclusive of any taxes and delivery fees.
- Excludes Garmin products, other exclusions apply.
Perfect Ride Guarantee
If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »
Free Bike Build
We'll build your bike for free when you click and collect at any 99 Bikes store.
First Free Tune-up
Every bike come with a complimentary free tune-up and safety check. Learn more »
- Powerful Shimano EP8 motor
- Large 630Wh battery capacity
- Lightweight comfort-focused frame
- 27.5" wheels with Maxxis tyres
- Equipped with lights and rear rack
| Accessories: | EQ models include mudguards, lights & carrier |
|---|---|
| Battery: | E8036 630wh |
| Battery brand: | Shimano |
| Battery model: | STePS E8036 |
| Battery size range: | 600-649 W-h |
| Battery size watt hours: | 630 |
| Brakes: | Shimano MT402-3A, 2 piston |
| Brake type: | Hydraulic Disc Brake |
| Cassette: | 11 Speed |
| Chain: | KMC e11S |
| Chainset: | Single |
| Crankset: | Samox NWP203 , 38 ATC / ET38-F13-SHP80 (for DU-EP800), 165 mm |
| Derailleur rear: | Shimano DEORE M5100 |
| Display: | SC-E6100 |
| Fork: | Suntour MOBIE A32 DS, Coil, 75 STR, lockout |
| Fork brand: | Suntour |
| Fork material: | Alloy |
| Frame: | eSPRESSO CITY LITE II, MAT aluminium, 650B WHS, 135x9 AST, internal, max. 630 Wh |
| Frame material: | Alloy |
| Freewheel: | Shimano M5100, 11-51 ATC, 11 Speed Cassette |
| Front travel: | under 100mm |
| Gender: | Womens |
| Grip: | MERIDA EXPERT TK |
| Grips: | MERIDA EXPERT TK |
| Groupset: | Shimano Deore |
| Groupset brand: | Shimano |
| Handlebar: | MERIDA EXPERT TK, MAT aluminium, 660 WHB, 15 RHB |
| Handlebars: | MERIDA EXPERT TK, MAT aluminium, 660 WHB, 15 RHB |
| Handlebar stem: | MERIDA EXPERT CT, MAT aluminium, 31.8 DSH, adjustable, 90 mm-S/M, 110 mm-L |
| Headset: | MERIDA-8251 (for the steerer 1-1/8"~1.5") |
| Hubs: | FRONT: Shimano Deore, 100x15 WHF, 32 SPH, Centerlock / REAR: Shimano Deore, 135x9 WHR, 36 SPH, Centerlock |
| Mips rated: | false |
| Motor brand: | Shimano |
| Motor drive type: | Mid Drive |
| Motor drive unit: | Shimano EP8, 85Nm |
| Motor model: | STePS EP8 |
| Motor torque: | 85 |
| Motor torque range: | 80-89 Nm |
| Pedals: | VP, VPE-891 |
| Puncture resistant: | false |
| Range: | 73 |
| Rim: | MERIDA COMP TK, 20 IWR, MAT aluminium |
| Rims: | MERIDA COMP TK, 20 IWR, MAT aluminium |
| Rotor front: | Shimano RT30, 180 mm |
| Rotor rear: | Shimano RTEM300, 180 mm |
| Saddle: | MERIDA EXPERT TK, V-mount, incl. MERIDA minitool |
| Season: | 2021 |
| Seatpost: | MERIDA EXPERT TK, 30.9 DSP, 15 SSB, 40 SST |
| Seat clamp: | MERIDA EXPERT |
| Seat post: | MERIDA EXPERT TK, 30.9 DSP, 15 SSB, 40 SST |
| Shifters: | REAR: Shimano Deore M5100 |
| Speeds: | 1 x 11 |
| Spokes: | Black stainless |
| Stem: | MERIDA EXPERT CT, MAT aluminium, 31.8 DSH, adjustable, 90 mm-S/M, 110 mm-L |
| Tubeless ready: | false |
| Tyre front: | Maxxis Crossmark II, 27.5x2.25", wire, reflecting line |
| Tyre rear: | Maxxis Crossmark II, 27.5x2.25", wire, reflecting line |
| Use type: | Commuter |
| Wheel size: | 27.5" (650b) |
| Frame Size | XS | S | M | L | XL |
| Tyre Sizes | 27.5" | 27.5" | 27.5" | 27.5" | 27.5" |
| Frame Size CM | 38 | 43 | 48 | 53 | 58 |
| ST seat tube [mm] | 380 | 430 | 480 | 530 | 580 |
| TT top tube [mm] | 580 | 595 | 615 | 635 | 655 |
| CS chain stay length [mm] | 470 | 470 | 470 | 470 | 470 |
| HTA head tube angle [°] | 70 | 70 | 70 | 70 | 70 |
| STA seat tube angle [°] | 73.5 | 73.5 | 73.5 | 73.5 | 73.5 |
| BD bottom bracked drop [mm] | 65 | 65 | 65 | 65 | 65 |
| HT head tube [mm] | 170 | 175 | 180 | 190 | 200 |
| FL fork length [mm] | 476 | 476 | 476 | 476 | 476 |
| R reach [mm] | 385 | 399 | 417 | 435 | 452 |
| S stack [mm] | 656 | 661 | 666 | 675 | 685 |
| WB wheel base [mm] | 1113 | 1129 | 1149 | 1170 | 1190 |
| SH stand over height [mm] | 403 | 403 | 402 | 402 | 401 |
Merida Electric Trekking Bike Sizing Chart
Merida is an international bike brand with its headquarters in Taiwan, the R&D department is based near Stuttgart in Germany. To be based in Germany has historical reasons for MERIDA but the precise location was chosen specifically because the region around Stuttgart is one of the hot spots of the automotive and machine building industry which Germany is famous for and attracts a hugely skilled design and engineer labor force.
The Merida team are more than just highly trained and experienced bicycle creators – they simply love everything ‘bike’. Most of their R&D staff are daily bike commuters while others are serious mountain bikers, who regularly compete in Marathon, Enduro and Downhill competitions, or licensed road racers and even ambitious Ironman triathletes. Get the behind the scenes view of the Merida R&D centre and meet some of their key members of staff in the below video.
Click & Collect Available
• In-stock items usually ready in 4 hours* • Online Only items usually ready in 1-3 working days More info »
Courier Delivery Available
• $9.99 for orders $99 & under • Free for orders over $99 • Bulky shipping fees apply for bikes & bulky items based on item weight More info »
Please note, due to challenges in the product supply chain, bike specifications are subject to change without notice. Specifications listed below may not match exactly as shown in the photo.
