Features

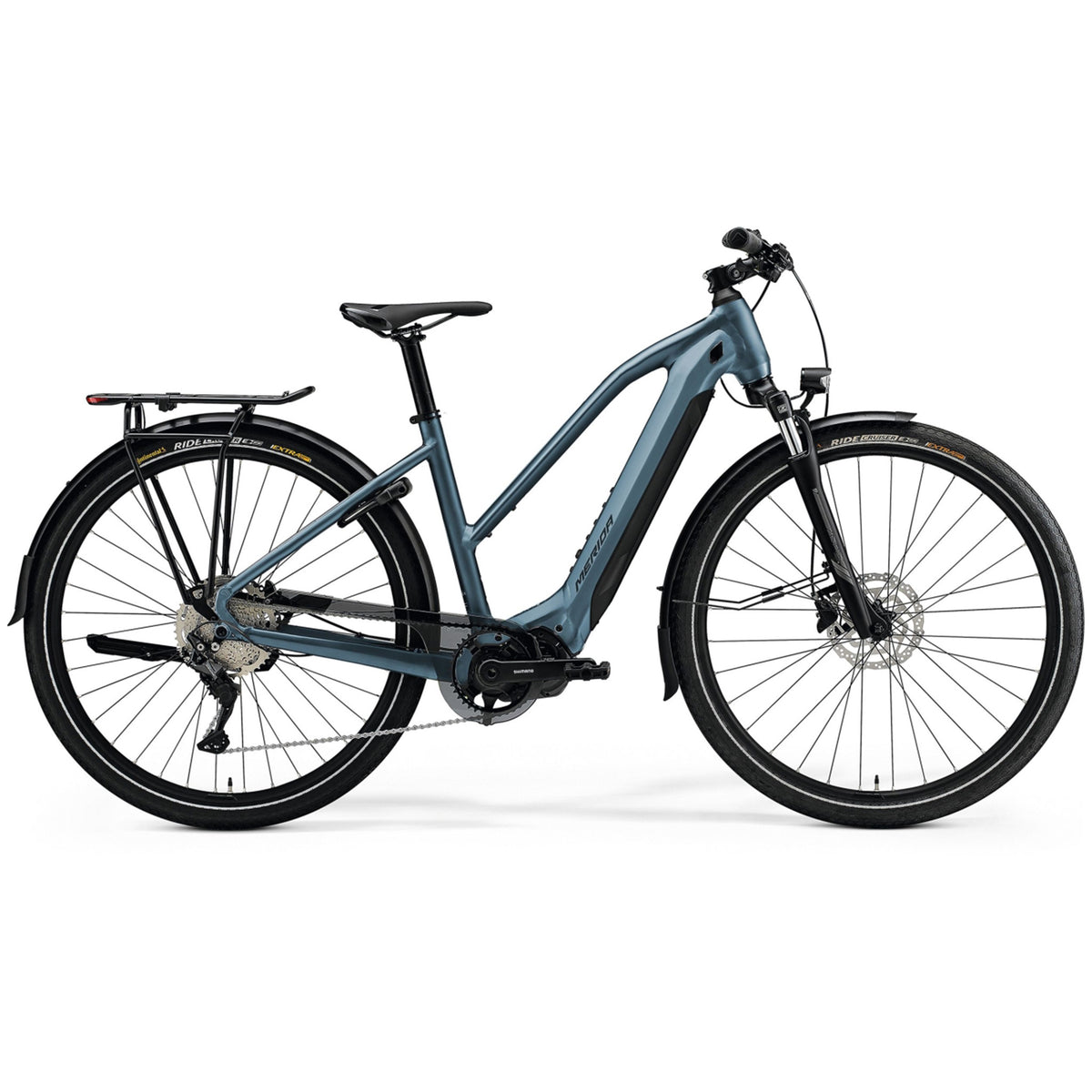

Merida Espresso 500 EQ Low-Step Electric Bike 630Wh Battery Silk Steel Blue/Grey
5% Best Price Guarantee
If you find a cheaper price, we will beat it by 5%*
- Applies to any cheaper price found in New Zealand.
- When the competitor's final price inclusive of any taxes and delivery fees.
- Excludes Garmin products, other exclusions apply.
Perfect Ride Guarantee
If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »
Free Bike Build
We'll build your bike for free when you click and collect at any 99 Bikes store.
First Free Tune-up
Every bike come with a complimentary free tune-up and safety check. Learn more »
- Refined Shimano E6100 drive unit
- Long-lasting 630 Wh battery
- Smooth Shimano 10-speed drivetrain
- Powerful hydraulic disc brakes
- Comfortable suspension fork
| Accessories: | Carrier: MERIDA MIK HD, Kickstand: Massload CL-KA9, Frame Lock: Abus 5650 LH-3 lock8 |
|---|---|
| Axles: | MERIDA COMP TR |
| Battery: | Shimano E8036 |
| Battery brand: | Shimano |
| Battery model: | STePS E8036 |
| Battery size range: | 600-649 W-h |
| Battery size watt hours: | 630 |
| Brakes: | Shimano MT200 |
| Brake type: | Hydraulic Disc Brake |
| Cassette: | 10 Speed |
| Chain: | KMC e10S EPT |
| Chainset: | Single |
| Chainwheel: | Shimano CRE61 |
| Colour: | SILK STEEL BLUE (GUNMETAL GREY) |
| Crankset: | Shimano FC-EM600 |
| Derailleur rear: | Shimano Deore M5120 |
| Display: | Shimano SC-E5000A |
| Fender: | Sunnywheel SW-FA311-60E1 (MSB) |
| Fork: | SR Suntour NEX E25 |
| Fork brand: | Suntour |
| Fork material: | Alloy |
| Frame: | eSPRESSO LITE III |
| Frame material: | Alloy |
| Freewheel: | Shimano M4100 |
| Front travel: | under 100mm |
| Gender: | Womens Specific |
| Grip: | MERIDA EXPERT TK |
| Grips: | MERIDA EXPERT TK |
| Groupset: | Shimano Mixed |
| Groupset brand: | Shimano |
| Handlebar: | MERIDA EXPERT TK |
| Handlebars: | MERIDA EXPERT TK |
| Handlebar stem: | MERIDA EXPERT CT |
| Headset: | MERIDA 8156 |
| Hubs: | Shimano TX505 / Shimano MT400 |
| Light(s): | Front: Herrmans H-Black MR4 E, Rear: Spanninga Commuter Glow XE |
| Lights: | Front: Herrmans H-Black MR4 E, Rear: Spanninga Commuter Glow XE |
| Mips rated: | false |
| Motor brand: | Shimano |
| Motor drive type: | Mid Drive |
| Motor drive unit: | Shimano E6100 |
| Motor model: | STePS E6100 |
| Motor torque: | 60 |
| Motor torque range: | 60-69 Nm |
| Pedals: | VP VPE-891 |
| Puncture resistant: | false |
| Range: | 92 |
| Rim: | MERIDA COMP TK |
| Rims: | MERIDA COMP TK |
| Rotor front: | Shimano RT10 |
| Rotor rear: | Shimano RT10 |
| Saddle: | MERIDA EXPERT TK |
| Season: | 2022 |
| Seatpost: | MERIDA EXPERT CC |
| Seat clamp: | MERIDA EXPERT |
| Seat post: | MERIDA EXPERT CC |
| Shifters: | Shimano Deore M4100 |
| Speeds: | 1 x 10 |
| Spokes: | Black stainless |
| Stem: | MERIDA EXPERT CT |
| Tubeless ready: | false |
| Tyres: | Continental Ride Cruiser |
| Use type: | Commuter |
| Weight limit: | 150 kg |
| Wheel size: | 700c |
| Frame Size | XS | S | M | L | XL |
| Tyre Sizes | 28" | 28" | 28" | 28" | 28" |
| ST seat tube [mm] | 430 | 470 | 510 | 550 | 590 |
| TT top tube [mm] | 580 | 590 | 600 | 620 | 640 |
| CS chain stay length [mm] | 478 | 478 | 478 | 478 | 478 |
| HTA head tube angle [°] | 69 | 69.5 | 69.5 | 70 | 70 |
| STA seat tube angle [°] | 75 | 74.5 | 74.5 | 74 | 74 |
| BD bottom bracked drop [mm] | 75 | 75 | 75 | 75 | 75 |
| HT head tube [mm] | 133 | 140 | 155 | 175 | 205 |
| FL fork length [mm] | 489 | 489 | 489 | 489 | 489 |
| R reach [mm] | 409 | 410 | 416 | 424 | 436 |
| S stack [mm] | 640 | 649 | 663 | 684 | 712 |
| WB wheel base [mm] | 1145 | 1144 | 1155 | 1164 | 1187 |
| SH stand over height [mm] | 733 | 768 | 802 | 836 | 873 |
Merida Electric Trekking Bike Sizing Chart
Merida is an international bike brand with its headquarters in Taiwan, the R&D department is based near Stuttgart in Germany. To be based in Germany has historical reasons for MERIDA but the precise location was chosen specifically because the region around Stuttgart is one of the hot spots of the automotive and machine building industry which Germany is famous for and attracts a hugely skilled design and engineer labor force.
The Merida team are more than just highly trained and experienced bicycle creators – they simply love everything ‘bike’. Most of their R&D staff are daily bike commuters while others are serious mountain bikers, who regularly compete in Marathon, Enduro and Downhill competitions, or licensed road racers and even ambitious Ironman triathletes. Get the behind the scenes view of the Merida R&D centre and meet some of their key members of staff in the below video.
Click & Collect Available
• In-stock items usually ready in 4 hours* • Online Only items usually ready in 1-3 working days More info »
Courier Delivery Available
• $9.99 for orders $99 & under • Free for orders over $99 • Bulky shipping fees apply for bikes & bulky items based on item weight More info »
Please note, due to challenges in the product supply chain, bike specifications are subject to change without notice. Specifications listed below may not match exactly as shown in the photo.
