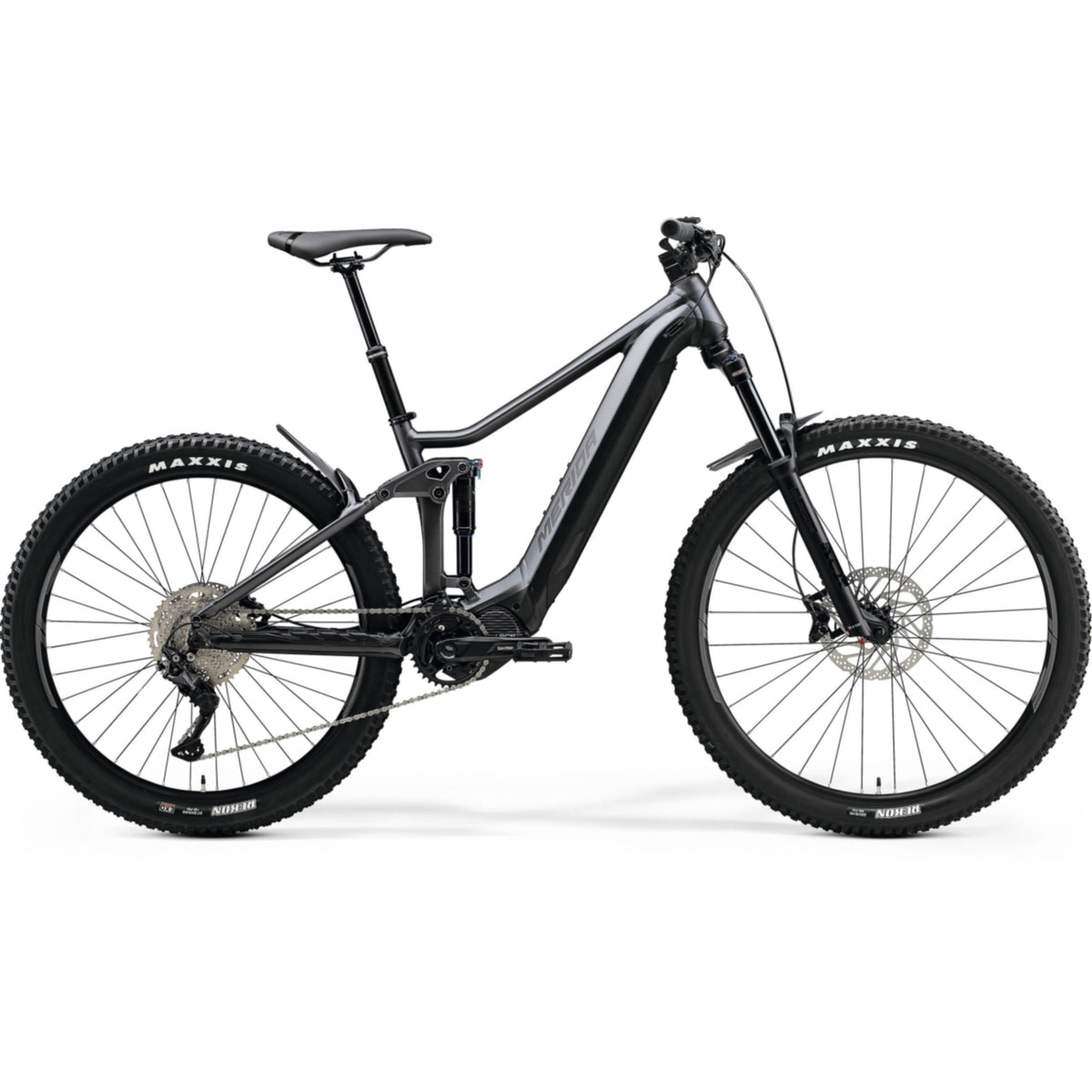

Merida eOne Forty 400 All-Mountain Electric Bike 630Wh Battery (SM/504Wh) Dark Silver/Black
5% Best Price Guarantee
If you find a cheaper price, we will beat it by 5%*
- Applies to any cheaper price found in New Zealand.
- When the competitor's final price inclusive of any taxes and delivery fees.
- Excludes Garmin products, other exclusions apply.
Perfect Ride Guarantee
If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »
Free Bike Build
We'll build your bike for free when you click and collect at any 99 Bikes store.
First Free Tune-up
Every bike come with a complimentary free tune-up and safety check. Learn more »
- Tough 6061 Aluminium frame with balanced trail geometry
- Suntour SR 140mm Fork and 130mm Shock with Lockout
- Shimano’s most powerful EP8 motor, 85Nm torque
- Integrated 630Wh battery, 504Wh for size small
- Assist speeds up to 32 km/h
- Approx range 30 - 80km on singletrack, 100 - 270km on flat, 25 - 230km on size small
- Shimano Deore ebike specific 1x10 speed drivetrain
- Shimano 2/4 piston hydraulic disc brakes
- Mixed wheel size 29er front / 27.5” rear
| Accessories: | FENDER INCLUDED: C093-02F + C093-02R |
|---|---|
| Axles: | REAR: MERIDA EXPERT TR including removeable lever, 6/4mm allen key |
| Battery: | Shimano E8036 630Wh / Shimano E8035 504Wh for S only |
| Brakes: | Shimano M4100 / FRONT: 4 piston / REAR: 2 piston |
| Chain: | KMC e10s |
| Chainwheel: | Shimano CRE70-B 34 teeth |
| Crankset: | Shimano FCEM600 165 mm |
| Derailleur rear: | Shimano Deore RDM5120 10 |
| Display: | Shimano SC-E5003A |
| Fork: | SR Suntour XCR34 LOR DS Air Boost 140mm Tapered 51mm fork offset 29x2.4" max wheelsize |
| Frame: | eONE-FORTY LITE III material: aluminium 133mm suspension travel 27.5x2.8" max. wheelsize 148x12mm axle standard intube |
| Freewheel: | Shimano M4100 11-46 teeth 10 speed Cassette |
| Grip: | MERIDA EXPERT EC |
| Handlebar: | MERIDA EXPERT eTR 780mm width 20mm rise |
| Handlebar stem: | MERIDA EXPERT eTRII material: aluminium 35mm diameter 0° stem angle GoPro & Supernova mount 50 mm |
| Headset: | MERIDA 8152 |
| Hubs: | FRONT: Shimano MT400-B 110x15mm width front hub 32 spoke holes Centerlock / REAR: Shimano MT400-B 148x12mm width rear hub 36 spoke holes Centerlock |
| Light(s): | FRONT: Dlight CG-119PG STZVO / REAR: Dlight CG-404RG STVZO |
| Motor drive unit: | Shimano EP8 85Nm |
| Pedals: | VP VPE-537 |
| Rim: | MERIDA COMP TR 29mm inner width material: aluminium Tubeless ready (tubeless tape and valves not included) |
| Rotor front: | Shimano RT30 203 mm |
| Rotor rear: | Shimano RTEM300 180 mm |
| Saddle: | MERIDA COMP SL V-mount |
| Season: | 2022 |
| Seat clamp: | MERIDA EXPERT |
| Seat post: | MERIDA COMP TR 30.9mm diameter 0mm setback S/M 100mm travel seatpost - L/XL 125mm travel seatpost - XXL 150mm travel seatpost |
| Shock: | SR Suntour EDGE lockout |
| Spokes: | Black stainless |
| Tyre front: | Maxxis Rekon 29x2.4" wire DUAL |
| Tyre rear: | Maxxis Rekon 27.5x2.6" wire EXO |
| Wheel size: | 29" / 27.5" (Mullet Bike) |
| Frame Size | S / 16" | M / 16.5" | L / 17" | XL / 18" | XXL / 18.5" |
| Tyre Sizes | 29/27.5" | 29/27.5" | 29/27.5" | 29/27.5" | 29/27.5" |
| ST seat tube [mm] | 405 | 415 | 430 | 450 | 470 |
| TT top tube [mm] | 561 | 581 | 603 | 624 | 645 |
| CS chain stay length [mm] | 439.5 | 439.5 | 439.5 | 439.5 | 439.5 |
| HTA head tube angle [°] | 66.5 | 66.5 | 66.5 | 66.5 | 66.5 |
| STA seat tube angle [°] | 76.5 | 76.5 | 76.5 | 76.5 | 76.5 |
| BD bottom bracked drop [mm] | 25 | 25 | 25 | 25 | 25 |
| HT head tube [mm] | 110 | 115 | 120 | 125 | 130 |
| FL fork length [mm] | 551 | 551 | 551 | 551 | 551 |
| R reach [mm] | 410 | 430 | 450 | 469 | 489 |
| S stack [mm] | 622 | 627 | 631 | 635 | 640 |
| WB wheel base [mm] | 1160 | 1182 | 1204 | 1226 | 1248 |
| SH stand over height [mm] | 729 | 730 | 727 | 733 | 747 |
Merida Electric Mountain Bike Sizing Chart
Merida Bikes Warranties
Lifetime warranty on all frames
Lifetime warranty on all frames for the entire ownership of the original purchaser. This covers manufacturing and material defects. No exclusions for racing. Rider and equipment weight limit: 120kg for standard bikes; 140kg for e-Bikes. Proof of purchase must be presented. (frames from model year 2015 onwards). *Conditions apply. *The lifespan of a bike is up to ten years.
Forks: Carbon and aluminium rigid forks are guaranteed for 5 years from the date of purchase
Suspension: Rear suspension components are guaranteed for 2 years from the date of purchase
All other MERIDA branded components, including paint and finish, are guaranteed for 1 year from the date of purchase.
The Merida Warranty Excludes:
Componentry which isn’t Merida branded (see below)
Normal wear and tear
Damage caused by accidents, neglect or abuse
Improper assembly
Improper follow-up maintenance; all bikes must be serviced by an authorised MERIDA dealer within 6 months of purchase. Suspension systems must be serviced annually by an authorised dealer
Modification or alteration of the frame or original components
Branded Components
Issues relating to branded original components, such as Shimano or SRAM are the responsibility of the appropriate component manufacturer’s warranty and subject to their terms and conditions.
In the case of branded components failing, please contact your local MERIDA stockist who will liaise with the relevant distributor on your behalf.
If the cause of the fault isn’t initially clear based on the information and photos your MERIDA stockists provides, the defective product may need to be returned to MERIDA Bicycles Ltd for closer inspection.
Merida is an international bike brand with its headquarters in Taiwan, the R&D department is based near Stuttgart in Germany. To be based in Germany has historical reasons for MERIDA but the precise location was chosen specifically because the region around Stuttgart is one of the hot spots of the automotive and machine building industry which Germany is famous for and attracts a hugely skilled design and engineer labor force.
The Merida team are more than just highly trained and experienced bicycle creators – they simply love everything ‘bike’. Most of their R&D staff are daily bike commuters while others are serious mountain bikers, who regularly compete in Marathon, Enduro and Downhill competitions, or licensed road racers and even ambitious Ironman triathletes. Get the behind the scenes view of the Merida R&D centre and meet some of their key members of staff in the below video.
