- Lightweight Prolite 66 triple butted Alloy Frame
- Suntour XCM32 100mm travel Fork
- Shimano E7000 e-MTB motor, 60Nm Torque
- Shimano E8010 Battery, 504Wh
- Assist speeds up to 32 km/h
- Approx range 25 - 45km on singletrack, 75 - 135km on flat
- Shimano 1x9 speed Alivio/Altus Drivetrain
- Tektro Hydraulic Disc Brakes
- Maxxis Ikon, 27.5x2.2", kevlar bead tyres
- Mounting points for fenders, rack and kickstand

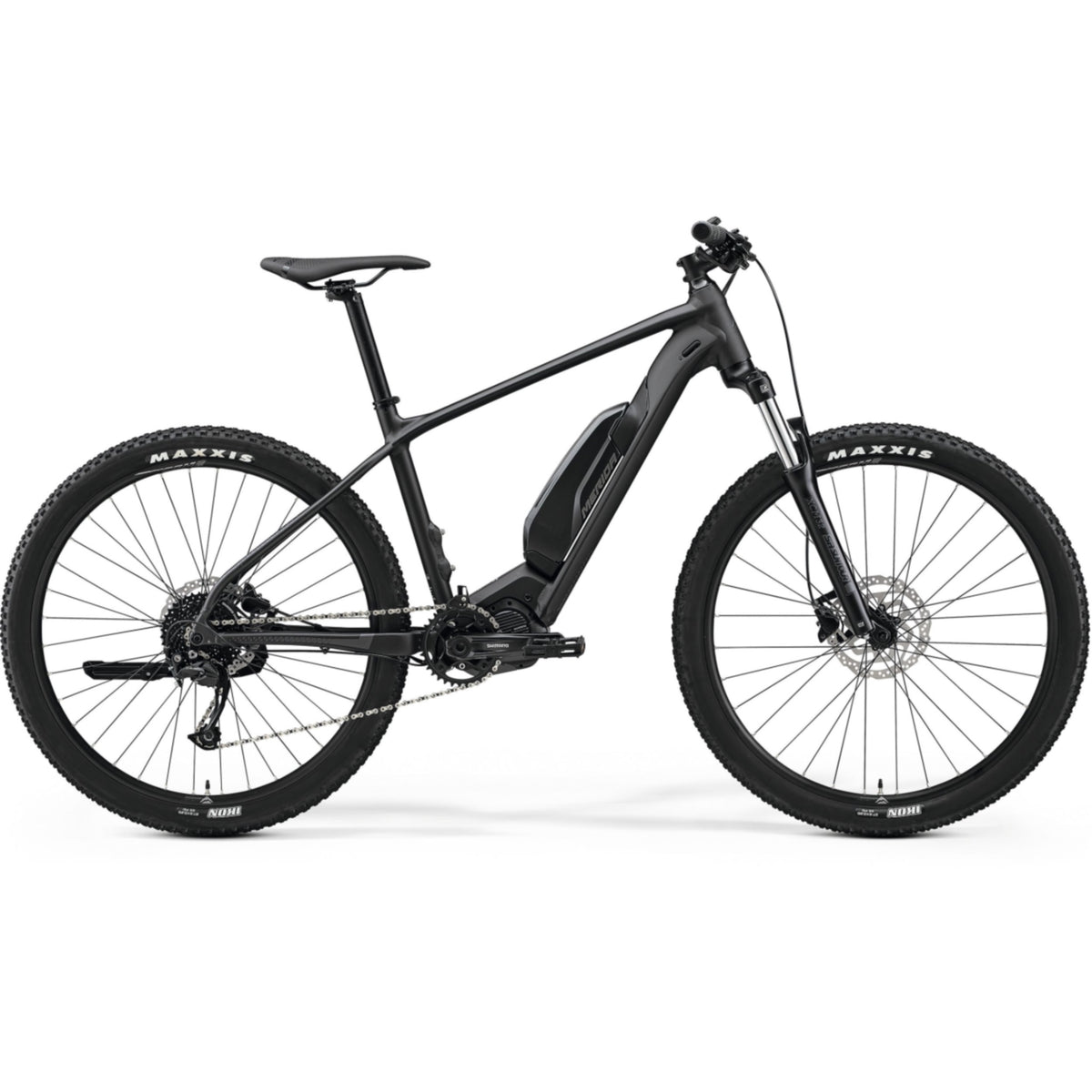

The Merida eBig Nine/Seven models are Ideal for anyone looking for the perfect balance of day-to-day usability and sporty leisure activity, enabling you to combine the daily commute with a sporty trail detour on the way home. The eBig Seven 300 SE is built around a lightweight HFS-hydroforming Prolite 66 triple butted aluminium 27.5" hardtail frame with powerful Shimano E7000 motor and E8010 battery. Smooth, reliable shifting with 9 Speed Shimano transmission, paired with powerful Tektro Hydraulic disc brakes to provide precise braking performance in all weather conditions. The casting motor bracket creates an integrated appearance of the motor into the frame as well as provides an extremely strong connection between frame and motor. Smart Entry cable routing offers a clean aesthetic and rattle free running. A Kickstand is already included, while integrated mounts are ready for Fenders and Rear Racks, making these versatile bikes completely customizable.
|Axles:||REAR: MERIDA COMP TR, including removable lever, 6/4mm allen key|
|Battery:||Shimano E8010 504Wh|
|Brakes:||Tektro M275 2 piston|
|Crankset:||Shimano CRE70-B 34T / Length: Shimano FC-E8000 165 mm for all sizes|
|Derailleur rear:||Shimano Alivio M3100 SGS|
|Fork:||Suntour XCM32 DS, Coil, 100mm, Tapered, 47mm fork offset, 29x2.4" Max Tyre Width|
|Frame:||eBIG.SEVEN LITE, Aluminium,Max 27.5x2.20" without fender Max/ 27.5"x2.00" with fender Max Tyre Width, 148x12, External Battery|
|Freewheel:||Shimano HG200 11-36T 9-speed Cassette|
|Grip:||MERIDA EXPERT EC|
|Handlebar:||MERIDA EXPERT CC Aluminium 720mm Wide 10mm Rise|
|Handlebar stem:||MERIDA EXPERT CC Aluminium 31.8mm|
|Headset:||Merida 2341 Neck|
|Hubs:||FRONT: Shimano MT400 110x15 32H, Centerlock / REAR: Shimano MT400-B 148x12 36H, Centerlock|
|Motor drive unit:||Shimano E7000 60Nm|
|Rim:||MERIDA COMP CC 20mm Inner Width Aluminium|
|Rotor front:||Shimano RT10 180 mm|
|Rotor rear:||Shimano RT10 180 mm|
|Saddle:||MERIDA COMP SL V-mount|
|Seat clamp:||MERIDA EXPERT clamp|
|Seat post:||MERIDA EXPERT MAT aluminium 30.9mm 15Â° Setback|
|Tyre front:||Maxxis Ikon, 27.5x2.2", kevlar bead|
|Tyre rear:||Maxxis Ikon, 27.5x2.2", kevlar bead|
|Weight:||22.5kg (weighed with 27.5" wheels in medium frame size)|
|Wheel size:||27.5" (650b)|
|Frame Size||XS / 13"||S / 15"||M / 17"|
|ST seat tube [mm]||330||380||430|
|TT top tube [mm]||570||570||590|
|CS chain stay length [mm]||455||438||438|
|HTA head tube angle [°]||68||68||68|
|STA seat tube angle [°]||73.5||73.5||73.5|
|BD bottom bracked drop [mm]||27||27||27|
|HT head tube [mm]||115||125||135|
|FL fork length [mm]||487||487||487|
|R reach [mm]||401||399||416|
|S stack [mm]||569||579||588|
|WB wheel base [mm]||1120||1104||1125|
|SH stand over height [mm]||673||710||749|
Merida Big Seven Bike Sizing Chart
Merida Bikes Warranties
Lifetime warranty on all frames
Lifetime warranty on all frames for the entire ownership of the original purchaser. This covers manufacturing and material defects. No exclusions for racing. Rider and equipment weight limit: 120kg for standard bikes; 140kg for e-Bikes. Proof of purchase must be presented. (frames from model year 2015 onwards). *Conditions apply. *The lifespan of a bike is up to ten years.
Forks: Carbon and aluminium rigid forks are guaranteed for 5 years from the date of purchase
Suspension: Rear suspension components are guaranteed for 2 years from the date of purchase
All other MERIDA branded components, including paint and finish, are guaranteed for 1 year from the date of purchase.
The Merida Warranty Excludes:
Componentry which isn’t Merida branded (see below)
Normal wear and tear
Damage caused by accidents, neglect or abuse
Improper follow-up maintenance; all bikes must be serviced by an authorised MERIDA dealer within 6 months of purchase. Suspension systems must be serviced annually by an authorised dealer
Modification or alteration of the frame or original components
Issues relating to branded original components, such as Shimano or SRAM are the responsibility of the appropriate component manufacturer’s warranty and subject to their terms and conditions.
In the case of branded components failing, please contact your local MERIDA stockist who will liaise with the relevant distributor on your behalf.
If the cause of the fault isn’t initially clear based on the information and photos your MERIDA stockists provides, the defective product may need to be returned to MERIDA Bicycles Ltd for closer inspection.
