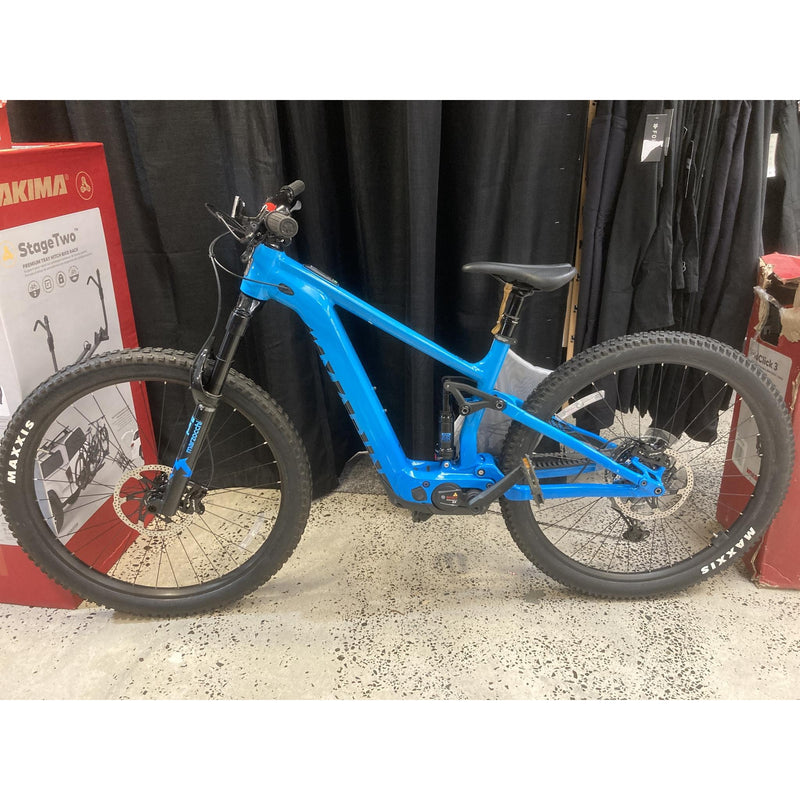

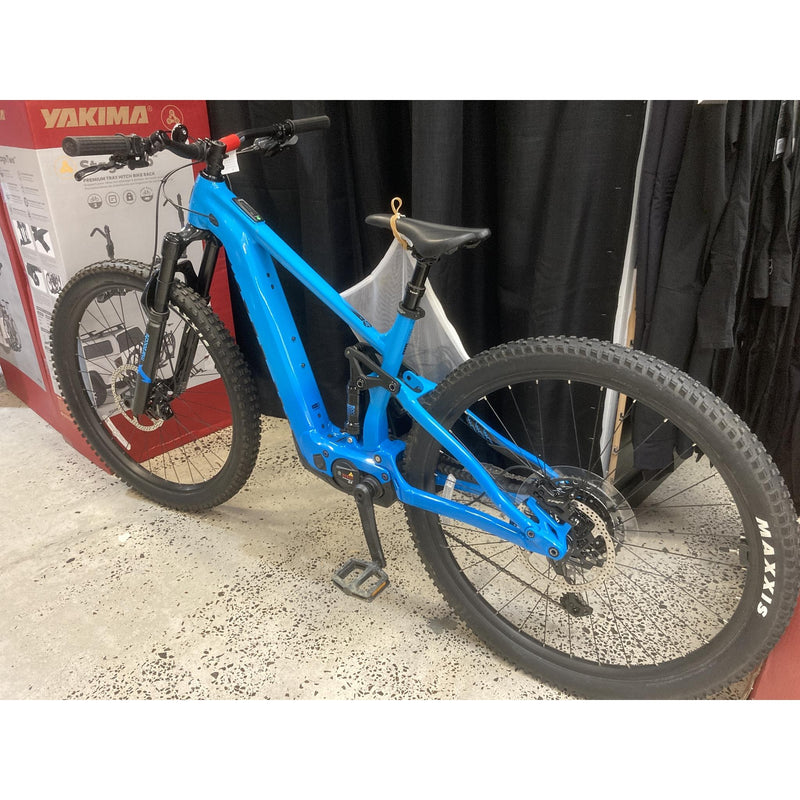

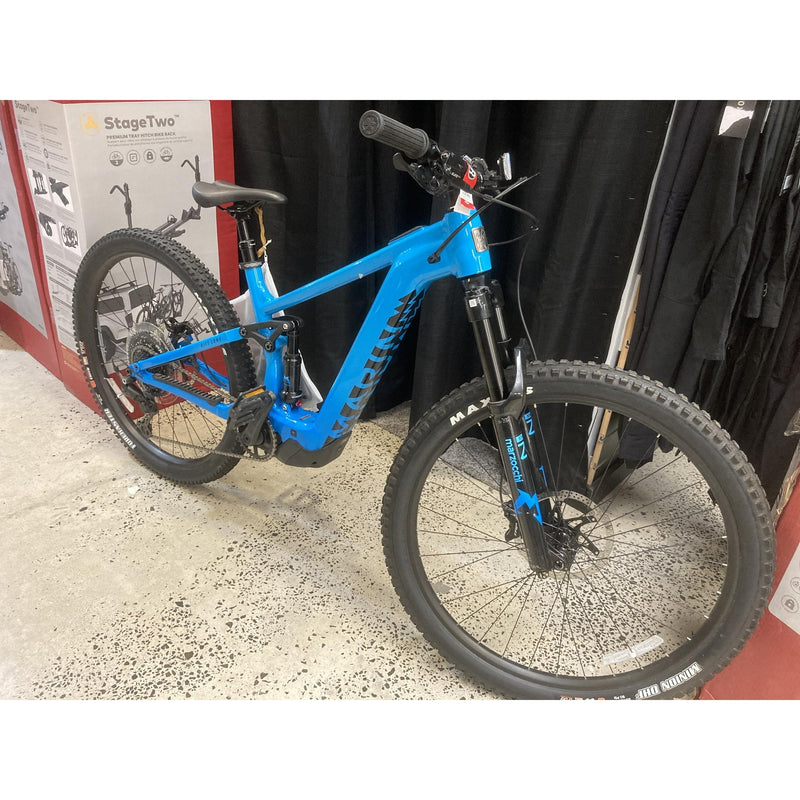

EX-DEMO Marin Rift Zone EL 1 Electric Trail Bike 400Wh Battery Blue/Navy Fade (X-Large)
5% Best Price Guarantee
If you find a cheaper price, we will beat it by 5%*
- Applies to any cheaper price found in New Zealand.
- When the competitor's final price inclusive of any taxes and delivery fees.
- Excludes Garmin products, other exclusions apply.
Perfect Ride Guarantee
If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »
Free Bike Build
We'll build your bike for free when you click and collect at any 99 Bikes store.
First Free Tune-up
Every bike come with a complimentary free tune-up and safety check. Learn more »
Ex-Demo Condition Report: This is an ex-demo bike. Minor scratch on seat stay and chain stay. All Ex-Demo bikes are subject to the standard manufacturer warranty. The Marin Rift Zone EL 1 Electric Trail Bike combines performance and innovation for an exhilarating ride on challenging trails. Featuring a lightweight alloy frame and advanced suspension, this bike delivers a powerful boost with its Bosch motor, making it ideal for both novice and experienced riders seeking adventure.
| Accessories: | e*thirteen e*Spec Chainguide, Bolt-On 12mm Thru-Axle, 17 4mm Length, 1.0 Thread Pitch, 16.5mm, Tapered Head |
|---|---|
| Battery: | Bosch 400Wh Internal |
| Brakes: | TRP Slate EVO, 4-Piston Hydraulic Disc, Resin Pads, 203mm Rotor |
| Cassette: | Shimano CS-LG300-10, 11-48T |
| Chain: | Shimano LG500 |
| Crankset: | e*thirteen e*spec Plus, 160mm Length, 34T |
| Derailleur rear: | Shimano CUES RD-U6000 GS, 10-Speed |

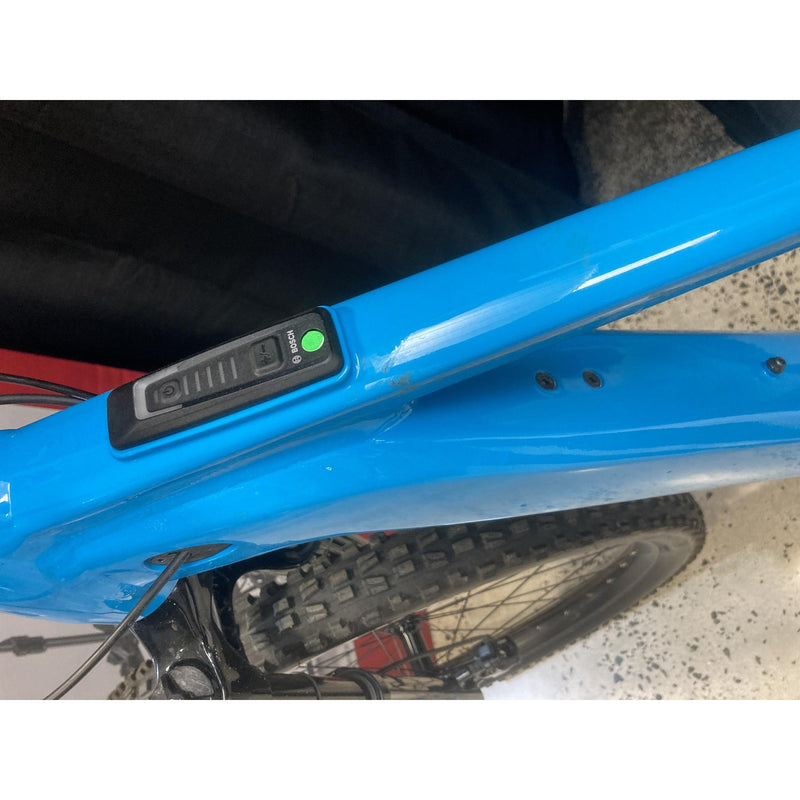

| Display: | Bosch BRC3100 Systems Controller / Switch: Bosch BRC3300 Bluetooth Remote 22.2mm Clamp |
| Fork: | Marzocchi Bomber Zl 140mm Travel, 29, 110xl 5 Kabolt Thru Axle, 44mm Offset |
| Frame: | All New Series 4 Alloy Lightweight E, 140mm MultiTrac Suspension, Integrated Battery/Charging Port, 148mm Rear Thru-Axle |
| Grip: | Marin Grizzly Lock On |
| Handlebar: | Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5° Up, 9° Back |
| Handlebar stem: | Marin 3D Forged Alloy, 35mm |
| Headset: | FSA Custom Headset, Adjustable HTA Design |
| Hubs: | FRONT: Shimano HB-TCS00, 110x10 Thru Axle, 32H, Centerlock / REAR: Shimano FHTCS00, 148x12 Thru Axle, Mircospline, 32H, Centerlock |
| Motor drive unit: | Bosch Performance Line SX, 600W, 55Nm torque |
| Pedals: | Marin MTB Plastic |
| Rim: | Front: 29" Diameter, 32mm Inner Rim Width; Rear: 27.5" Diameter, 32mm Inner Rim Width, Tubeless Compatible |
| Saddle: | Marin Speed Concept |
| Season: | 2025 |
| Seat post: | TranzX, YSl34 QL, Plastic lx Remote, Size S 150mm Travel, Size Mand L 170mm Travel, Size XL 200mm Travel, 34.9mm |
| Shifters: | Shimano CUES SL-U6000-10R,10-Speed |
| Shock: | All New Marzocchi Bomber Air Shock |
| Tyres: | Front: Maxxis Minion DHF, 29x2.4" MAXXGRIP, Tubeless ready, EXO+, Rear: Maxxis Forecaster 29x2.4", Tubeless Ready MAXX TERRA EXO+ |
