Features

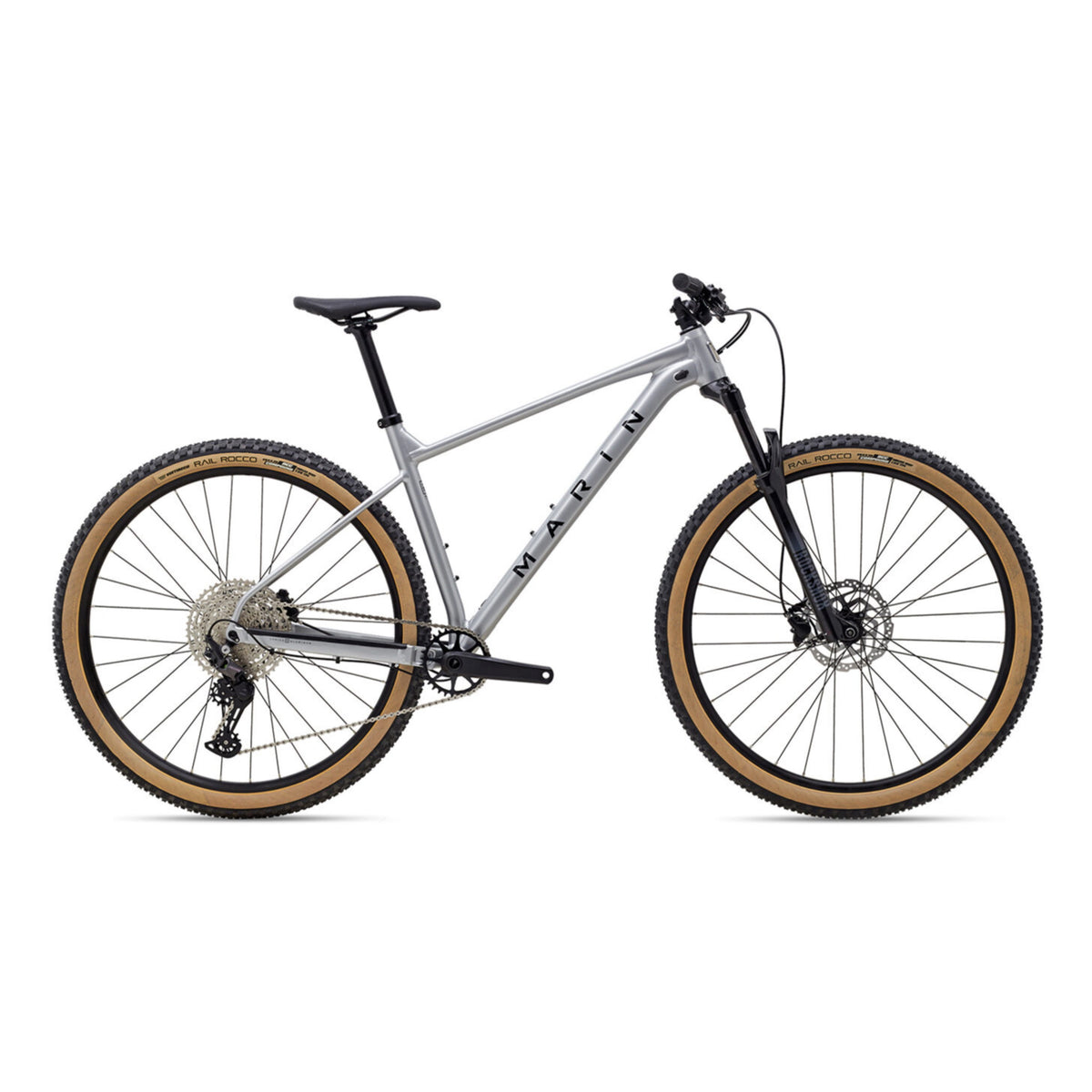

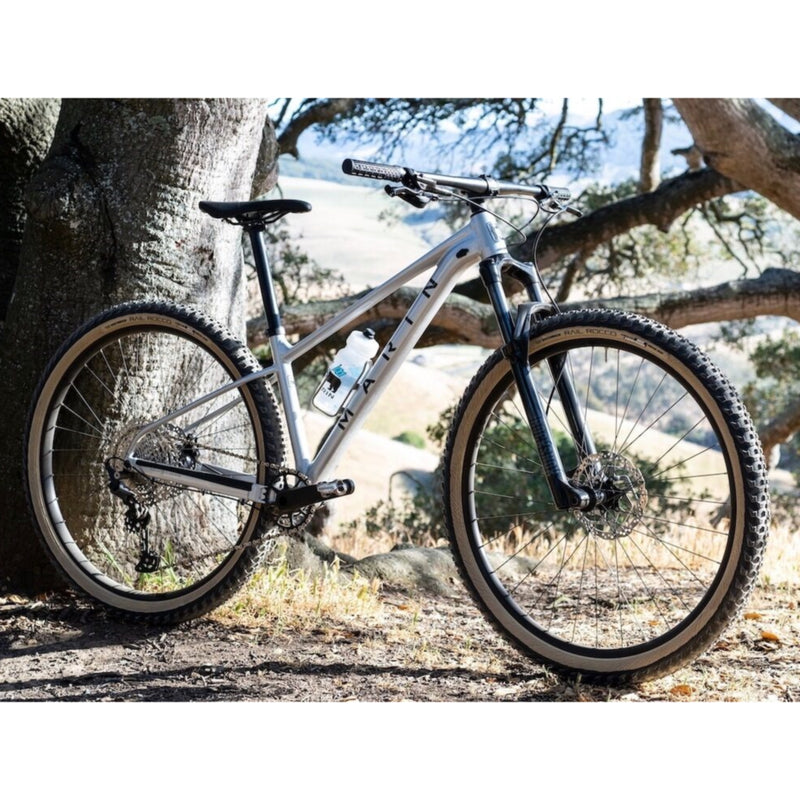

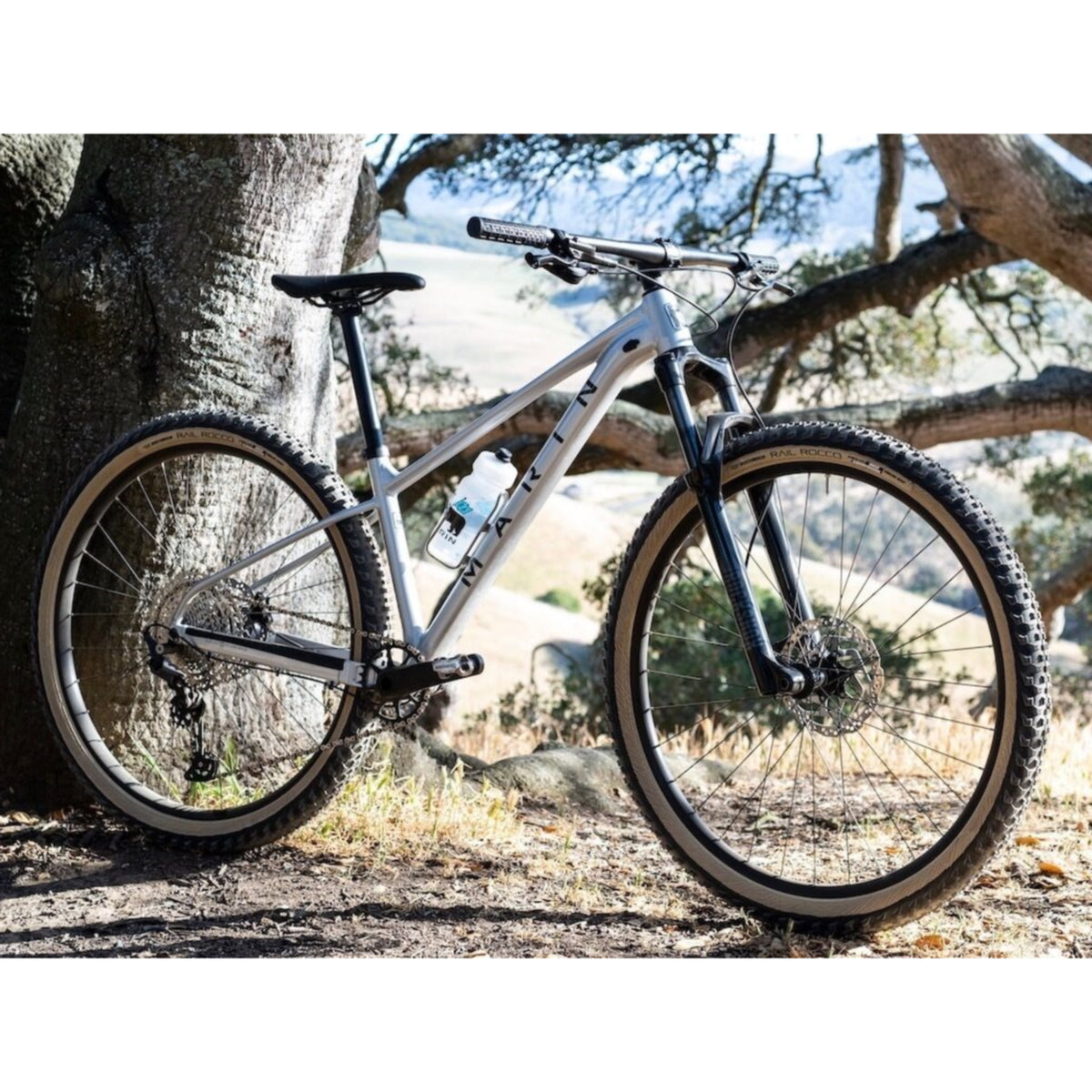

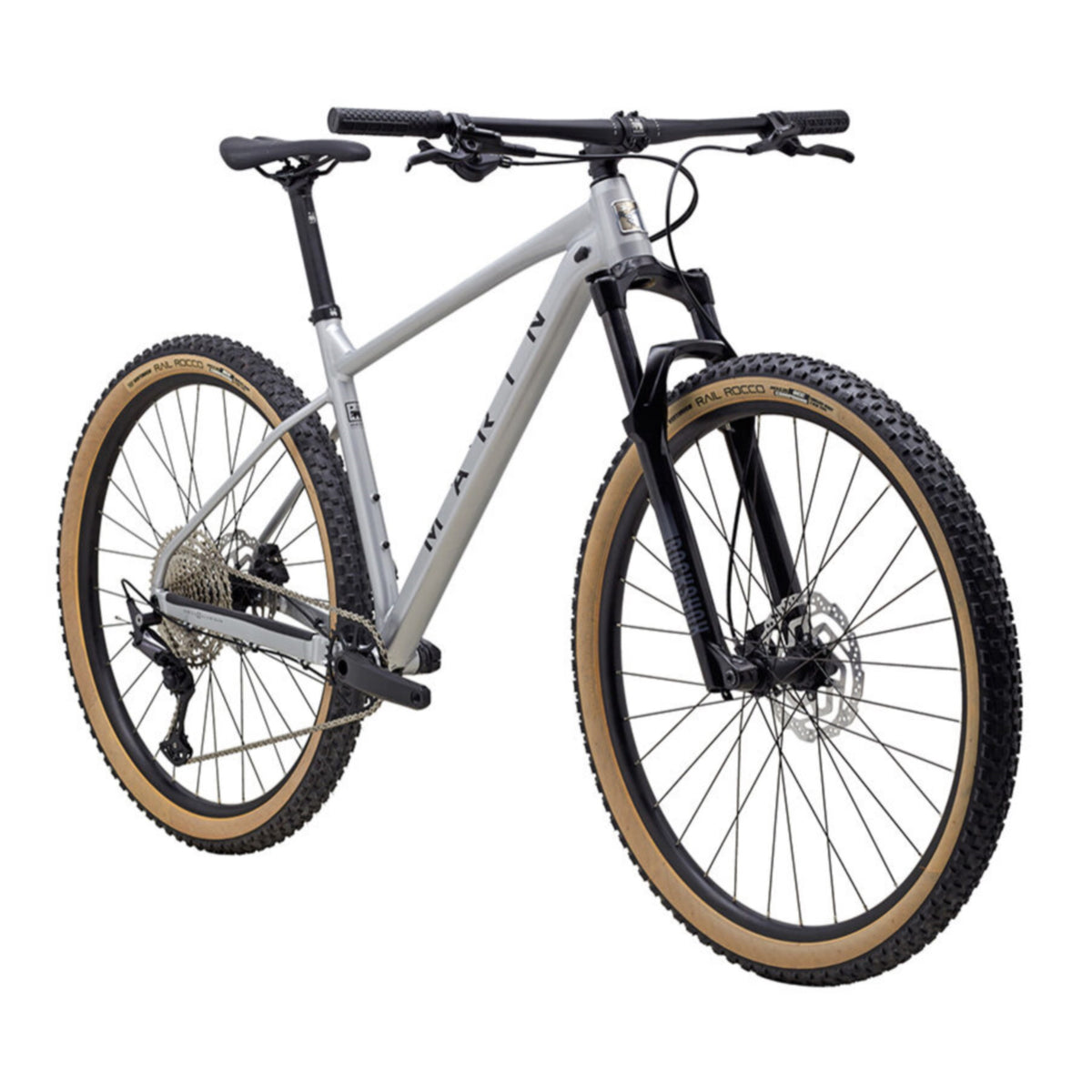

Marin Team Marin 1 Trail/XC Race Bike Chrome
5% Best Price Guarantee
If you find a cheaper price, we will beat it by 5%*
- Applies to any cheaper price found in New Zealand.
- When the competitor's final price inclusive of any taxes and delivery fees.
- Excludes Garmin products, other exclusions apply.
Perfect Ride Guarantee
If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »
Free Bike Build
We'll build your bike for free when you click and collect at any 99 Bikes store.
First Free Tune-up
Every bike come with a complimentary free tune-up and safety check. Learn more »
- Series 4 6061 aluminium frame
- Old school looks with new school XC geometry
- RockShox Judy Silver TK 120mm travel fork

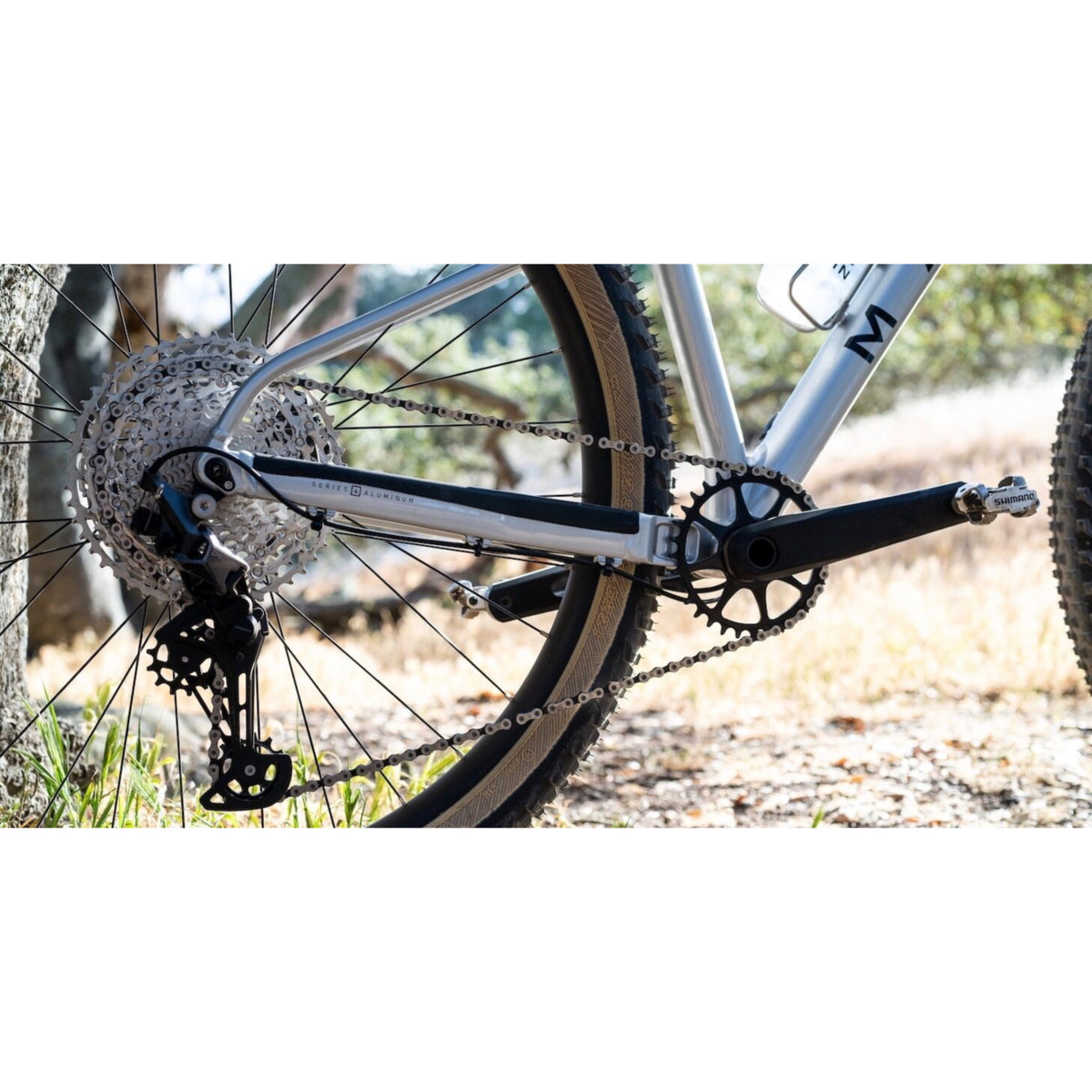

- Shimano Deore 1x12 speed drivetrain
- Shimano MT201 hydraulic disc brakes
| Bottom bracket: | External Sealed Cartridge Bearings |
|---|---|
| Brakes: | Shimano BR-MT201 Hydraulic Disc |
| Brake levers: | Shimano BL-MT201 Hydraulic |
| Brake type: | Hydraulic Disc Brake |
| Cassette: | 12 Speed |
| Chain: | KMC X12 |
| Chainset: | Single |
| Crankset: | Marin Forged Alloy 1x12, Hollow Spindle, Steel Narrow Wide 32T Direct-Mount Chainring |
| Derailleur rear: | Shimano Deore 12-Speed |
| Fork: | RockShox Judy Silver TK, 120mm Travel, Alloy Tapered Steerer, Solo Air Spring, 110x15mm Boost Spacing, Maxle Stealth, 51mm Offset |
| Fork brand: | RockShox |
| Fork material: | Alloy |

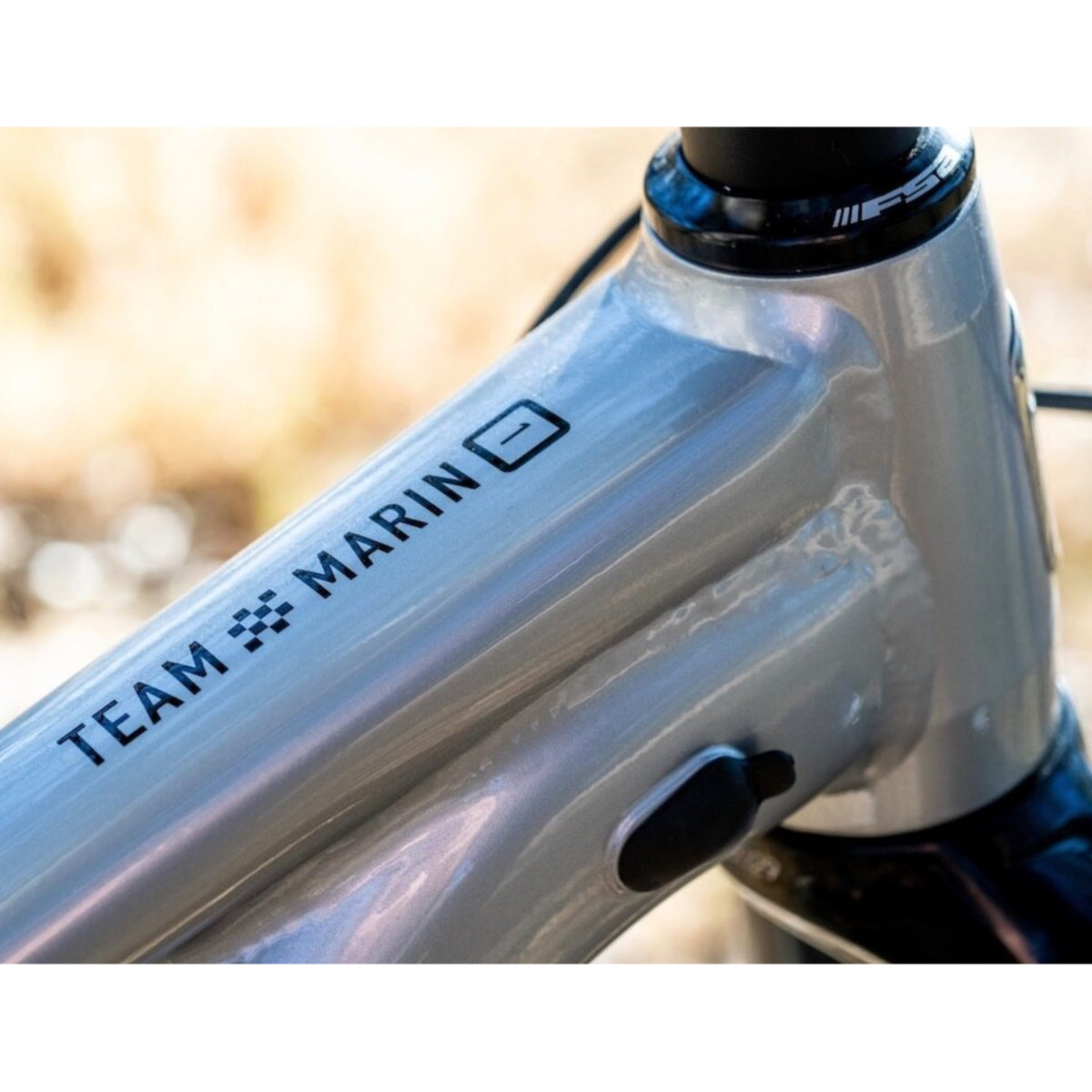

| Frame: | Series 4 6061 Aluminum, 29" Wheels, Superlight Aluminum Frame, Flat-Mount Rear Brake, Internal Shifter and Dropper Post Routing, 148x12mm Boost Thru-Axle |
| Frame material: | Alloy |
| Freewheel: | Shimano Deore 12-Speed, 10-51T Cassette |
| Front travel: | 120mm |
| Gender: | Unisex |
| Grip: | Marin Single Clamp Locking |
| Grips: | Marin Single Clamp Locking |
| Groupset: | Shimano Deore |
| Groupset brand: | Shimano |
| Handlebar: | Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 4º Up, 9º Back |
| Handlebars: | Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 4º Up, 9º Back |
| Handlebar stem: | Marin 3D Forged Alloy, 35mm |
| Headset: | FSA No 42ACB, 1 1/8" x 1 1/2” |
| Hubs: | FRONT: Shimano, 110x15mm, Centerlock Disc, 32H / REAR: Shimano, 148x12mm, MicroSpline, Centerlock Disc, 32H |
| Mips rated: | false |
| Pedals: | Nylon Platform |
| Puncture resistant: | false |
| Rim: | Marin Aluminum Double Wall, 29mm Inner, Sleeve Joint, Disc Specific, Tubeless Compatible |
| Rims: | Marin Aluminum Double Wall, 29mm Inner, Sleeve Joint, Disc Specific, Tubeless Compatible |
| Rotor front: | 180mm Centerlock Rotor |
| Rotor rear: | 160mm Centerlock Rotor |
| Saddle: | Marin Speed Concept |
| Season: | 2022 |
| Seatpost: | Marin Alloy, 30.9mm |
| Seat post: | Marin Alloy, 30.9mm |
| Shifters: | Shimano Deore 12-Speed |
| Speeds: | 1 x 12 |
| Spokes: | 14g Black Stainless Steel |
| Stem: | Marin 3D Forged Alloy, 35mm |
| Tubeless ready: | false |
| Tyre front: | Vee Tire, Rail Rocco XC, 29x2.3", Dual Control Compound, Folding Bead, Tubeless Ready |
| Tyre rear: | Vee Tire, Rail Rocco XC, 29x2.3", Dual Control Compound, Folding Bead, Tubeless Ready |
| Use type: | Cross Country |
| Wheel size: | 29" |
| S / 16" | M / 17" | L / 18" | XL / 19" | |
|---|---|---|---|---|
| Stack | 613.9 | 618.5 | 623.05 | 632.3 |
| Reach | 410 | 430 | 450 | 485 |
| Headtube Angle | 67° | 67° | 67° | 67° |
| Headtube Length | 97 | 102 | 107 | 117 |
| Seattube Angle | 74° | 74° | 74° | 74° |
| Seattube Length | 381 | 431 | 482 | 520 |
| Toptube Effective | 586 | 607.3 | 628.7 | 666.3 |
| BB Height | 319.75 | 319.75 | 319.75 | 319.75 |
| BB Drop | 58 | 58 | 58 | 58 |
| Chainstay | 425 | 425 | 425 | 425 |
| Wheelbase | 1122.4 | 1144.3 | 1166.3 | 1205.19 |
| Standover Height | 678.7 | 707 | 753.5 | 786.5 |
| Fork Offset | 51 | 51 | 51 | 51 |
| Seatpost Diameter | 30.9 | 30.9 | 30.9 | 30.9 |
| Handlebar Width | 780 | 780 | 780 | 780 |
| Stem Length | 35 | 35 | 35 | 35 |
| Crank Length | 170 | 175 | 175 | 175 |
All lengths in millimeters
Marin Team Marin Bike Sizing Chart
Marin Bikes are Made For Fun. Since the first mountain bikes bearing the Marin name debuted in 1986, the brand has been dedicated to enriching the lives of riders by making fun, high caliber bicycles, which provide years of riding enjoyment. They operate their business based on hard work, fueled by passion, and fulfilled by the satisfaction of bringing the joy of cycling to riders across the world.
Click & Collect Available
• In-stock items usually ready in 4 hours* • Online Only items usually ready in 1-3 working days More info »
Courier Delivery Available
• $9.99 for orders $99 & under • Free for orders over $99 • Bulky shipping fees apply for bikes & bulky items based on item weight More info »
Please note, due to challenges in the product supply chain, bike specifications are subject to change without notice. Specifications listed below may not match exactly as shown in the photo.
