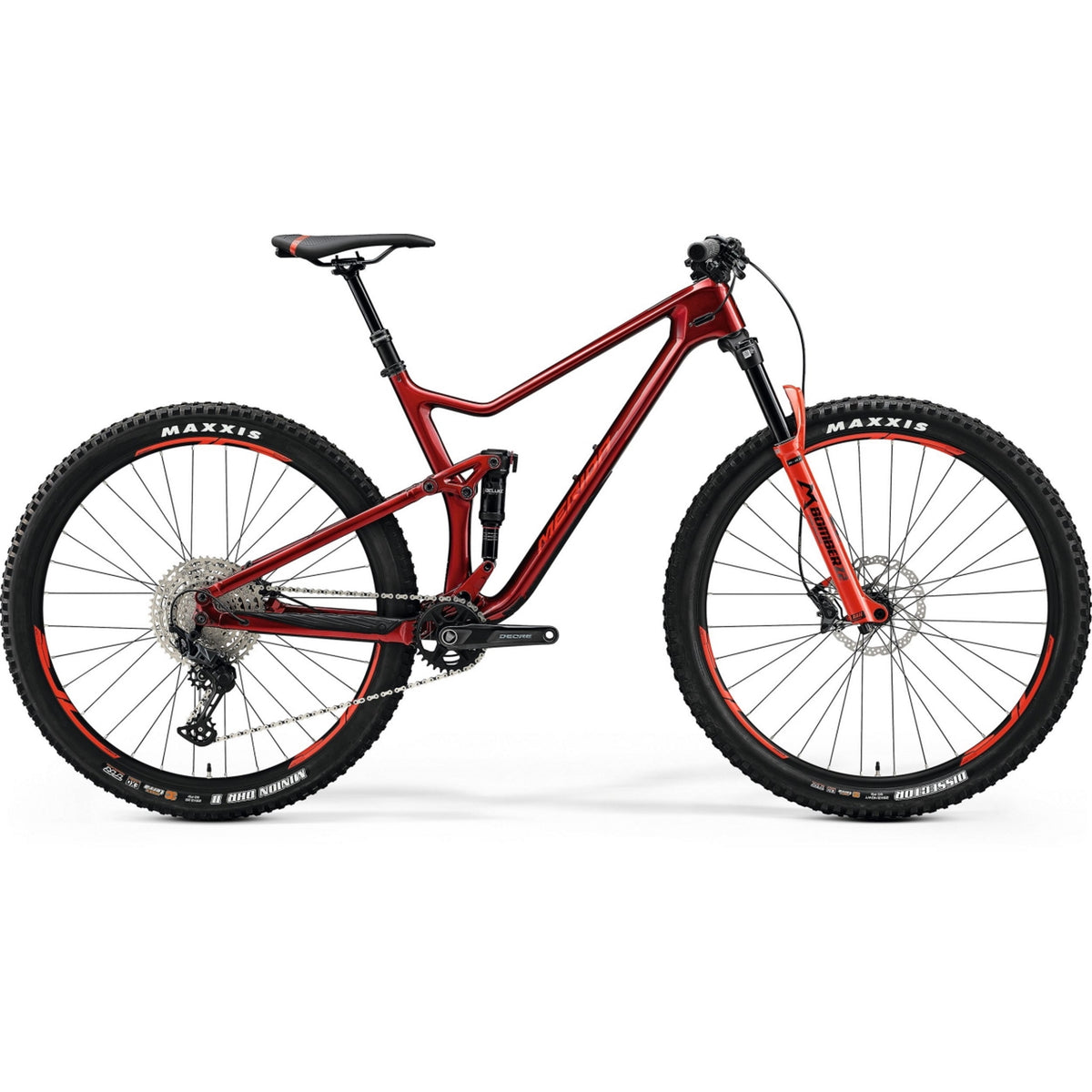

Merida One Twenty 3000 XC/Trail Bike Dark Strawberry/Race Red
5% Best Price Guarantee
If you find a cheaper price, we will beat it by 5%*
- Applies to any cheaper price found in New Zealand.
- When the competitor's final price inclusive of any taxes and delivery fees.
- Excludes Garmin products, other exclusions apply.
Perfect Ride Guarantee
If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »
Free Bike Build
We'll build your bike for free when you click and collect at any 99 Bikes store.
First Free Tune-up
Every bike come with a complimentary free tune-up and safety check. Learn more »
- Carbon front end/aluminium rear end frame with trail orientated geometry
- Marzocchi Z2, Air, 130mm travel fork with lockout
- Rock Shox Deluxe Select+, shock with lockout
- Shimano SLX/Deore 1x12 speed drivetrain
- Shimano M6100 hydraulic disc brakes
- 29er wheels with trail orientated Maxxis Dissector/Minion tyres
Trail session on Saturday, marathon event on Sunday. That is the perfect timetable for Merida’s hugely versatile mid-travel One Twenty. It loves to shine on demanding descends and covers ground effortlessly. The One Twenty 3000 features a lightweight and hugely stiff carbon front triangle and combines it with a more wallet-friendly triple butted aluminium rear end. This allows the 3000 to be kitted out with some quality Shimano components for smooth and reliable shifting and on-point braking performance. While very much a trail bike at heart, the modern yet balanced trail bike geometry, paired with fantastic frame stiffness, created a mid-travel bike that is super capable on rough trails but also carries speed perfectly on less technically demanding tracks. With multiple test successes, including a 'BEST IN TEST' in Enduro Mountainbike Magazine for the 2020 ONE-TWENTY 8000, The One Twenty will once again impress with its versatility and unstoppable trail munching capabilities.
| Axles: | MERIDA EXPERT TR, including removable lever, 6/4mm allen key |
|---|---|
| Bottom bracket: | Shimano MT500-PA pressfit |
| Brakes: | Shimano M6100, 2 piston |
| Chain: | KMC X12 |
| Crankset: | Shimano Deore M6100, 32T 170 mm-S, 175 mm-M up |
| Derailleur rear: | Shimano SLX M7100 Shadow+, SGS |
| Fork: | Marzocchi Z2, Air, 130mm Travel, Tapered, 44mm fork offset, 29x2.6" Max Tyre Width |
| Frame: | ONE-TWENTY CFA, 120mm, MAT Carbon/aluminium, 29x2.35" Max Tyre Width, 148x12, BB92 Bottom Bracket |
| Freewheel: | Shimano Deore M6100, 10-51T, 12-speed |
| Grip: | MERIDA EXPERT EC |
| Handlebar: | MERIDA EXPERT TR, Aluminium, 760mm Wide, 20mm Rise |
| Handlebar stem: | MERIDA EXPERT TR, Aluminium, 35, 0° Rise 50 mm all sizes |
| Headset: | FSA NO.47/50 |
| Hubs: | FRONT: Shimano MT400-B, 110x15, 32H, Centerlock / REAR: Shimano MT410-B, 148x12, 32H, Centerlock |
| Rim: | MERIDA EXPERT TR, 29mm Inner Width, Aluminium, Tubeless ready (tubeless tape and valves not included) |
| Rotor front: | Shimano RT54, 180mm |
| Rotor rear: | Shimano RT54, 180mm |
| Saddle: | MERIDA COMP SL, V-mount, incl. MERIDA minitool |
| Season: | 2022 |
| Seat clamp: | MERIDA EXPERT |
| Seat post: | MERIDA COMP TR, 30.9mm, 0° Setback, S: 100 SPT - M: 125 SPT - L/XL: 150 SPT |
| Shock: | Rock Shox Deluxe Select+, lockout |
| Tyre front: | Maxxis Dissector, 29x2.4", fold, TR EXO 3C MaxxTerra |
| Tyre rear: | Maxxis Minion DHR II, 29x2.3", fold, TR EXO 3C MaxxTerra |
| Weight: | Max Rider Weight: 135kg |
| Wheel size: | 29" |
| Frame Size | S | M | L | XL |
| Tyre Sizes | 29" | 29" | 29" | 29" |
| seat tube [mm] | 400 | 440 | 480 | 520 |
| top tube [mm] | 572 | 592 | 614 | 637 |
| chain stay length [mm] | 435 | 435 | 435 | 435 |
| head tube angle [°] | 67.3 | 67.3 | 67.3 | 67.3 |
| seat tube angle [°] | 75.5 | 75.5 | 75.5 | 75.5 |
| bottom bracked drop [mm] | 40 | 40 | 40 | 40 |
| head tube [mm] | 95 | 95 | 105 | 115 |
| fork length [mm] | 541 | 541 | 541 | 541 |
| reach [mm] | 415 | 435 | 455 | 475 |
| stack [mm] | 607 | 607 | 616 | 626 |
| wheel base [mm] | 1141 | 1160.7 | 1185 | 1208 |
| stand over height [mm] | 703 | 718 | 745 | 770 |
Merida Dual Suspension Bike Sizing Chart
Merida is an international bike brand with its headquarters in Taiwan, the R&D department is based near Stuttgart in Germany. To be based in Germany has historical reasons for MERIDA but the precise location was chosen specifically because the region around Stuttgart is one of the hot spots of the automotive and machine building industry which Germany is famous for and attracts a hugely skilled design and engineer labor force.
The Merida team are more than just highly trained and experienced bicycle creators – they simply love everything ‘bike’. Most of their R&D staff are daily bike commuters while others are serious mountain bikers, who regularly compete in Marathon, Enduro and Downhill competitions, or licensed road racers and even ambitious Ironman triathletes. Get the behind the scenes view of the Merida R&D centre and meet some of their key members of staff in the below video.
