Features

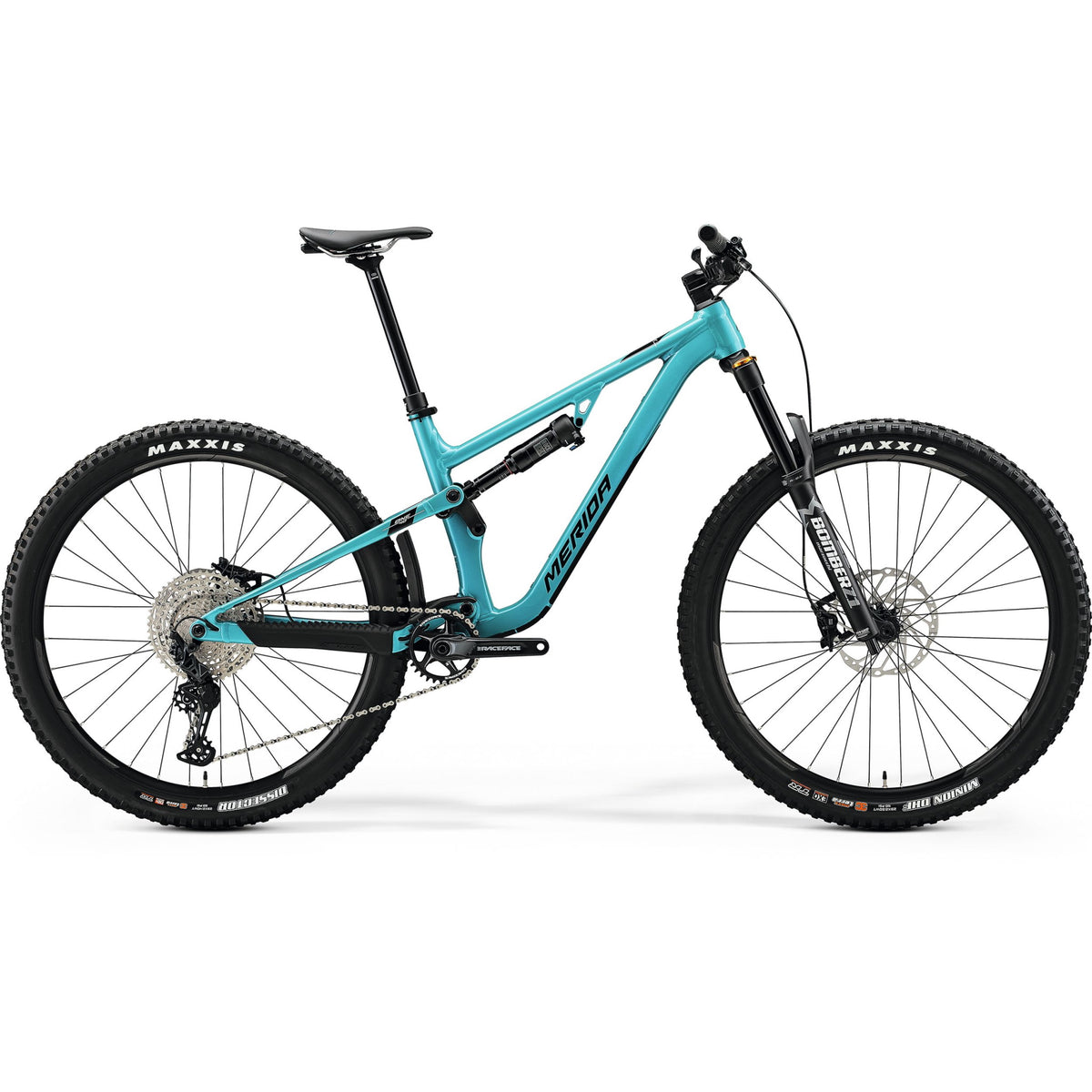

Merida One Forty 700 All-Mountain Bike Metallic Teal/Black
5% Best Price Guarantee
If you find a cheaper price, we will beat it by 5%*
- Applies to any cheaper price found in New Zealand.
- When the competitor's final price inclusive of any taxes and delivery fees.
- Excludes Garmin products, other exclusions apply.
Perfect Ride Guarantee
If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »
Free Bike Build
We'll build your bike for free when you click and collect at any 99 Bikes store.
First Free Tune-up
Every bike come with a complimentary free tune-up and safety check. Learn more »
- Full aluminium frame with FAST kinematic suspension and AGILOMETER sizing
- Radical new trail geometry with full 29er wheels
- Marzocchi Z1, Air, 150mm travel Fork
- Rock Shox Deluxe Select+, lockout Shock
- Wide-range Shimano SLX/Deore 12-speed drivetrain
- Powerful 4-piston hydraulic disc brakes
- Long travel-adjustable dropper post
Tough, dependable and ready for whatever trail adventure you can think of, the One Forty 700 marries a high-value all-aluminium frame to high-performance equipment that won't let you down. Merida’s radical new trail geometry delivers the sort of climbing ability that would make a mountain goat proud while shaming enduro bikes with descending speed. Wide range, 12-speed Shimano SLX drivetrain and four-piston brakes, high-performance Marzocchi Z1, Air, 150mm fork and Rock Shox Deluxe Select+ plus Merida’s long travel adjustable dropper post deliver unwavering performance. A super-steep 80° seat angle, low front end and bottom bracket allow it to clear the most technical climbs, while longer reach figures across all sizes and a well-balanced 65° head angle mean it’s still more than capable of ripping any descent.
| Axles: | REAR: MERIDA EXPERT TR, including removable lever, 6/4mm allen key |
|---|---|
| Bottom bracket: | Race Face BSA 68/73 – 24mm |
| Brakes: | Shimano SLX M7120, 4 piston |
| Chain: | KMC X12 |
| Crankset: | Race Face Aeffect, 32T 170 mm-S, 175 mm-M up |
| Derailleur rear: | Shimano SLX M7100 Shadow+, SGS |
| Fork: | Marzocchi Z1, Air, 150mm Travel, Tapered, 44mm fork offset, 29.5x2.6" Max Tyre Width |
| Frame: | ONE-FORTY LITE III, 143mm 29", Aluminium, 29x2.5" Max Tyre Width, 148x12, BSA Bottom Bracket |
| Freewheel: | Shimano Deore M6100, 10-51T, 12-speed cassette |
| Grip: | MERIDA EXPERT EC |
| Handlebar: | MERIDA TEAM TR, Aluminium, 780mm Wide, XS/S 18mm Rise, M/L/XL 30mm Rise |
| Handlebar stem: | MERIDA EXPERT eTRII, Aluminium, 35, 0° Rise, 50 mm all sizes |
| Headset: | MERIDA-8151 1-1/8"-1.5" cartridge bearing set |
| Hubs: | FRONT: Shimano SLX, 110x15, 32H, Centerlock / REAR: Shimano SLX, 148x12, 32H, Centerlock |
| Rim: | MERIDA EXPERT TR, 29mm Inner Width, Aluminium, Tubeless ready (tubeless tape and valves not included) |
| Rotor front: | Shimano RT64, 203 mm |
| Rotor rear: | Shimano RT64, 203 mm |
| Saddle: | MERIDA EXPERT SL, V-mount, incl. MERIDA minitool |
| Season: | 2022 |
| Seat clamp: | MERIDA EXPERT |
| Seat post: | MERIDA TEAM TR, 34.9mm, 10° Setback, all sizes 30-230 SPT |
| Shock: | Rock Shox Deluxe Select+, lockout |
| Tyre front: | Maxxis Minion DHF, 29x2.5", fold, TR EXO 3C MaxxTera |
| Tyre rear: | Maxxis Dissector, 29x2.4", fold, TR EXO+ MaxxTerra |
| Weight: | 16.28kg (Size MD) Max Weight Limit: 135kg |
| Wheel size: | 29" |
| Frame Size | XShort | Short | Mid | Long | XLong |
| Tyre Sizes | 29" | 29" | 29" | 29" | 29" |
| seat tube [mm] | 400 | 410 | 425 | 445 | 470 |
| top tube [mm] | 532 | 559 | 586 | 618 | 649 |
| chain stay length [mm] | 437.5 | 437.5 | 437.5 | 437.5 | 437.5 |
| head tube angle [°] | 65 | 65 | 65 | 65 | 65 |
| seat tube angle [°] | 80 | 80 | 80 | 80 | 80 |
| bottom bracked drop [mm] | 35 | 35 | 35 | 35 | 35 |
| head tube [mm] | 95 | 95 | 95 | 105 | 120 |
| fork length [mm] | 557 | 557 | 557 | 557 | 557 |
| reach [mm] | 426 | 453 | 480 | 509 | 535 |
| stack [mm] | 607 | 607 | 607 | 616 | 629 |
| wheel base [mm] | 1177 | 1204 | 1232 | 1265 | 1298 |
| stand over height [mm] | 730 | 735 | 738 | 735 | 730 |
Merida Dual Suspension Bike Sizing Chart
Merida is an international bike brand with its headquarters in Taiwan, the R&D department is based near Stuttgart in Germany. To be based in Germany has historical reasons for MERIDA but the precise location was chosen specifically because the region around Stuttgart is one of the hot spots of the automotive and machine building industry which Germany is famous for and attracts a hugely skilled design and engineer labor force.
The Merida team are more than just highly trained and experienced bicycle creators – they simply love everything ‘bike’. Most of their R&D staff are daily bike commuters while others are serious mountain bikers, who regularly compete in Marathon, Enduro and Downhill competitions, or licensed road racers and even ambitious Ironman triathletes. Get the behind the scenes view of the Merida R&D centre and meet some of their key members of staff in the below video.
Click & Collect Available
• In-stock items usually ready in 4 hours* • Online Only items usually ready in 1-3 working days More info »
No Courier Delivery
• This item is unavailable to be shipped with a courier More info »
Please note, due to challenges in the product supply chain, bike specifications are subject to change without notice. Specifications listed below may not match exactly as shown in the photo.
