36% Off Full Price

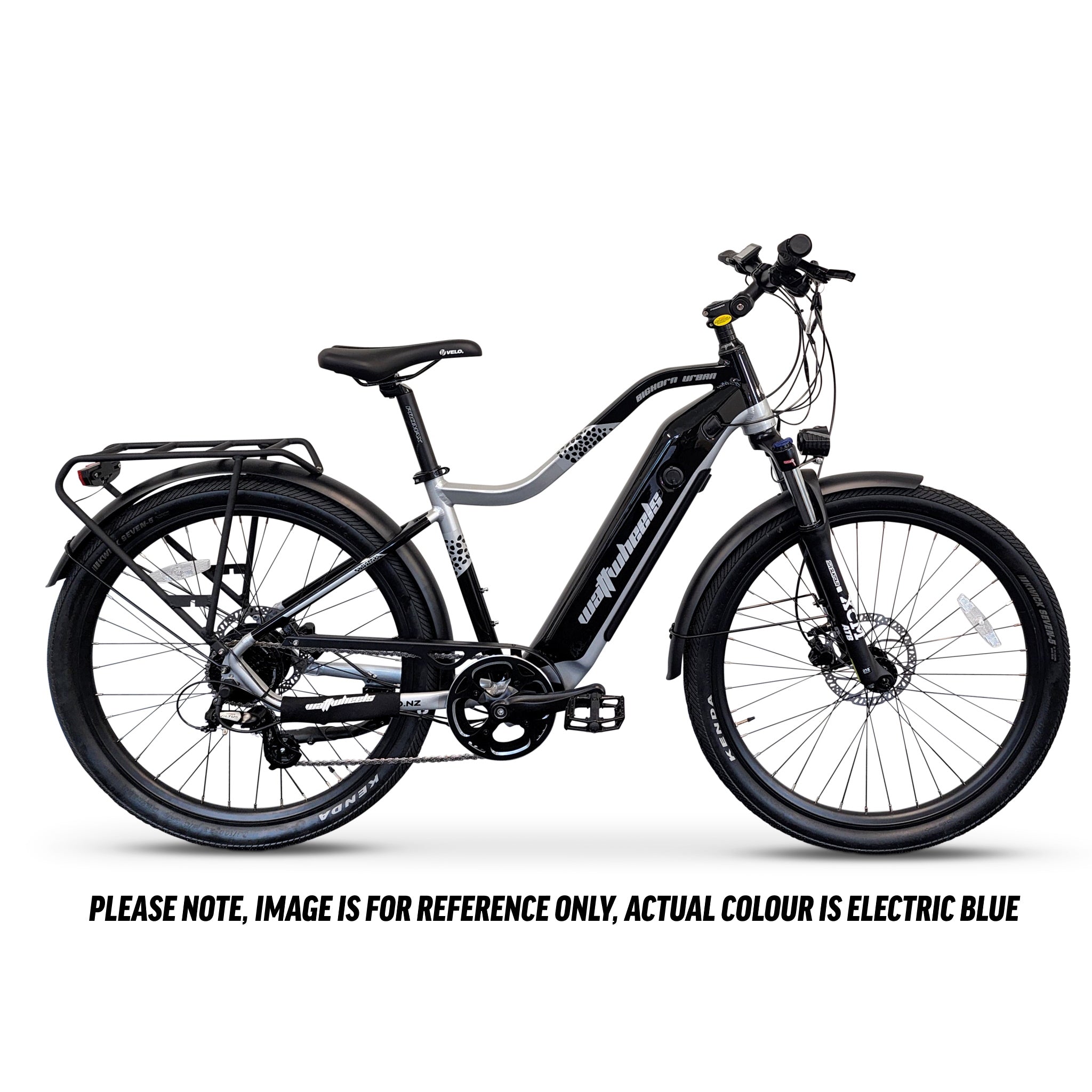

Watt Wheels Bighorn S Hub Drive Electric Bike 500Wh Battery Blue

Brand: Watt Wheels

SKU: Select a size

Size: Select a size

MD LG

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Select a size to view stock availability at this location.

Alloy Frame/ Suntour Alloy Fork

100mm Front Travel

500Wh Battery

27.5" (650b) Wheel Size

Hydraulic Disc Brake

300 Watt Motor

Have a Question? Ask an expert on 0800 000 283

Product Details

Description

Watt Wheel's bestselling Bighorn Electric Bike is now available with a hub drive motor, offering a perfect balance of performance and affordability for city commuters and urban explorers. A AKM 300Wh rear hub motor maximizes pedal power to tackle even the hilliest of cities, while the thumb throttle will cruise at speeds up to 32km/hr without the need to pedal. The 48v 10.4Ah battery will give you over 60km on pedal assist, with 25-30km on the throttle alone. A Shimano Altus 1x8 speed drivetrain provides smooth shifting performance, paired with Tektro hydraulic disc brakes ensuring responsive braking in any weather. A 100mm travel lockout Suntour XCM fork absorb bumps for maximum comfort and reduced fatigue. Fitted with a chainguard, bottle holder, rear carrier, fenders, and dual lights the Bighorn LS Hub is ready for the daily commute. Available in sizes M with 27.5” wheels and L with 29” to cater for most rider heights. ST model also available with a low top tube for easy mounting.

Key Features

Hub drive motor for enhanced performance
500Wh battery for extended range
Thumb throttle for effortless cruising
Shimano Altus 1x8 speed drivetrain
Tektro hydraulic disc brakes for safety

Specifications

Product Overview

Product

Watt Wheels Bighorn S Hub Drive Electric Bike 500Wh Battery Blue

Brand

Watt Wheels

Parent SKU

8CG57NRL

Size SKUs

MD: BSMBLUEHUB
LG: BSLBLUEHUB

Product Features

Frame Material

Alloy

Colour

Blue

Wheel Size

27.5" (650b)

Brake Type

Hydraulic Disc Brake

Gears

1 x 8

Fork Material

Alloy

Front Travel

100mm

Weight

27.5kg with battery / Weight Limit: 130Kg Total load weight

Motor and Battery System

Battery Size (Watt-Hours)

500

Battery

48V10.4Ah 2600mAh Samsung Li-Ion (500WH) / Sans 48V2Ah Smart Charger

Display

Key Disp Colour K286

Build

Frame

Lightweight Alloy Low Step-Through Frame perfect for safe traffic stops

Fork

Suntour XCM with Lockout - 100mm Travel

Handlebars

Promax 640mm, 31.8, 10mm Rise

Grips

Velo 140mm Lock On

Saddle

SR Gel Relaxed Unisex - Black

Seat Post

31.60 * 350mm Alloy

Accessories

Thumb Left hand throttle / Fitted with a chainguard, bottle holder, rear carrier, fenders, and dual lights

Wheels

Wheel Size

27.5" (650b)

Rims

Prowheel 27.5 13G*36H Doublewall

Hubs

KT with sealed bearing, Quick Release

Groupset

Chain

KMC 8sp Anti Rust ebike Chain

Brakes

Tektro Hydraulic E350 with brake light feature

Front Rotor

180mm Rotors

Rear Rotor

180mm Rotors

Shifters

Shimano Altus 8 speed Rapid Fire

Rear Derailleur

Shimano Altus 8 Speed

Cassette

8 Speed

Disclaimer

Please Note: Before using this vehicle, check the applicable local laws relating to your intended use of the vehicle on roads and road related areas. Please ride responsibly and follow your local laws. We do not recommend modifying your electric bike or electric scooter.
