36% Off Full Price

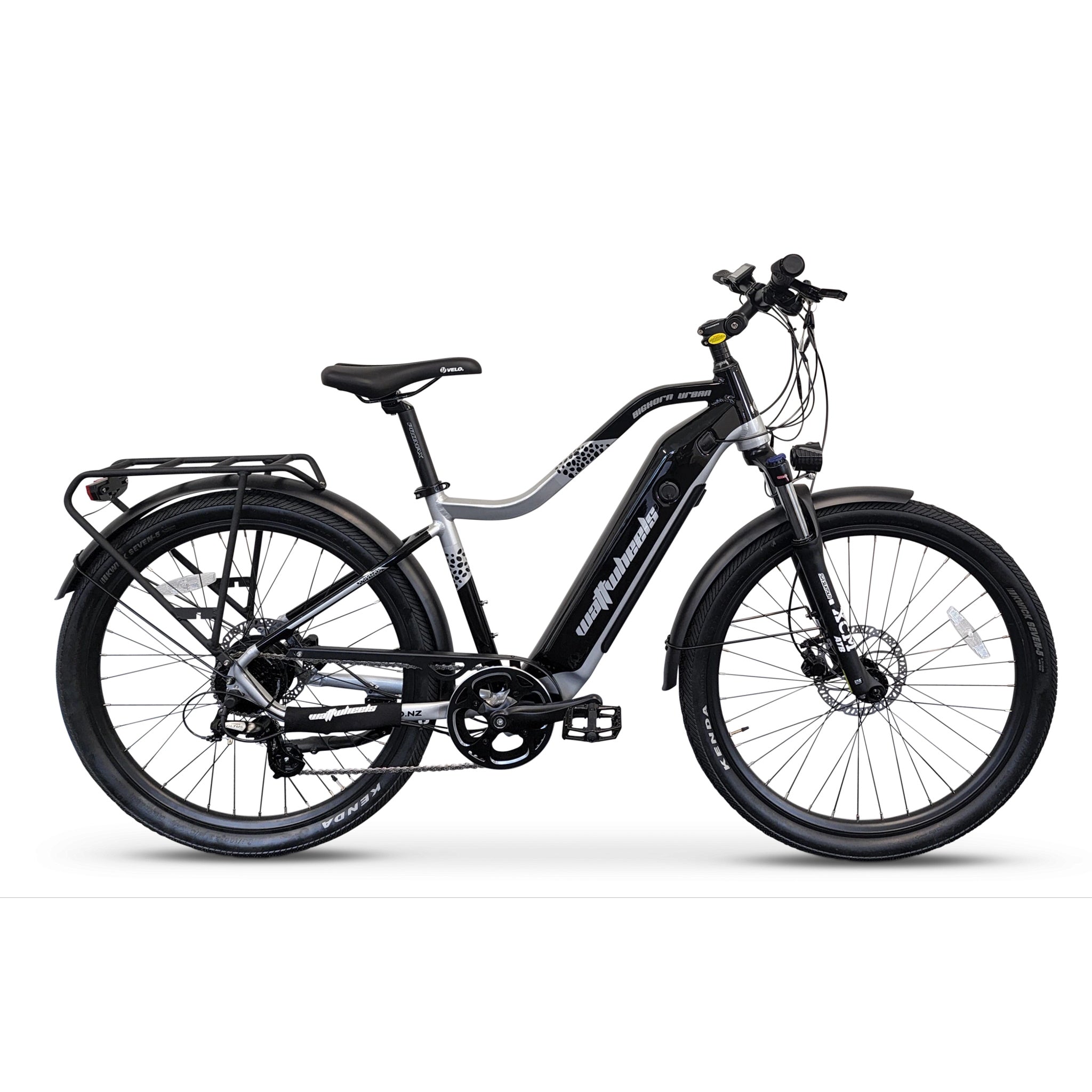

Watt Wheels Bighorn S Hub Drive Electric Bike 500Wh Battery Black

Brand: Watt Wheels

SKU: Select a size

Size: Select a size

MD LG

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Select a size to view stock availability at this location.

Alloy Frame/ Suntour Alloy Fork

100mm Front Travel

500Wh Battery

29" / 27.5" (Varies by Frame Size) Wheel Size

Hydraulic Disc Brake

300 Watt Motor

Have a Question? Ask an expert on 0800 000 283

Product Details

Description

The Bighorn Hub S is an entry level e-bike which ticks all the boxes and is perfect for the commuter at an affordable price. Coming spec’d with essential hydraulic brakes to offer premium brake control in any weather conditions. These brakes are also fitted with a brake light feature which when braking activate the rear lights for additional safety in low light or busy traffic. Kitted out with a reliable Shimano 8-speed drivetrain, bump smoothing Suntour XCM fork and fully integrated 500Wh battery. The 300W rear hub drive motor will give you the boost you need to conquer any hills and offers a pedal assist speed up to 32km/hr as well as a left-hand thumb throttle for when you don’t feel like pedalling or need a little extra help up steep hills. Watt Wheels also include some great extras at no additional cost with the bike, including a rear carrier, front and rear lights, mudguards and large gel seat to give you a comfortable ride.

Key Features

300Wh Rear Hub Motor, throttle assist or pedal assist
500Wh Integrated Samsung Li-Ion Battery
Suntour XCM 100mm Fork with Lockout
Shimano Altus 8 Speed Drivetrain
Tektro Hydraulic Disc Brakes
Rear Carrier, Lights and Mudguards included

Specifications

Product Overview

Product

Watt Wheels Bighorn S Hub Drive Electric Bike 500Wh Battery Black

Brand

Watt Wheels

Parent SKU

ORFW0GKR

Size SKUs

MD: BSMBLACKHUB
LG: BSLBLACKHUB

Product Features

Frame Material

Alloy

Colour

Black

Wheel Size

29" / 27.5" (Varies by Frame Size)

Brake Type

Hydraulic Disc Brake

Gears

1 x 8

Fork Material

Alloy

Front Travel

100mm

Weight

Net weight: 24.5kg (includes battery 4kg) / Weight Limit: 120Kg Total load weight

Motor and Battery System

Drive Type

Rear Wheel

Battery Size (Watt-Hours)

500

Battery

48V10.4Ah 2600mAh Samsung Li-Ion (500WH), Charger: Sans 48V2Ah Smart Charger

Display

Key Display easy to read colour display

Build

Frame

Standard Top tube in Med(17inch) and Large(19inch)

Fork

Suntour XCM with Lockout - 100mm Travel

Handlebars

640mm wide, 31.8 clamp , 38mm rise, 38deg backsweep

Grips

Velo 140mm Lock On

Saddle

SR Gel Relaxed Unisex - Black

Seat Post

31.60 Alloy

Accessories

Thumb Left hand throttle included (can be removed)

Wheels

Wheel Size

29" / 27.5" (Varies by Frame Size)

Rims

27.5 36H Double wall (29” on 19” frame)

Hubs

Front: sealed bearing, Quick Release

Groupset

Crankset

Pioneer 44T, 170mm

Chain

8sp Anti Rust ebike Chain

Brakes

Tektro Hydraulic E350, 180mm Rotors with motor cut off switch

Shifters

Shimano Altus 8 speed Rapid Fire

Rear Derailleur

Shimano Altus 8 Speed

Cassette

8 Speed

Disclaimer

Please Note: Before using this vehicle, check the applicable local laws relating to your intended use of the vehicle on roads and road related areas. Please ride responsibly and follow your local laws. We do not recommend modifying your electric bike or electric scooter.
