Watt Wheels Bighorn LS Electric Bike 720Wh Battery British Racing Green

$4,559
?

You automatically get Club Price when buying online. But there are extra benefits if you join Club 99.

$4,799.99
Buy now, pay later
SKU: 287ZU0BG Low stock

Other colours

5% Best Price Guarantee

If you find a cheaper price, we will beat it by 5%*

- Applies to any cheaper price found in New Zealand.

- When the competitor's final price inclusive of any taxes and delivery fees.

- Excludes Garmin products, other exclusions apply.

Perfect Ride Guarantee

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

Free Bike Build

We'll build your bike for free when you click and collect at any 99 Bikes store.

First Free Tune-up

Every bike come with a complimentary free tune-up and safety check. Learn more »

Key Features
  • Low step through frame for easy on-and-off
  • Suntour XCM34 or XCM32 100mm fork with Lockout
  • Powerful 300Wh Motor, massive 120Nm of torque
  • Throttle assist up to 45km/hr, activated from 0km/hr
  • Large capacity 720wh Samsung Li-Ion battery
  • Range, 40km throttle only, 60 - 120+km pedal assist
  • Reliable Shimano Deore M6000 10-Speed Drivetrain
  • Shimano MT200 or Tektro 290 hydraulic disc brakes
  • Sizes SM & MD 27.5” wheels, LG 29” wheels

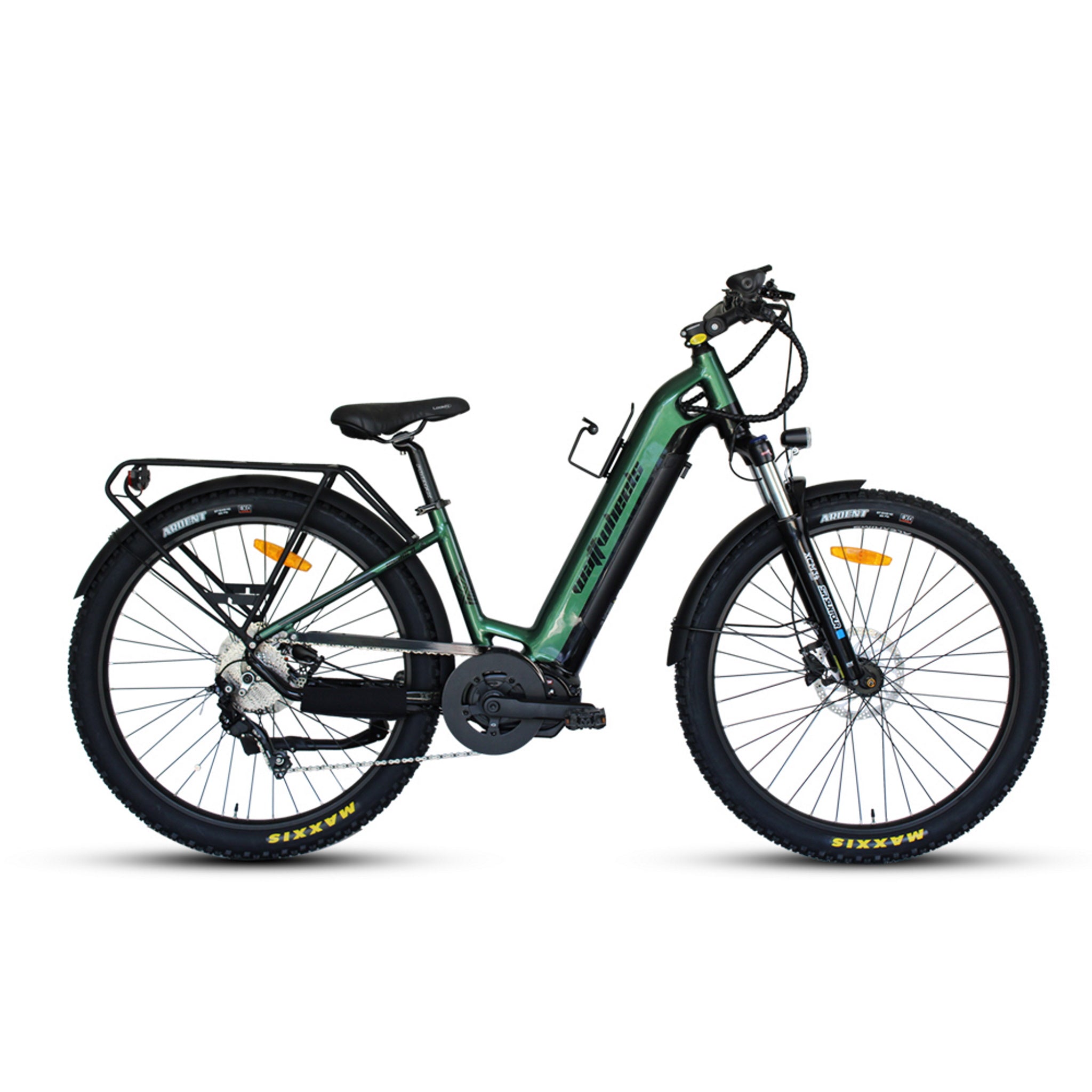

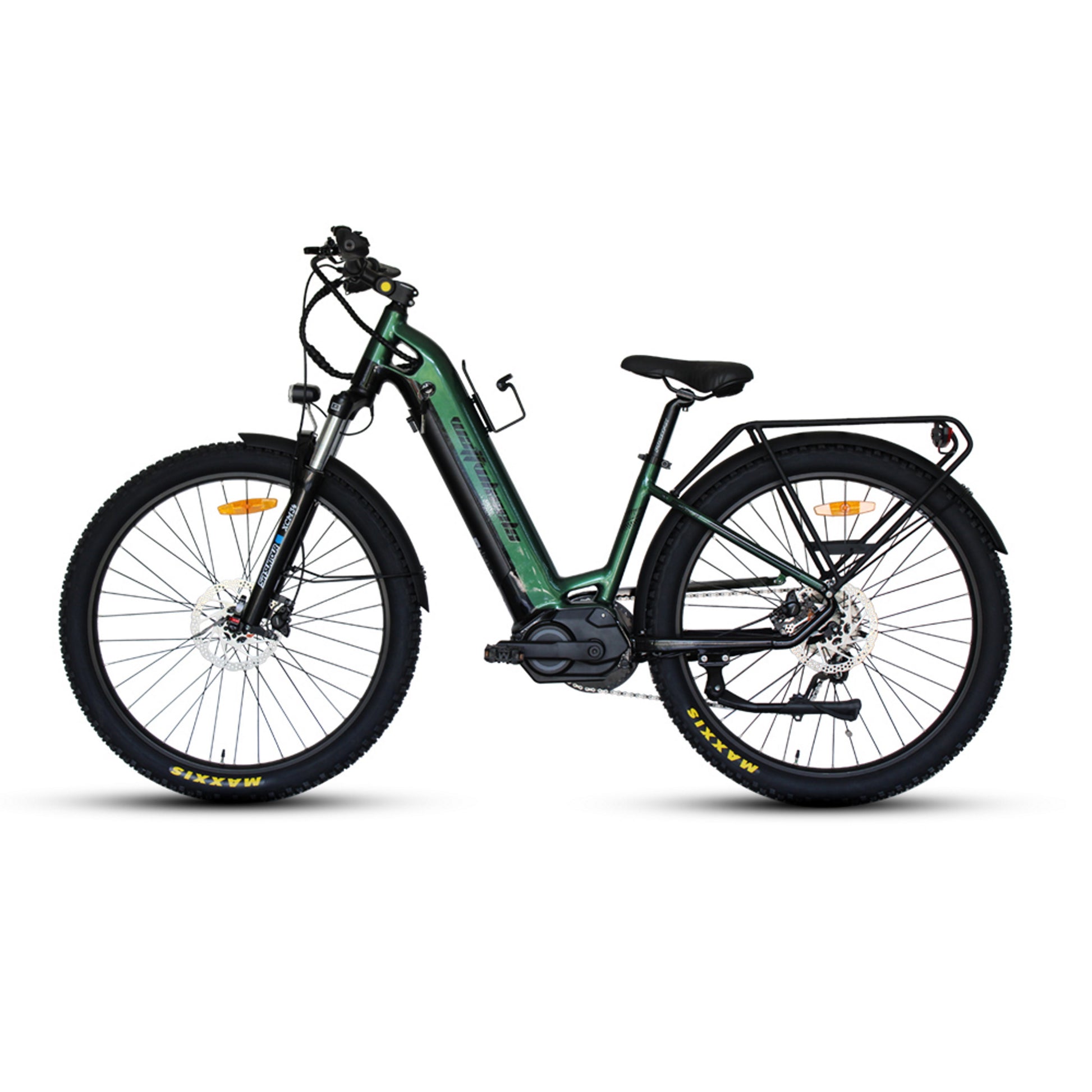

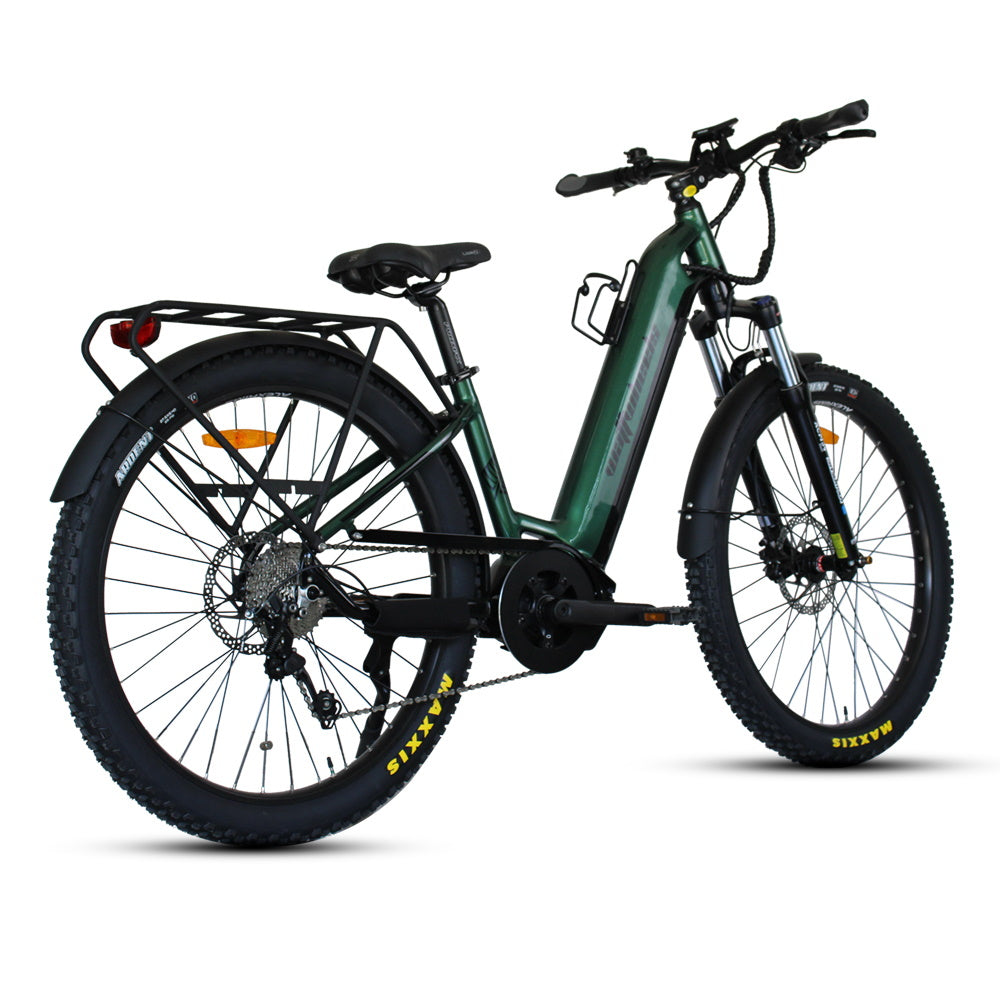

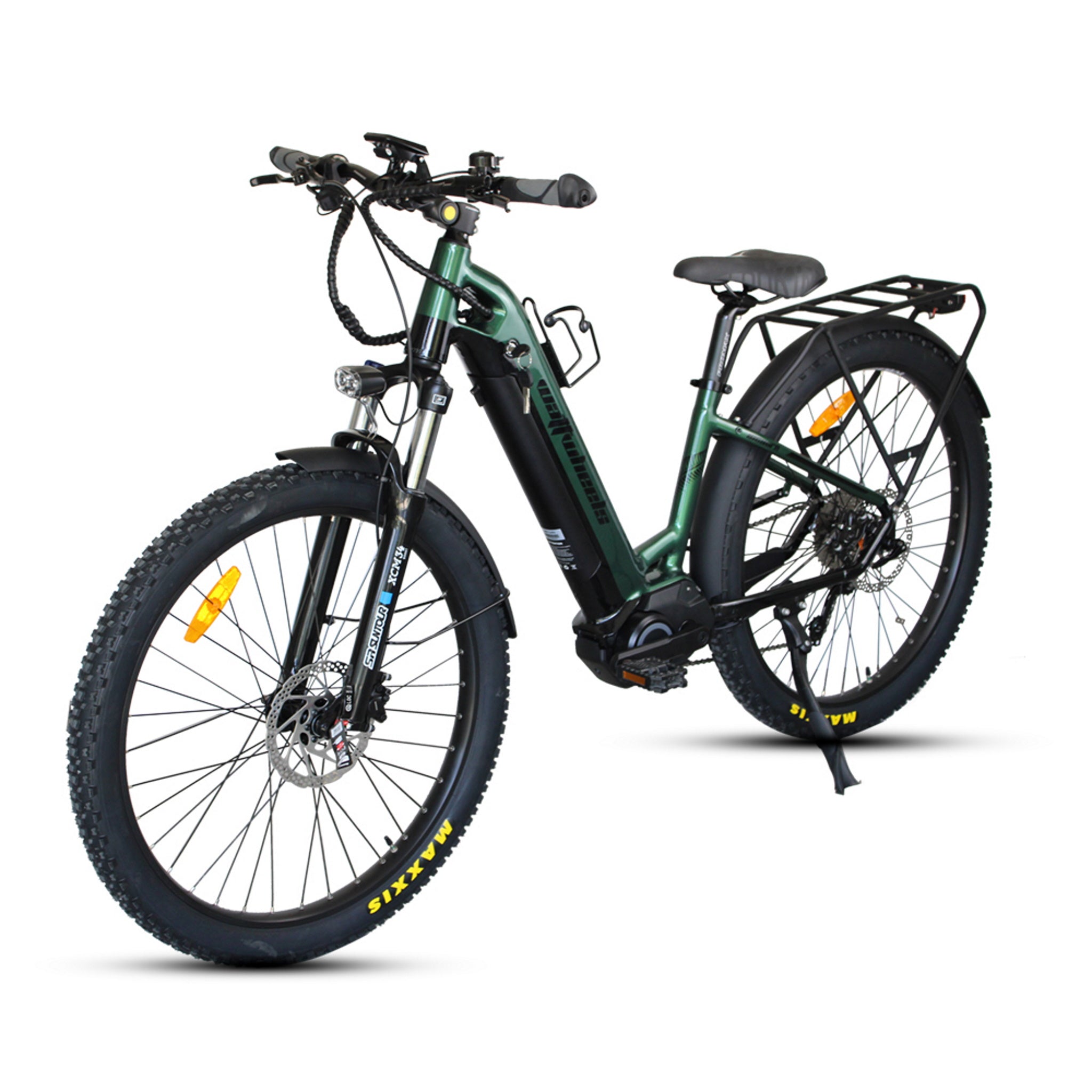

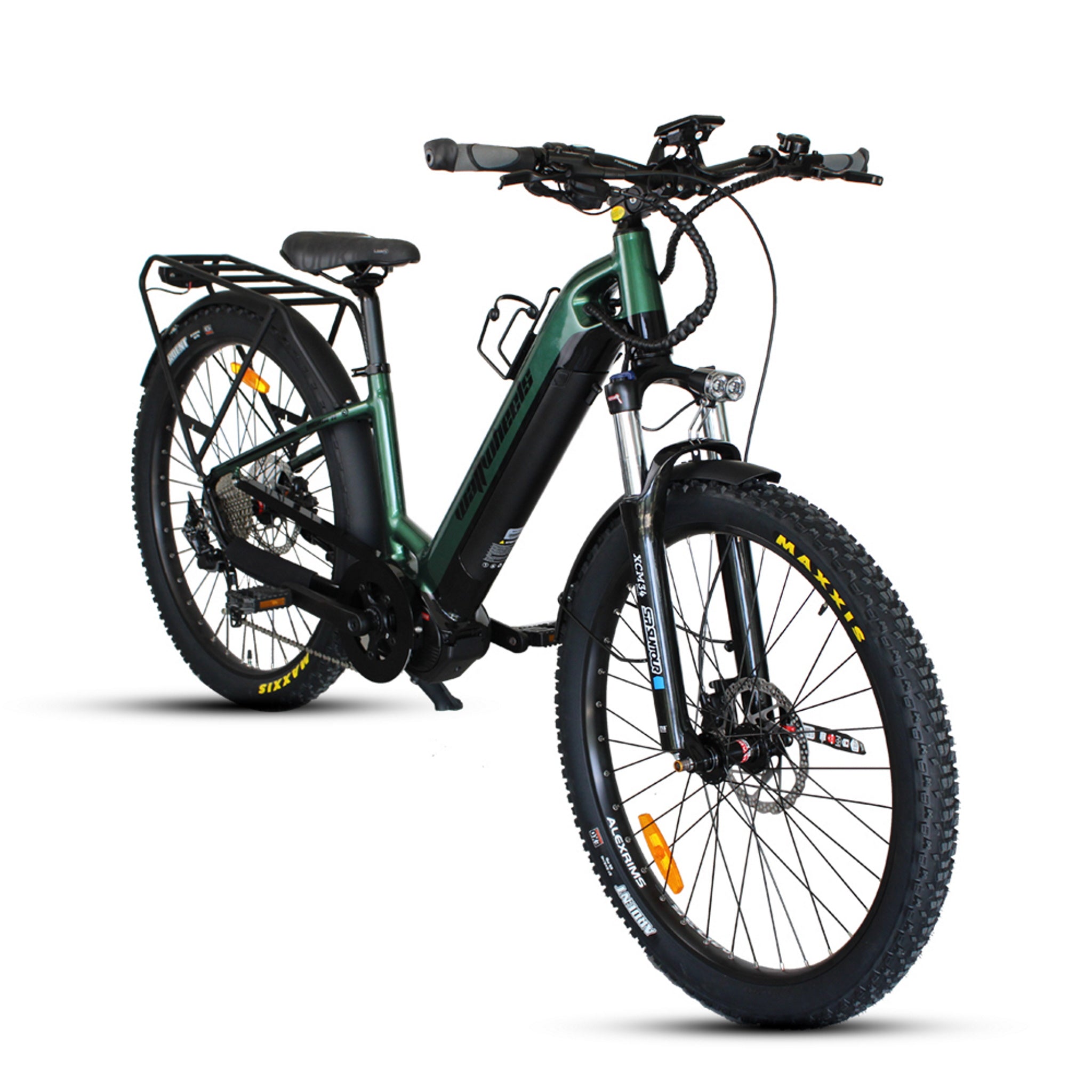

The ultimate commuter and trail bike is back and better than ever, featuring a massive new 720Wh integrated battery and powerful 300Wh motor, providing a whopping 120Nm of torque. Cruising at a top assist speed of up to 42km/hr with the option of thumb throttle or pedal assist, the Bighorn is one of the best climbers on the market. Available in a standard frame design or an LS low step through model. Shimano’s Deore M6000 series groupset provides a 1x10 speed gear ratio, optimized for smooth transitions between steep climbs and fast descents while hydraulic disc brakes provide precision brake control in any trail conditions. The Suntour XCM front fork offers 100mm of trail taming travel with a lockout feature for climbs. Sizes small and medium roll on 27.5” wheels to better tailor to rider height, while the large size rolls on 29ers. Already fitted with a rear carrier, bottle holder, full fenders and dual lights, the Bighorn makes for a great universal option.

Accessories: Mudguards, Carrier Rack Included
Battery: 48V15Ah 21700 Samsung Li-Ion Cells 5000Mah (720WH) / Charger: Sans 48V3Ah Smart Charger
Brakes: Sizes MD & LG: Tektro 290 Hydraulic Brakes / Size SM: Shimano MT-200 Hydraulic Brakes
Chain: KMC X10E EPT Anti Rust ebike Chain
Crankset: Ananda Isis 44T, 170mm
Derailleur rear: Shimano Deore 10-speed M6000

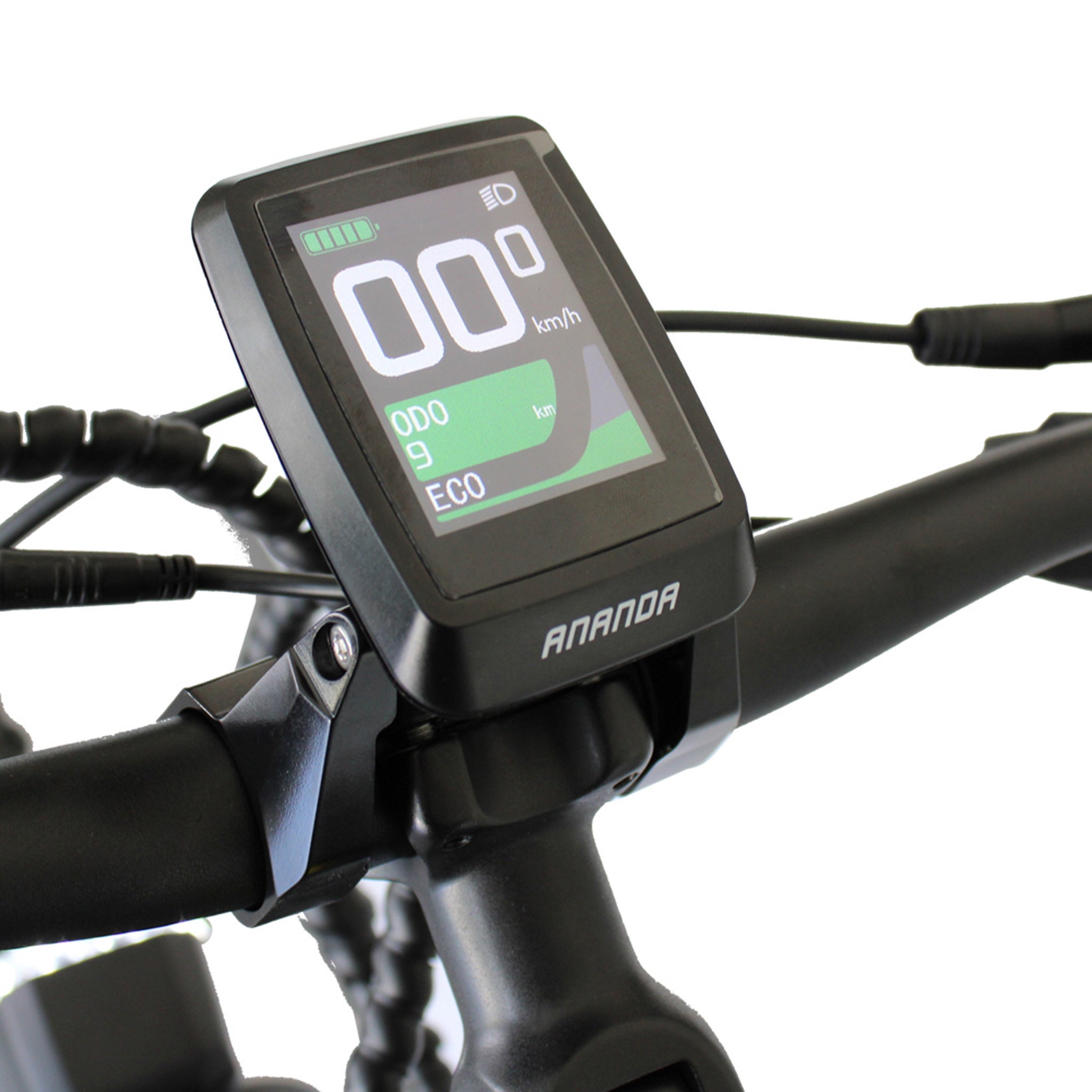

Display: Ananda D16 Colour Display with USB charge port
Features: Thumb Left hand throttle (optional), Speed up to 45km/r, Range 40km throttle only, 60-120+km pedal assist / Full Comprehensive - 5 years frame, 2 years motor/battery/display and 12months rest
Fork: Sizes MD & LG: Suntour XCM32 / Size SM: Suntour XCM34, both Boost with Lockout - 100mm Travel
Freewheel: Shimano 11-34 CS-HG500 Cassette
Grip: Velo Ergonomic 140mm Lock On
Handlebar: Promax 680mm, 31.8, 10mm Rise, Sizes MD & LG swept back, Size SM standard
Hubs: Novatech with sealed bearing Boost
Light(s): Front and Rear
Motor drive unit: Ananda M100 300Watt Motor (120N.m Torque)
Rim: Alexrims MD35 27.5/29 13G*36H
Saddle: SR Memory Foam Relaxed Unisex - Black
Season: 2023
Seat post: 31.60 * 350mm  Alloy
Tyre front: Sizes Size SM & MD: WTB 27.5 *2.25 / LG: 29 *2.25 Maxxis Ardent/Ikon
Tyre rear: Sizes Size SM & MD: WTB 27.5 *2.25 / LG: 29 *2.25 Maxxis Ardent/Ikon
Weight: 26.5kg
Wheel size: 29" / 27.5" (Varies by Frame Size)

Wattwheels Bikes Warranties

Wattwheels Ltd warrants that all new products are warranted to the Buyer against manufacturing defects in materials and/or workmanship for the following periods:

Warranty
  • Motor/Battery: 24 months
  • Frame: 60 months (Folding bikes is 36 months)
  • Additional Components: 12 months
For commercial operations where the bikes are being used a hire bike then the following applies:

  • Motor/Battery: 12 months
  • Frame: 24 months (Folding bikes is 18months)
  • Additional Components: 6 months
Like a motor vehicle, bikes need to be serviced on a regular basis. Please refer to the manual and get the bike serviced as per our requirements. Failure to do so may result in warranty claims being rejected.

The warranty period is calculated from the point of delivery/collection. The original receipt of purchase is required to establish proof of purchase and must be provided to Wattwheels for all warranty claims. Wattwheels will require the customer to complete a MANDATORY standard procedure for warranty claims that will involve media such as photos and videos to help Wattwheels after sales staff establish the fault with the product.

Goods we sell are subject to a full comprehensive warranty. The costs/inconvenience caused by the loss of use of the product is not covered whilst the warranty procedure takes place. The warranty for replacement components will be based on the date of delivery. Under no circumstance will a replacement component have a warranty date different than the original date of delivery. If a replacement is necessary due to a defect in materials and/or workmanship, then upon return to Wattwheels, the component will be replaced during the warranty period.

Wattwheels will have no obligation under this warranty in the event the product is damaged or destroyed as a result of any of the following events: components used on a non Wattwheels product, damage or destruction by abuse; collision; theft; improper maintenance or mishandling of the product; natural forces such as wind, lightning, hail, etc.; any wilful or negligent act; penetration, or opening of the product casings in any manner. Replacement will be honoured only by Wattwheels.

This is Wattwheels exclusive warranty. No party is granted express or implied authority to change or annul this warranty in any manner. Implied warranty including that of merchant-ability and fitness for a particular purpose are expressly limited in duration to the duration of this warranty. Wattwheels disclaims any liability for special, incidental or consequential damages.

This warranty is not meant to suggest or imply that the products cannot be broken or will last forever. It does mean that the product is covered subject to the terms of the warranty. This warranty applies only to the original Buyer of the product and is not transferable to subsequent owners or any other party. This warranty is void if the product is subjected to abuse, neglect, improper repair, improper maintenance, alteration, modification, an accident or other abnormal, excessive, or improper use, at the sole discretion of Wattwheels.

Warranty Exclusions
This Warranty does not cover:

  • normal wear and tear
  • damage or failure from abuse, neglect, misuse, or accident
  • damage from stunt riding, ramp jumping, acrobatics, competitive events, such as bicycle racing, bicycle motocross racing, or similar activities or any activity that is not consistent with the intended use of the product
  • damages resulting from improper charging of the battery pack or use of any charger not supplied by Wattwheels
  • installation of any parts, accessories, or electrical component(s) not originally intended for or compatible with the product as sold, or any modification of the frame or any component(s) originally supplied; tires, brake pads, chains, lights, motors, battery packs, displays, or vehicle controllers that have been opened for any purpose whatsoever, other than by Wattwheels
  • All warranties are void if the product is used for any purpose other than the reasonable intended use of the product. Additionally, this warranty does not cover damage associated with commercial use, unless otherwise agreed upon and signed in writing.
  • Aftermarket components or modifications
All implied warranties, including the warranties of merchantability and fitness for a particular purpose, are limited in duration to that of the express warranties stated above.

Proof of purchase must be provided. The original Purchaser must contact a Wattwheels representative to discuss the problem with the product. The original Purchaser is responsible for the return of the product, undamaged in transit, to Wattwheels for warranty work and for the costs associated with shipping the component(s) when returning them. If Wattwheels determines a warranty claim is valid and Warranty Procedure conforms with this warranty, Wattwheels will replace component(s). For valid warranty claims hereunder, Wattwheels will reimburse the original Purchaser for shipping costs incurred as a result of returning the product to Wattwheels for warranty work at standard ground shipping rates, and Wattwheels will pay for shipping costs to return the product to the original. You must retain and send us the receipts for shipping.

Limited Liability
Unless otherwise provided, the sole remedy under the above warranty, or any implied warranty, is limited to the replacement of defective parts at the sole discretion of Wattwheels. In no event shall Wattwheels be responsible for direct, incidental or consequential damages, including, without limitation, damages for personal injury, property damage, or economic losses, whether based on contract, warranty, negligence, product liability, or any other theory.

Cancellation
Buyer has a 7 day period to cancel an order for a full refund. After the cancellation period, no refunds will be awarded. The Goods will be delivered with no returns.

Returns
Our extensive quality control means that our products are thoroughly tested and ultra-reliable by industry standards. All products are warranted to work as described on arrival and for the warranty period. If there is a warranty claim, it will be assessed by Wattwheels and new parts will be delivered upon claim’s approval. Wattwheels will accept the return of warranted components. If there is a major fault with the product, contact Wattwheels immediately. Wattwheels will not accept returns for change of mind.

Watt Wheels is a Kiwi-owned Electric Bike company whose founders are passionate about cycling and exploring our amazing country. Watt Wheels Ebikes are custom designed to meet the needs of the New Zealand market, for more information about Watt Wheels click here.
