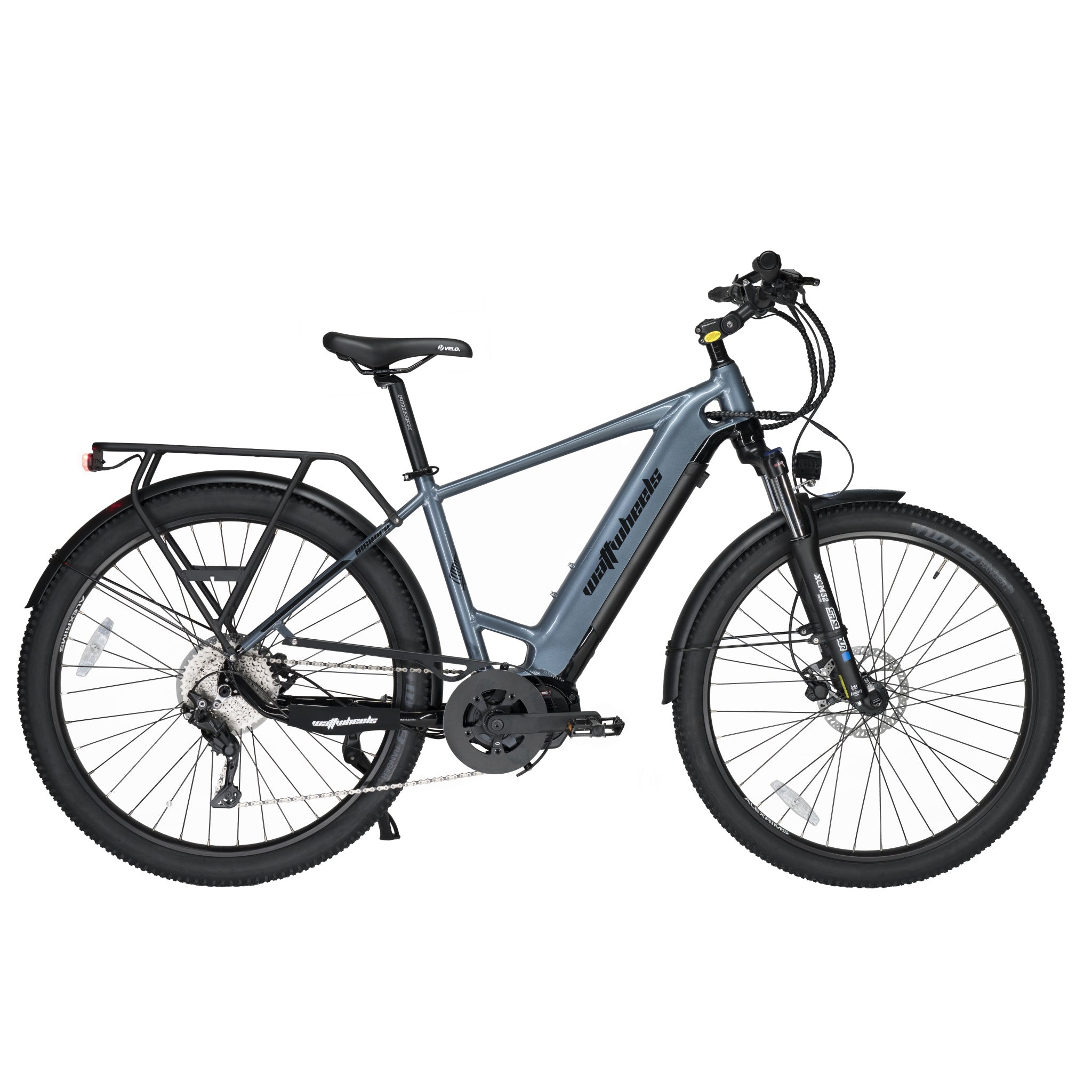

Watt Wheels Bighorn Electric Bike 720Wh Battery Gloss Stone Blue

Brand: Watt Wheels

SKU: Select a size

Size: Select a size

MD LG XL

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Select a size to view stock availability at this location.

Steep Hills & Heavy Loads / 120 Nm Torque

Up to 65 km Range

ANANDA ANANDA M100 Motor

Alloy Frame/ Suntour Alloy Fork

100mm Front Travel

720Wh Battery

Have a Question? Ask an expert on 0800 000 283

Product Details

Description

The ultimate commuter and trail bike is back and better than ever, featuring a massive new 720Wh integrated battery and powerful 300Wh motor, providing a whopping 120Nm of torque. Cruising at a top assist speed of up to 45km/hr with the option of thumb throttle or pedal assist, the Bighorn is one of the best climbers on the market. Available in a standard frame design or an LS low step through model. Shimano’s Deore M6000 series groupset provides a 1x10 speed gear ratio, optimized for smooth transitions between steep climbs and fast descents while Shimano hydraulic disc brakes provide precision brake control in any trail conditions. The Suntour XCM34 front fork offers 100mm of trail taming travel with a lockout feature for climbs. Sizes small and medium roll on 27.5” wheels to better tailor to rider height, while the large and extra-large sizes roll on 29ers. Already fitted with a rear carrier, bottle holder, full fenders and dual lights, the Bighorn makes for a great universal option.

Key Features

Low step through frame for easy on-and-off
Powerful 300Wh Motor, massive 120Nm of torque
Throttle assist up to 45km/hr, activated from 0km/hr
Large capacity 720wh Samsung Li-Ion battery
Huge range, 40km throttle only, 60-120+km pedal assist
Reliable Shimano Deore M6000 10-Speed Drivetrain
Shimano MT200 hydraulic disc brakes
Suntour XCM34 100mm fork with Lockout
Sizes SM & MD 27.5” wheels, LG & XL 29” wheels

Specifications

Product Overview

Product

Watt Wheels Bighorn Electric Bike 720Wh Battery Gloss Stone Blue

Brand

Watt Wheels

Parent SKU

FU58AC5T

Size SKUs

MD: BS17B
LG: BS19B
XL: BS21B

Year Model

2023

Product Features

Frame Material

Alloy

Colour

Blue

Wheel Size

29" / 27.5" (Varies by Frame Size)

Brake Type

Hydraulic Disc Brake

Gears

1 x 10

Fork Material

Alloy

Front Travel

100mm

Weight

26.5kg

Motor and Battery System

Drive Type

Mid Drive

Motor Brand

ANANDA

Torque (Nm)

120

Motor Climbing Ability

Steep Hills & Heavy Loads

Battery Size (Watt-Hours)

720

Battery

48V15Ah 21700 Samsung Li-Ion Cells 5000Mah (720WH) / Sans 48V3Ah Smart Charger

Max. Range (KMs)

Display

Ananda D16 Colour Display with USB charge port

Build

Fork

Suntour XCM34 Boost with Lockout - 100mm Travel

Handlebars

Promax 680mm, 31.8, 10mm Rise

Grips

Velo Ergonomic 140mm Lock On

Saddle

SR Memory Foam Relaxed Unisex - Black

Seat Post

31.60 * 350mm Alloy

Accessories

Mudguards, Carrier Rack, Kickstand and Lights

Wheels

Wheel Size

29" / 27.5" (Varies by Frame Size)

Rims

Alexrims MD35 27.5/29 13G*36H

Hubs

Novatech with sealed bearing Boost

Groupset

Crankset

Ananda Isis 44T, 170mm

Chain

KMC X10E EPT Anti Rust ebike Chain

Brakes

Shimano MT-200 Hydraulic Brakes

Shifters

Shimano Deore 10speed SL-M6000

Rear Derailleur

Shimano Deore 10-speed M6000

Cassette

10 Speed

Disclaimer

Please Note: Before using this vehicle, check the applicable local laws relating to your intended use of the vehicle on roads and road related areas. Please ride responsibly and follow your local laws. We do not recommend modifying your electric bike or electric scooter.
