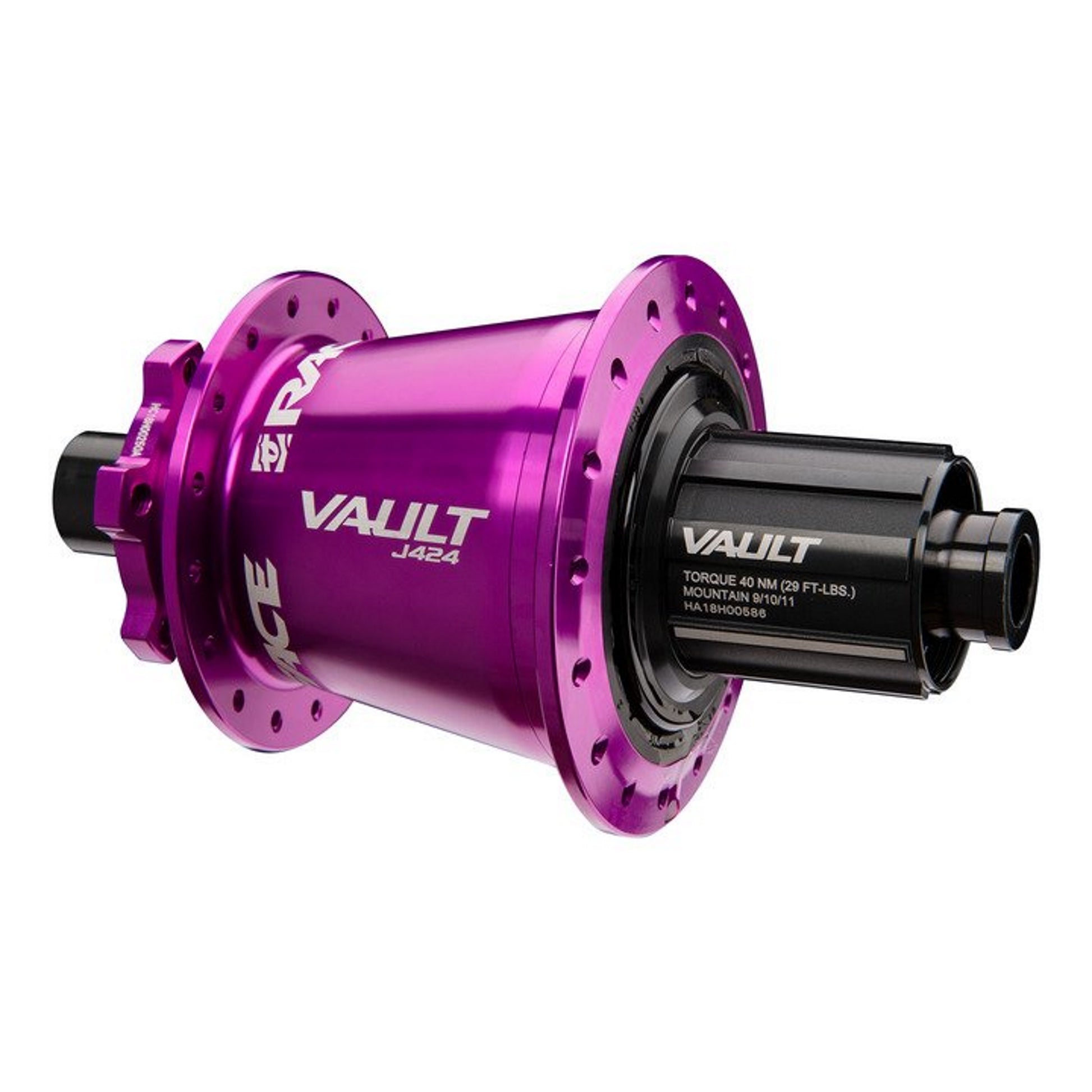

Race Face Hub Vault R 12X148 Boost 424J 32H XD Purple

Brand: Race Face

SKU: XJC8P0E1

$522.00 Full price

$522.00

Club price

$549.90 Full price

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Select a size to view stock availability at this location.

Have a Question? Ask an expert on 0800 000 283

Product Details

Description

The super-fast engagement of Race Face's Vault, now available for custom wheel builds. Available in Boost and non-Boost, multiple axle standards and Shimano or XD cassette bodies. An oversized hub shell increases torsional and lateral stiffness and proven 6902 bearings were selected due to their large ball diameter and durability. A 60-tooth drive ring alternately engages six double tooth pawls, giving 3° engagement for near-instant power transfer. Wide bearing placement was designed to decrease load on the bearings, improving lifespan. Protecting these internals are low-drag labyrinth seals designed specifically for the Vault hubs. Finish it off with tool-free endcap swaps and you have a hub that not only moves faster but adapts faster.

J-Bend spoke compatible
Boost and non-Boost options
Shimano or XD cassette body available
6 pawls with 2 teeth each
120 points for 3° of engagement
Tool free end caps
Built for: XC/Trail/Enduro/DH
Available options: Shimano or XD compatible
Rear Hub: 12X148 BOOST, 12X150, 12X157, 12X142, 12X135, 10X135QR
Weight: 305 grams rear

Specifications

Product Overview

Product

Race Face Hub Vault R 12X148 Boost 424J 32H XD Purple

Brand

Race Face

Year Model

2024

Frequently Asked Questions

What is the Race Face Vault R 424J Hub used for?

The Race Face Vault R 424J Hub is a high-engagement rear hub designed for fast, reliable power transfer in full-suspension and hard-chitting setups, compatible with Boost/non-Boost wheels and Shimano or XD cassettes.

Why choose the Race Face Vault R 424J Hub?

Choose the Race Face Vault R 424J Hub for near-instant engagement (3°), robust durability, and tool-free endcap swaps that simplify setup and maintenance across multiple axle standards and cassette bodies.

Who is the Race Face Vault R 424J Hub designed for?

It’s built for XC, Trail, Enduro, and DH riders who want fast engagement, versatile compatibility, and long-lasting performance on demanding rides.

Instant Power Transfer

3° engagement with 120 points delivers near-instant response when you mash the pedals. The 60-tooth drive ring with six double-tooth pawls keeps it lively and efficient.

Durable, Long-Lasting Build

Oversized shell and wide bearing placement reduce load and boost lifespan. 6902 bearings and low-drag labyrinth seals protect internals for rugged riding.

Flexible, Tool-Free Setup

Endcaps swap without tools, and options cover Boost/non-Boost and Shimano or XD bodies. Built to adapt across XC, Trail, Enduro, and DH riders.
