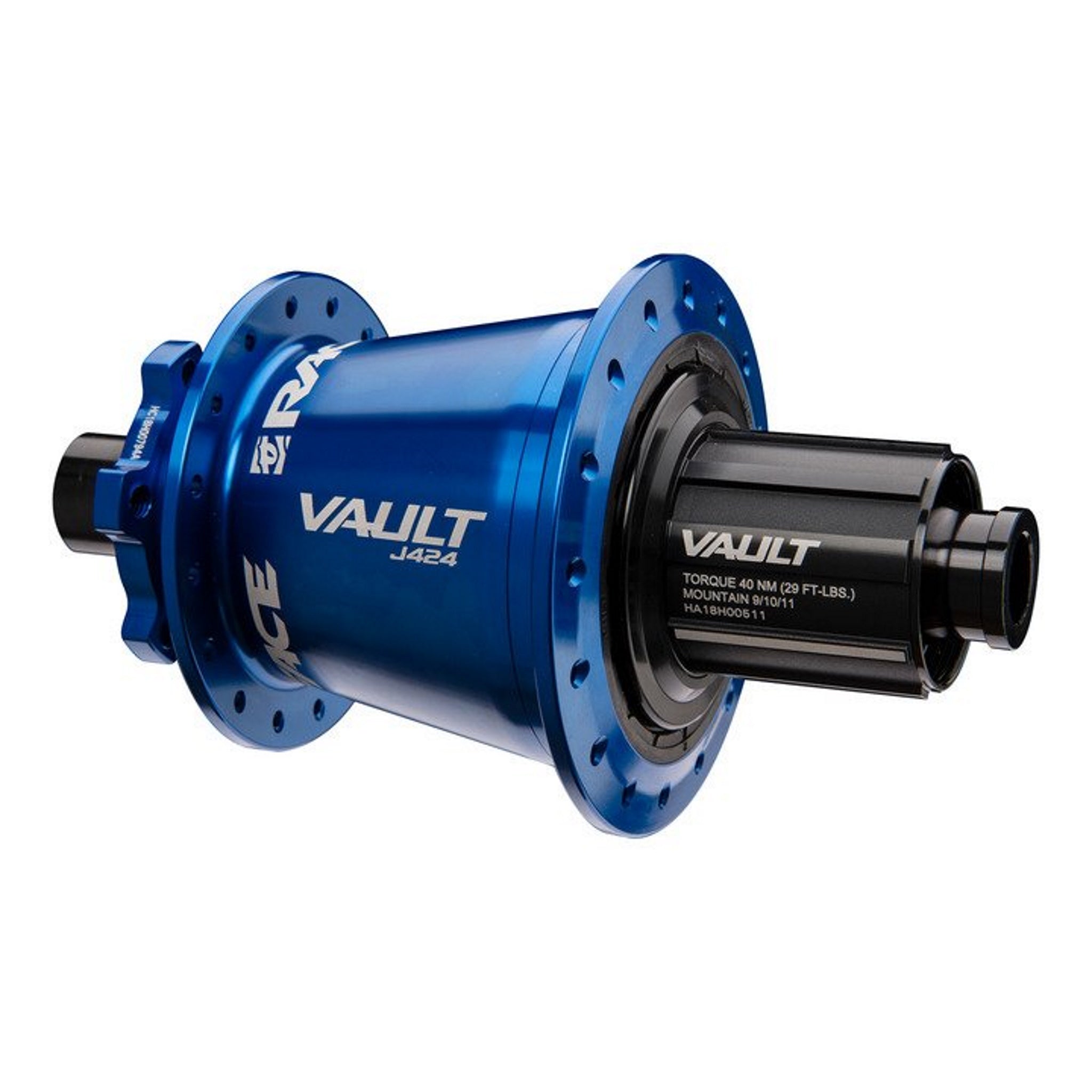

Race Face Hub Vault R 12X148 Boost 424J 32H XD Blue

Brand: Race Face

SKU: IN3M3L7K

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Select a size to view stock availability at this location.

Have a Question? Ask an expert on 0800 000 283

Product Details

Description

The super-fast engagement of Race Face's Vault, now available for custom wheel builds. Available in Boost and non-Boost, multiple axle standards and Shimano or XD cassette bodies. An oversized hub shell increases torsional and lateral stiffness and proven 6902 bearings were selected due to their large ball diameter and durability. A 60-tooth drive ring alternately engages six double tooth pawls, giving 3° engagement for near-instant power transfer. Wide bearing placement was designed to decrease load on the bearings, improving lifespan. Protecting these internals are low-drag labyrinth seals designed specifically for the Vault hubs. Finish it off with tool-free endcap swaps and you have a hub that not only moves faster but adapts faster.

J-Bend spoke compatible
Boost and non-Boost options
Shimano or XD cassette body available
6 pawls with 2 teeth each
120 points for 3° of engagement
Tool free end caps
Built for: XC/Trail/Enduro/DH
Available options: Shimano or XD compatible
Rear Hub: 12X148 BOOST, 12X150, 12X157, 12X142, 12X135, 10X135QR
Weight: 305 grams rear

Specifications

Product Overview

Product

Race Face Hub Vault R 12X148 Boost 424J 32H XD Blue

Brand

Race Face

Supplier SKU

RF-HU-VLT32RBO-X-BLU

Year Model

2024

Frequently Asked Questions

What is the Race Face Vault R Boost Hub used for?

The Race Face Vault R Boost Hub is a rear hub designed for fast engagement in wheel builds, supporting XC/Trail/Enduro/DH riding with Boost and non-Boost options and Shimano or XD cassette bodies.

Why choose the Race Face Vault R Boost Hub?

It delivers near-instant power transfer with 3° engagement, robust durability, and adaptable endcaps for quick setup across multiple standards, making it a versatile choice for demanding riding.
