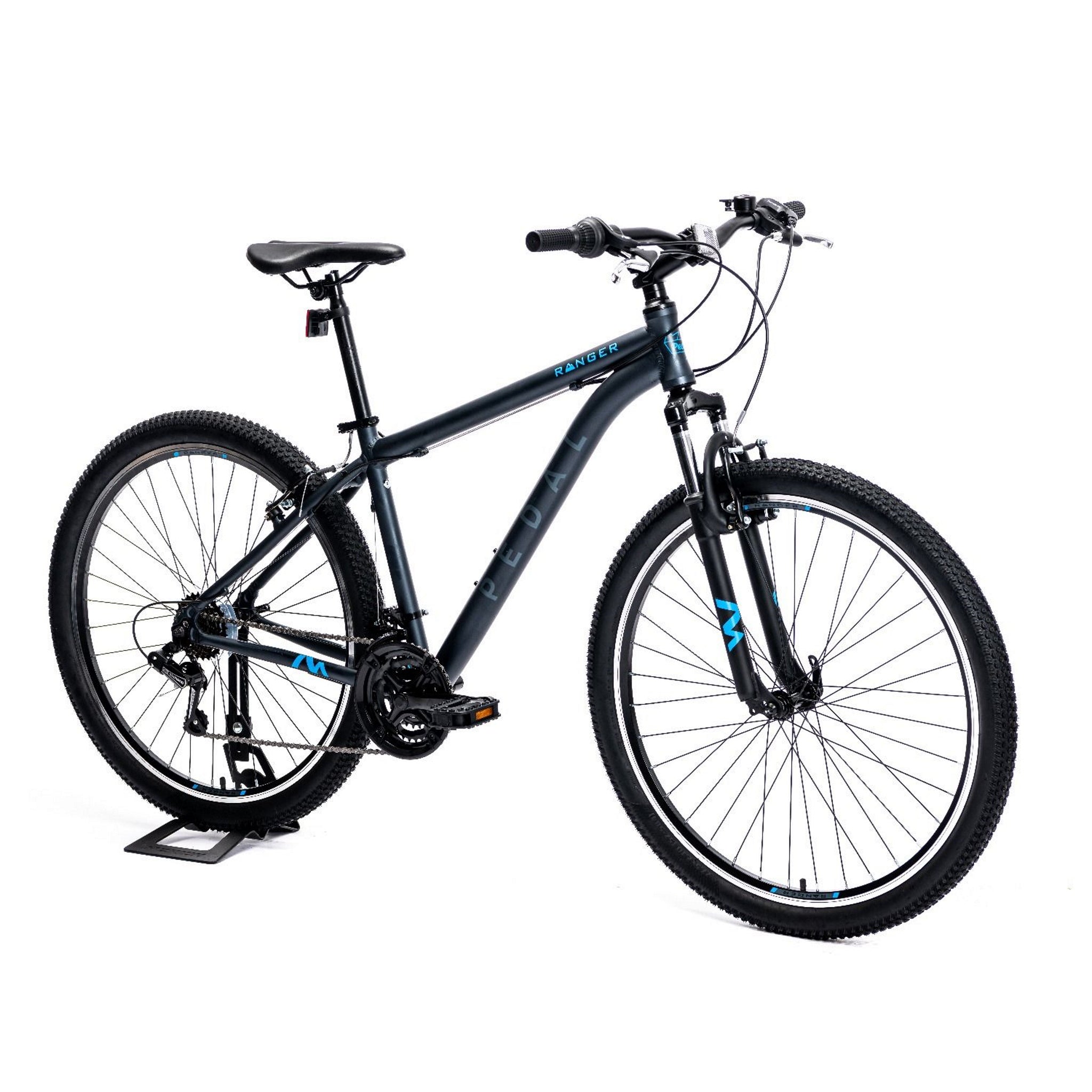

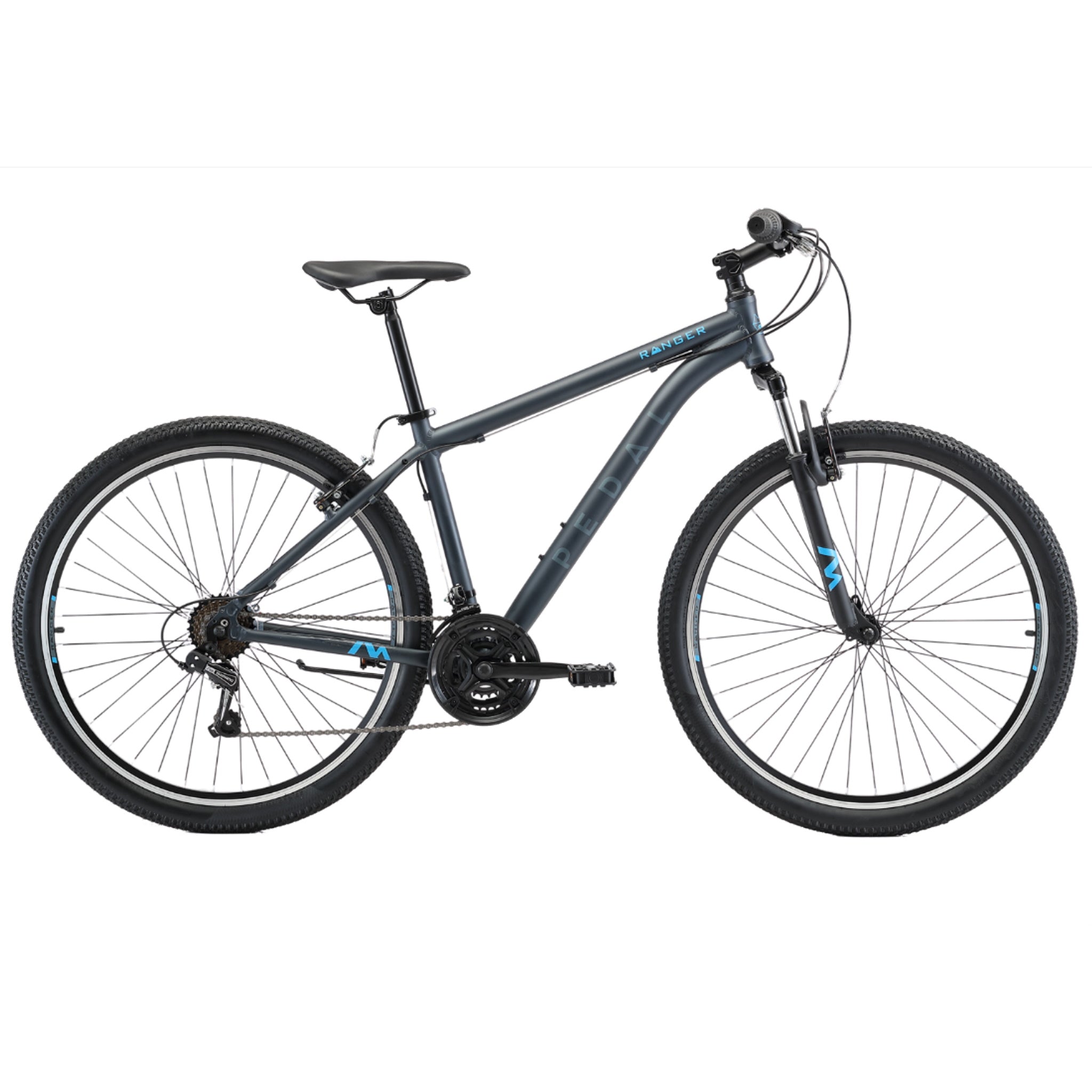

Pedal Ranger 3 Mountain Bike Black/Blue

Brand: Pedal

SKU: TS32W4KJ

Size: SM

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Select a size to view stock availability at this location.

Alloy Frame/ Steel Fork

100mm Front Travel

27.5" (650b) Wheel Size

V-Brake

Shimano Tourney Groupset

3 x 6 Speed

Have a Question? Ask an expert on 0800 000 283

Product Details

Description

The Pedal Ranger 3 is a versatile mountain bike perfect for leisure riders, beginner mountain bikers and teens graduating into their first adult sized bike. The 6061 Alloy frame is lightweight yet durable and features comfortable geometry with an upright riding position. The front suspension fork is made from durable steel and will iron out any bumps along the way. The 3x6 speed Shimano Tourney drivetrain with Shimano Revo Shifters provide reliable, easy to operate twist actuated shifting and a range of gears to tackle even the hilliest terrain. Rolling on 27.5" tyres, which excel on gravel bike paths, paired with durable double-wall alloy rims and V-Brakes to offer efficient, low maintenance stopping power. The Pedal Ranger 3 is a Mountain Bike designed for the entry-level rider who wants a reliable, comfortable bike with excellent value, built for great times around the neighbourhood bike paths and beyond.

Key Features

Lightweight 6061 Alloy frame, Comfort Geometry
Shimano Tourney 3 x 6 speed Drivetrain, 18 Gears
Available in Trigger Shifter or Grip Shifter options
Durable Double-Wall Alloy Rims, Nutted Axles
Low maintenance Alloy V-Brakes
Easy Adjust Quick Release Seat Clamp

Specifications

Product Overview

Product

Pedal Ranger 3 Mountain Bike Black/Blue

Brand

Pedal

Parent SKU

ETNP3WDN

Product Features

Frame Material

Alloy

Colour

Black

Wheel Size

27.5" (650b)

Brake Type

V-Brake

Gears

3 x 6

Fork Material

Steel

Front Travel

100mm

Build

Frame

27.5" 6061 Alloy

Fork

27.5" LJ-312 Steel, One Piece Crown, Steel Legs with Dropout

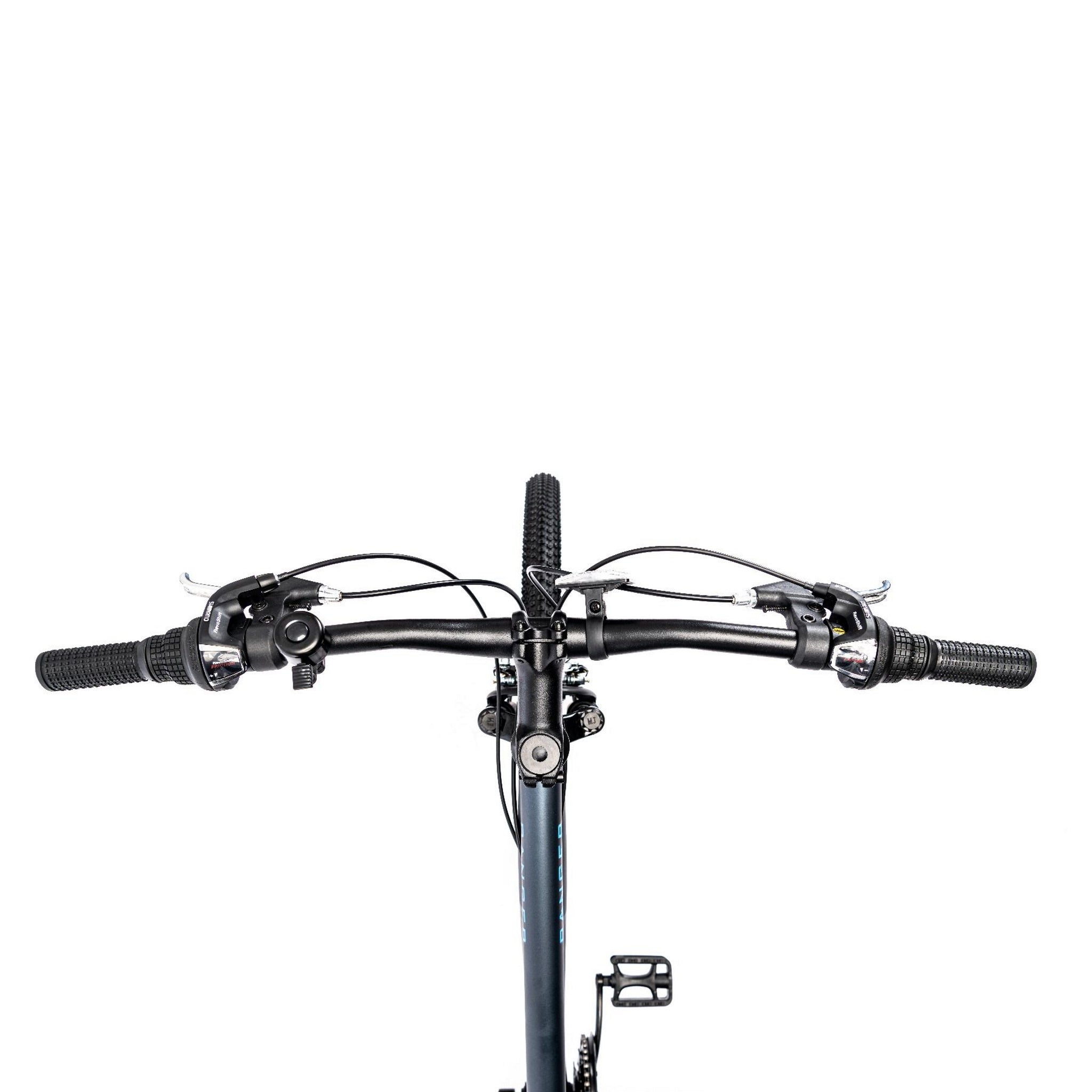

Handlebars

680mm, 10Â°, 2.2T Barbore 31.8 R:20mm

Headset

GH-171 Threadless 1-1/8" x 34 x 30mm, Washer: 28.8 x 10mm 2pcs

Grips

Close End 75mm

Stem

Barbore, EXT: 80, Length: 41mm, 31.8, Clamp: 28.6, 7Â°

Bottom Bracket

1.37"*24T 5pcs +3S Axle

Pedals

9/16" With Ball, Reflector included

Saddle

JW-1352 Black Cover Rail Type with Clamp

Seat Post

27.2 x 300mm

Seat Clamp

31.8mm Clamp with Quick Release

Accessories

Black Cover Chainguard / Kickstand

Wheels

Wheel Size

27.5" (650b)

Rims

27.5" 26H Double Wall Alloy

Hubs

Nut Type FRONT: M9 x 140 x 36H with QR / REAR: M10 x 135 x 180 x 36H with QR

Spokes

14g Steel, with Steel Nipples 256/258mm

Groupset

Crankset

170mm Steel

Chain

X30 1/2*3/32*112L

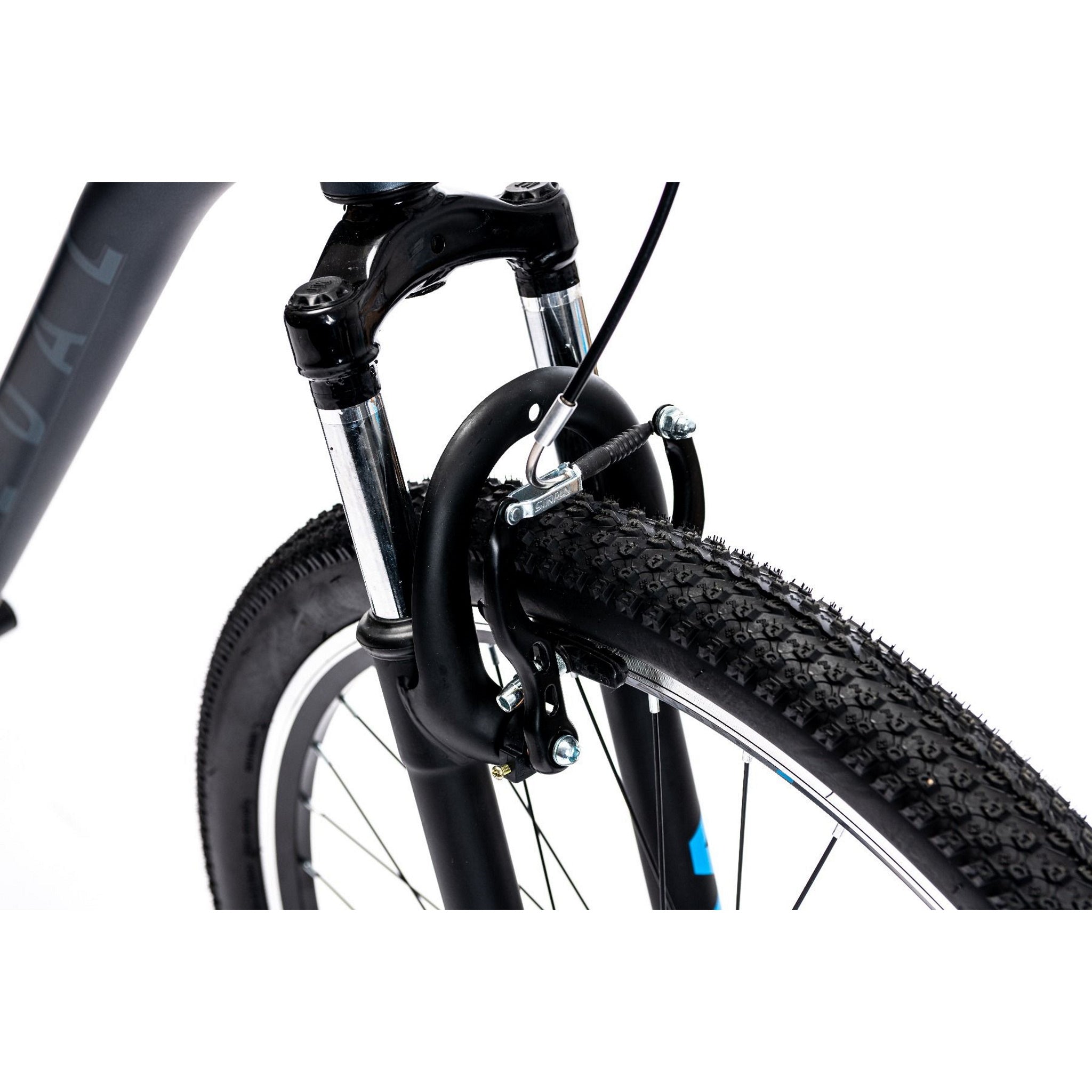

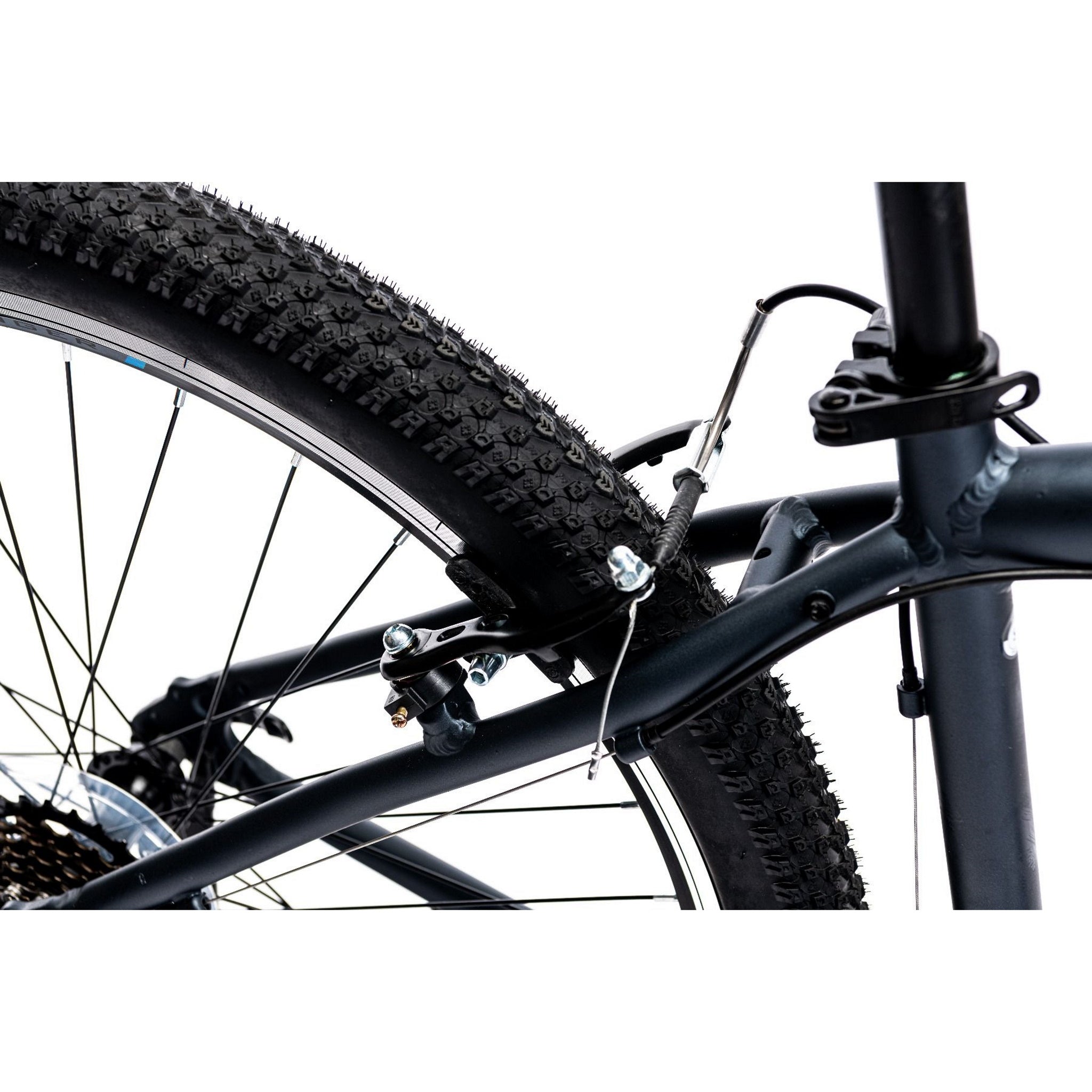

Brakes

V-Brake CB-118

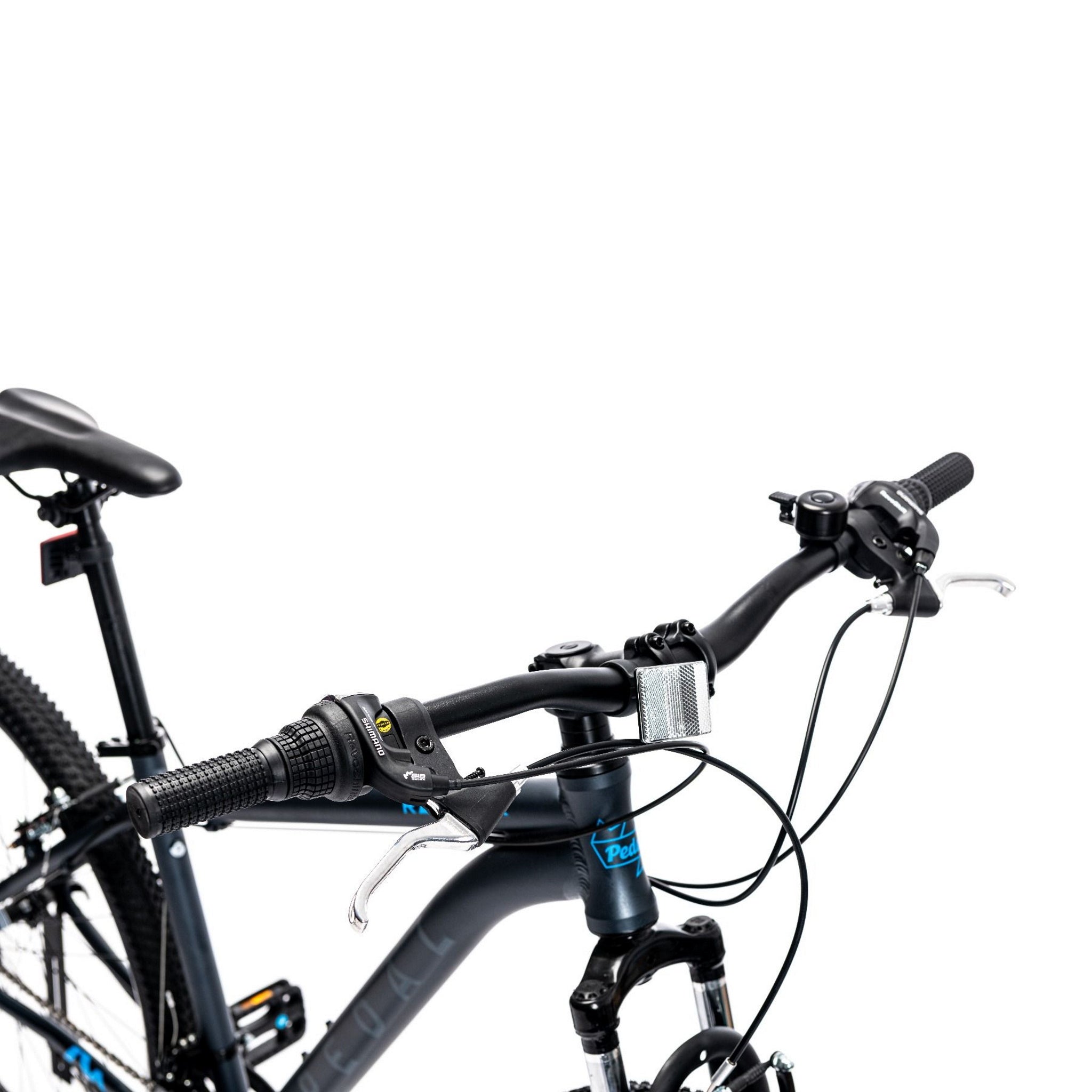

Shifters

Shimano Tourney Revo ShifterS FRONT: SL-RS35-LN, 3-Speed / REAR: SL-RS35-7R, 7-Speed window type O.G.D.

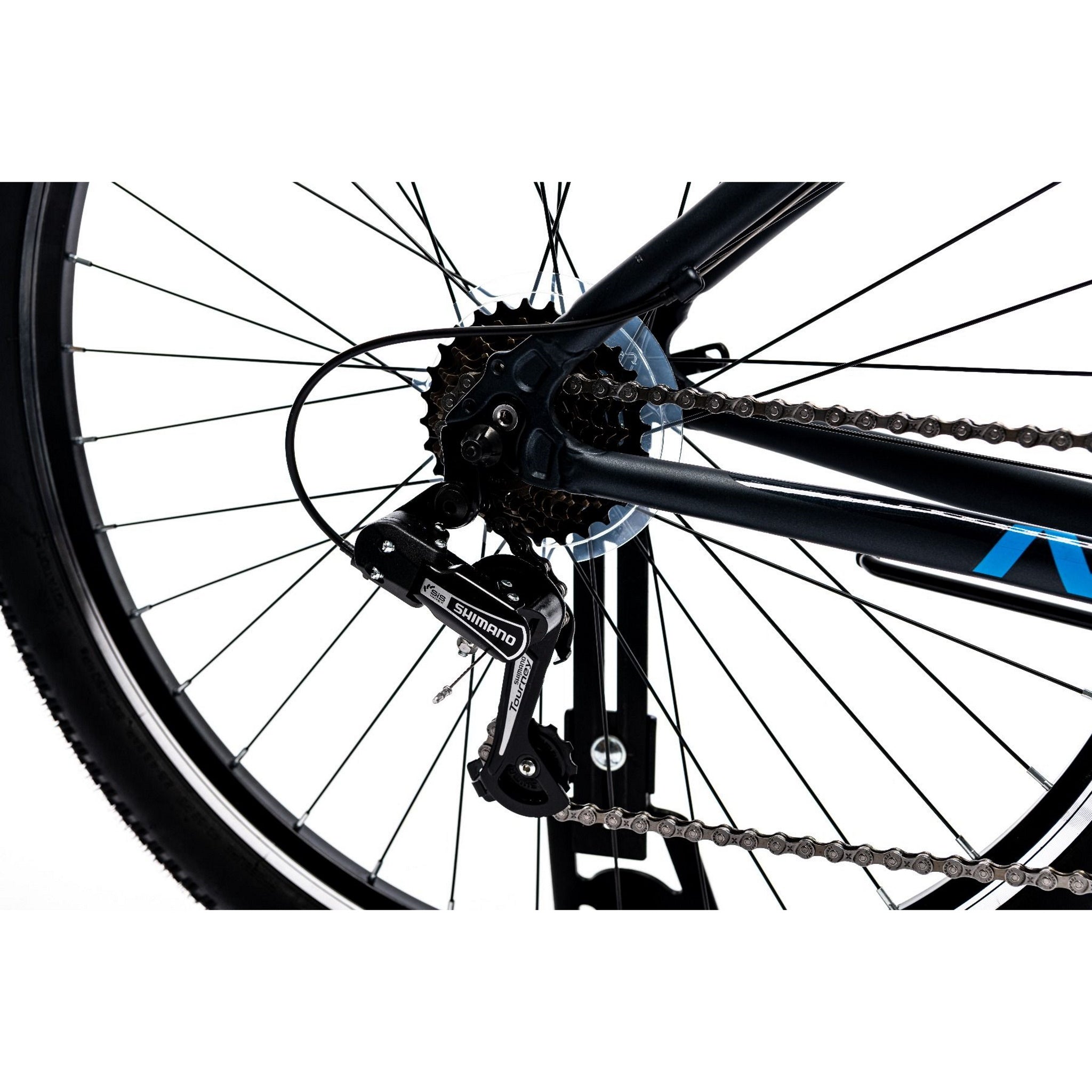

Rear Derailleur

Shimano Tourney RD-TY21-B, GS 6-Speed, Direct Attachment

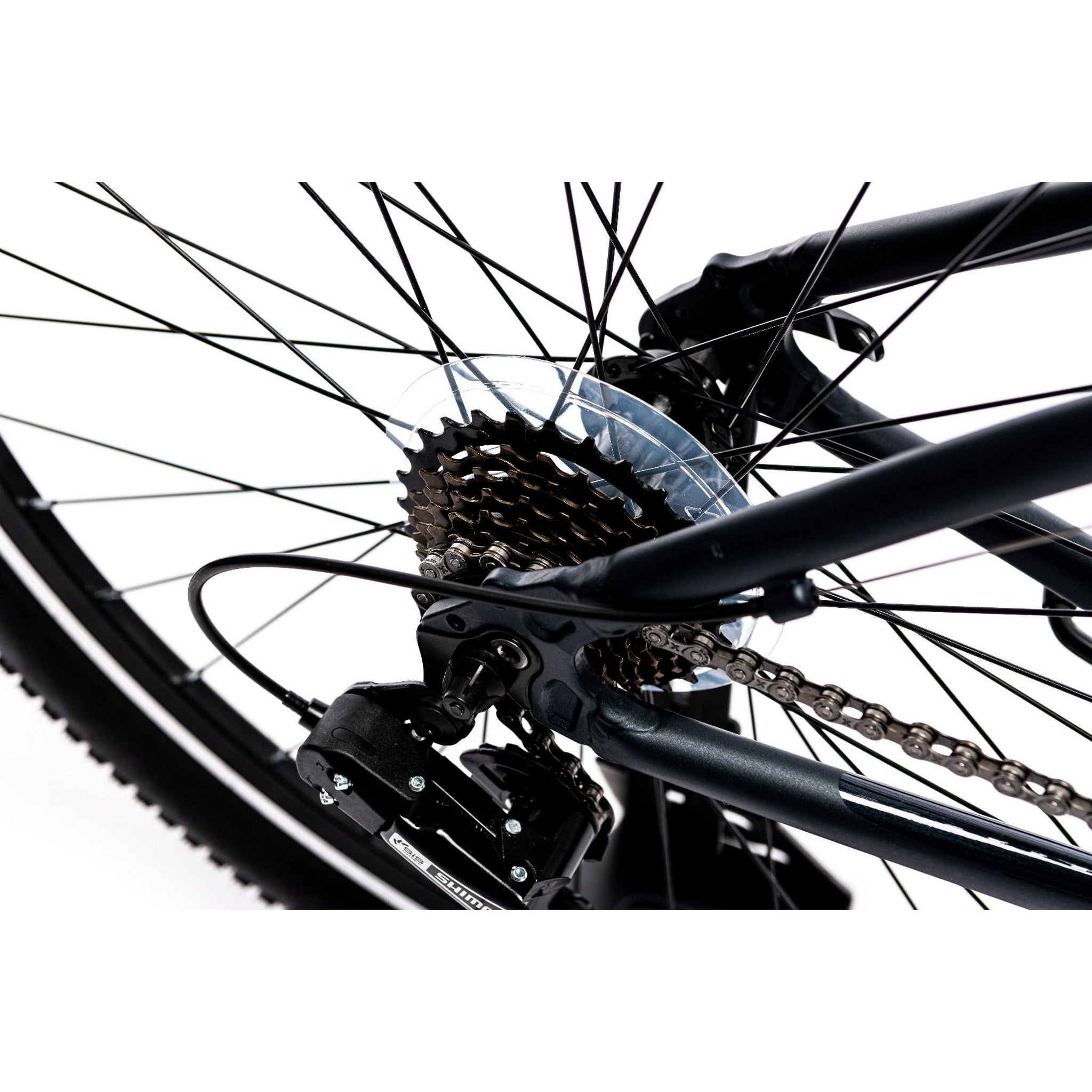

Cassette

6 Speed

Find Your Size

Step 1: Measure your height

Take off your shoes
Stand with your back straight against a wall
Balance a book on your head to mark your height on the wall
Measure your height by the distance from the floor to the mark

Your height:

Find Your Size

Step 2: Adjust your inseam

Based on your height, we’ve calculated a starting point.
You can measure your inseam by tucking a book between your legs so there is pressure but it isn’t uncomfortable.
Inseam typically falls with 5cm of the average.

Your inseam:

Find Your Size

Your results

For the Pedal Ranger 3 Mountain Bike Black/Blue we suggest the following size.

More comfort More speed

Height: --

Inseam: --

Adjusted Height: --

Find Your Size

We have saved your measurements.

Recommended sizes will now be highlighted on the page.

PERFECT RIDE GUARANTEE

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

FREE BIKE BUILD

We'll build your bike for free when you click and collect at any 99 Bikes store.

FIRST FREE TUNE-UP

Every bike comes with a complimentary free tune-up and safety check. Learn more »

Your selected size: -

Legend

Available size

Current size

Unavailable size

Suggested sizing

Pedal Ranger 3 Mountain Bike Black/Blue geometry diagram

Legend

ST Seat Tube
STA Seat Tube Angle
R Reach
TT Top Tube
BD Bottom Bracket Drop
S Stack
CS Chain Stay Length
HT Head Tube
WB Wheel Base
HTA Head Tube Angle
FL Fork Length

Wheel Size

27.5" (650b)

Stack

Reach

Top Tube Length

Seat Tube Length

Seat Tube Angle

Fork Length

Head Tube Length

Head Tube Angle

Handlebar Height

Bottom Bracket Drop

Chainstay Length

Wheelbase

Standover Height

Minimum Seat Height

Maximum Seat Height
