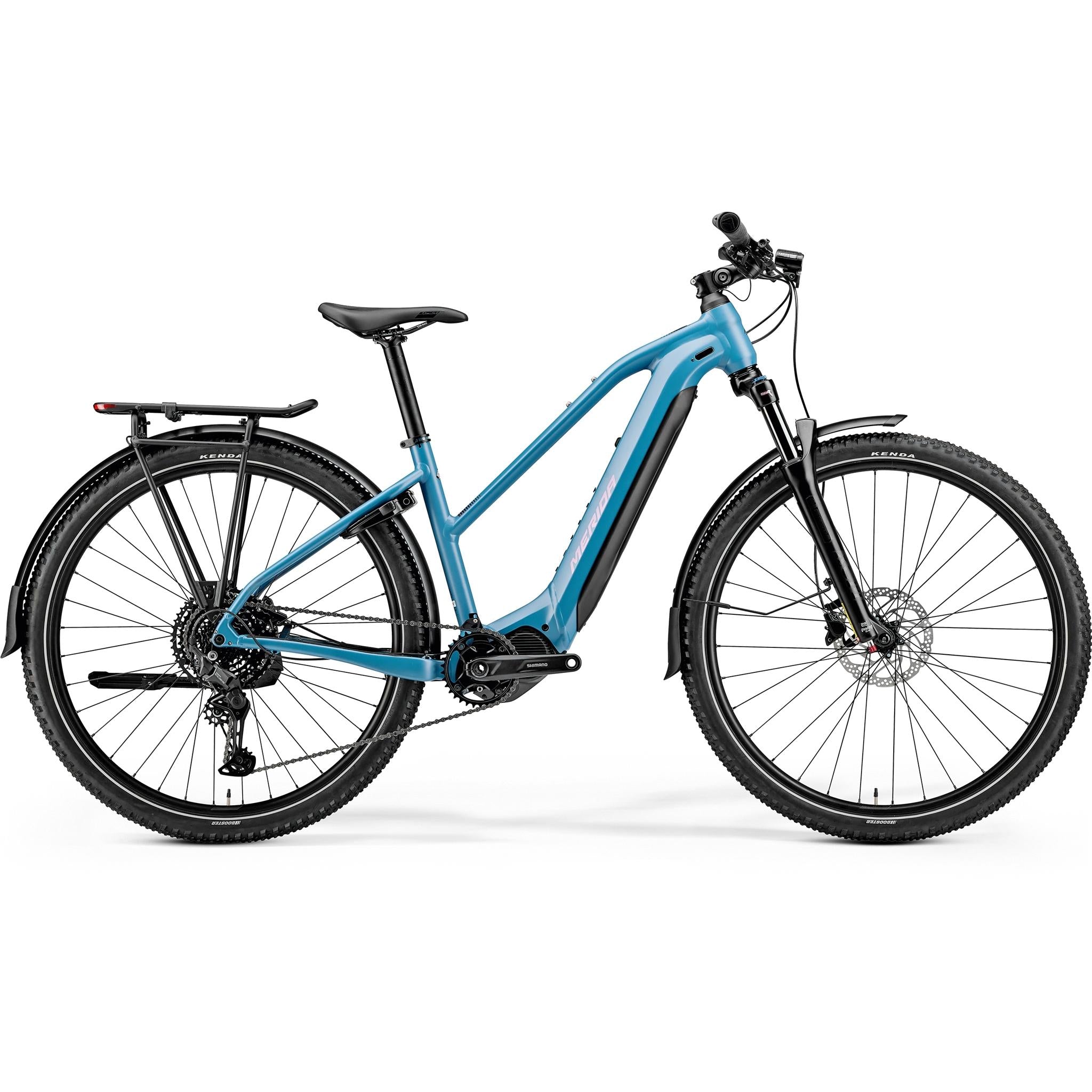

Merida eBig.Tour 400 EQ Electric Hybrid Bike 630Wh Silk Dove Blue XL

Brand: Merida

SKU: 9JL0YBQ3

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Select a size to view stock availability at this location.

Alloy Frame/ Suntour Alloy Fork

100mm Front Travel

Trapeze Style Frame

29" Wheel Size

Hydraulic Disc Brake

Shimano Cues Groupset

Have a Question? Ask an expert on 0800 000 283

Product Details

Description

The Merida eBig.Tour 400 EQ Electric Hybrid Bike 630Wh is an ebike built for everyday riding, combining an alloy frame with the assist of a Shimano EP6 drive system for effortless momentum. With an 85 Nm motor and a 630Wh battery, you get practical power for longer commutes, weekend cruising, and stop-start city routes. Hydraulic Shimano disc brakes and responsive suspension help you stay in control over varied roads, while the Shimano Cues 10-speed setup keeps shifting simple and reliable. It is a great choice if you want a versatile electric bike that feels stable, comfortable, and ready for regular use.

Key Features

Shimano EP6 motor delivers 85 Nm torque
630Wh Shimano battery for longer rides
Hydraulic disc brakes for confident stopping
Alloy frame with comfortable trapeze design
Front suspension for smoother commuting

Specifications

Product Overview

Product

Merida eBig.Tour 400 EQ Electric Hybrid Bike 630Wh Silk Dove Blue XL

Brand

Merida

Supplier SKU

2701330

Year Model

2027

Product Features

Frame Material

Alloy

Frame Style

Trapeze

Colour

Blue

Wheel Size

29"

Brake Type

Hydraulic Disc Brake

Gears

1 x 10

Fork Material

Alloy

Front Travel

100mm

Build

Frame

eBIG.TOUR LITE IV, MAT aluminium, 29x2.35" without fender max./ 29"x2.25" with fender max. WHS, 148x12 AST, intube

Fork

Suntour XCM34-Boost LOR DS, 100mm, Tapered, 51mm fork offset, 29x2.4" max WHS

Handlebars

Merida EXPERT CC, MAT aluminium, 720 WHB, 10 RHB

Headset

Merida-8155 (for the steerer 1-1/8"~1.5")

Grips

Merida EXPERT TK

Stem

Merida EXPERT CT, MAT aluminium, 31.8 DSH, adjustable; 90 mm all sizes

Pedals

Pedals not included

Saddle

Merida EXPERT TK, V-mount

Seat Post

Merida EXPERT CC, MAT aluminium, 34.9 DSP, 0 SSB

Wheels

Wheel Size

29"

Rims

Merida COMP CC II, 25 IWR, MAT aluminium

Hubs

F: Shimano TC500-B, 110x15 WHF, 32 SPH, Centerlock | R: Shimano TC500-HM-B, 148x12 WHR, 36 SPH, Centerlock

Tyres

F: KENDA Booster, 29x2.2", wire | R: KENDA Booster, 29x2.2", wire

Groupset

Crankset

Shimano CRE70-B, 34t; Shimano FC-EM600, 165mm

Chain

Shimano LG500

Brakes

Shimano MT-200, 2 piston, Shimano RT30 180mm (Front), Shimano RTEM300 180mm (Rear)

Shifters

Shimano CUES U6000-10

Rear Derailleur

Shimano CUES U6000 GS

Cassette

10 Speed

Cassette Model

Shimano LG300, 11-48, 10

Frequently Asked Questions

What is the Merida eBig.Tour 400 EQ Electric Hybrid Bike 630Wh used for?

The Merida eBig.Tour 400 EQ Electric Hybrid Bike 630Wh is used for commuting, errands, and comfortable hybrid riding on mixed surfaces, where electric assistance helps you travel further with less effort.

Why choose the Merida eBig.Tour 400 EQ Electric Hybrid Bike 630Wh?

Choose the Merida eBig.Tour 400 EQ Electric Hybrid Bike 630Wh for its Shimano EP6 motor with 85 Nm torque and a 630Wh battery, plus reliable hydraulic disc brakes and a durable alloy hybrid bike frame for everyday use.

Who is the Merida eBig.Tour 400 EQ Electric Hybrid Bike 630Wh designed for?

The Merida eBig.Tour 400 EQ Electric Hybrid Bike 630Wh is designed for riders who want an easy-to-live-with electric bike and hybrid bike experience, especially people who prefer a comfortable, upright position and pedal ebike assistance for regular travel.
