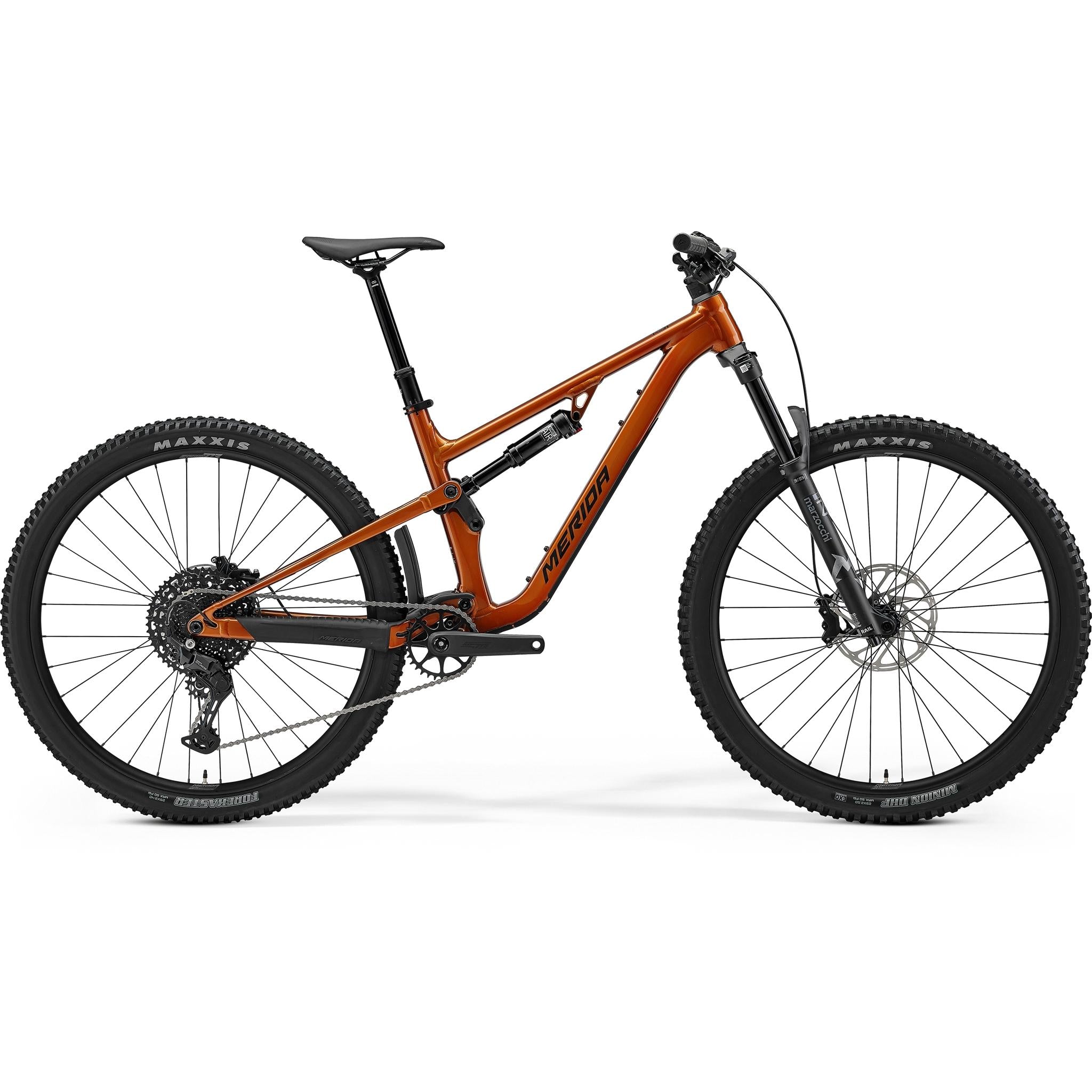

Merida One Forty 400 Trail Bike Wild Honey/Golden Black

Name: Merida One Forty 400 Trail Bike Wild Honey/Golden Black XL
SKU: NV9CK4HC

Brand: Merida

SKU: Select a size

Size: Select a size

XS SM MD LG XL

$3,499.00 Full price

$3,499.00

Club price

$3,699.00 Full price

Club Price is automatic when shopping online.
Join club 99 for $5 and unlock benefits for life! Learn more.

or 4 x $874.75 with

Learn More

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Select a size to view stock availability at this location.

Alloy Frame/ Marzocchi Fork

150mm Front Travel / 140mm Rear

29" Wheel Size

Hydraulic Disc Brake

Shimano Cues Groupset

1 x 11 Speed

Have a Question? Ask an expert on 0800 000 283

Product Details

Description

Ride confident, capable trails on the Merida One Forty 400 Trail Bike, built with an alloy frame and tuned 150mm front and 140mm rear suspension for real-world trail comfort and control. The Marzocchi Z2 air fork plus inline rear shock helps smooth out impacts, while Shimano Cues shifting and SRAM four piston hydraulic disc brakes bring dependable stopping in steeper, rockier sections. With Maxxis Minion DHF and Forekaster tyres and a tubeless-ready setup, you get faster grip and more consistent traction when the trail gets loose or rough. It is a great pick for aggressive trail riding and mountain adventures where you want an MTB that feels planted through corners and over features.

Key Features

150mm front and 140mm rear travel
Marzocchi Z2 air fork for control
Four piston hydraulic disc brakes
Maxxis Minion DHF and Forekaster tyres
Maxxis-ready tubeless wheel setup

Specifications

Product Overview

Product

Merida One Forty 400 Trail Bike Wild Honey/Golden Black

Brand

Merida

Recommend Rider Heights

XS: 151cm - 162cm
SM: 159cm - 171cm
MD: 169cm - 181cm
LG: 179cm - 190cm
XL: 187cm - 200cm

Parent SKU

BU96698F

Size SKUs

XS: 2701207
SM: 2701208
MD: 2701209
LG: 2701210
XL: 2701211

Matrix Barcodes

XS: 4711256535487
SM: 4711256535470
MD: 4711256535463
LG: 4711256535456
XL: 4711256535449

Year Model

2027

Product Features

Frame Material

Alloy

Frame Style

Crossbar

Colour

Yellow

Wheel Size

29"

Brake Type

Hydraulic Disc Brake

Gears

1 x 11

Front Travel

150mm

Rear Travel

140mm

Build

Frame

ONE-FORTY LITE III; 143 STR 29"; MAT aluminium; 29x2.5" max. WHS; 148x12 AST; BSA BBR

Fork

Marzocchi Z2; Air; 150 STR; Tapered; 44mm fork offset; 29x2.6" max. WHS

Shock

Marzocchi Bomber inline

Handlebars

MERIDA COMP TR; MAT aluminium; 780 WHB; 20 RHB

Headset

Acros ICR MERIDA EXTERNAL neck; Upper and lower IPS sealing

Grips

MERIDA COMP TR

Stem

MERIDA COMP TR; MAT aluminium; 35 DSH; 0 ASD; 40 mm

Bottom Bracket

Samox BSA 24mm EB2401

Pedals

Pedals not included

Saddle

MERIDA COMP SL; 25% recycled material; V-mount; incl. MERIDA minitool

Seat Post

MERIDA EXPERT TR II; 34.9 DSP; 0 SSB; XSHORT/SHORT: 150 SPT - MID: 170 SPT - LONG: 200 SPT - XLONG: 230 SPT

Accessories

Brake adapter front 160mm to 200mm; Lock ring

Wheels

Wheel Size

29"

Rims

MERIDA COMP TR II; 28 IWR; MAT aluminium; Tubeless ready (tubeless tape and valves not included); front 29"; rear 27.5"

Hubs

F: Shimano TC500-B; 110x15 WHF; 32 SPH; Centerlock | R: Shimano TC500-HM-B; 148x12 WHR; 32 SPH; Centerlock

Tyres

F: Maxxis Minion DHF; 29x2.5"; wire | R: Maxxis Forekaster; 29x2.4"; wire

Groupset

Crankset

MERIDA Expert TR II; 32 ATC; 170 mm for all sizes

Chain

KMC xGlide

Brakes

F: Sram DB4; 4 piston | R: Sram DB4; 4 piston

Front Rotor

Sram CenterLine; 200mm

Rear Rotor

Sram CenterLine; 200mm

Shifters

R: Shimano CUES U6000

Rear Derailleur

Shimano CUES U6000; Shadow Plus

Cassette

11 Speed

Cassette Model

SunRace 10-50t CS-UX400 EA5; 10-50 ATC; 11 GER; Linkglide

Availability

Auckland

XS: Not available
SM: Available to order
MD: Pre-order
LG: Available to order
XL: Pre-order

Christchurch

XS: In stores now
SM: Not available
MD: Pre-order
LG: Not available
XL: Pre-order

Frequently Asked Questions

What is the Merida One Forty 400 Trail Bike used for?

The Merida One Forty 400 Trail Bike is used for riding rugged mountain bike trails, attacking corners over rough terrain, and handling technical features where suspension and grip matter most.

Why choose the Merida One Forty 400 Trail Bike?

Choose the Merida One Forty 400 Trail Bike for its tough alloy frame, 150mm/140mm suspension setup, powerful hydraulic disc brakes, and Maxxis trail tyres that help you stay composed and confident ride after ride.

Who is the Merida One Forty 400 Trail Bike designed for?

The Merida One Forty 400 Trail Bike is designed for riders who want an aggressive mountain bike feel on trail days, especially those building skills for more technical riding without needing a dropper post.

Find Your Size

Step 1: Measure your height

Take off your shoes
Stand with your back straight against a wall
Balance a book on your head to mark your height on the wall
Measure your height by the distance from the floor to the mark

Your height:

Find Your Size

Step 2: Adjust your inseam

Based on your height, we’ve calculated a starting point.
You can measure your inseam by tucking a book between your legs so there is pressure but it isn’t uncomfortable.
Inseam typically falls with 5cm of the average.

Your inseam:

Find Your Size

Your results

For the Merida One Forty 400 Trail Bike Wild Honey/Golden Black we suggest the following size.

More comfort More speed

Height: --

Inseam: --

Adjusted Height: --

Find Your Size

We have saved your measurements.

Recommended sizes will now be highlighted on the page.

PERFECT RIDE GUARANTEE

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

FREE BIKE BUILD

We'll build your bike for free when you click and collect at any 99 Bikes store.

FIRST FREE TUNE-UP

Every bike comes with a complimentary free tune-up and safety check. Learn more »

Progressive Suspension for Tough Trails

150mm front and 140mm rear travel work together to absorb impacts and keep your line stable over roots, rocks, and drops.

Reliable Braking Power

SRAM four piston hydraulic disc brakes with 200mm rotors give strong, controllable stopping when you are pushing hard downhill.

Grippy Tyres for Real-World Conditions

Maxxis Minion DHF front and Forekaster rear tyres help deliver traction across loose terrain, while the tubeless-ready rims support lower-pressure comfort.
