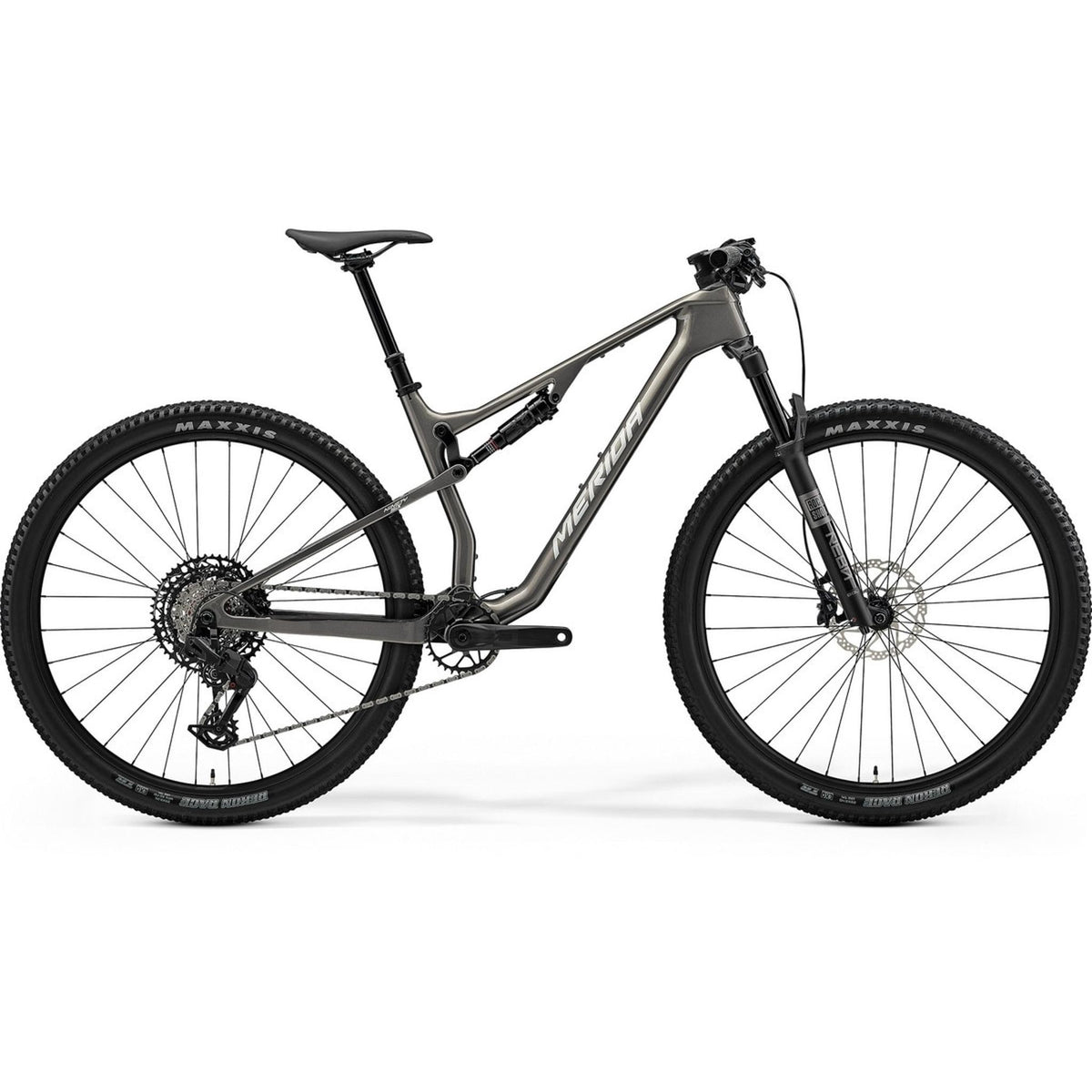

Merida Ninety-Six 6000 Cross Country Race Bike Warm Slate Grey/Silver

Name: Merida Ninety-Six 6000 Cross Country Race Bike Warm Slate Grey/Silver LG
SKU: T23MD8RU

Brand: Merida

SKU: Select a size

Size: Select a size

MD LG

$7,199.00 Full price

$7,199.00

Club price

$7,299.00 Full price

Club Price is automatic when shopping online.
Join club 99 for $5 and unlock benefits for life! Learn more.

or 4 x $1,799.75 with

Learn More

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Select a size to view stock availability at this location.

Carbon Frame/ RockShox Fork

120mm Front Travel / 100mm Rear

29" Wheel Size

Hydraulic Disc Brake

SRAM Eagle 70 Groupset

1 x 12 Speed

Have a Question? Ask an expert on 0800 000 283

Product Details

Description

The Merida Ninety-Six 6000 Cross Country Race Bike is built for fast, confident riding on mixed trails and race-day intensity. Its Merida Ninety-Six CF4 III matte carbon frame and 120mm RockShox Reba Gold air fork help smooth out rough sections, while remote lockout lets you firm things up for climbs and faster flats. Four-piston SRAM DB8 Stealth brakes deliver strong, dependable stopping power, and the SRAM Eagle 12-speed drivetrain keeps you in the right gear when the route gets steep. With tubeless-ready Maxxis Rekon Race tyres and a grippy, race-focused cockpit, it is ideal for cross country racing, weekend endurance loops, and riders who want a capable Merida bike that feels sharp and responsive.

Key Features

Merida Ninety-Six CF4 III carbon XC frame
RockShox fork with remote lockout
SRAM Eagle 12-speed for steep climbs
SRAM four-piston DB8 stealth brakes
Tubeless-ready Maxxis Rekon Race tyres

Specifications

Product Overview

Product

Merida Ninety-Six 6000 Cross Country Race Bike Warm Slate Grey/Silver

Brand

Merida

Parent SKU

AHMX4LN6

Year Model

2027

Product Features

Frame Material

Carbon

Frame Style

Crossbar

Colour

Green

Wheel Size

29"

Brake Type

Hydraulic Disc Brake

Gears

1 x 12

Front Travel

120mm

Rear Travel

100mm

Build

Frame

Ninety-Six CF4 III, 100mm, Material: Carbon, 29x2.35" Max Tyre Width, 148x12 Axle Width, BSA Bottom Bracket

Fork

RockShox Reba Gold, Air, 120mm, Tapered, 3 Position Remote Lockout, 44mm Fork Offset, 29x2.6" Max Tyre Width

Handlebars

Merida Expert CC, Material: Aluminium, 760mm, Flat

Headset

Acros ICR Merida Integrated Neck, Upper and Lower IPS Sealing

Grips

RockShox TwistLoc Grip

Stem

Merida Team CC III, Material: Aluminium, 31.8mm, -6 Degree

Bottom Bracket

SRAM DUB BSA 73 MTB Wide

Saddle

Merida Comp SL, 25% Recycled Material, V-Mount

Seat Post

Merida Team TR SL, 30.9mm, 0 Degree Setback, 150mm Travel

Wheels

Wheel Size

29"

Rims

Merida Comp CC II, 25mm Inner Rim Width, Material: Aluminium, Tubeless Ready

Hubs

F: Novatec SL-Team D041SB-B15, 110x15 Front, 32-Spoke, 6 Bolt / R: Novatec SL-Team D952RSB, 148x12 Rear, DT Swiss Ratchet Compatible, 32-Spoke, 6 Bolt, HG Freehub

Tyres

F: Maxxis Rekon Race, 29x2.4" WT, Tubeless Ready, 3C MaxxTerra EXO / R: Maxxis Rekon Race, 29x2.25", Fold, TR EXO 120 TPI

Spokes

32-Spoke

Groupset

Crankset

SRAM Eagle 70 Transmission, 32T

Chain

SRAM Eagle 70 Transmission, Flattop

Brakes

SRAM DB8 Stealth, 4 Piston; Rotors: SRAM Centerline, 180mm

Shifters

F: JD-FL Lever / R: SRAM Eagle 70 Transmission

Rear Derailleur

SRAM Eagle 70 Transmission, T-Type

Cassette

12 Speed

Cassette Model

SRAM XS-1270 Eagle Transmission, 11-52T, 12-Speed

Availability

Auckland

MD: Not available

Christchurch

MD: Not available

Frequently Asked Questions

What is the Merida Ninety-Six 6000 Cross Country Race Bike used for?

The Merida Ninety-Six 6000 Cross Country Race Bike is used for cross country trail riding, training rides, and race-style routes where you need speed, control, and reliable climbing performance.

Why choose the Merida Ninety-Six 6000 Cross Country Race Bike?

Choose the Merida Ninety-Six 6000 Cross Country Race Bike for its carbon XC frame, remote-lockout suspension efficiency, strong four-piston hydraulic braking, and a wide 12-speed drivetrain that helps you stay in the sweet spot on varied terrain.

Who is the Merida Ninety-Six 6000 Cross Country Race Bike designed for?

The Merida Ninety-Six 6000 Cross Country Race Bike is designed for riders who want a capable Merida bike for cross country racing and performance-focused trail riding, especially those who like responsive handling and dependable hardware.

Find Your Size

Step 1: Measure your height

Take off your shoes
Stand with your back straight against a wall
Balance a book on your head to mark your height on the wall
Measure your height by the distance from the floor to the mark

Your height:

Find Your Size

Step 2: Adjust your inseam

Based on your height, we’ve calculated a starting point.
You can measure your inseam by tucking a book between your legs so there is pressure but it isn’t uncomfortable.
Inseam typically falls with 5cm of the average.

Your inseam:

Find Your Size

Your results

For the Merida Ninety-Six 6000 Cross Country Race Bike Warm Slate Grey/Silver we suggest the following size.

More comfort More speed

Height: --

Inseam: --

Adjusted Height: --

Find Your Size

We have saved your measurements.

Recommended sizes will now be highlighted on the page.

PERFECT RIDE GUARANTEE

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

FREE BIKE BUILD

We'll build your bike for free when you click and collect at any 99 Bikes store.

FIRST FREE TUNE-UP

Every bike comes with a complimentary free tune-up and safety check. Learn more »

Race-ready control and stopping power

SRAM DB8 Stealth four-piston brakes give you confident bite and modulation when things get technical.

Efficient suspension when you need it

The RockShox fork and RockShox rear shock remote lockout help you stay powerful on climbs and open terrain.

Gearing made for XC effort

SRAM Eagle 12-speed shifting covers everything from punchy accelerations to long, grinding climbs.

Merida Ninety-Six 6000 Cross Country Race Bike Warm Slate Grey/Silver geometry diagram

Legend

ST Seat Tube
STA Seat Tube Angle
R Reach
TT Top Tube
BD Bottom Bracket Drop
S Stack
CS Chain Stay Length
HT Head Tube
WB Wheel Base
HTA Head Tube Angle
FL Fork Length

Wheel Size

29"

Stack

Reach

Top Tube Length

Seat Tube Length

Seat Tube Angle

Fork Length

Head Tube Length

Head Tube Angle

Handlebar Height

Bottom Bracket Drop

Chainstay Length

Wheelbase

Standover Height

Minimum Seat Height

Maximum Seat Height
