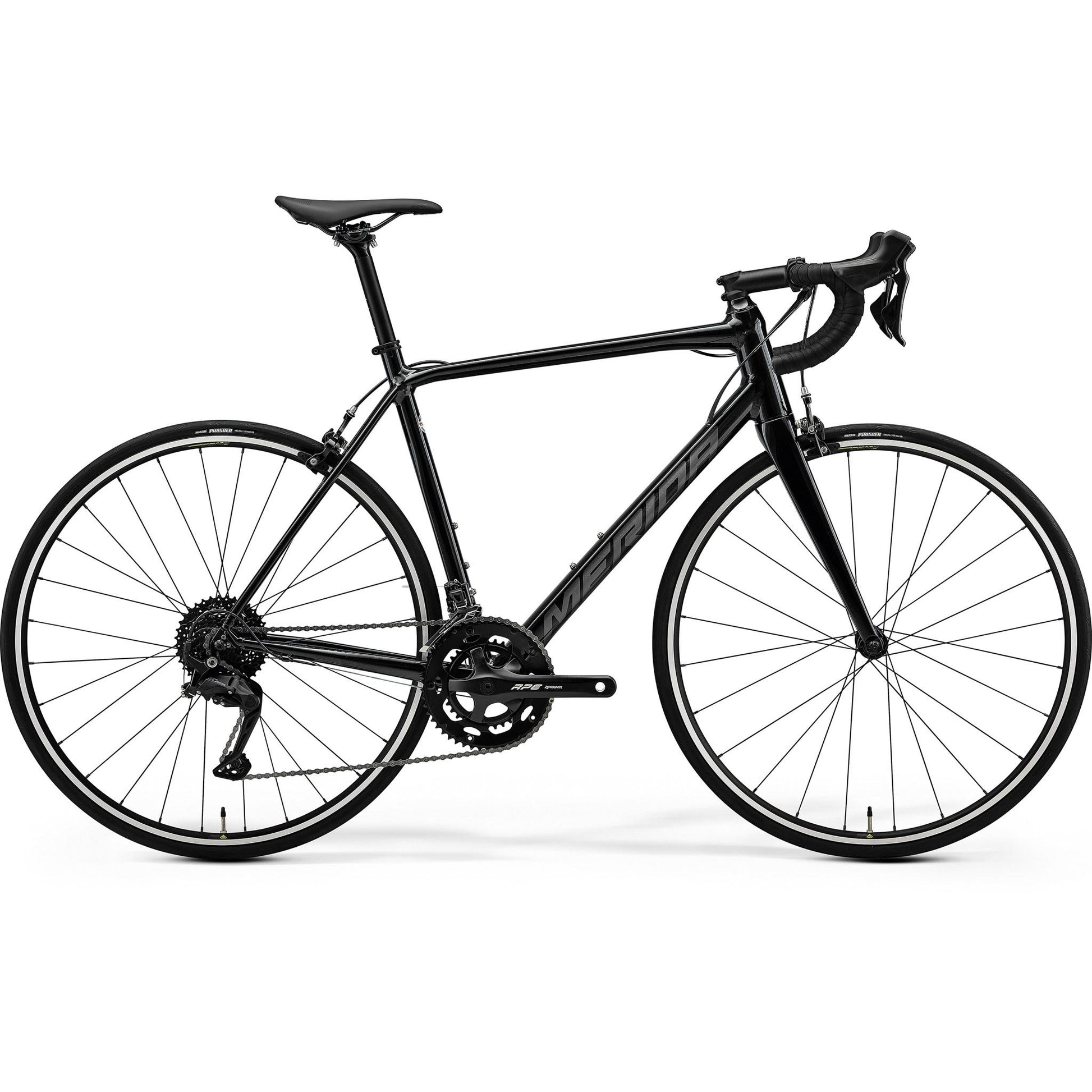

Merida Scultura Rim 100 Road Race Bike Metallic Black/Gunmetal Grey

Brand: Merida

SKU: Select a size

Other Year Models

Merida Scultura Rim 100 Road Race Bike Blue/Green Clear Coat/Silver

2026

Size: Select a size

SM SM/MD MD LG

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

$1,099.00 Full price

$1,099.00

Club price

$1,399.00 Full price

Club Price is automatic when shopping online.
Join club 99 for $5 and unlock benefits for life! Learn more.

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Select a size to view stock availability at this location.

Alloy Frame/ Carbon Fork

700c Wheel Size

Rim Brake

Shimano Cues Groupset

2 x 9 Speed

Have a Question? Ask an expert on 0800 000 283

Product Details

Description

The Merida Scultura Rim 100 Road Race Bike in Metallic Black/Gunmetal Grey is designed for cyclists seeking a blend of performance and comfort. Its lightweight alloy frame and carbon fork ensure a responsive and smooth ride, while the Shimano CUES groupset provides reliable shifting. Equipped with dual pivot rim brakes for effective stopping power and Maxxis Pursuer tires for excellent grip, this bike is perfect for road enthusiasts looking to enhance their cycling experience.

Key Features

Lightweight alloy frame
Carbon fork for smooth rides
Shimano CUES groupset
Dual pivot rim brakes
Maxxis Pursuer tires

Specifications

Product Overview

Product

Merida Scultura Rim 100 Road Race Bike Metallic Black/Gunmetal Grey

Brand

Merida

Parent SKU

96NEB9T7

Size SKUs

SM: MERA2601685
SM/MD: MERA2601686
MD: MERA2601687
LG: MERA2601688

Year Model

2026

Product Features

Frame Material

Alloy

Frame Style

Crossbar

Colour

Black

Wheel Size

700c

Brake Type

Rim Brake

Gears

2 x 9

Fork Material

Carbon

Build

Frame

SCULTURA LITE BSA; MAT aluminium; 700x25C max. WHS; 100x9/ 135x9 AST; BSA BBR

Fork

SCULTURA RIM CF2; 700x25C max. WHS

Handlebars

MERIDA EXPERT SL; MAT aluminium; 380mm(4S-3S-XXS-XS-S) , 400mm (SM-ML-L) , 420mm (XL)

Headset

MERIDA M2339 Neck

Grips

MERIDA ROAD Comp

Stem

MERIDA COMP CC; MAT aluminium; 31.8 DSH; -7 ASD; 80 mm-4S/3S/XXS/XS, 90 mm-S, 100 mm-SM/ML, 110 mm-L/XL

Bottom Bracket

FSA TH-7420ST, Cartridge Bearing

Saddle

MERIDA COMP SL; 25% recycled material; V-mount

Seat Post

MERIDA COMP CC; 27.2 DSP; 0 SSB; MAT aluminium

Wheels

Wheel Size

700c

Rims

MERIDA COMP SL; 17 IWR; 20 HRI; MAT aluminium; not Tubeless ready

Hubs

F: Road seal bearing; 100x9 WHF; 24 SPH | R: Road seal bearing; 130x9 WHR; 28 SPH

Tyres

F: Maxxis Pursuer; 700x25C; fold | R: Maxxis Pursuer; 700x25C; fold

Groupset

Crankset

Prowheel; 50-34 ATC; 165 mm-4S/3S/XXS/XS, 170 mm-S/SM/ML, 175 mm-L/XL

Chain

KMC M700

Brakes

F: Lee Chi ROAD Dual Pivot | R: Lee Chi ROAD Dual Pivot

Shifters

F: Shimano CUES U3030-L | R: Shimano CUES U3030-9R

Rear Derailleur

Shimano CUES; SGS 9S

Cassette

9 Speed

Find Your Size

Step 1: Measure your height

Take off your shoes
Stand with your back straight against a wall
Balance a book on your head to mark your height on the wall
Measure your height by the distance from the floor to the mark

Your height:

Find Your Size

Step 2: Adjust your inseam

Based on your height, we’ve calculated a starting point.
You can measure your inseam by tucking a book between your legs so there is pressure but it isn’t uncomfortable.
Inseam typically falls with 5cm of the average.

Your inseam:

Find Your Size

Your results

For the Merida Scultura Rim 100 Road Race Bike Metallic Black/Gunmetal Grey we suggest the following size.

More comfort More speed

SM/MD

Height: --

Inseam: --

Adjusted Height: --

Find Your Size

We have saved your measurements.

Recommended sizes will now be highlighted on the page.

PERFECT RIDE GUARANTEE

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

FREE BIKE BUILD

We'll build your bike for free when you click and collect at any 99 Bikes store.

FIRST FREE TUNE-UP

Every bike comes with a complimentary free tune-up and safety check. Learn more »

SM/MD

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

Your selected size: -

Legend

Available size

Current size

Unavailable size

Suggested sizing

Merida Scultura Rim 100 Road Race Bike Metallic Black/Gunmetal Grey geometry diagram

Legend

ST Seat Tube
STA Seat Tube Angle
R Reach
TT Top Tube
BD Bottom Bracket Drop
S Stack
CS Chain Stay Length
HT Head Tube
WB Wheel Base
HTA Head Tube Angle
FL Fork Length

Wheel Size

700c

Stack

542

555

574

593

Reach

375

386

390

394

Top Tube Length

530

545

560

575

Seat Tube Length

500

520

540

560

Seat Tube Angle

74.0

73.5

73.0

Fork Length

375

Head Tube Length

140

150

170

190

Head Tube Angle

140.0

150.0

170.0

190.0

Handlebar Height

Bottom Bracket Drop

Chainstay Length

Wheelbase

Standover Height

744

762

779

798

Minimum Seat Height

Maximum Seat Height
