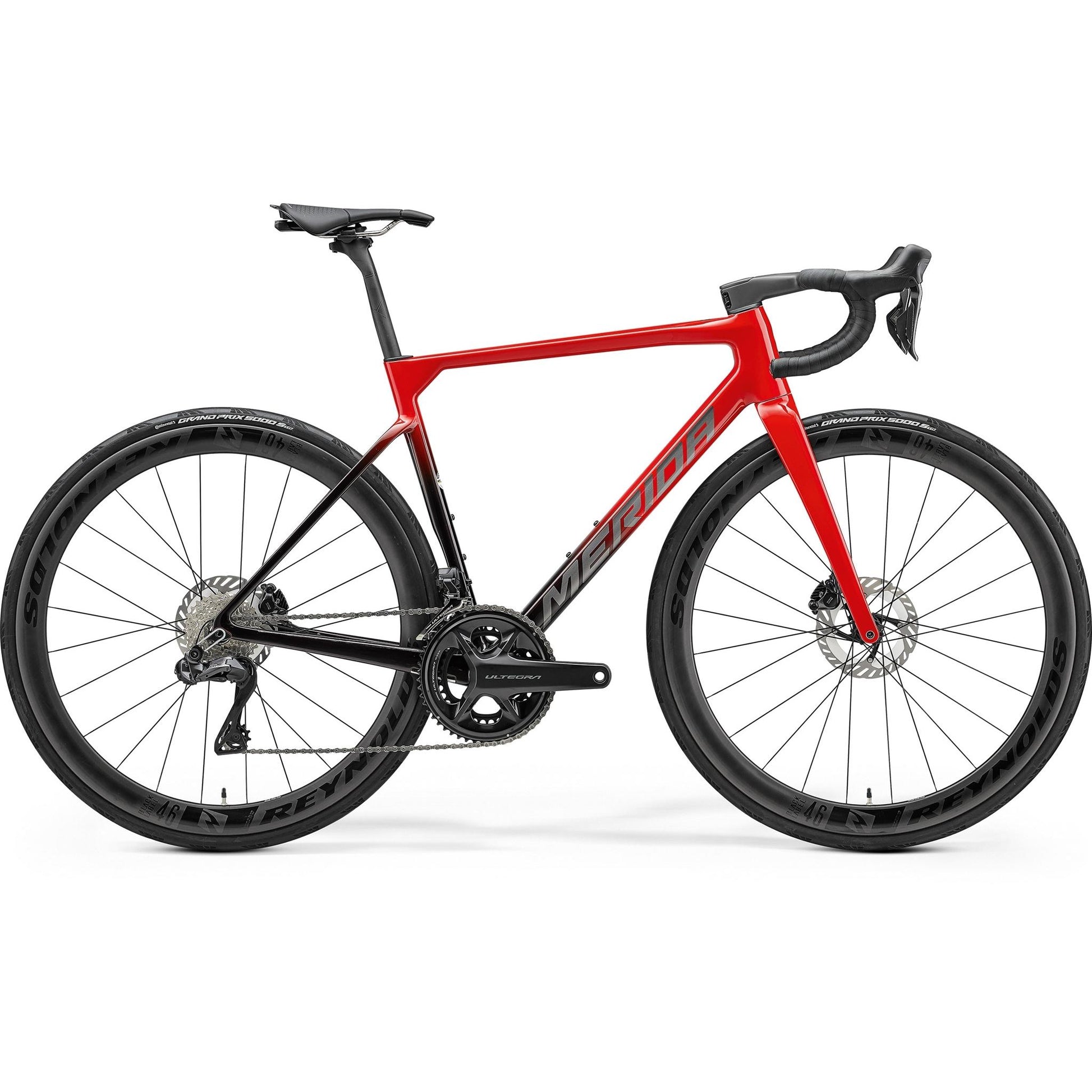

Merida Scultura 9000 Road Race Bike Passion Red/Dark Race Red/Black

Brand: Merida

SKU: Select a size

Size: Select a size

SM MD LG

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

$9,799.00 Full price

$9,799.00

Club price

$9,999.00 Full price

Club Price is automatic when shopping online.
Join club 99 for $5 and unlock benefits for life! Learn more.

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Select a size to view stock availability at this location.

Carbon Frame/ Carbon Fork

700c Wheel Size

Hydraulic Disc Brake

Shimano Ultegra Di2 Groupset

2 x 12 Speed

Have a Question? Ask an expert on 0800 000 283

Product Details

Description

The Merida Scultura 9000 is a high-performance road race bike designed for speed and agility. Crafted with a lightweight carbon frame and fork, it offers exceptional stiffness and responsiveness, making it ideal for competitive racing. Equipped with the Shimano Ultegra Di2 groupset, it ensures precise and effortless shifting, while the hydraulic disc brakes provide reliable stopping power in all conditions. The integrated carbon handlebar and stem enhance aerodynamics and comfort, and the tubeless-ready carbon wheels reduce rolling resistance for a smoother ride. Whether you're climbing steep hills or sprinting on flat roads, the Merida Scultura 9000 delivers an unparalleled cycling experience.

Key Features

Lightweight carbon frame and fork
Shimano Ultegra Di2 groupset
Hydraulic disc brakes for superior control
Integrated carbon handlebar and stem
Tubeless-ready carbon wheels

Specifications

Product Overview

Product

Merida Scultura 9000 Road Race Bike Passion Red/Dark Race Red/Black

Brand

Merida

Parent SKU

MFM74UXX

Size SKUs

SM: MERR2600389
MD: MERR2600390
LG: MERR2600391

Year Model

2026

Product Features

Frame Material

Carbon

Frame Style

Crossbar

Colour

Red

Wheel Size

700c

Brake Type

Hydraulic Disc Brake

Gears

2 x 12

Fork Material

Carbon

Build

Frame

SCULTURA CF5 V; MAT carbon; 700x30C max. WHS; 100x12/ 142x12 AST; Pressfit 86,5

Fork

SCULTURA CF5 disc; MAT carbon; 700x30C max. WHS

Handlebars

MERIDA TEAM SL 1P INTEGRATED; MAT carbon; 380mm (3S-XXS-XS-S); 400mm (M-L); 420mm (XL)

Headset

MERIDA TEAM SL (OP-203 neck)

Grips

MERIDA ROAD Expert

Stem

MERIDA TEAM ONE-PIECE INTEGRATED; MAT carbon; 90 mm-3S/XXS/XS, 100 mm-S, 110 mm-M/L, 120 mm-XL

Bottom Bracket

Shimano SM-BB72-41B; Pressfit 86.5

Saddle

Prologo Nago R4 PAS; Nack

Seat Post

Metron RS Seatpost; 27.2 DSP; 0 SSB; Carbon

Accessories

Bottle Cage: BC156C-D; Garmin Carrier + Garmin insert*2 + GoPro/Light Mount; Seatpost adapter for DI2 battery

Wheels

Wheel Size

700c

Rims

Reynolds BL 46 Expert DB, 100x12 WHF; 142x12 WHR; 21 IWR; 46 HRI; Centerlock; Shimano HG; MAT carbon; Tubeless ready (tubeless tape and valves included)

Tyres

F: Continental Grand Prix 5000S TR; 700x28C; fold; tubeless ready | R: Continental Grand Prix 5000S TR; 700x28C; fold; tubeless ready

Groupset

Crankset

Shimano Ultegra; 52-36 ATC; 160 mm-3S, 165 mm-XXS/XS, 170 mm-S/M, 172.5 mm-L/XL

Chain

Shimano M6100-12

Brakes

F: Shimano Ultegra; Hydraulic disc | R: Shimano Ultegra; Hydraulic disc

Front Rotor

Shimano CL800; 160mm

Rear Rotor

Shimano CL800; 160mm

Shifters

F: Shimano Ultegra disc Di2 | R: Shimano Ultegra disc Di2

Rear Derailleur

Shimano Ultegra Di2

Cassette

12 Speed

Frequently Asked Questions

What is the Merida Scultura 9000 Road Race Bike used for?

The Merida Scultura 9000 Road Race Bike is used for high-performance road racing and spirited training rides where speed, responsiveness, and precise handling matter.

Why choose the Merida Scultura 9000 Road Race Bike?

Choose the Merida Scultura 9000 Road Race Bike for its lightweight carbon chassis, Shimano Ultegra Di2 shifting, hydraulic disc brakes, and tubeless-ready carbon wheels—features that combine to maximize performance and control.

Who is the Merida Scultura 9000 Road Race Bike designed for?

The Merida Scultura 9000 Road Race Bike is designed for competitive road cyclists and serious enthusiasts seeking a race-ready, responsive bike that excels on climbs, sprints, and long fast rides.

Find Your Size

Step 1: Measure your height

Take off your shoes
Stand with your back straight against a wall
Balance a book on your head to mark your height on the wall
Measure your height by the distance from the floor to the mark

Your height:

Find Your Size

Step 2: Adjust your inseam

Based on your height, we’ve calculated a starting point.
You can measure your inseam by tucking a book between your legs so there is pressure but it isn’t uncomfortable.
Inseam typically falls with 5cm of the average.

Your inseam:

Find Your Size

Your results

For the Merida Scultura 9000 Road Race Bike Passion Red/Dark Race Red/Black we suggest the following size.

More comfort More speed

Height: --

Inseam: --

Adjusted Height: --

Find Your Size

We have saved your measurements.

Recommended sizes will now be highlighted on the page.

PERFECT RIDE GUARANTEE

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

FREE BIKE BUILD

We'll build your bike for free when you click and collect at any 99 Bikes store.

FIRST FREE TUNE-UP

Every bike comes with a complimentary free tune-up and safety check. Learn more »

Featherlight Carbon Performance

Ultra-light carbon frame and fork deliver explosive acceleration and effortless climbing. The integrated carbon handlebar and stem improve aerodynamics for sustained high-speed riding.

Precision Electronic Shifting & Control

Shimano Ultegra Di2 ensures instant, reliable gear changes so you stay focused on the road. Hydraulic disc brakes give confident stopping power in wet or dry conditions.

Fast-Rolling, Comfortable Wheels

Tubeless-ready carbon wheels reduce rolling resistance and offer a smoother ride with fewer flats. The setup balances low weight with durability for race-day demands.

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

Your selected size: -

Legend

Available size

Current size

Unavailable size

Suggested sizing

Merida Scultura 9000 Road Race Bike Passion Red/Dark Race Red/Black geometry diagram

Legend

ST Seat Tube
STA Seat Tube Angle
R Reach
TT Top Tube
BD Bottom Bracket Drop
S Stack
CS Chain Stay Length
HT Head Tube
WB Wheel Base
HTA Head Tube Angle
FL Fork Length

Wheel Size

700c

Stack

542

557

571

Reach

390

395

400

Top Tube Length

545

560

575

Seat Tube Length

481

501

521

Seat Tube Angle

74.0

73.5

73.0

Fork Length

385

Head Tube Length

128

140

155

Head Tube Angle

128.0

140.0

155.0

Handlebar Height

Bottom Bracket Drop

Chainstay Length

Wheelbase

Standover Height

765

782

800

Minimum Seat Height

Maximum Seat Height
