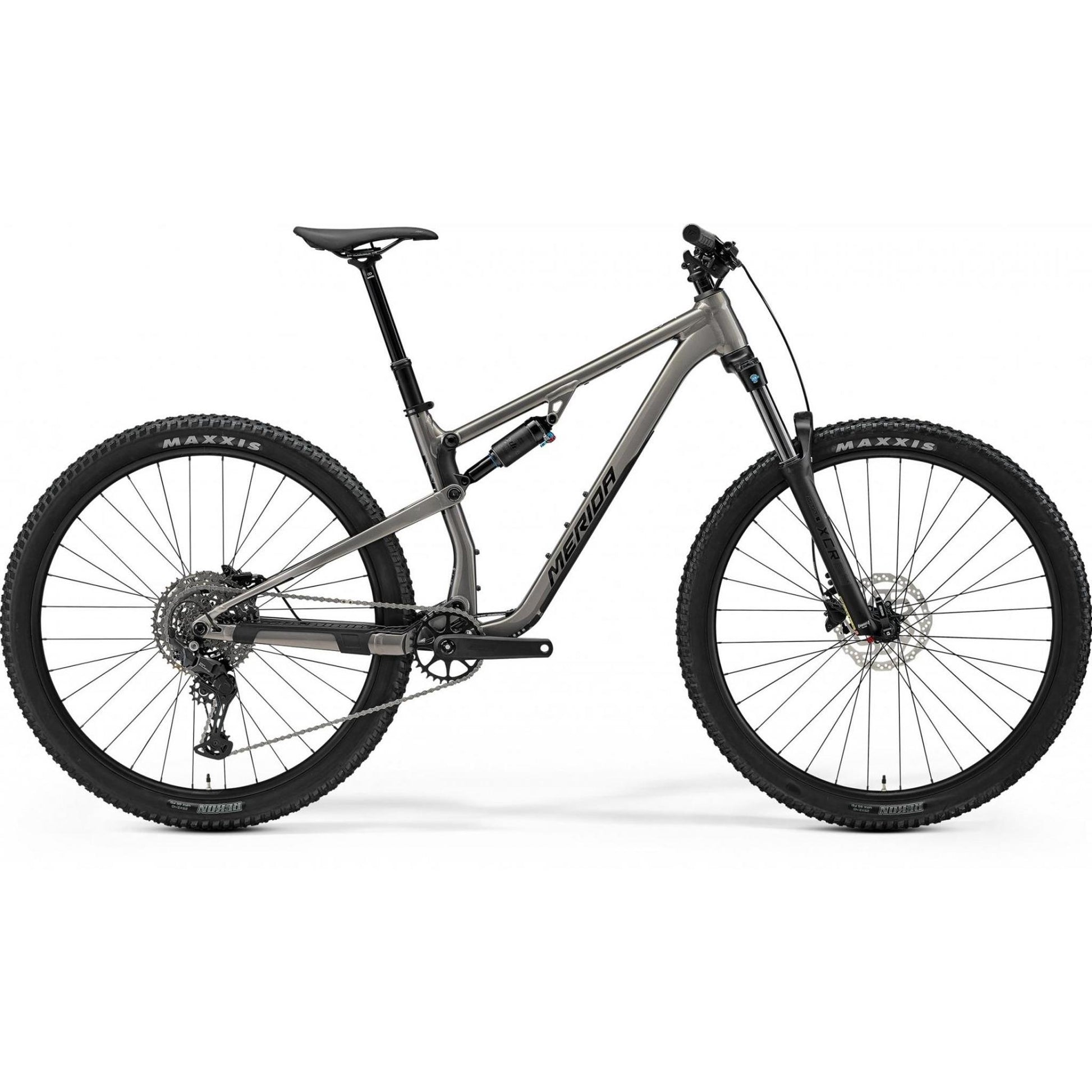

Merida One-Twenty 300 Trail Bike Warm Slate Grey/Black

Brand: Merida

SKU: Select a size

Size: Select a size

XS SM MD LG XL

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

$2,499.00 Full price

$2,499.00

Club price

$2,899.00 Full price

Club Price is automatic when shopping online.
Join club 99 for $5 and unlock benefits for life! Learn more.

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Select a size to view stock availability at this location.

Alloy Frame/ Suntour Fork

130mm Front Travel / 130mm Rear

29" Wheel Size

Hydraulic Disc Brake

Shimano Cues Groupset

1 x 10 Speed

Have a Question? Ask an expert on 0800 000 283

Product Details

Description

The Merida One-Twenty 300 Trail Bike in Warm Slate Grey/Black is designed for those who crave adventure on the trails. With a robust alloy frame and 130mm of travel both front and rear, this bike offers a smooth and controlled ride over rough terrain. The Shimano CUES drivetrain ensures reliable shifting, while the hydraulic disc brakes provide powerful stopping power. Equipped with tubeless-ready wheels and Maxxis Rekon tires, this bike is ready to tackle any trail with confidence. Whether you're climbing steep hills or descending fast trails, the Merida One-Twenty 300 is built to perform.

Specifications

Product Overview

Product

Merida One-Twenty 300 Trail Bike Warm Slate Grey/Black

Brand

Merida

Parent SKU

9EDQ04ZA

Size SKUs

XS: MEDA2600348
SM: MEDA2600349
MD: MEDA2600350
LG: MEDA2600351
XL: MEDA2600352

Year Model

2026

Product Features

Frame Material

Alloy

Frame Style

Crossbar

Colour

Grey

Wheel Size

29"

Brake Type

Hydraulic Disc Brake

Gears

1 x 10

Front Travel

130mm

Rear Travel

130mm

Build

Frame

ONE-TWENTY LITE V; 130 STR; MAT aluminium; 29x2.5" max. WHS; 148x12 AST; BSA BBR

Fork

SR Suntour XCR34 2CR; Air; 130 STR; Tapered; lockout; 44mm fork offset; 29x2.4" max WHS

Shock

SR Suntour Edge Plus 2CR; lockout

Handlebars

MERIDA COMP TR; MAT aluminium; 780 WHB; 20 RHB

Headset

Acros ICR MERIDA EXTERNAL neck; Upper and lower IPS sealing

Grips

MERIDA COMP TR

Stem

MERIDA COMP TR; MAT aluminium; 35 DSH; 0 ASD; 40 mm

Bottom Bracket

Samox BSA 24mm EB2401

Saddle

MERIDA COMP SL; 25% recycled material; V-mount

Seat Post

MERIDA EXPERT TR II; 34.9 DSP; 0 SSB; XSHORT/SHORT: 150 SPT - MID: 170 SPT - LONG, XLONG: 200 SPT

Wheels

Wheel Size

29"

Rims

MERIDA COMP CC II; 25 IWR; MAT aluminium; tubeless ready

Hubs

F: Shimano TC500-B; 110x15 WHF; 32 SPH; Centerlock | R: Shimano TC500-HM-B; 148x12 WHR; 32 SPH; Centerlock

Tyres

F: Maxxis Rekon; 29x2.4"; wire | R: Maxxis Rekon; 29x2.4"; wire

Groupset

Crankset

MERIDA Expert TR II; 32 ATC; 170 mm for all sizes

Chain

KMC xGlide

Brakes

F: Shimano MT200; 2 piston | R: Shimano MT200; 2 piston

Front Rotor

Shimano RT10; 180mm

Rear Rotor

Shimano RT10; 180mm

Shifters

R: Shimano CUES U6000

Rear Derailleur

Shimano CUES U6000; GS

Cassette

10 Speed

Frequently Asked Questions

What is the Merida One-Twenty 300 Trail Bike used for?

The Merida One-Twenty 300 Trail Bike is built for trail riding—climbing efficiently and handling technical descents with 130mm of balanced suspension travel front and rear.

Why choose the Merida One-Twenty 300 Trail Bike?

Choose the Merida One-Twenty 300 Trail Bike for its reliable Shimano CUES drivetrain, hydraulic disc brakes, and tubeless-ready wheelset that together offer confidence and performance on a wide range of trails.

Who is the Merida One-Twenty 300 Trail Bike designed for?

The Merida One-Twenty 300 Trail Bike is ideal for intermediate riders and weekend adventurers who want a capable, durable full-suspension bike that can tackle both climbs and fast, technical descents.

Find Your Size

Step 1: Measure your height

Take off your shoes
Stand with your back straight against a wall
Balance a book on your head to mark your height on the wall
Measure your height by the distance from the floor to the mark

Your height:

Find Your Size

Step 2: Adjust your inseam

Based on your height, we’ve calculated a starting point.
You can measure your inseam by tucking a book between your legs so there is pressure but it isn’t uncomfortable.
Inseam typically falls with 5cm of the average.

Your inseam:

Find Your Size

Your results

For the Merida One-Twenty 300 Trail Bike Warm Slate Grey/Black we suggest the following size.

More comfort More speed

Height: --

Inseam: --

Adjusted Height: --

Find Your Size

We have saved your measurements.

Recommended sizes will now be highlighted on the page.

PERFECT RIDE GUARANTEE

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

FREE BIKE BUILD

We'll build your bike for free when you click and collect at any 99 Bikes store.

FIRST FREE TUNE-UP

Every bike comes with a complimentary free tune-up and safety check. Learn more »

All-day trail comfort

The 130mm front and rear travel smooths rough terrain so you stay fresher on longer rides. The alloy ONE-TWENTY LITE V frame balances stiffness and compliance for efficient climbing and descending.

Confident control and braking

Hydraulic Shimano MT200 brakes and 180mm rotors deliver reliable stopping power in varied conditions. Tuned suspension and a stable 29" wheel platform keep handling predictable at speed.

Trail-ready wheels & drivetrain

Tubeless-ready MERIDA rims with Maxxis Rekon tires give grip and puncture resilience on technical lines. The Shimano CUES 10-speed groupset provides crisp, dependable shifting across climbs and descents.

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

Your selected size: -

Legend

Available size

Current size

Unavailable size

Suggested sizing

Merida One-Twenty 300 Trail Bike Warm Slate Grey/Black geometry diagram

Legend

ST Seat Tube
STA Seat Tube Angle
R Reach
TT Top Tube
BD Bottom Bracket Drop
S Stack
CS Chain Stay Length
HT Head Tube
WB Wheel Base
HTA Head Tube Angle
FL Fork Length

Wheel Size

29"

Stack

604

609

613

618

622

Reach

425

445

465

485

505

Top Tube Length

548

569

590

611

632

Seat Tube Length

400

410

425

445

470

Seat Tube Angle

78.5

Fork Length

541

Head Tube Length

100

105

110

115

Head Tube Angle

95.0

100.0

105.0

110.0

115.0

Handlebar Height

Bottom Bracket Drop

Chainstay Length

Wheelbase

Standover Height

748

750

752

754

756

Minimum Seat Height

Maximum Seat Height
