$850 Off Full Price

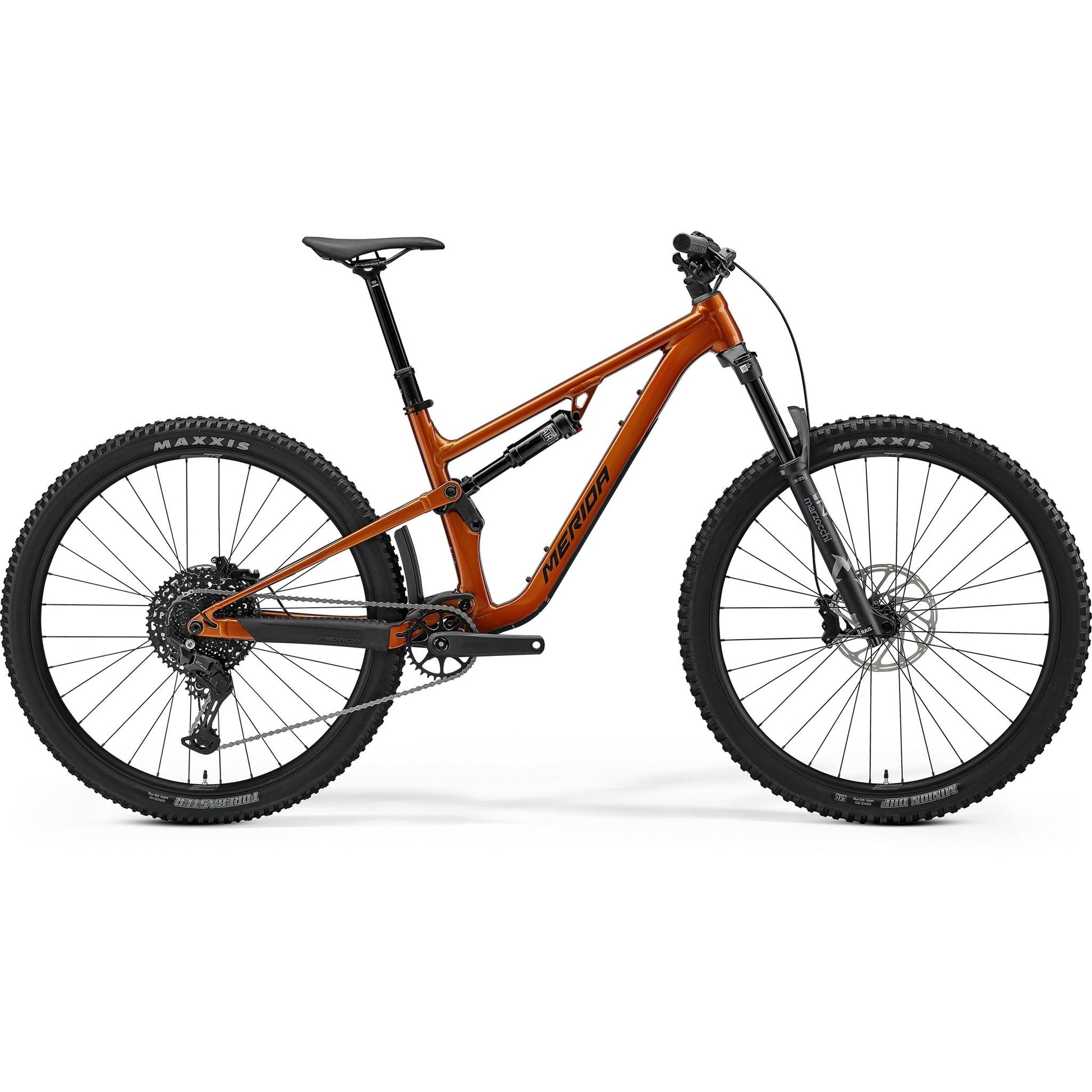

Merida One-Forty 400 Trail Bike Wild Honey Golden/Black

Brand: Merida

SKU: Select a size

Other Year Models

2026

Merida One Forty 400 Trail Bike Warm Slate Grey/Golden Black

2026

Size: Select a size

XS SM MD LG XL

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

$2,549.00 Full price

$2,549.00

Club price

$3,399.00 Full price

Club Price is automatic when shopping online.
Join club 99 for $5 and unlock benefits for life! Learn more.

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Select a size to view stock availability at this location.

Alloy Frame/ Marzocchi Fork

150mm Front Travel / 140mm Rear

29" Wheel Size

Hydraulic Disc Brake

Shimano Cues Groupset

1 x 11 Speed

Have a Question? Ask an expert on 0800 000 283

Product Details

Description

The Merida One-Forty 400 Trail Bike in Wild Honey Golden/Black is designed for those who crave adventure on rugged terrains. With a robust alloy frame and a crossbar design, this bike offers durability and stability. The Marzocchi Z2 fork provides 150mm of front travel, ensuring a smooth ride over rough trails. Equipped with Shimano CUES U6000 rear derailleur and Sram DB4 hydraulic disc brakes, it delivers precise shifting and reliable stopping power. The tubeless-ready aluminum rims enhance performance and reduce the risk of flats, making it an ideal choice for trail enthusiasts.

Key Features

Alloy frame with crossbar design
Marzocchi Z2 fork with 150mm travel
Shimano CUES U6000 rear derailleur
Sram DB4 hydraulic disc brakes
Tubeless-ready aluminum rims

Specifications

Product Overview

Product

Merida One-Forty 400 Trail Bike Wild Honey Golden/Black

Brand

Merida

Parent SKU

EIH76VXF

Size SKUs

XS: MEDA2601431
SM: MEDA2601432
MD: MEDA2601433
LG: MEDA2601434
XL: MEDA2601435

Year Model

2026

Product Features

Frame Material

Alloy

Frame Style

Crossbar

Colour

Gold

Wheel Size

29"

Brake Type

Hydraulic Disc Brake

Gears

1 x 11

Front Travel

150mm

Rear Travel

140mm

Build

Frame

ONE-FORTY LITE III; 143 STR 29"; MAT aluminium; 29x2.5" max. WHS; 148x12 AST; BSA BBR

Fork

Marzocchi Z2; Air; 150 STR; Tapered; 44mm fork offset; 29x2.6" max. WHS

Shock

Marzocchi Bomber inline

Handlebars

MERIDA COMP TR; MAT aluminium; 780 WHB; 20 RHB

Headset

Acros ICR MERIDA EXTERNAL neck; Upper and lower IPS sealing

Grips

MERIDA COMP TR

Stem

MERIDA COMP TR; MAT aluminium; 35 DSH; 0 ASD; 40 mm

Bottom Bracket

Samox BSA 24mm EB2401

Saddle

MERIDA COMP SL; 25% recycled material; V-mount; incl. MERIDA minitool

Seat Post

MERIDA EXPERT TR II; 34.9 DSP; 0 SSB; XSHORT/SHORT: 150 SPT - MID: 170 SPT - LONG: 200 SPT - XLONG: 230 SPT

Accessories

Brake adapter front 160mm to 200mm; Lock ring

Wheels

Wheel Size

29"

Rims

MERIDA COMP TR II; 28 IWR; MAT aluminium; Tubeless ready (tubeless tape and valves not included); front 29"; rear 27.5"

Hubs

F: Shimano TC500-B; 110x15 WHF; 32 SPH; Centerlock | R: Shimano TC500-HM-B; 148x12 WHR; 32 SPH; Centerlock

Tyres

F: Maxxis Minion DHF; 29x2.5"; wire | R: Maxxis Forekaster; 29x2.4"; wire

Groupset

Crankset

MERIDA Expert TR II; 32 ATC; 170 mm for all sizes

Chain

KMC xGlide

Brakes

F: Sram DB4; 4 piston | R: Sram DB4; 4 piston

Front Rotor

Sram CenterLine; 200mm

Rear Rotor

Sram CenterLine; 200mm

Shifters

R: Shimano CUES U6000

Rear Derailleur

Shimano CUES U6000; Shadow Plus

Cassette

11 Speed

Frequently Asked Questions

What is the Merida One-Forty 400 Trail Bike used for?

The Merida One-Forty 400 Trail Bike is built for aggressive trail and all-mountain riding, handling technical singletrack, climbs, and high-speed descents with its 150mm fork and 140mm rear travel.

Why choose the Merida One-Forty 400 Trail Bike?

Choose the Merida One-Forty 400 Trail Bike for its durable ONE-FORTY LITE III alloy frame, confidence-inspiring Marzocchi suspension, powerful SRAM DB4 brakes, and a reliable Shimano CUES drivetrain — a balanced package for adventurous riders.

Who is the Merida One-Forty 400 Trail Bike designed for?

The Merida One-Forty 400 Trail Bike is designed for trail-focused riders who want a capable, versatile full-suspension bike for challenging terrain without breaking the bank.

Find Your Size

Step 1: Measure your height

Take off your shoes
Stand with your back straight against a wall
Balance a book on your head to mark your height on the wall
Measure your height by the distance from the floor to the mark

Your height:

Find Your Size

Step 2: Adjust your inseam

Based on your height, we’ve calculated a starting point.
You can measure your inseam by tucking a book between your legs so there is pressure but it isn’t uncomfortable.
Inseam typically falls with 5cm of the average.

Your inseam:

Find Your Size

Your results

For the Merida One-Forty 400 Trail Bike Wild Honey Golden/Black we suggest the following size.

More comfort More speed

Height: --

Inseam: --

Adjusted Height: --

Find Your Size

We have saved your measurements.

Recommended sizes will now be highlighted on the page.

PERFECT RIDE GUARANTEE

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

FREE BIKE BUILD

We'll build your bike for free when you click and collect at any 99 Bikes store.

FIRST FREE TUNE-UP

Every bike comes with a complimentary free tune-up and safety check. Learn more »

150mm Front Travel for Rough Trails

Marzocchi Z2 fork with 150mm travel soaks up roots, drops and rock gardens for confident descents. Rear suspension complements with 140mm travel for balanced control on technical terrain.

Durable, Stable Alloy Frame

ONE-FORTY LITE III alloy frame with a crossbar design delivers strength and responsive handling without excess weight. Frame geometry and 29" front / 27.5" rear wheel setup boost traction and stability.

Reliable Brakes and Drivetrain

Powerful SRAM DB4 four-piston hydraulic brakes and a wide-range SunRace 10–50t cassette deliver precise stopping and smooth gear coverage. Shimano CUES U6000 rear derailleur and tubeless-ready rims improve shifting reliability and reduce flats.

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

Your selected size: -

Legend

Available size

Current size

Unavailable size

Suggested sizing

Merida One-Forty 400 Trail Bike Wild Honey Golden/Black geometry diagram

Legend

ST Seat Tube
STA Seat Tube Angle
R Reach
TT Top Tube
BD Bottom Bracket Drop
S Stack
CS Chain Stay Length
HT Head Tube
WB Wheel Base
HTA Head Tube Angle
FL Fork Length

Wheel Size

29"

Stack

607

616

629

Reach

426

453

480

509

535

Top Tube Length

532

559

586

618

649

Seat Tube Length

400

410

425

445

470

Seat Tube Angle

80.0

Fork Length

557

Head Tube Length

105

120

Head Tube Angle

95.0

105.0

120.0

Handlebar Height

Bottom Bracket Drop

Chainstay Length

Wheelbase

Standover Height

730

735

738

735

730

Minimum Seat Height

Maximum Seat Height
