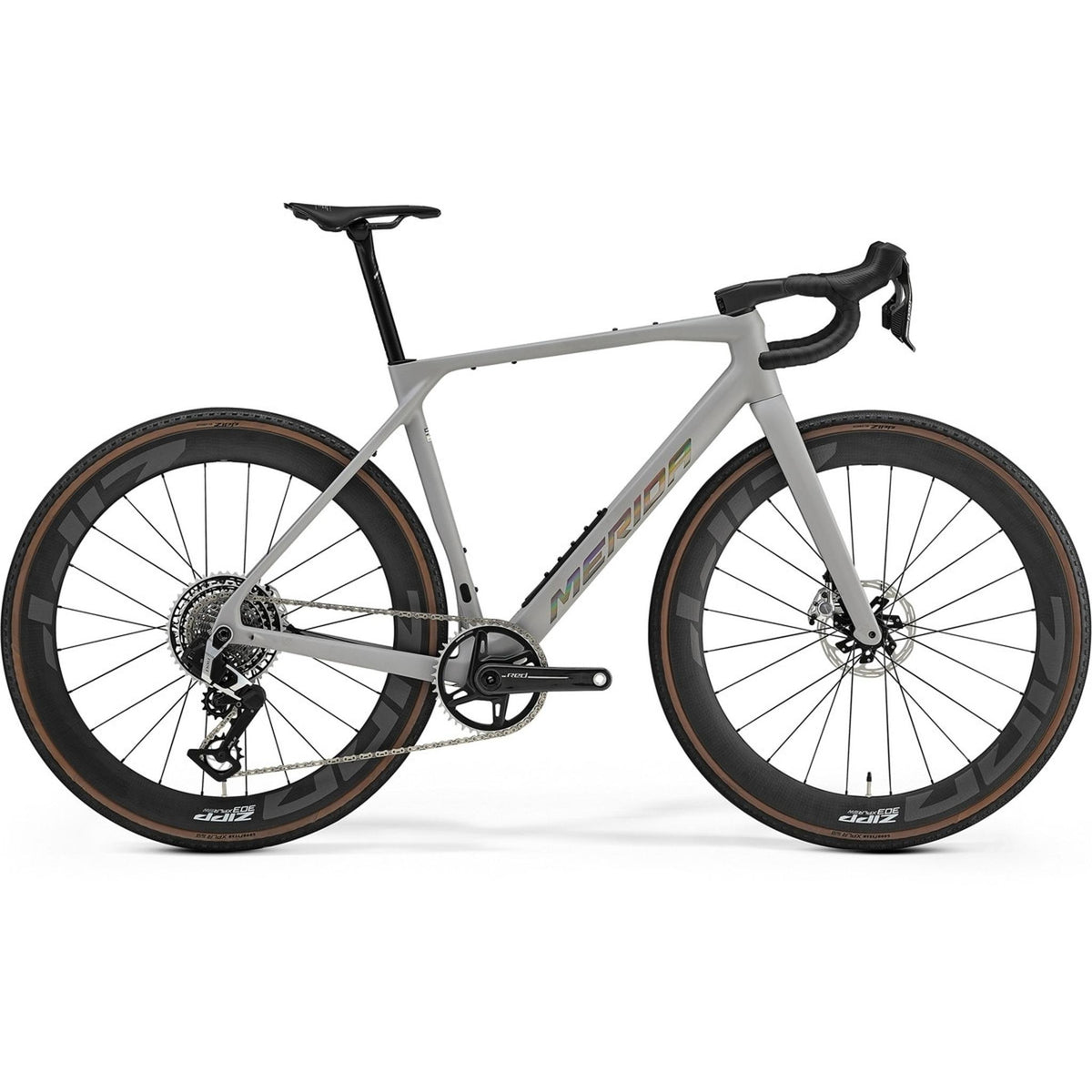

Merida Mission 10K Gravel Race Bike Silk Grey/Holo Silver

Name: Merida Mission 10K Gravel Race Bike Silk Grey/Holo Silver LG
SKU: XKGHA1QB

Brand: Merida

SKU: Select a size

Size: Select a size

SM MD LG

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Select a size to view stock availability at this location.

Carbon Frame/ Carbon Fork

700c Wheel Size

Hydraulic Disc Brake

SRAM Red eTap AXS Groupset

1 x 13 Speed

Have a Question? Ask an expert on 0800 000 283

Product Details

Description

The Merida Mission 10K Gravel Race Bike is built for fast, smooth gravel days, bringing race-ready carbon performance with an efficient geometry and responsive handling. It features a Merida carbon fork and frame, SRAM Red eTap AXS wireless electronic shifting, and hydraulic disc brakes with 160mm rotors for confident stopping in changing conditions. Zipp 303 XPLR SW wheels paired with Goodyear XPLR Slick 700x40C tubeless-ready tyres help you roll quickly while maintaining grip where the surface turns unpredictable. With its 13-speed SRAM XPLR setup, it suits long rides, racing, and adventure gravel routes where you want speed without sacrificing control.

Key Features

Carbon gravel race frame and fork
Hydraulic disc brakes for confident control
Wireless electronic shifting for fast changes
Tubeless-ready 700c gravel slick tyres
Wide-range 10-46T 13-speed gearing

Specifications

Product Overview

Product

Merida Mission 10K Gravel Race Bike Silk Grey/Holo Silver

Brand

Merida

Parent SKU

105JZN9X

Size SKUs

SM: MERC2601846
MD: MERC2601847
LG: MERC2601848

Matrix Barcodes

SM:
MD:
LG: 4711256520117

Year Model

2026

Product Features

Frame Material

Carbon

Frame Style

Crossbar

Colour

Grey

Wheel Size

700c

Brake Type

Hydraulic Disc Brake

Gears

1 x 13

Fork Material

Carbon

Build

Frame

Merida Mission Carbon, BSA Threaded BB, 142x12mm Thru-Axle

Fork

Merida Mission CF4 II, Carbon, Tapered, 100x12mm Thru-Axle

Handlebars

Merida Team SL 1P GR Integrated Carbon

Headset

Merida Team

Grips

Merida

Stem

Merida Team GR (90mm XXS/XS/S, 100mm M, 110mm L/XL)

Bottom Bracket

SRAM DUB BSA Threaded

Pedals

Pedals not included

Saddle

Prologo Nago R4 PAS

Seat Post

Vision Metron RS Carbon

Wheels

Wheel Size

700c

Rims

Zipp 303 XPLR SW

Hubs

Zipp 303 XPLR SW (100x12mm Front / 142x12mm Rear)

Tyres

Goodyear XPLR Slick, 700x40C (40-622), TLR

Spokes

Zipp

Groupset

Crankset

SRAM Red XPLR, Carbon, 44T (165mm XXS/XS, 170mm S/M, 172.5mm L/XL)

Chain

SRAM Red Flattop 13-Speed

Brakes

SRAM Red AXS Hydraulic Disc, 160mm SRAM Paceline X Rotors (Front & Rear)

Shifters

SRAM Red AXS Hydraulic

Rear Derailleur

SRAM Red XPLR AXS Wireless, T-Type, 13-Speed

Cassette

13 Speed

Cassette Model

SRAM Red XPLR XG-1391, 10-46T, 13-Speed

Frequently Asked Questions

What is the Merida Mission 10K Gravel Race Bike used for?

The Merida Mission 10K Gravel Race Bike is used for gravel racing, fast group rides, and long-distance adventure gravel where you need speed, stability, and confident braking.

Why choose the Merida Mission 10K Gravel Race Bike?

Choose the Merida Mission 10K Gravel Race Bike for its carbon frame and fork, hydraulic disc braking, and wireless SRAM Red eTap AXS shifting, paired with grippy 700x40C tubeless-ready tyres for real-world gravel conditions.

Who is the Merida Mission 10K Gravel Race Bike designed for?

The Merida Mission 10K Gravel Race Bike is designed for riders who want a performance-focused gravel bike for racing and spirited riding, including experienced cyclists and enthusiasts moving up to higher-end electronic drivetrain and carbon gravel handling.

Find Your Size

Step 1: Measure your height

Take off your shoes
Stand with your back straight against a wall
Balance a book on your head to mark your height on the wall
Measure your height by the distance from the floor to the mark

Your height:

Find Your Size

Step 2: Adjust your inseam

Based on your height, we’ve calculated a starting point.
You can measure your inseam by tucking a book between your legs so there is pressure but it isn’t uncomfortable.
Inseam typically falls with 5cm of the average.

Your inseam:

Find Your Size

Your results

For the Merida Mission 10K Gravel Race Bike Silk Grey/Holo Silver we suggest the following size.

More comfort More speed

Height: --

Inseam: --

Adjusted Height: --

Find Your Size

We have saved your measurements.

Recommended sizes will now be highlighted on the page.

PERFECT RIDE GUARANTEE

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

FREE BIKE BUILD

We'll build your bike for free when you click and collect at any 99 Bikes store.

FIRST FREE TUNE-UP

Every bike comes with a complimentary free tune-up and safety check. Learn more »

Race-day gravel efficiency

Carbon construction and agile handling help you maintain momentum over rougher terrain, so the bike feels quick when the road disappears.

Reliable stopping power

Hydraulic disc brakes and large rotors provide consistent braking feel, giving you confidence for descents and wet or dusty corners.

Fast, precise wireless shifting

SRAM Red eTap AXS makes gear changes quick and effortless, keeping you in the right cadence when terrain and gradients change.

Your selected size: -

Legend

Available size

Current size

Unavailable size

Suggested sizing

Wheel Size

700c

Stack

Reach

Top Tube Length

Seat Tube Length

Seat Tube Angle

Fork Length

Head Tube Length

Head Tube Angle

Handlebar Height

Bottom Bracket Drop

Chainstay Length

Wheelbase

Standover Height

Minimum Seat Height

Maximum Seat Height
