Merida Espresso CC 400 EQ SE Electric Hybrid Bike Silk Black/Brown

Brand: Merida

SKU: Select a size

Size: Select a size

SM MD LG

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

$3,799.00 Full price

$3,799.00

Club price

$4,299.00 Full price

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Select a size to view stock availability at this location.

Off-Road Hills & Heavy Loads / 85 Nm Torque

63 km Range

Shimano STePS EP6 Motor

Alloy Frame/ Suntour Fork

80mm Front Travel

504Wh Battery

Have a Question? Ask an expert on 0800 000 283

Product Details

Description

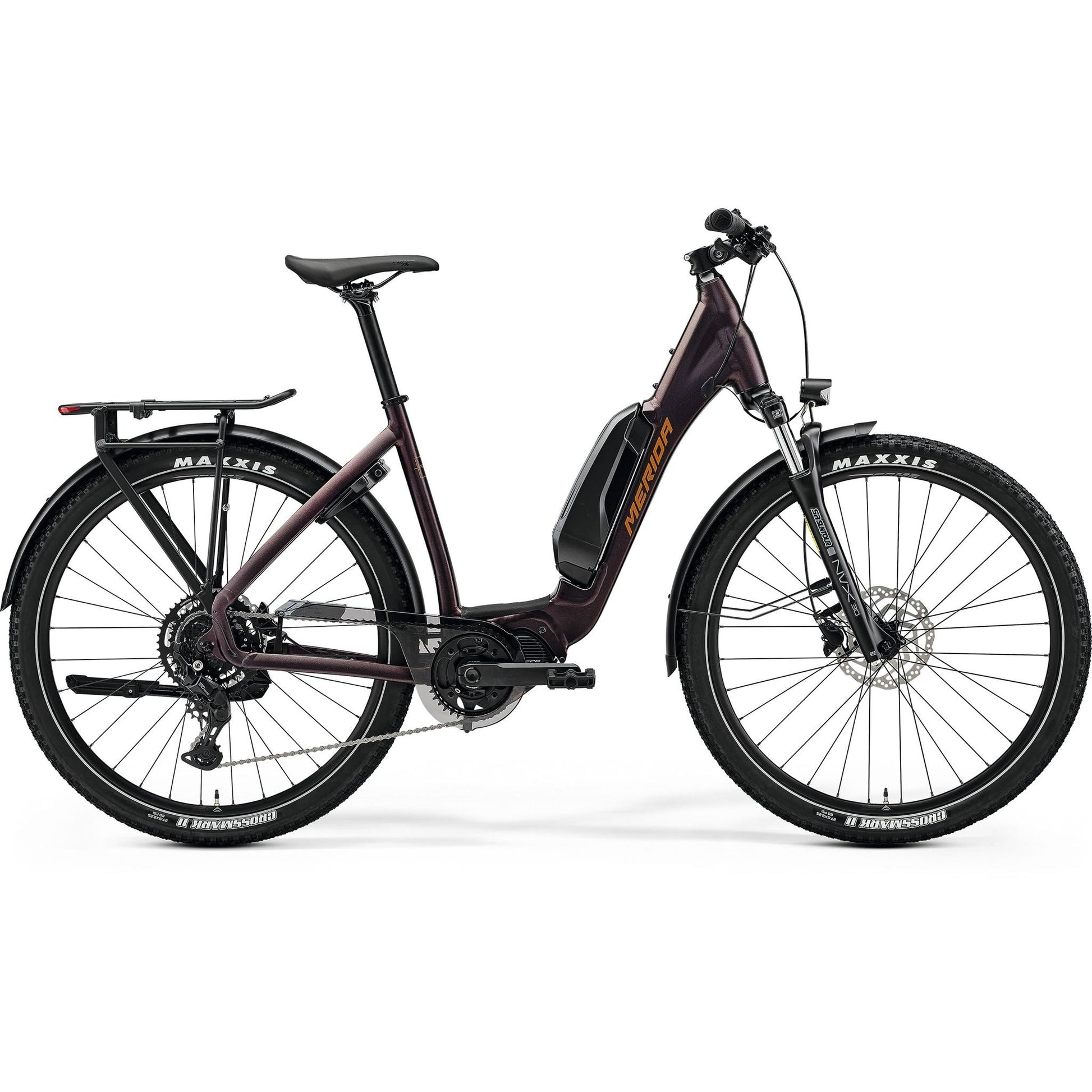

The Merida Espresso CC 400 EQ SE Electric Hybrid Bike is designed for those who seek a versatile and comfortable ride. Equipped with a powerful Shimano EP6 motor delivering 85Nm of torque, it ensures a smooth and efficient ride across various terrains. The 504Wh Shimano battery provides ample power for extended journeys, making it ideal for commuting or leisurely rides. Its step-through frame offers easy accessibility, while the hydraulic disc brakes ensure reliable stopping power. With 27.5" wheels and a Suntour fork providing 80mm of front travel, this bike offers a balanced and comfortable ride.

Specifications

Product Overview

Product

Merida Espresso CC 400 EQ SE Electric Hybrid Bike Silk Black/Brown

Brand

Merida

Parent SKU

034Y231O

Size SKUs

SM: MEEB2600842
MD: MEEB2600843
LG: MEEB2600844

Year Model

2026

Product Features

Frame Material

Alloy

Frame Style

Crossbar

Colour

Black

Brake Type

Hydraulic Disc Brake

Gears

1 x 9

Front Travel

80mm

Motor and Battery System

Motor Brand

Shimano

Torque (Nm)

Motor Climbing Ability

Off-Road Hills & Heavy Loads

Battery Size (Watt-Hours)

504

Battery

Shimano EN604 Battery, 504Wh

Max. Range (KMs)

Display

Shimano SC-EN500,

Build

Frame

eSPRESSO LITE 650, MAT aluminium, 27,5x2,25 max. WHS, 135x9 AST, external, max. 504 Wh,

Fork

Suntour NVX30 DS, Coil, 80 STR, 27,5x2,4" max WHS,

Handlebars

MERIDA EXPERT, MAT aluminium, 660 WHB, 15 RHB

Headset

FSA NO.55E Neck,

Grips

MERIDA EXPERT TK,

Stem

MERIDA Expert CT, 31.8 DSH, adjustable,; XS/S/M-90, L/XL-110,

Pedals

VP VPE-891,

Saddle

MERIDA Expert TK, 152 width

Seat Post

MERIDA COMP CC, MAT aluminium, 30.9 DSP, 0 SSB

Accessories

Frame Lock: Abus 4650 XL,

Wheels

Rims

MERIDA COMP TK, 20 IWR, MAT aluminium,

Hubs

F: Shimano QC300, 100x9 WHF, 32 SPH, Centerlock | R: Shimano QC300, 135x9 WHR, 32 SPH, Centerlock

Tyres

F: Maxxis Crossmark II, 27.5x2.25", wire, reflecting line, | R: Maxxis Crossmark II, 27.5x2.25", wire, reflecting line,

Groupset

Crankset

Shimano CRE61, 38T; MERIDA EXPERT TK, 165mm

Chain

KMC xGlide,

Brakes

Shimano MT-200, 2 piston

Front Rotor

Shimano RT10, 180 mm

Rear Rotor

Shimano RT10, 180 mm

Shifters

Shimano CUES U4000,

Cassette

9 Speed

Disclaimer

Please Note: Before using this vehicle, check the applicable local laws relating to your intended use of the vehicle on roads and road related areas. Please ride responsibly and follow your local laws. We do not recommend modifying your electric bike or electric scooter.

Find Your Size

Step 1: Measure your height

Take off your shoes
Stand with your back straight against a wall
Balance a book on your head to mark your height on the wall
Measure your height by the distance from the floor to the mark

Your height:

Find Your Size

Step 2: Adjust your inseam

Based on your height, we’ve calculated a starting point.
You can measure your inseam by tucking a book between your legs so there is pressure but it isn’t uncomfortable.
Inseam typically falls with 5cm of the average.

Your inseam:

Find Your Size

Your results

For the Merida Espresso CC 400 EQ SE Electric Hybrid Bike Silk Black/Brown we suggest the following size.

More comfort More speed

Height: --

Inseam: --

Adjusted Height: --

Find Your Size

We have saved your measurements.

Recommended sizes will now be highlighted on the page.

PERFECT RIDE GUARANTEE

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

FREE BIKE BUILD

We'll build your bike for free when you click and collect at any 99 Bikes store.

FIRST FREE TUNE-UP

Every bike comes with a complimentary free tune-up and safety check. Learn more »

Range

Calculate your range

E-Bike Range Estimator

Free Test Rides

Come into your local store to test ride an E-Bike today

Find a store

Shop Our E-bikes

Shop our collection of electric bikes

Shop Now

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

Your selected size: -

Legend

Available size

Current size

Unavailable size

Suggested sizing

Stack

642

661

680

Reach

392

403

415

Top Tube Length

588

605

623

Seat Tube Length

430

480

530

Seat Tube Angle

73.0

Fork Length

484

Head Tube Length

170

190

210

Head Tube Angle

170.0

190.0

210.0

Handlebar Height

Bottom Bracket Drop

Chainstay Length

Wheelbase

Standover Height

472

465

461

Minimum Seat Height

Maximum Seat Height
