$2500 Off Full Price

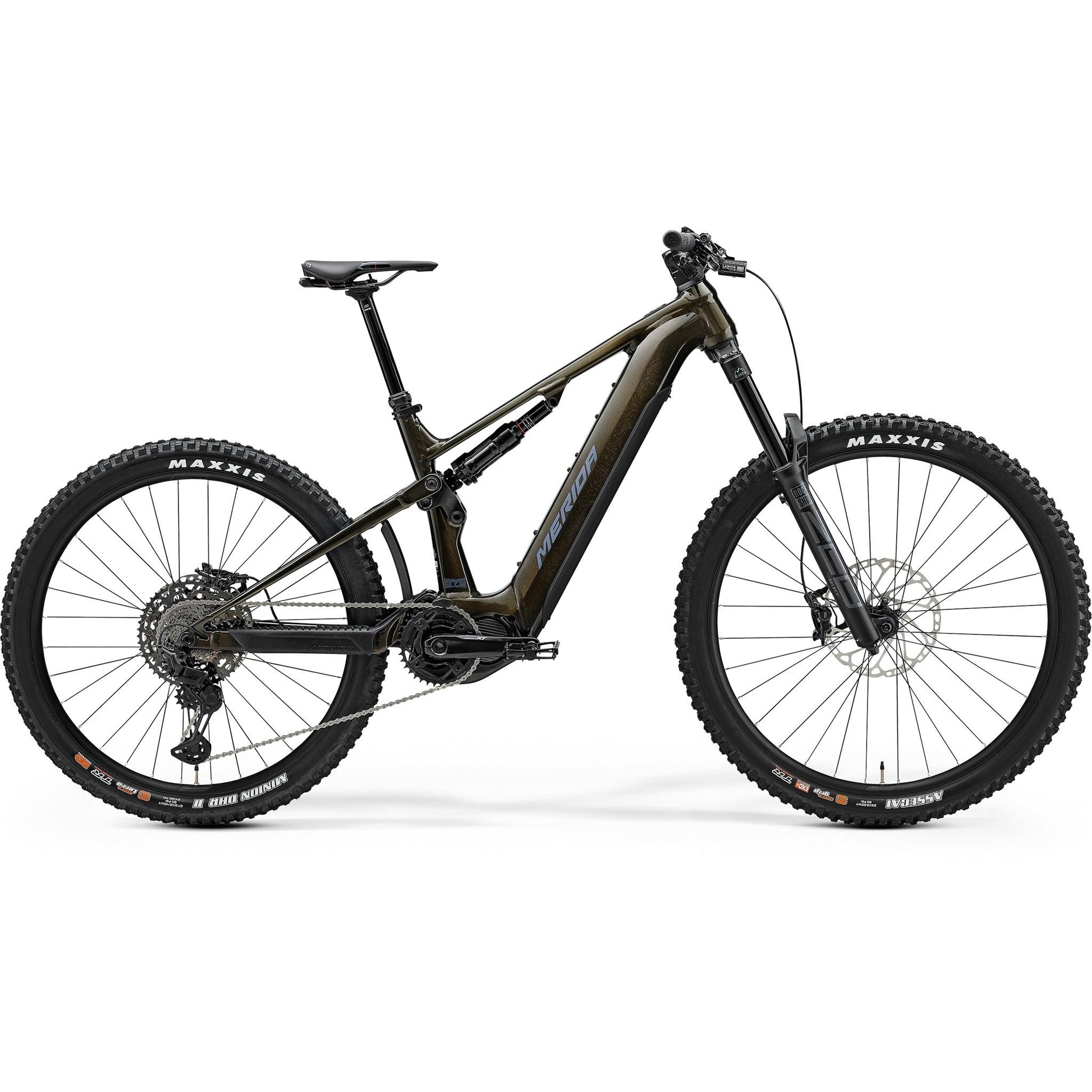

Merida eOne-Sixty 875 Electric Enduro Bike Guarded Gold/Grey

Brand: Merida

SKU: Select a size

Size: Select a size

SM MD LG XL

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

$7,999.00 Full price

$7,999.00

Club price

$10,499.00 Full price

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Select a size to view stock availability at this location.

Off-Road Hills & Heavy Loads / 85 Nm Torque

104 km Range

Shimano STePS EP801 Motor

Alloy Frame/ RockShox Fork

170mm Front Travel / 160mm Rear

712Wh Battery

Have a Question? Ask an expert on 0800 000 283

Product Details

Description

The Merida eOne-Sixty 875 Electric Enduro Bike is designed for those who crave adventure on challenging terrains. Equipped with a robust Shimano mid-drive motor delivering 85Nm of torque, this bike ensures powerful assistance on steep climbs and rough trails. Its 712Wh battery provides extended range, allowing for longer rides without frequent recharges. The bike features a sturdy alloy frame with 160mm rear travel and a RockShox ZEB Select fork with 170mm front travel, offering excellent shock absorption and control. With Shimano XT hydraulic disc brakes, it guarantees reliable stopping power in all conditions. The mullet wheel setup, with a 29" front and 27.5" rear, enhances maneuverability and stability, making it perfect for enduro enthusiasts.

Key Features

Powerful Shimano 85Nm mid-drive motor
Long-lasting 712Wh Shimano battery
Durable alloy frame with 160mm travel
RockShox ZEB Select 170mm front fork
Shimano XT hydraulic disc brakes

Specifications

Product Overview

Product

Merida eOne-Sixty 875 Electric Enduro Bike Guarded Gold/Grey

Brand

Merida

Parent SKU

X5XU50GO

Size SKUs

SM: MEEB2601482
MD: MEEB2601483
LG: MEEB2601484
XL: MEEB2601485

Year Model

2026

Product Features

Frame Material

Alloy

Frame Style

Crossbar

Colour

Gold

Wheel Size

29" / 27.5" (Mullet Bike)

Brake Type

Hydraulic Disc Brake

Gears

1 x 11

Front Travel

170mm

Rear Travel

160mm

Motor and Battery System

Drive Type

Mid Drive

Motor Brand

Shimano

Torque (Nm)

Motor Climbing Ability

Off-Road Hills & Heavy Loads

Battery Size (Watt-Hours)

712

Battery

Shimano BT-EN817; 712Wh

Max. Range (KMs)

Display

Shimano SC-EM800

Build

Frame

eONE-SIXTY LITE IV; MAT aluminium; 160 STR; 29x2.6" max. WHS; 148x12 AST; intube ; 750 Wh

Fork

Rock Shox ZEB Select; Air; 170 STR; Tapered; 44mm fork offset; 29x2.8" max WHS

Shock

Rock Shox Super Deluxe Select

Handlebars

MERIDA EXPERT eTR; 780 WHB;

Headset

Acros ICR MERIDA EXTERNAL neck w/ Blocklock

Grips

MERIDA EXPERT EC

Stem

MERIDA EXPERT eTR II; MAT aluminium; 35 DSH; 0 ASD; Supernova mount; 40 mm all sizes

Pedals

VP VPE-527

Saddle

PROXIM ALTIUS Steel; V-mount adapter; incl. MERIDA minitool

Seat Post

MERIDA TEAM TR II; 34.9 DSP; 0 SSB; SHORT, MID, LONG and XLONG 30-230 SPT; XSHORT 30-200 SPT

Accessories

Fender: EOF-204; MERIDA Multitool with saddlebox

Wheels

Wheel Size

29" / 27.5" (Mullet Bike)

Rims

Reynolds 309 Enduro Comp; 30 IWR; MAT aluminium; Tubeless ready (tubeless tape installed); front 29"; rear 27.5"

Hubs

F: Shimano XT; 110x15 WHF; 32 SPH; Centerlock | R: Shimano XT; 148x12 WHR; 32 SPH; Centerlock

Tyres

F: Maxxis Assegai; 29x2.5 "; fold; TR EXO+ 3C MaxxGrip | R: Maxxis Minion DHR II; 27.5x2.4 "; fold; 3C DD TR MaxxTerra

Groupset

Crankset

FSA 1x Steel Chainring; 36 ATC; Shimano FC-E8150; 165 mm all sizes;

Chain

Shimano LG500

Brakes

F: Shimano XT; 4 piston | R: Shimano XT; 4 piston

Front Rotor

Shimano RT64; 220 mm

Rear Rotor

Shimano RTEM600; 203 mm

Shifters

F: Shimano SL -MT500-IL | R: Shimano XT M8130 11

Cassette

11 Speed

Frequently Asked Questions

What is the Merida eOne‑Sixty 875 Electric Enduro Bike used for?

The Merida eOne‑Sixty 875 Electric Enduro Bike is built for aggressive trail riding and enduro-style terrain, combining pedal-assist power with long-travel suspension to tackle steep climbs and rough descents.

Why choose the Merida eOne‑Sixty 875 Electric Enduro Bike?

Choose the Merida eOne‑Sixty 875 Electric Enduro Bike for its potent 85Nm Shimano motor, long-lasting 712Wh battery, robust alloy frame and high-performance components—designed to extend your range and confidence on demanding trails.

Who is the Merida eOne‑Sixty 875 Electric Enduro Bike designed for?

The Merida eOne‑Sixty 875 Electric Enduro Bike is aimed at experienced trail and enduro riders who want e-assist to push harder, ride longer, and tackle more technical terrain without compromising handling or durability.

Disclaimer

Please Note: Before using this vehicle, check the applicable local laws relating to your intended use of the vehicle on roads and road related areas. Please ride responsibly and follow your local laws. We do not recommend modifying your electric bike or electric scooter.

Find Your Size

Step 1: Measure your height

Take off your shoes
Stand with your back straight against a wall
Balance a book on your head to mark your height on the wall
Measure your height by the distance from the floor to the mark

Your height:

Find Your Size

Step 2: Adjust your inseam

Based on your height, we’ve calculated a starting point.
You can measure your inseam by tucking a book between your legs so there is pressure but it isn’t uncomfortable.
Inseam typically falls with 5cm of the average.

Your inseam:

Find Your Size

Your results

For the Merida eOne-Sixty 875 Electric Enduro Bike Guarded Gold/Grey we suggest the following size.

More comfort More speed

Height: --

Inseam: --

Adjusted Height: --

Find Your Size

We have saved your measurements.

Recommended sizes will now be highlighted on the page.

PERFECT RIDE GUARANTEE

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

FREE BIKE BUILD

We'll build your bike for free when you click and collect at any 99 Bikes store.

FIRST FREE TUNE-UP

Every bike comes with a complimentary free tune-up and safety check. Learn more »

Range

Calculate your range

E-Bike Range Estimator

Free Test Rides

Come into your local store to test ride an E-Bike today

Find a store

Shop Our E-bikes

Shop our collection of electric bikes

Shop Now

Powerful Shimano EP801 mid-drive

An 85Nm Shimano motor delivers strong, smooth assistance for steep climbs and technical trails. Keeps you confident and in control when the terrain gets rough.

Long-range 712Wh battery

A high-capacity Shimano 712Wh battery extends ride time for full-day adventures and longer laps. Spend more time riding and less time charging.

Enduro-ready suspension and stopping power

160mm rear travel paired with a 170mm RockShox ZEB front fork soaks up big hits and keeps traction on descents. Shimano XT 4-piston hydraulic brakes give consistent, powerful stopping in all conditions.

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

Your selected size: -

Legend

Available size

Current size

Unavailable size

Suggested sizing

Merida eOne-Sixty 875 Electric Enduro Bike Guarded Gold/Grey geometry diagram

Legend

ST Seat Tube
STA Seat Tube Angle
R Reach
TT Top Tube
BD Bottom Bracket Drop
S Stack
CS Chain Stay Length
HT Head Tube
WB Wheel Base
HTA Head Tube Angle
FL Fork Length

Wheel Size

29" / 27.5" (Mullet Bike)

Stack

628

633

637

642

Reach

439

459

479

499

Top Tube Length

567

589

610

632

Seat Tube Length

410

425

445

465

Seat Tube Angle

78.5

78.4

78.3

Fork Length

581

Head Tube Length

105

110

115

120

Head Tube Angle

105.0

110.0

115.0

120.0

Handlebar Height

Bottom Bracket Drop

Chainstay Length

Wheelbase

Standover Height

757

751

749

744

Minimum Seat Height

Maximum Seat Height
