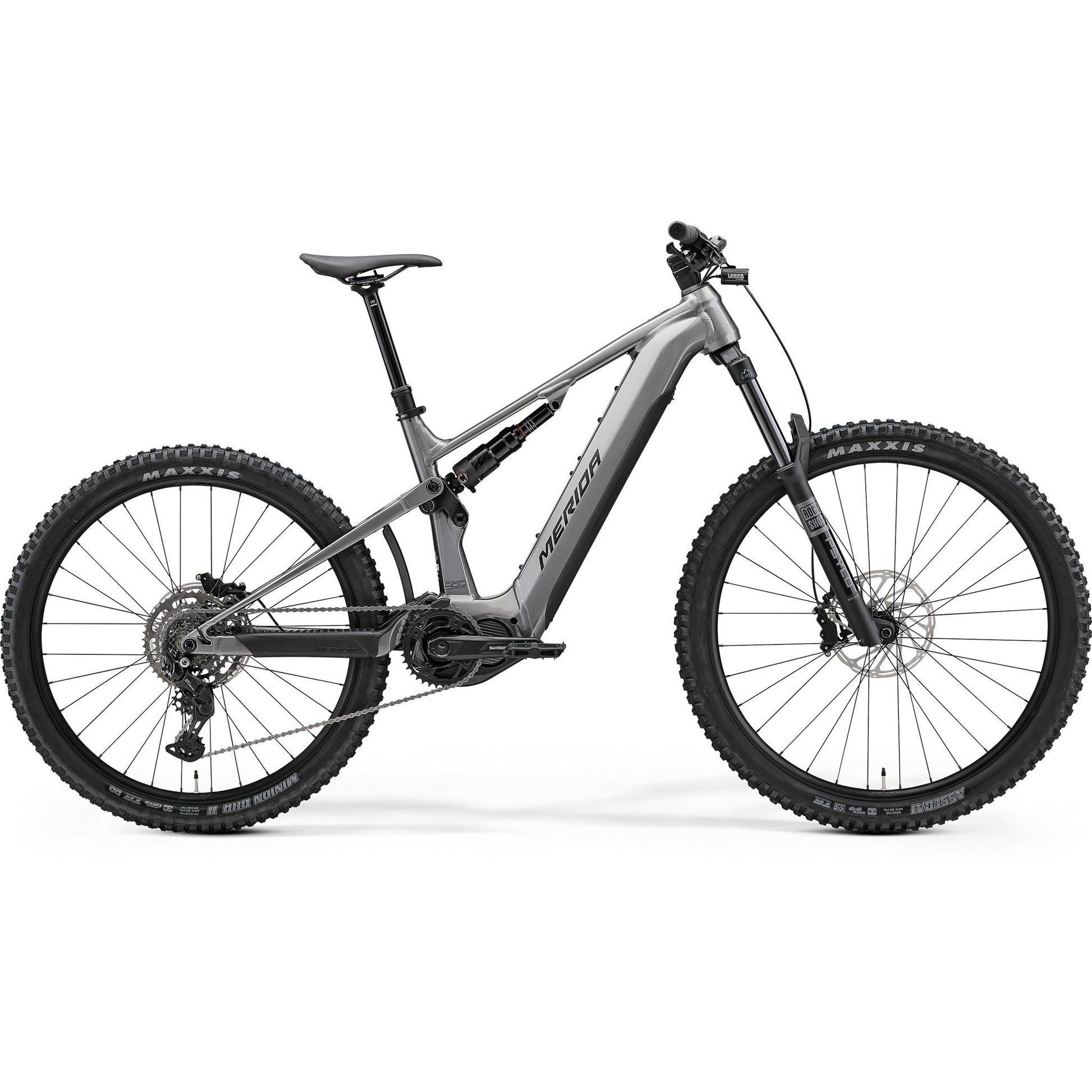

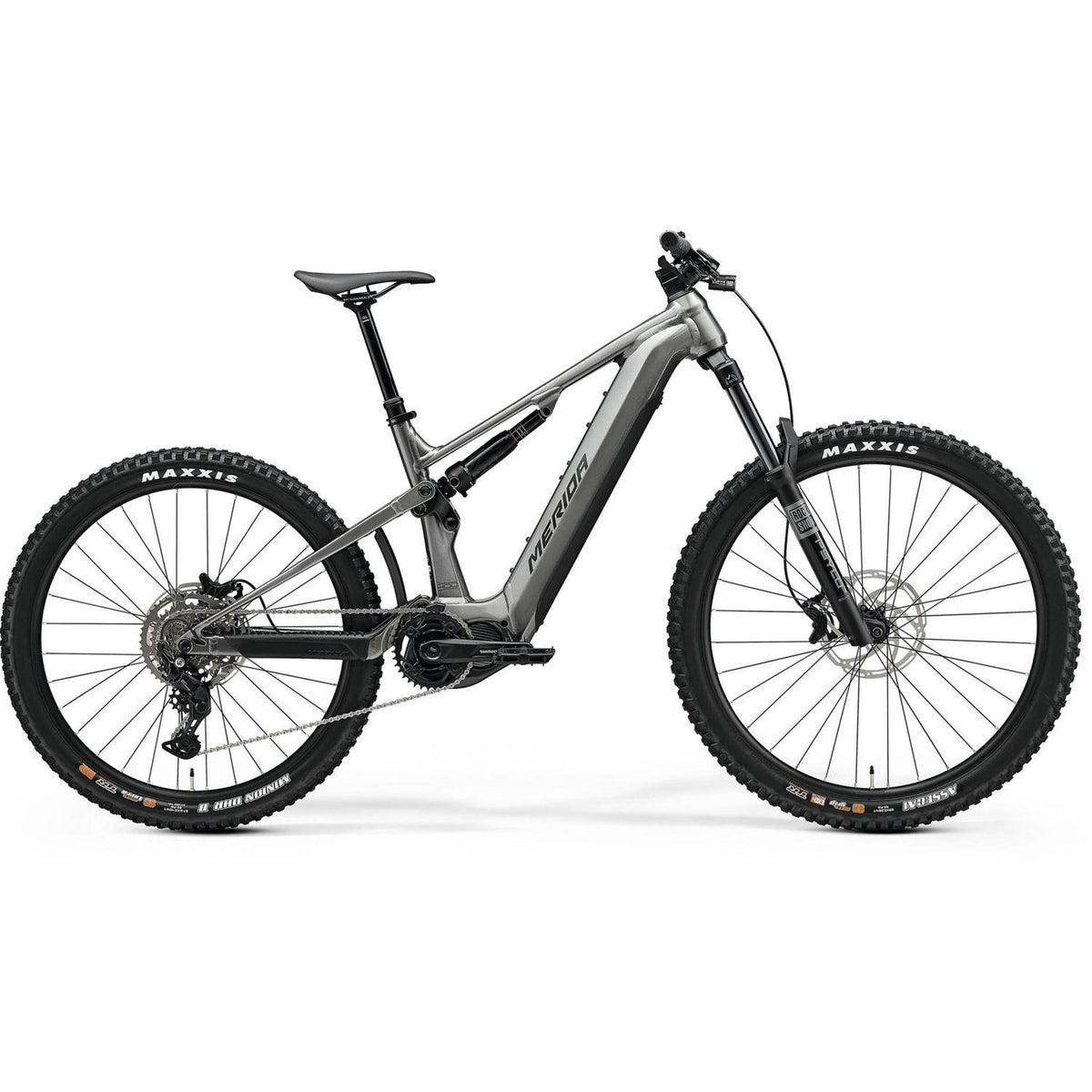

Merida eOne-Sixty 400 Electric Enduro Bike Gunmetal Grey/Black

Brand: Merida

SKU: Select a size

Other Colours

Green

Grey

Size: Select a size

SM MD LG

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

$5,999.00 Full price

$5,999.00

Club price

$6,999.00 Full price

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Select a size to view stock availability at this location.

Off-Road Hills & Heavy Loads / 85 Nm Torque

92 km Range

Shimano STePS EP801 Motor

Alloy Frame/ RockShox Fork

160mm Front Travel / 160mm Rear

630Wh Battery

Have a Question? Ask an expert on 0800 000 283

Product Details

Description

The Merida eOne-Sixty 400 Electric Enduro Bike in Gunmetal Grey/Black is designed for those who crave adventure on challenging terrains. Equipped with a robust Shimano motor delivering 85Nm of torque, this bike ensures powerful assistance on steep climbs and tough trails. Its 630Wh battery provides extended ride times, allowing you to explore further without worry. The bike's alloy frame and 160mm suspension travel offer durability and comfort, while hydraulic disc brakes ensure precise stopping power. With a mullet wheel setup and high-quality components, the eOne-Sixty 400 is ready to tackle any enduro challenge.

Key Features

Powerful Shimano motor with 85Nm torque
Long-lasting 630Wh Shimano battery
Durable alloy frame for rugged trails
160mm front and rear suspension travel
Hydraulic disc brakes for reliable stopping

Specifications

Product Overview

Product

Merida eOne-Sixty 400 Electric Enduro Bike Gunmetal Grey/Black

Brand

Merida

Parent SKU

OH7KFNIC

Size SKUs

SM: MEEB2601507
MD: MEEB2601508
LG: MEEB2601509

Year Model

2026

Product Features

Frame Material

Alloy

Frame Style

Crossbar

Colour

Grey

Wheel Size

29" / 27.5" (Mullet Bike)

Brake Type

Hydraulic Disc Brake

Gears

1 x 9

Front Travel

160mm

Rear Travel

160mm

Motor and Battery System

Drive Type

Mid Drive

Motor Brand

Shimano

Torque (Nm)

Motor Climbing Ability

Off-Road Hills & Heavy Loads

Battery Size (Watt-Hours)

630

Battery

Shimano EN806; 630Wh

Max. Range (KMs)

Display

Shimano SC-EN500

Build

Frame

eONE-SIXTY LITE IV; MAT aluminium; 160 STR; 29x2.6" max. WHS; 148x12 AST; intube ; 750 Wh

Fork

Rock Shox Psylo Silver R; 160 STR; Tapered; 44mm fork offset; 29x2.6" max WHS

Shock

Rock Shox Deluxe

Handlebars

MERIDA EXPERT eTR; 780 WHB;

Headset

Acros ICR MERIDA EXTERNAL neck w/ Blocklock

Grips

MERIDA EXPERT EC

Stem

MERIDA EXPERT eTR II; MAT aluminium; 35 DSH; 0 ASD; Supernova mount; 40 mm all sizes

Pedals

VP VPE-533

Saddle

MERIDA COMP SL; V-mount; incl. MERIDA minitool

Seat Post

MERIDA EXPERT TR II; 34.9 DSP; 0 SSB; XS: 125 SPT - S: 150 SPT - M: 170SPT - L: 200 SPT - XL: 230 SPT

Accessories

Fender: EOF-204

Wheels

Wheel Size

29" / 27.5" (Mullet Bike)

Rims

MERIDA EXPERT TR II; 110x15 WHF; 148x12 WHR; 28 IWR; MAT aluminium; Tubeless ready (tubeless tape and valves not included); front 29"; rear 27.5"

Hubs

F: Shimano TC500-B; 15x100 WHF; 32 SPH; Centerlock | R: Shimano TC500; 12x148 WHR; 32 SPH; Centerlock

Tyres

F: Maxxis Assegai; 29x2.5 "; fold; TR EXO+ 3C MaxxGrip | R: Maxxis Minion DHR II; 27.5x2.4 "; fold; 3C DD TR MaxxTerra

Groupset

Crankset

FSA 1x Steel Chainring; 36 ATC; Shimano FC-EM600; 165 mm for all sizes

Chain

Shimano LG500

Brakes

F: Sram DB4 stealth; 4 piston | R: Sram DB4 stealth; 4 piston

Front Rotor

Sram CenterLine; 200mm

Rear Rotor

Sram CenterLine; 200mm

Shifters

F: Shimano SL -MT500-L (Need to check if SL-MT500-L is competible with LIMOTEC post) | R: Shimano Cues U4000-9

Cassette

9 Speed

Frequently Asked Questions

What is the Merida eOne-Sixty 400 Electric Enduro Bike used for?

The Merida eOne-Sixty 400 Electric Enduro Bike is used for aggressive trail and enduro riding, tackling steep climbs and technical descents with electric assist.

Why choose the Merida eOne-Sixty 400 Electric Enduro Bike?

Choose the Merida eOne-Sixty 400 Electric Enduro Bike for its powerful 85Nm Shimano motor, long‑range 630Wh battery, and enduro‑focused suspension and components that deliver confidence on challenging terrain.

Who is the Merida eOne-Sixty 400 Electric Enduro Bike designed for?

The Merida eOne-Sixty 400 Electric Enduro Bike is designed for experienced trail riders and enduro enthusiasts who want electric assist without compromising rugged, high‑performance handling.

Disclaimer

Please Note: Before using this vehicle, check the applicable local laws relating to your intended use of the vehicle on roads and road related areas. Please ride responsibly and follow your local laws. We do not recommend modifying your electric bike or electric scooter.

Find Your Size

Step 1: Measure your height

Take off your shoes
Stand with your back straight against a wall
Balance a book on your head to mark your height on the wall
Measure your height by the distance from the floor to the mark

Your height:

Find Your Size

Step 2: Adjust your inseam

Based on your height, we’ve calculated a starting point.
You can measure your inseam by tucking a book between your legs so there is pressure but it isn’t uncomfortable.
Inseam typically falls with 5cm of the average.

Your inseam:

Find Your Size

Your results

For the Merida eOne-Sixty 400 Electric Enduro Bike Gunmetal Grey/Black we suggest the following size.

More comfort More speed

Height: --

Inseam: --

Adjusted Height: --

Find Your Size

We have saved your measurements.

Recommended sizes will now be highlighted on the page.

PERFECT RIDE GUARANTEE

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

FREE BIKE BUILD

We'll build your bike for free when you click and collect at any 99 Bikes store.

FIRST FREE TUNE-UP

Every bike comes with a complimentary free tune-up and safety check. Learn more »

Range

Calculate your range

E-Bike Range Estimator

Free Test Rides

Come into your local store to test ride an E-Bike today

Find a store

Shop Our E-bikes

Shop our collection of electric bikes

Shop Now

Brutal hill‑climbing power

A Shimano EP801 motor delivers 85 Nm of torque for effortless climbs and rapid acceleration. The 630Wh battery keeps you exploring longer between charges.

Purpose-built enduro performance

160mm front and rear suspension plus a durable alloy frame soak up big hits and technical terrain. The mullet wheel setup and RockShox components provide stable, playful handling on demanding trails.

Confident control and reliability

Hydraulic disc brakes (4‑piston Sram DB4) and high‑grip Maxxis tyres offer precise stopping and traction when it matters most. Tubeless‑ready rims and robust drivetrain components ensure durability on rough rides.

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

Your selected size: -

Legend

Available size

Current size

Unavailable size

Suggested sizing

Merida eOne-Sixty 400 Electric Enduro Bike Gunmetal Grey/Black geometry diagram

Legend

ST Seat Tube
STA Seat Tube Angle
R Reach
TT Top Tube
BD Bottom Bracket Drop
S Stack
CS Chain Stay Length
HT Head Tube
WB Wheel Base
HTA Head Tube Angle
FL Fork Length

Wheel Size

29" / 27.5" (Mullet Bike)

Stack

628

633

637

Reach

439

459

479

Top Tube Length

567

589

610

Seat Tube Length

410

425

445

Seat Tube Angle

78.5

78.4

Fork Length

581

Head Tube Length

105

110

115

Head Tube Angle

105.0

110.0

115.0

Handlebar Height

Bottom Bracket Drop

Chainstay Length

Wheelbase

Standover Height

757

751

749

Minimum Seat Height

Maximum Seat Height
