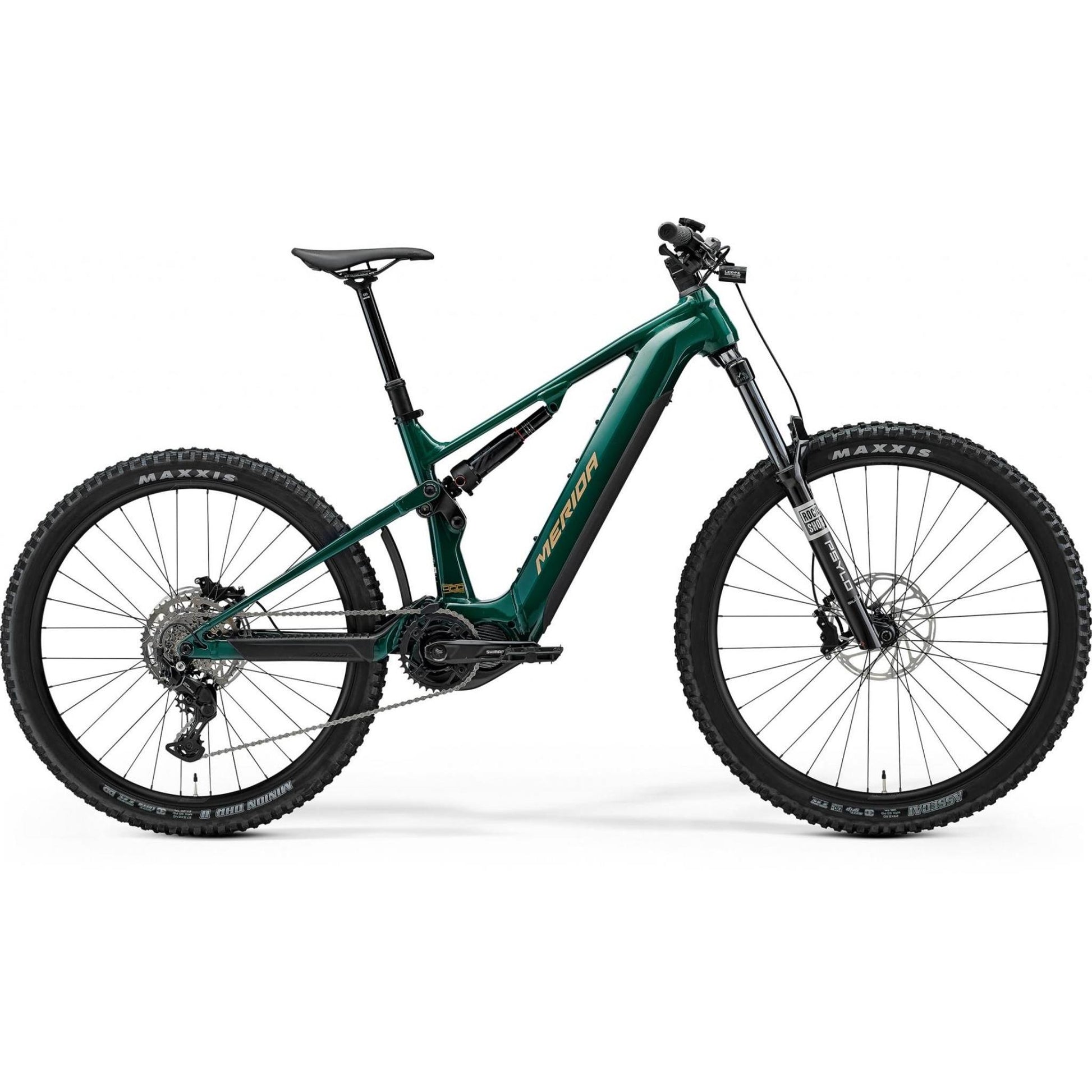

Merida eOne-Sixty 400 Electric Enduro Bike Deep Forest Green/Light Earth

Brand: Merida

SKU: Select a size

Other Colours

Green

Grey

Size: Select a size

XS SM MD LG XL

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

$5,999.00 Full price

$5,999.00

Club price

$6,999.00 Full price

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Select a size to view stock availability at this location.

Off-Road Hills & Heavy Loads / 85 Nm Torque

92 km Range

Shimano STePS EP801 Motor

Alloy Frame/ RockShox Fork

160mm Front Travel / 160mm Rear

630Wh Battery

Have a Question? Ask an expert on 0800 000 283

Product Details

Description

The Merida eOne-Sixty 400 Electric Enduro Bike in Deep Forest Green/Light Earth is designed for those who crave adventure on challenging terrains. Equipped with a robust 250W Shimano motor and a 630Wh battery, this bike ensures you have the power and range to tackle long rides with ease. The 160mm front and rear suspension, combined with hydraulic disc brakes, provide superior control and comfort on rough trails. Its durable alloy frame and high-quality components make it a reliable choice for both seasoned riders and newcomers to the sport. Whether you're climbing steep hills or descending rugged paths, the eOne-Sixty 400 delivers a thrilling and smooth ride.

Key Features

Powerful 250W Shimano motor
630Wh long-lasting battery
160mm front and rear suspension
Hydraulic disc brakes for control
Durable alloy frame construction

Specifications

Product Overview

Product

Merida eOne-Sixty 400 Electric Enduro Bike Deep Forest Green/Light Earth

Brand

Merida

Parent SKU

LGO29RQ2

Size SKUs

XS: MEEB2601511
SM: MEEB2601512
MD: MEEB2601513
LG: MEEB2601514
XL: MEEB2601515

Year Model

2026

Product Features

Frame Material

Alloy

Frame Style

Crossbar

Colour

Green

Wheel Size

29" / 27.5" (Mullet Bike)

Brake Type

Hydraulic Disc Brake

Gears

1 x 9

Front Travel

160mm

Rear Travel

160mm

Motor and Battery System

Drive Type

Mid Drive

Motor Brand

Shimano

Torque (Nm)

Motor Climbing Ability

Off-Road Hills & Heavy Loads

Battery Size (Watt-Hours)

630

Battery

Shimano EN806, 630Wh

Max. Range (KMs)

Display

Shimano SC-EN500,

Build

Frame

eONE-SIXTY LITE IV, MAT aluminium, 160 STR, 29x2.6" max. WHS, 148x12 AST

Fork

Rock Shock Psylo Silver R, 160 STR, Tapered, 44mm fork offset, 29x2.6" max WHS,

Shock

Rock Shock Deluxe,

Handlebars

MERIDA EXPERT eTR, 780 WHB

Headset

Acros ICR MERIDA EXTERNAL neck w/ Blocklock,

Grips

MERIDA EXPERT EC,

Stem

MERIDA EXPERT eTR II, MAT aluminium, 35 DSH, 0 ASD, Supernova mount,; 40 mm all sizes,

Pedals

VP VPE-533,

Saddle

MERIDA COMP SL, V-mount, incl. MERIDA minitool,

Seat Post

MERIDA EXPERT TR II, 34.9 DSP, 0 SSB, XS: 125mm travel - S: 150mm travel - M: 170SPT - L: 200mm travel - XL: 230mm travel

Seat Clamp

MERIDA EXPERT,

Accessories

Fender: EOF-204

Wheels

Wheel Size

29" / 27.5" (Mullet Bike)

Rims

MERIDA EXPERT TR II, 110x15 WHF, 148x12 WHR, 28 IWR, MAT aluminium, Tubeless ready (tubeless tape and valves not included), front 29", rear 27.5",

Hubs

F: Shimano TC500-B, 15x100 WHF, 32 SPH, Centerlock | R: Shimano TC500, 12x148 WHR, 32 SPH, Centerlock

Tyres

F: Maxxis Assegai, 29x2.5 ", fold, TR EXO+ 3C MaxxGrip, | R: Maxxis Minion DHR II, 27.5x2.4 ", fold, 3C DD TR MaxxTerra,

Groupset

Crankset

FSA 1x Steel Chainring, 36t; Shimano FC-EM600, 165 mm for all sizes

Chain

Shimano LG500,

Brakes

Sram DB4 stealth, 4 piston

Front Rotor

Sram CenterLine, 200mm

Rear Rotor

Sram CenterLine, 200mm

Shifters

F: Shimano SL -MT500-L (Need to check if SL-MT500-L is competible with LIMOTEC post), | R: Shimano Cues U4000-9,

Cassette

9 Speed

Frequently Asked Questions

What is the Merida eOne‑Sixty 400 Electric Enduro Bike used for?

The Merida eOne‑Sixty 400 Electric Enduro Bike is built for aggressive trail riding and enduro-style laps, helping riders climb efficiently and descend confidently on technical terrain.

Why choose the Merida eOne‑Sixty 400 Electric Enduro Bike?

Choose the Merida eOne‑Sixty 400 Electric Enduro Bike for its powerful Shimano EP801 motor, long-lasting 630Wh battery, 160mm suspension, and robust alloy frame—components that combine to extend your range and improve control on demanding trails.

Who is the Merida eOne‑Sixty 400 Electric Enduro Bike designed for?

The Merida eOne‑Sixty 400 Electric Enduro Bike is designed for adventurous riders who want an electric assist for longer, more aggressive off‑road rides—suitable for experienced enduro riders and enthusiastic intermediates stepping up their game.

Disclaimer

Please Note: Before using this vehicle, check the applicable local laws relating to your intended use of the vehicle on roads and road related areas. Please ride responsibly and follow your local laws. We do not recommend modifying your electric bike or electric scooter.

Find Your Size

Step 1: Measure your height

Take off your shoes
Stand with your back straight against a wall
Balance a book on your head to mark your height on the wall
Measure your height by the distance from the floor to the mark

Your height:

Find Your Size

Step 2: Adjust your inseam

Based on your height, we’ve calculated a starting point.
You can measure your inseam by tucking a book between your legs so there is pressure but it isn’t uncomfortable.
Inseam typically falls with 5cm of the average.

Your inseam:

Find Your Size

Your results

For the Merida eOne-Sixty 400 Electric Enduro Bike Deep Forest Green/Light Earth we suggest the following size.

More comfort More speed

Height: --

Inseam: --

Adjusted Height: --

Find Your Size

We have saved your measurements.

Recommended sizes will now be highlighted on the page.

PERFECT RIDE GUARANTEE

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

FREE BIKE BUILD

We'll build your bike for free when you click and collect at any 99 Bikes store.

FIRST FREE TUNE-UP

Every bike comes with a complimentary free tune-up and safety check. Learn more »

Range

Calculate your range

E-Bike Range Estimator

Free Test Rides

Come into your local store to test ride an E-Bike today

Find a store

Shop Our E-bikes

Shop our collection of electric bikes

Shop Now

Powerful Shimano mid-drive

A 250W Shimano EP801 motor with 85Nm torque delivers strong, smooth assist for steep climbs and technical sections. It feels natural under power, letting you push farther without losing trail control.

Long-range 630Wh battery

The Shimano EN806 630Wh battery provides extended ride time so you can tackle long days on the trail. Reliable energy management keeps performance consistent from start to finish.

Enduro-tuned suspension and control

160mm front and rear travel with RockShox components soaks up big hits while SRAM hydraulic disc brakes give precise stopping power. A durable alloy frame and mullet wheel setup balance stability and agility on rough descents.

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

Your selected size: -

Legend

Available size

Current size

Unavailable size

Suggested sizing

Merida eOne-Sixty 400 Electric Enduro Bike Deep Forest Green/Light Earth geometry diagram

Legend

ST Seat Tube
STA Seat Tube Angle
R Reach
TT Top Tube
BD Bottom Bracket Drop
S Stack
CS Chain Stay Length
HT Head Tube
WB Wheel Base
HTA Head Tube Angle
FL Fork Length

Wheel Size

29" / 27.5" (Mullet Bike)

Stack

624

628

633

637

642

Reach

419

439

459

479

499

Top Tube Length

546

567

589

610

632

Seat Tube Length

400

410

425

445

465

Seat Tube Angle

78.5

78.4

78.3

Fork Length

581

Head Tube Length

100

105

110

115

120

Head Tube Angle

100.0

105.0

110.0

115.0

120.0

Handlebar Height

Bottom Bracket Drop

Chainstay Length

Wheelbase

Standover Height

763

757

751

749

744

Minimum Seat Height

Maximum Seat Height
