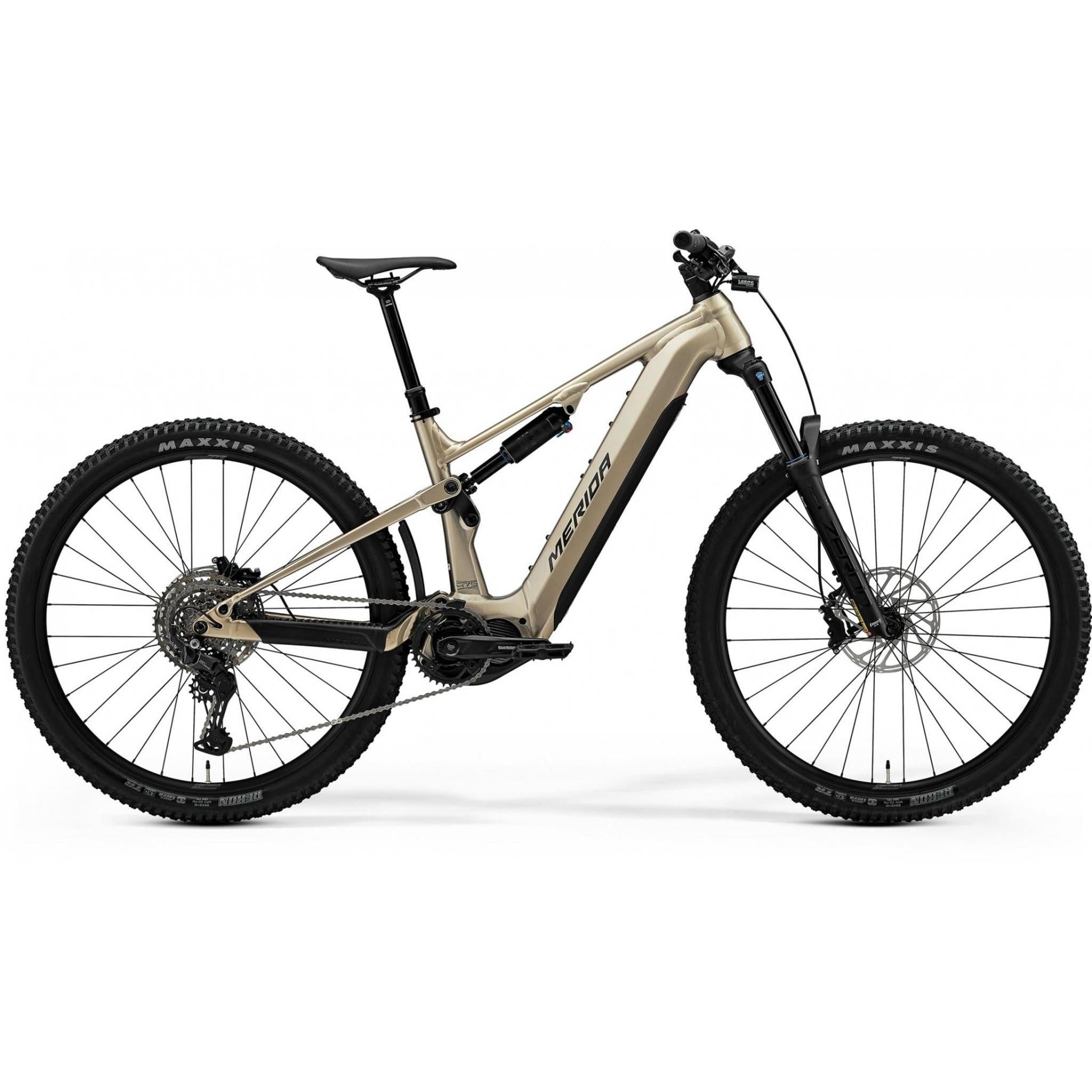

Merida eOne-Forty 475 EQ Electric Trail Bike High Cream/Black

Brand: Merida

SKU: Select a size

Size: Select a size

SM MD LG

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Select a size to view stock availability at this location.

Steep Hills & Heavy Loads / 85 Nm Torque

Up to 71 km Range

Shimano STePS EP801 Motor

Alloy Frame/ Suntour Fork

712Wh Battery

29" Wheel Size

Have a Question? Ask an expert on 0800 000 283

Product Details

Description

The Merida eOne-Forty 475 EQ Electric Trail Bike is designed for those who crave adventure on rugged terrains. Equipped with a robust 250W Shimano motor and a 712Wh battery, this bike ensures you have the power and range to tackle long trails with ease. Its durable alloy frame and high-quality Shimano CUES 10-speed drivetrain provide a smooth and reliable ride. The Sram 4-piston hydraulic brakes offer excellent stopping power, ensuring safety on steep descents. With its advanced features and comfortable design, the Merida eOne-Forty 475 EQ is perfect for both seasoned riders and newcomers to the trail biking scene.

Key Features

Powerful 250W Shimano motor
Long-lasting 712Wh Shimano battery
Durable alloy frame construction
Shimano CUES 10-speed drivetrain
Sram 4-piston hydraulic brakes

Specifications

Product Overview

Product

Merida eOne-Forty 475 EQ Electric Trail Bike High Cream/Black

Brand

Merida

Parent SKU

QLMKWQPR

Size SKUs

SM: MEEB2601562
MD: MEEB2601563
LG: MEEB2601564

Year Model

2026

Product Features

Frame Material

Alloy

Frame Style

Crossbar

Colour

Brown

Brake Type

Hydraulic Disc Brake

Gears

1 x 10

Rear Travel

130mm

Motor and Battery System

Motor Brand

Shimano

Motor

Shimano EP801, 85Nm

Torque (Nm)

Motor Climbing Ability

Steep Hills & Heavy Loads

Battery Size (Watt-Hours)

712

Battery

Shimano BT-EN817, 712Wh

Max. Range (KMs)

Display

Shimano SC-EN600,

Build

Frame

eONE-FORTY LITE IV, MAT aluminium, 133 STR, 27.5x2.8" max. WHS, 148x12 AST, intube,

Fork

SF25-ZERON36X-BOOST,

Shock

SR Suntour Edge Plus, platform

Handlebars

MERIDA EXPERT eTR, 780 WHB

Headset

Acros ICR MERIDA EXTERNAL neck w/ Blocklock,

Grips

MERIDA EXPERT EC,

Stem

MERIDA EXPERT eTR II, MAT aluminium, 35 DSH, 0 ASD, Supernova mount,; 40 mm all sizes,

Pedals

VP VPE-533,

Saddle

MERIDA COMP SL, V-mount, incl. MERIDA minitool,

Seat Post

MERIDA EXPERT TR II, 34.9 DSP, 0 SSB, XS: 125mm travel - S: 150mm travel - M: 170SPT - L: 200mm travel - XL: 230mm travel

Seat Clamp

MERIDA EXPERT,

Wheels

Rims

MERIDA COMP TR II, 110x15 WHF, 148x12 WHR, 28 IWR, MAT aluminium, Tubeless ready (tubeless tape and valves not included), 29",

Hubs

F: Shimano TC500-B, 110x15 WHF, 32 SPH, Centerlock | R: Shimano TC500-HM-B, 148x12 WHR, 32 SPH, Centerlock

Tyres

F: MAXXIS REKON, 29x2.4", fold, 3C EXO MaxxTerra, | R: MAXXIS REKON, 29x2.4", fold, TR 3C EXO MaxxTerra,

Groupset

Crankset

FSA 1x Steel Chainring, 36t; Shimano FC-EM600, 165 mm for all sizes

Chain

Shimano LG500,

Brakes

Sram DB4 stealth, 4 piston

Front Rotor

Sram CenterLine, 200mm

Rear Rotor

Sram CenterLine, 200mm

Shifters

F: Shimano SL -MT500-IL, | R: Shimano CUES U6000-10,

Rear Derailleur

Shimano CUES U6000 GS

Cassette

10 Speed

Frequently Asked Questions

What is the Merida eOne-Forty 475 Electric Trail Bike used for?

The Merida eOne-Forty 475 EQ Electric Trail Bike is built for aggressive trail riding and all-mountain exploration, helping you tackle long climbs and technical descents with motor-assisted power and stable geometry.

Why choose the Merida eOne-Forty 475 Electric Trail Bike?

Choose the Merida eOne-Forty 475 EQ Electric Trail Bike for its combination of a high-torque Shimano EP801 motor, long 712Wh battery, robust alloy frame, reliable Shimano CUES drivetrain, and strong SRAM 4-piston brakes — a balanced package for confidence on demanding trails.

Who is the Merida eOne-Forty 475 Electric Trail Bike designed for?

The Merida eOne-Forty 475 EQ Electric Trail Bike is designed for riders who want to push farther and ride harder—experienced trail riders and ambitious newcomers seeking a capable, reliable e-MTB for challenging terrain.

Disclaimer

Please Note: Before using this vehicle, check the applicable local laws relating to your intended use of the vehicle on roads and road related areas. Please ride responsibly and follow your local laws. We do not recommend modifying your electric bike or electric scooter.

Find Your Size

Step 1: Measure your height

Take off your shoes
Stand with your back straight against a wall
Balance a book on your head to mark your height on the wall
Measure your height by the distance from the floor to the mark

Your height:

Find Your Size

Step 2: Adjust your inseam

Based on your height, we’ve calculated a starting point.
You can measure your inseam by tucking a book between your legs so there is pressure but it isn’t uncomfortable.
Inseam typically falls with 5cm of the average.

Your inseam:

Find Your Size

Your results

For the Merida eOne-Forty 475 EQ Electric Trail Bike High Cream/Black we suggest the following size.

More comfort More speed

Height: --

Inseam: --

Adjusted Height: --

Find Your Size

We have saved your measurements.

Recommended sizes will now be highlighted on the page.

PERFECT RIDE GUARANTEE

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

FREE BIKE BUILD

We'll build your bike for free when you click and collect at any 99 Bikes store.

FIRST FREE TUNE-UP

Every bike comes with a complimentary free tune-up and safety check. Learn more »

Range

Calculate your range

E-Bike Range Estimator

Free Test Rides

Come into your local store to test ride an E-Bike today

Find a store

Shop Our E-bikes

Shop our collection of electric bikes

Shop Now

Potent Shimano Drive & Long Range

A 250W Shimano EP801 motor with 85Nm torque delivers smooth, sustained power for steep climbs and fast trail runs. The 712Wh Shimano battery keeps you riding longer between charges for full-day adventures.

Rugged Alloy Frame & Trail-Ready Geometry

Lightweight, durable eONE-FORTY LITE IV alloy construction and 130mm rear travel provide confident handling on rough singletrack. Tubeless-ready rims and Maxxis Rekon tyres boost traction and durability on varied terrain.

Precise Shifting & Powerful Stopping

Shimano CUES 10-speed drivetrain gives reliable, crisp gear changes under load for consistent cadence control. SRAM 4-piston hydraulic brakes with 200mm rotors deliver strong, modulation-rich stopping power on steep descents.

Your selected size: -

Legend

Available size

Current size

Unavailable size

Suggested sizing

Merida eOne-Forty 475 EQ Electric Trail Bike High Cream/Black geometry diagram

Legend

ST Seat Tube
STA Seat Tube Angle
R Reach
TT Top Tube
BD Bottom Bracket Drop
S Stack
CS Chain Stay Length
HT Head Tube
WB Wheel Base
HTA Head Tube Angle
FL Fork Length

Stack

620

624

628

Reach

451

471

491

Top Tube Length

564

585

607

Seat Tube Length

410

425

445

Seat Tube Angle

79.7

79.6

79.5

Fork Length

557

Head Tube Length

105

110

115

Head Tube Angle

105.0

110.0

115.0

Handlebar Height

Bottom Bracket Drop

Chainstay Length

Wheelbase

Standover Height

752

746

744

Minimum Seat Height

Maximum Seat Height
