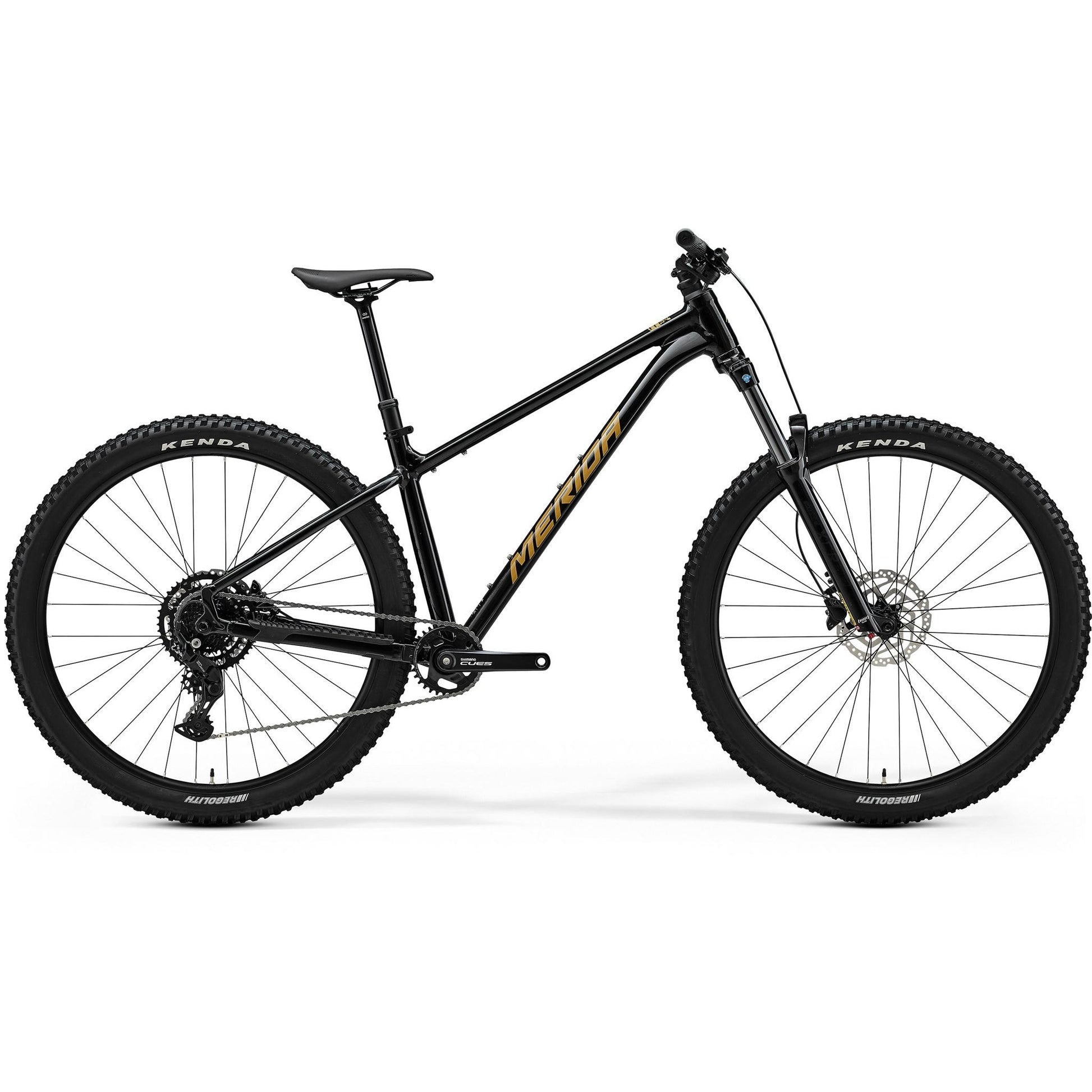

Merida Big.Trail 300 Hardtail Trail Bike Black/Brown

Brand: Merida

SKU: Select a size

Size: Select a size

SM MD LG XL

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

$1,599.00 Full price

$1,599.00

Club price

$1,799.00 Full price

Club Price is automatic when shopping online.
Join club 99 for $5 and unlock benefits for life! Learn more.

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Select a size to view stock availability at this location.

Alloy Frame/ Suntour Fork

140mm Front Travel

29" Wheel Size

Hydraulic Disc Brake

Shimano Cues Groupset

1 x 9 Speed

Have a Question? Ask an expert on 0800 000 283

Product Details

Description

The Merida Big.Trail 300 Hardtail Trail Bike is designed for those who crave adventure on rugged terrains. With its robust alloy frame and 140mm front suspension, this bike offers a smooth and controlled ride over challenging trails. The Shimano hydraulic disc brakes ensure reliable stopping power, while the 29" wheels provide excellent traction and stability. Ideal for both beginners and seasoned riders, the Big.Trail 300 combines performance and comfort, making it a perfect companion for trail enthusiasts.

Key Features

Alloy frame for durability
140mm front suspension travel
Shimano hydraulic disc brakes
29" wheels for smooth ride
Single chainset for simplicity

Specifications

Product Overview

Product

Merida Big.Trail 300 Hardtail Trail Bike Black/Brown

Brand

Merida

Parent SKU

W02PQY6J

Size SKUs

SM: MEHP2600027
MD: MEHP2600028
LG: MEHP2600029
XL: MEHP2600030

Year Model

2026

Product Features

Frame Material

Alloy

Frame Style

Crossbar

Colour

Black

Wheel Size

29"

Brake Type

Hydraulic Disc Brake

Gears

1 x 9

Front Travel

140mm

Build

Frame

BIG.TRAIL TFS II; MAT aluminium; 29x2.4" max. WHS; 148x12 AST; BSA BBR

Fork

SR Suntour XCR34 2CR; Air; 140 STR; Tapered; lockout; 44mm fork offset; 29x2.4" max WHS

Handlebars

MERIDA COMP TR II; MAT aluminium; 780 WHB; 35 RHB

Headset

Acros ICR MERIDA EXTERNAL neck; Upper and lower IPS sealing

Grips

MERIDA COMP TR

Stem

MERIDA COMP TR; MAT aluminium; 35 DSH; 0 ASD; 40 mm

Bottom Bracket

Shimano BB-UN101; 73mm

Saddle

MERIDA COMP SL; V-mount

Seat Post

MERIDA COMP TR II; 34.9 DSP; 0 SSB; XSHORT: 150 SPT - SHORT, MID, LONG, XLONG: 170 SPT

Wheels

Wheel Size

29"

Rims

MERIDA COMP CC II; 25 IWR; MAT aluminium; tubeless ready

Hubs

F: Shimano TC500-B; 110x15 WHF; 32 SPH; Centerlock | R: Shimano TC500-HM-B; 148x12 WHR; 32 SPH; Centerlock

Tyres

F: Kenda Regolith; 29x2.4"; wire | R: Kenda Regolith; 29x2.4"; wire

Groupset

Crankset

Shimano CUES UT-400-1; 32 ATC; 170mm on all sizes

Chain

KMC xGlide

Brakes

F: Shimano MT200; 2 piston | R: Shimano MT200; 2 piston

Front Rotor

Shimano RT10; 180mm

Rear Rotor

Shimano RT10; 180mm

Shifters

R: Shimano CUES U4000

Rear Derailleur

Shimano CUES U4000;

Cassette

9 Speed

Frequently Asked Questions

What is the Merida Big.Trail 300 Hardtail Trail Bike used for?

The Merida Big.Trail 300 Hardtail Trail Bike is used for off‑road trail riding—everything from fast cross‑country singletrack to rough, technical trail days where control and durability matter.

Why choose the Merida Big.Trail 300 Hardtail Trail Bike?

Choose the Merida Big.Trail 300 Hardtail Trail Bike for its durable alloy frame, 140mm front suspension, 29" wheels, and Shimano hydraulic disc brakes that combine to deliver stable, confidence‑inspiring performance with simple, low‑maintenance drivetrain setup.

Who is the Merida Big.Trail 300 Hardtail Trail Bike designed for?

The Merida Big.Trail 300 Hardtail Trail Bike is designed for trail enthusiasts of all levels—beginners wanting a capable, user‑friendly rig and experienced riders seeking a robust hardtail for aggressive trail riding.

Find Your Size

Step 1: Measure your height

Take off your shoes
Stand with your back straight against a wall
Balance a book on your head to mark your height on the wall
Measure your height by the distance from the floor to the mark

Your height:

Find Your Size

Step 2: Adjust your inseam

Based on your height, we’ve calculated a starting point.
You can measure your inseam by tucking a book between your legs so there is pressure but it isn’t uncomfortable.
Inseam typically falls with 5cm of the average.

Your inseam:

Find Your Size

Your results

For the Merida Big.Trail 300 Hardtail Trail Bike Black/Brown we suggest the following size.

More comfort More speed

Height: --

Inseam: --

Adjusted Height: --

Find Your Size

We have saved your measurements.

Recommended sizes will now be highlighted on the page.

PERFECT RIDE GUARANTEE

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

FREE BIKE BUILD

We'll build your bike for free when you click and collect at any 99 Bikes store.

FIRST FREE TUNE-UP

Every bike comes with a complimentary free tune-up and safety check. Learn more »

Built to Tackle Rough Trails

Robust alloy frame and 140mm SR Suntour air fork soak up rocks and roots for a controlled ride. 29" wheels and wide 2.4" tyres roll over obstacles with confidence.

Confidence-Inspiring Braking and Control

Shimano MT200 hydraulic disc brakes with 180mm rotors deliver consistent stopping power in all conditions. A Shimano CUES groupset and single chainset keep shifting simple and reliable.

Simple, Stable, Ready to Ride

Tubeless-ready MERIDA rims, thru-axles and a modern trail geometry give stability and traction on technical lines. Fully built and tuned for immediate trail use.

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

Your selected size: -

Legend

Available size

Current size

Unavailable size

Suggested sizing

Merida Big.Trail 300 Hardtail Trail Bike Black/Brown geometry diagram

Legend

ST Seat Tube
STA Seat Tube Angle
R Reach
TT Top Tube
BD Bottom Bracket Drop
S Stack
CS Chain Stay Length
HT Head Tube
WB Wheel Base
HTA Head Tube Angle
FL Fork Length

Wheel Size

29"

Stack

636

645

654

663

Reach

435

455

480

505

Top Tube Length

581

603

630

657

Seat Tube Length

400

420

445

475

Seat Tube Angle

76.5

Fork Length

551

Head Tube Length

100

110

120

130

Head Tube Angle

100.0

110.0

120.0

130.0

Handlebar Height

Bottom Bracket Drop

Chainstay Length

Wheelbase

Standover Height

721

724

726

729

Minimum Seat Height

Maximum Seat Height
