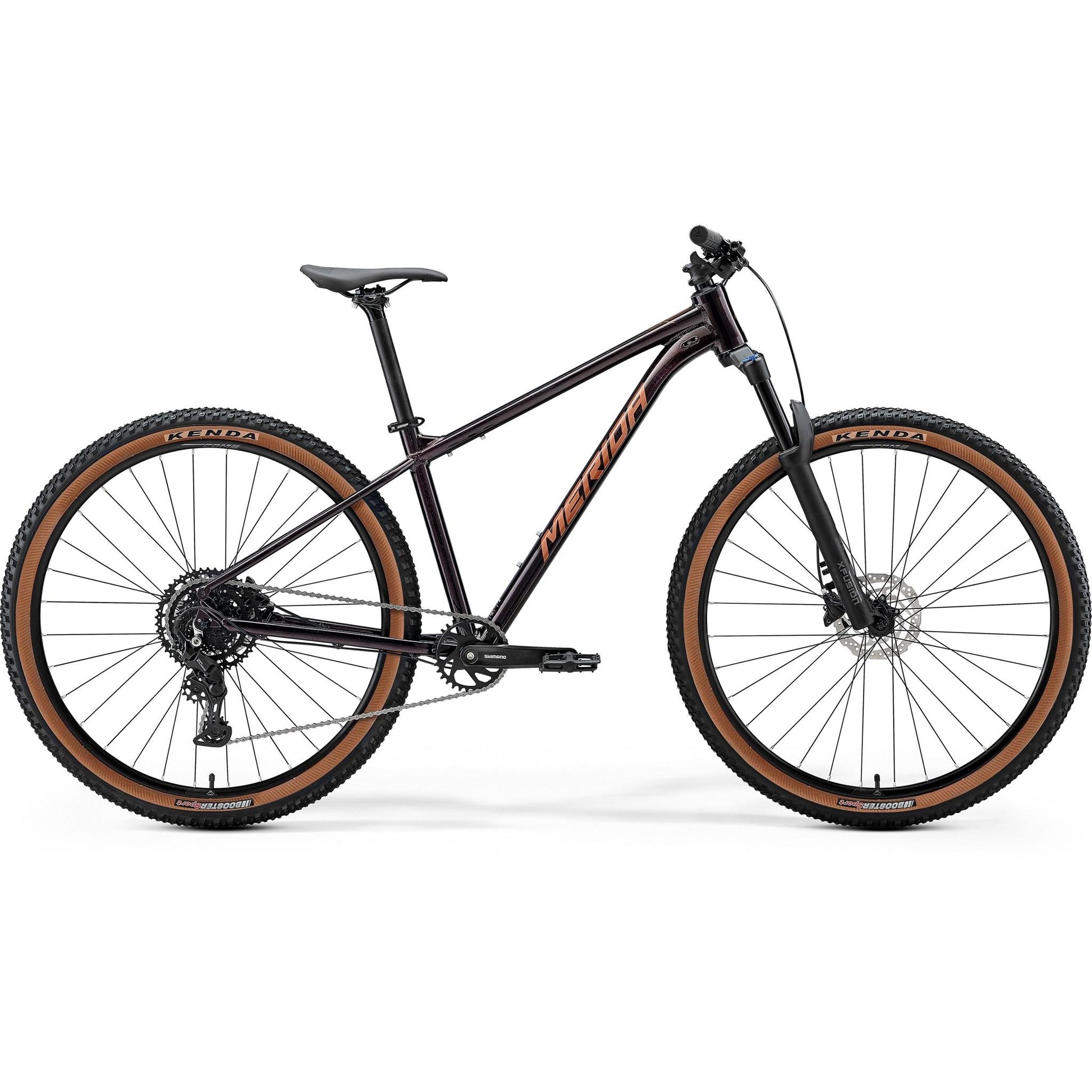

Merida Big.Nine 40 Hardtail Mountain Bike Metallic Black/Red

Brand: Merida

SKU: Select a size

Size: Select a size

SM MD LG XL

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

$1,239.00 Full price

$1,239.00

Club price

$1,299.00 Full price

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Select a size to view stock availability at this location.

Alloy Frame/ X-Fusion Fork

120mm Front Travel

29" Wheel Size

Hydraulic Disc Brake

Shimano Cues Groupset

1 x 9 Speed

Have a Question? Ask an expert on 0800 000 283

Product Details

Description

The Merida Big.Nine 40 Hardtail Mountain Bike in Metallic Black/Red is designed for riders seeking a reliable and versatile mountain biking experience. Its lightweight alloy frame and 120mm X-Fusion front suspension provide excellent control and comfort on various terrains. Equipped with Shimano hydraulic disc brakes, this bike ensures powerful and consistent stopping power. The 29-inch wheels offer a smooth ride over obstacles, while the single chainset simplifies maintenance. Ideal for both beginners and seasoned riders, the Big.Nine 40 combines performance and style for an enjoyable outdoor adventure.

Key Features

Lightweight alloy frame
120mm front suspension travel
Shimano hydraulic disc brakes
29-inch wheels for smooth ride
Single chainset for easy maintenance

Specifications

Product Overview

Product

Merida Big.Nine 40 Hardtail Mountain Bike Metallic Black/Red

Brand

Merida

Parent SKU

GGSMNNDU

Size SKUs

SM: MEHA2601168
MD: MEHA2601169
LG: MEHA2601170
XL: MEHA2601171

Year Model

2026

Product Features

Frame Material

Alloy

Frame Style

Crossbar

Colour

Black

Wheel Size

29"

Brake Type

Hydraulic Disc Brake

Gears

1 x 9

Front Travel

120mm

Build

Frame

BIG.NINE TFS V; MAT aluminum; 29 WHS; 135x9 AST; BSA BBR

Fork

X-Fusion Migo 32 Air; 120 STR; lockout; max. 29x2,4 WHS

Handlebars

MERIDA CC; MAT aluminium; 15 RHB; S: 720 WHB; M/L/: 740 WHB; XL/XXL: 760 WHB

Headset

FSA NO.55R/57SC/57B

Grips

MERIDA COMP TR

Stem

MERIDA COMP CC; MAT aluminium; 31.8 DSH; 7 ASD; S: 50mm, M/L:60 mm, XL/XXL: 70 mm

Bottom Bracket

Shimano UN101 LL123

Pedals

VP VPE 536

Saddle

MERIDA COMP SL

Seat Post

MERIDA COMP CC; MAT aluminium; 30.9 DSP; 0 SSB

Wheels

Wheel Size

29"

Rims

MERIDA COMP CC; 20 IWR; MAT aluminium

Hubs

F: Shimano TX505; 100x9 WHF; 32 SPH; Centerlock | R: Shimano TX505; 135x9 WHR; 32 SPH; Centerlock

Tyres

F: Kenda Booster; 29x2.4 2nd color option: Booster 29x2.4 tanwall | R: Kenda Booster; 29x2.4 2nd color option: Booster 29x2.4 tanwall

Groupset

Crankset

Shimano Cues UT400-1; 32 ATC; MAT Aluminium ; S: 165mm, M/L/XL/XXL: 170mm

Chain

KMC xGlide

Brakes

F: Shimano MT200 | R: Shimano MT200

Front Rotor

Shimano RT10; 160 mm

Rear Rotor

Shimano RT10; 160 mm

Shifters

F: | R: Shimano Cues U4000

Cassette

9 Speed

Frequently Asked Questions

What is the Merida Big.Nine 40 Hardtail Mountain Bike used for?

The Merida Big.Nine 40 Hardtail Mountain Bike is used for recreational to performance trail riding, offering a versatile platform for cross-country laps, singletrack, and mixed-terrain adventures.

Why choose the Merida Big.Nine 40 Hardtail Mountain Bike?

Choose the Merida Big.Nine 40 Hardtail Mountain Bike for its lightweight alloy frame, 120mm front suspension, reliable Shimano hydraulic disc brakes, and low-maintenance single chainset—features that combine for confident, efficient trail riding.

Who is the Merida Big.Nine 40 Hardtail Mountain Bike designed for?

The Merida Big.Nine 40 Hardtail Mountain Bike is designed for riders from confident beginners to experienced enthusiasts who want a capable, easy-to-maintain hardtail with 29" wheels for smooth rolling and reliable components.

Find Your Size

Step 1: Measure your height

Take off your shoes
Stand with your back straight against a wall
Balance a book on your head to mark your height on the wall
Measure your height by the distance from the floor to the mark

Your height:

Find Your Size

Step 2: Adjust your inseam

Based on your height, we’ve calculated a starting point.
You can measure your inseam by tucking a book between your legs so there is pressure but it isn’t uncomfortable.
Inseam typically falls with 5cm of the average.

Your inseam:

Find Your Size

Your results

For the Merida Big.Nine 40 Hardtail Mountain Bike Metallic Black/Red we suggest the following size.

More comfort More speed

Height: --

Inseam: --

Adjusted Height: --

Find Your Size

We have saved your measurements.

Recommended sizes will now be highlighted on the page.

PERFECT RIDE GUARANTEE

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

FREE BIKE BUILD

We'll build your bike for free when you click and collect at any 99 Bikes store.

FIRST FREE TUNE-UP

Every bike comes with a complimentary free tune-up and safety check. Learn more »

Lightweight alloy frame for nimble handling

A low-weight aluminum frame keeps the bike responsive and easy to maneuver on climbs and tight trails. It balances stiffness and comfort for longer rides without fatigue.

Smooth control with 120mm front suspension

X-Fusion 120mm travel soaks up roots and rocks while maintaining precise steering. Lockout lets you firm the fork for efficient pedaling on smoother sections.

Reliable stopping and low-maintenance drivetrain

Shimano hydraulic disc brakes deliver consistent stopping power in all conditions. A single chainset and 29" wheels simplify upkeep and roll smoothly over obstacles.

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

Your selected size: -

Legend

Available size

Current size

Unavailable size

Suggested sizing

Merida Big.Nine 40 Hardtail Mountain Bike Metallic Black/Red geometry diagram

Legend

ST Seat Tube
STA Seat Tube Angle
R Reach
TT Top Tube
BD Bottom Bracket Drop
S Stack
CS Chain Stay Length
HT Head Tube
WB Wheel Base
HTA Head Tube Angle
FL Fork Length

Wheel Size

29"

Stack

619

624

633

643

Reach

390

410

430

450

Top Tube Length

559

581

603

630

Seat Tube Length

370

420

460

510

Seat Tube Angle

74.0

Fork Length

535

Head Tube Length

100

105

115

130

Head Tube Angle

100.0

105.0

115.0

130.0

Handlebar Height

Bottom Bracket Drop

Chainstay Length

Wheelbase

Standover Height

694

744

773

813

Minimum Seat Height

Maximum Seat Height
