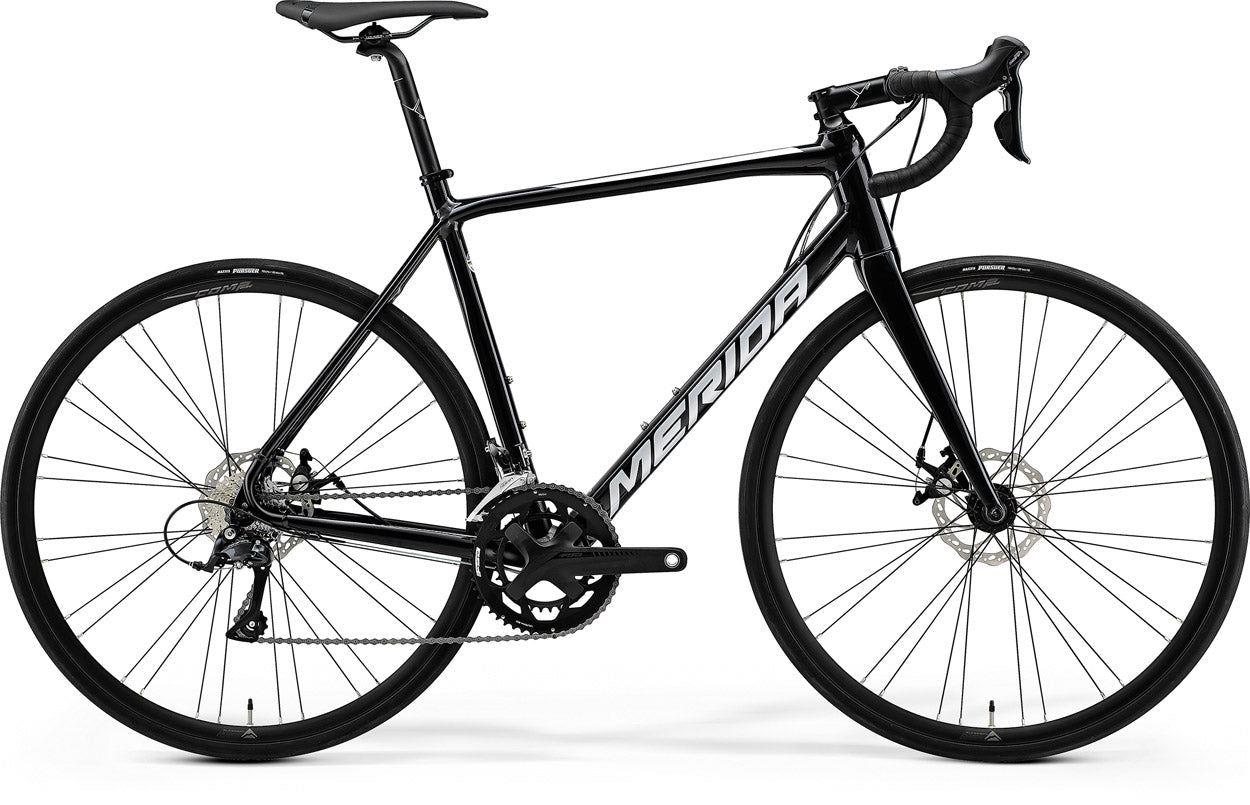

Merida Scultura 200 Road Bike Metallic Black

Brand: Merida

SKU: Select a size

Size: Select a size

SM/MD MD/LG LG

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Select a size to view stock availability at this location.

Alloy Frame/ Merida Carbon Fork

700c Wheel Size

Mechanical Disc Brake

Shimano Sora Groupset

2 x 9 Speed

Have a Question? Ask an expert on 0800 000 283

Product Details

Description

The Merida Scultura 200 takes Merida’s cutting edge, wind tunnel honed road racing genes and packs them into an affordable package perfect for road touring, fitness training and recreational rides. The lightweight 6061 series aluminium frame features Merida’s aerodynamically optimized NACA Fastback tube profile, a hydroforming process that results in an extremely strong frame, while allowing for wall thickness to be tuned to specific areas. A full Carbon tapered fork and steerer combo, in addition to being lightweight, provide great stiffness to the front end of the bike, delivering precise and confidence-inspiring handling. The reliable Shimano Sora 2x9 Drivetrain is paired with Mechanical Disc brakes for all weather stopping performance, while the 700c wheels are fitted with 25mm Maxxis Pursuer tyres. Disc cooling technology reduces head build up by up to 35%, through CNC-milled cooling fins under the disc brake calipers and all cables are internally routed and clamped under pressure

Key Features

Lightweight 6061 aluminium frame
Aerodynamically optimized NACA Fastback profile
Full carbon tapered fork for stiffness
Reliable Shimano Sora 2x9 drivetrain
Mechanical disc brakes for all-weather performance

Specifications

Product Overview

Product

Merida Scultura 200 Road Bike Metallic Black

Brand

Merida

Parent SKU

EDLJN7T9

Size SKUs

SM/MD: MERR2174169
MD/LG: MERR2174170
LG: MERR2174181

Year Model

2021

Product Features

Frame Material

Alloy

Colour

Black

Wheel Size

700c

Brake Type

Mechanical Disc Brake

Gears

2 x 9

Fork Material

Carbon

Weight

9.92 kg (weighed with 700C wheels and at frame size M-L, without pedals)

Build

Frame

SCULTURA DISC LITE BSA material: aluminium 700x28C max. wheelsize 100x12/ 142x12mm axle standard Pressfit bottom bracket standard

Fork

SCULTURA CF2 disc 700x28C max. wheelsize

Handlebars

MERIDA EXPERT SL material: aluminium 380mm(XXS) , 400mm (XS-S) , 420mm (S/M-M/L) , 440mm (L-XL)

Headset

MERIDA M2339 Neck

Stem

MERIDA COMP CC 31.8mm diameter material: aluminium -6° stem angle 80 mm-XXS/XS, 90 mm-S, 100 mm-SM/ML, 110 mm-L/XL

Saddle

MERIDA COMP SL V-mount

Seat Post

MERIDA COMP CC 27.2mm diameter 12mm setback

Wheels

Wheel Size

700c

Rims

MERIDA COMP SL 17mm inner width 22mm height material: aluminium Tubeless ready (tubeless tape and valves not included)

Hubs

FRONT: Joytech D791SB 100x12mm width front hub 32 spoke holes, 6 bolt / REAR: Joytech D142TSE 135x9mm width rear hub 32 spoke holes 6 bolt

Tyres

Maxxis Pursuer 700x25C fold

Spokes

Black stainless

Groupset

Crankset

165 mm-XXS, 170 mm-XS/S, 172.5 mm-SM/ML, 175 mm-L/XL

Chain

KMC M99

Brakes

Promax DSK-330R Mechanical disc

Shifters

Shimano Sora

Rear Derailleur

Shimano Sora GS

Cassette

9 Speed

Find Your Size

Step 1: Measure your height

Take off your shoes
Stand with your back straight against a wall
Balance a book on your head to mark your height on the wall
Measure your height by the distance from the floor to the mark

Your height:

Find Your Size

Step 2: Adjust your inseam

Based on your height, we’ve calculated a starting point.
You can measure your inseam by tucking a book between your legs so there is pressure but it isn’t uncomfortable.
Inseam typically falls with 5cm of the average.

Your inseam:

Find Your Size

Your results

For the Merida Scultura 200 Road Bike Metallic Black we suggest the following size.

More comfort More speed

SM/MD

MD/LG

Height: --

Inseam: --

Adjusted Height: --

Find Your Size

We have saved your measurements.

Recommended sizes will now be highlighted on the page.

PERFECT RIDE GUARANTEE

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

FREE BIKE BUILD

We'll build your bike for free when you click and collect at any 99 Bikes store.

FIRST FREE TUNE-UP

Every bike comes with a complimentary free tune-up and safety check. Learn more »

SM/MD

MD/LG

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

Your selected size: -

Legend

Available size

Current size

Unavailable size

Suggested sizing

Merida Scultura 200 Road Bike Metallic Black geometry diagram

Legend

ST Seat Tube
STA Seat Tube Angle
R Reach
TT Top Tube
BD Bottom Bracket Drop
S Stack
CS Chain Stay Length
HT Head Tube
WB Wheel Base
HTA Head Tube Angle
FL Fork Length

Wheel Size

700c

Stack

Reach

Top Tube Length

Seat Tube Length

Seat Tube Angle

Fork Length

Head Tube Length

Head Tube Angle

Handlebar Height

Bottom Bracket Drop

Chainstay Length

Wheelbase

Standover Height

Minimum Seat Height

Maximum Seat Height
