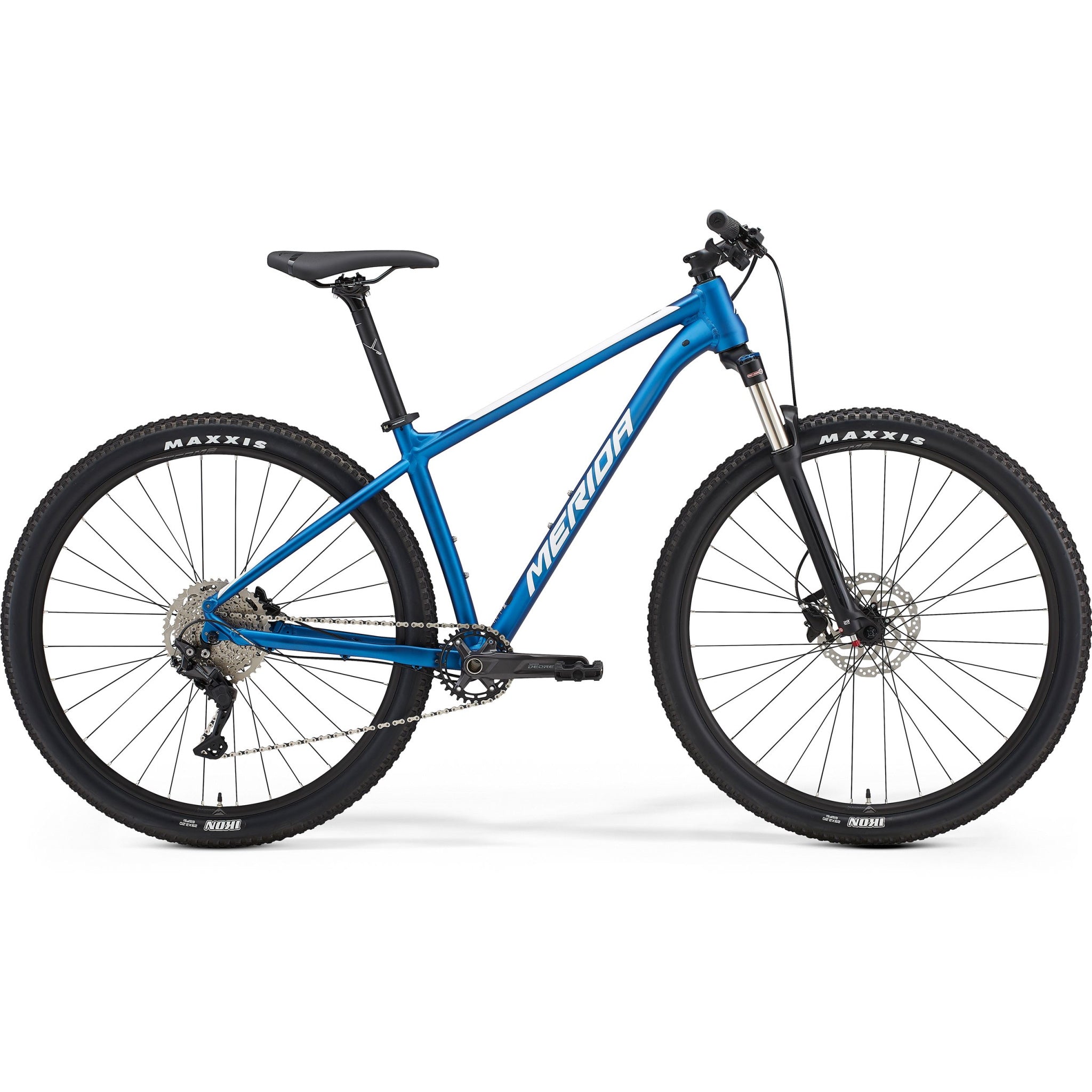

Merida Big Seven 200 X1 Hardtail Mountain Bike Blue/White

Brand: Merida

SKU: Select a size

Size: Select a size

XS SM MD LG

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Select a size to view stock availability at this location.

Alloy Frame/ Suntour Alloy Fork

100mm Front Travel

27.5" (650b) Wheel Size

Hydraulic Disc Brake

Shimano Deore Groupset

1 x 10 Speed

Have a Question? Ask an expert on 0800 000 283

Product Details

Description

The Big Seven 200 X1 is specced as a perfect XC trail, touring and endurance focused build, its TFS 6061 double butted and techno formed aluminium frame offers a more relaxed geometry, perfect for all day epics or riders not used to long hours in the saddle. A tapered head tube offers agile and precise steering while Shimano hydraulic disc brakes provide ultimate stopping performance. A new 1x10 Shimano gear setup provides less parts to maintain and smoother shifting performance while the 100mm travel lockout Suntour front fork will iron out any bumps along the way. Bursting out of the box with class leading, premium technologies such as smooth welding and internal cable routing for a clean aesthetic and a rattle free ride. Integrated mounts for a kickstand, rear rack and fenders, mean these bikes are completely customizable.

Key Features

Lightweight TFS 6061 aluminium frame
Agile tapered head tube design
1x10 Shimano gear setup
100mm travel lockout front fork
Hydraulic disc brakes for superior stopping

Specifications

Product Overview

Product

Merida Big Seven 200 X1 Hardtail Mountain Bike Blue/White

Brand

Merida

Parent SKU

LA53Z2QB

Size SKUs

XS: MEHA2181623
SM: MEHA2181634
MD: MEHA2181645
LG: MEHA2181656

Matrix Barcodes

XS: 4710949791865
SM: 4710949791858
MD: 4710949791841
LG: 4710949791834

Year Model

2021

Product Features

Frame Material

Alloy

Colour

Blue

Wheel Size

27.5" (650b)

Brake Type

Hydraulic Disc Brake

Gears

1 x 10

Fork Material

Alloy

Front Travel

100mm

Build

Frame

BIG.SEVEN TFS III; MAT aluminium; 27.5 WHS; 135x9 AST; BSA BBR

Fork

Suntour XCR LOR; Air; 100 STR; Lockout; 42mm fork offset

Handlebars

MERIDA EXPERT CC; MAT aluminium; 720 Wide; 10 Rise

Headset

MERIDA M2346 Neck

Stem

MERIDA COMP CC; MAT aluminium; 31.8 Diameter; 6 Angle. Length: XS/S-70 mm, M-80 mm, L-90 mm

Bottom Bracket

Shimano UN100 BSA

Pedals

Plastic VPE-891

Saddle

MERIDA COMP CC

Seat Post

MERIDA COMP CC; MAT aluminium; 30.9 Diameter; 0 Setback

Wheels

Wheel Size

27.5" (650b)

Rims

MERIDA COMP CC; 20 IWR; MAT aluminium

Hubs

FRONT: Shimano TX505; 100x9 WHF; 32 Spokes; Centerlock / REAR: Shimano TX505; 135x9 WHR; 32 Spokes; Centerlock

Tyres

Maxxis Ikon; 27.5x2.2"; wire

Spokes

Black stainless

Groupset

Crankset

Shimano Deore M5100; 32 ATC Length: 170 mm-S, 175 mm-M up

Chain

KMC M99

Brakes

Shimano MT-200; 2 piston

Front Rotor

Shimano RT10; 180mm

Rear Rotor

Shimano RT10; 160mm

Shifters

REAR: Shimano Deore M4100

Rear Derailleur

Shimano Deore M5120 Shadow+

Cassette

10 Speed

Find Your Size

Step 1: Measure your height

Take off your shoes
Stand with your back straight against a wall
Balance a book on your head to mark your height on the wall
Measure your height by the distance from the floor to the mark

Your height:

Find Your Size

Step 2: Adjust your inseam

Based on your height, we’ve calculated a starting point.
You can measure your inseam by tucking a book between your legs so there is pressure but it isn’t uncomfortable.
Inseam typically falls with 5cm of the average.

Your inseam:

Find Your Size

Your results

For the Merida Big Seven 200 X1 Hardtail Mountain Bike Blue/White we suggest the following size.

More comfort More speed

Height: --

Inseam: --

Adjusted Height: --

Find Your Size

We have saved your measurements.

Recommended sizes will now be highlighted on the page.

PERFECT RIDE GUARANTEE

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

FREE BIKE BUILD

We'll build your bike for free when you click and collect at any 99 Bikes store.

FIRST FREE TUNE-UP

Every bike comes with a complimentary free tune-up and safety check. Learn more »

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

Your selected size: -

Legend

Available size

Current size

Unavailable size

Suggested sizing

Merida Big Seven 200 X1 Hardtail Mountain Bike Blue/White geometry diagram

Legend

ST Seat Tube
STA Seat Tube Angle
R Reach
TT Top Tube
BD Bottom Bracket Drop
S Stack
CS Chain Stay Length
HT Head Tube
WB Wheel Base
HTA Head Tube Angle
FL Fork Length

Wheel Size

27.5" (650b)

Stack

Reach

Top Tube Length

Seat Tube Length

Seat Tube Angle

Fork Length

Head Tube Length

Head Tube Angle

Handlebar Height

Bottom Bracket Drop

Chainstay Length

Wheelbase

Standover Height

Minimum Seat Height

Maximum Seat Height
