$1500 Off Full Price Clearance

Marin Rift Zone E Electric Trail Bike Grey/Blue

Marin Rift Zone E Electric Trail Bike Grey/Blue

Brand: Marin

SKU: Select a size

Size: Select a size

SM MD LG XL

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Select a size to view stock availability at this location.

Steep Hills & Heavy Loads / 85 Nm Torque

Up to 70 km Range

Shimano STePS EP6 Motor

Alloy Frame/ RockShox Fork

140mm Front Travel / 140mm Rear

504Wh Battery

Have a Question? Ask an expert on 0800 000 283

Product Details

Description

The Marin Rift Zone E Electric Trail Bike Grey/Blue is an all‑mountain e-bike combining a torque-rich mid-drive motor and a long-range internal battery with 140mm front and rear travel for confident climbing and controlled descents; durable alloy frame, Shimano drivetrain, and tubeless-ready 29" wheels deliver reliable trail performance and versatile handling for long rides and technical terrain.

Specifications

Product Overview

Product

Marin Rift Zone E Electric Trail Bike Grey/Blue

Brand

Marin

Parent SKU

W5TF0H8H

Size SKUs

SM: MAEB2335970001
MD: MAEB2335970002
LG: MAEB2335970003
XL: MAEB2335970004

Year Model

2025

Product Features

Frame Material

Alloy

Frame Style

Crossbar

Colour

Grey

Wheel Size

29"

Brake Type

Hydraulic Disc Brake

Gears

1 x 10

Front Travel

140mm

Rear Travel

140mm

Charge Time

Motor and Battery System

Drive Type

Mid Drive

Motor Brand

Shimano

Motor

Shimano Steps EP6 Drive Unit, 250W, 85Nm

Torque (Nm)

Motor Climbing Ability

Steep Hills & Heavy Loads

Battery Size (Watt-Hours)

504

Battery

Shimano BT-EN805L, Internal 504Wh

Max. Range (KMs)

Charge Time (Hours)

Display

Shimano SC-E600

Build

Frame

All New Series 4 Alloy Frame, 140mm MultiTrac Suspension, Integrated Battery/Charging Port, 148mm Rear Thru-Axle, Built-in Rear Speed Sensor

Fork

RockShox 35 Silver R 29", Motion Control Damper, 140mm Travel, Maxle Stealth Axle, 42mm Offset

Shock

X-Fusion 02 PRO R, Compression and Rebound Adjustment, Custom Tune, 210x55 25xM8 Lower Mount & Upper Mount

Handlebars

Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back

Headset

FSA No 57E, Sealed Cartridge Bearings, 1 1/8" x 1 1/2”

Grips

Marin Grizzly Lock On

Stem

Marin 3D Forged Alloy, 35mm

Pedals

Marin MTB Plastic

Saddle

Marin eMTB Saddle

Seat Post

TranzX, YSP18JL, 1x Remote, Size S 150mm Travel, All Other Sizes 170mm Travel, 30.9mm

Wheels

Wheel Size

29"

Rims

Marin Aluminum Double Wall, 29" Diameter, 29mm Inner Rim Width, Pinned Joint, Disc Specific, Tubeless Compatible

Hubs

F: Shimano FH-TC500, 110x15mm, Centerlock, 32H | R: Shimano HB-TC500, 148x12mm, Centerlock, Standard Freehub Body

Tyres

Vee Tire Co. Attack HPL, 29x2.5", Top 40 Tubeless Compatible, Override E-Specific Casing

Spokes

14g Black Stainless Steel

Groupset

Crankset

Shimano EM600, 160mm Length, 38t Chainring

Chain

KMC X-10E, Silver

Brakes

TRP Slate EVO 4-Piston Hydraulic, 203mm Rotor, 2.3mm Thick

Front Rotor

203mm

Rear Rotor

203mm

Shifters

Shimano Deore, 10-Speed, I-Spec EV

Rear Derailleur

Shimano Deore, Direct Attachment, 10-Speed SGS

Cassette

10 Speed

Frequently Asked Questions

What is the Marin Rift Zone E Trail E‑Bike used for?

The Marin Rift Zone E Electric Trail Bike Grey/Blue is used for all-mountain and trail riding — climbing efficiently with motor assist and handling technical descents thanks to 140mm suspension.

Why choose the Marin Rift Zone E Trail E‑Bike?

Choose the Marin Rift Zone E Electric Trail Bike Grey/Blue for its torque-rich Shimano EP6 motor, integrated 504Wh battery, and robust components that deliver long range, confidence on rough trails, and reliable performance.

Who is the Marin Rift Zone E Trail E‑Bike designed for?

The Marin Rift Zone E Electric Trail Bike Grey/Blue is designed for adventurous riders who want e‑assisted all-mountain capability — riders who value climbing help, durable build, and capable suspension for technical terrain.

Disclaimer

Please Note: Before using this vehicle, check the applicable local laws relating to your intended use of the vehicle on roads and road related areas. Please ride responsibly and follow your local laws. We do not recommend modifying your electric bike or electric scooter.

Find Your Size

Step 1: Measure your height

Take off your shoes
Stand with your back straight against a wall
Balance a book on your head to mark your height on the wall
Measure your height by the distance from the floor to the mark

Your height:

Find Your Size

Step 2: Adjust your inseam

Based on your height, we’ve calculated a starting point.
You can measure your inseam by tucking a book between your legs so there is pressure but it isn’t uncomfortable.
Inseam typically falls with 5cm of the average.

Your inseam:

Find Your Size

Your results

For the Marin Rift Zone E Electric Trail Bike Grey/Blue we suggest the following size.

More comfort More speed

Height: --

Inseam: --

Adjusted Height: --

Find Your Size

We have saved your measurements.

Recommended sizes will now be highlighted on the page.

PERFECT RIDE GUARANTEE

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

FREE BIKE BUILD

We'll build your bike for free when you click and collect at any 99 Bikes store.

FIRST FREE TUNE-UP

Every bike comes with a complimentary free tune-up and safety check. Learn more »

Range

Calculate your range

E-Bike Range Estimator

Free Test Rides

Come into your local store to test ride an E-Bike today

Find a store

Shop Our E-bikes

Shop our collection of electric bikes

Shop Now

Torque-rich Shimano EP6 motor + 504Wh internal battery

Climb longer and tackle steeper trails with 85Nm of torque and up to ~70 km range. The internal battery and integrated charging port keep the lines clean and ready for all-day rides.

140mm MultiTrac suspension for confident handling

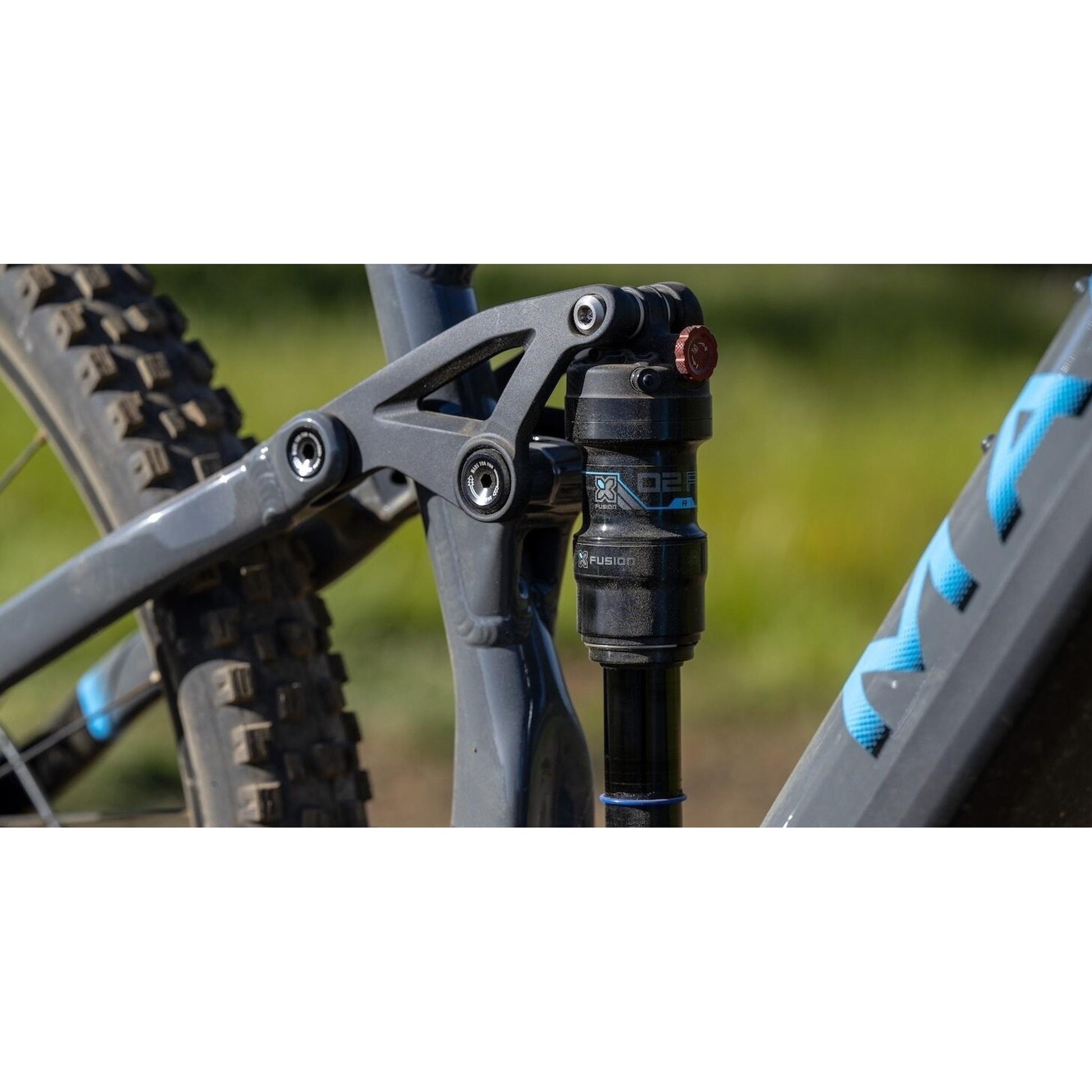

140mm front and rear travel with RockShox fork and X-Fusion shock offers controlled descents and nimble traction on technical terrain. The Series 4 alloy frame balances strength and agility for rough trails.

Trail-ready drivetrain, brakes and tubeless 29" wheels

Shimano Deore 10-speed shifting, TRP 4-piston hydraulic brakes, and tubeless-compatible 29x2.5" tyres deliver reliable stopping power and grip. Durable components and an alloy frame make it low-maintenance for long rides.

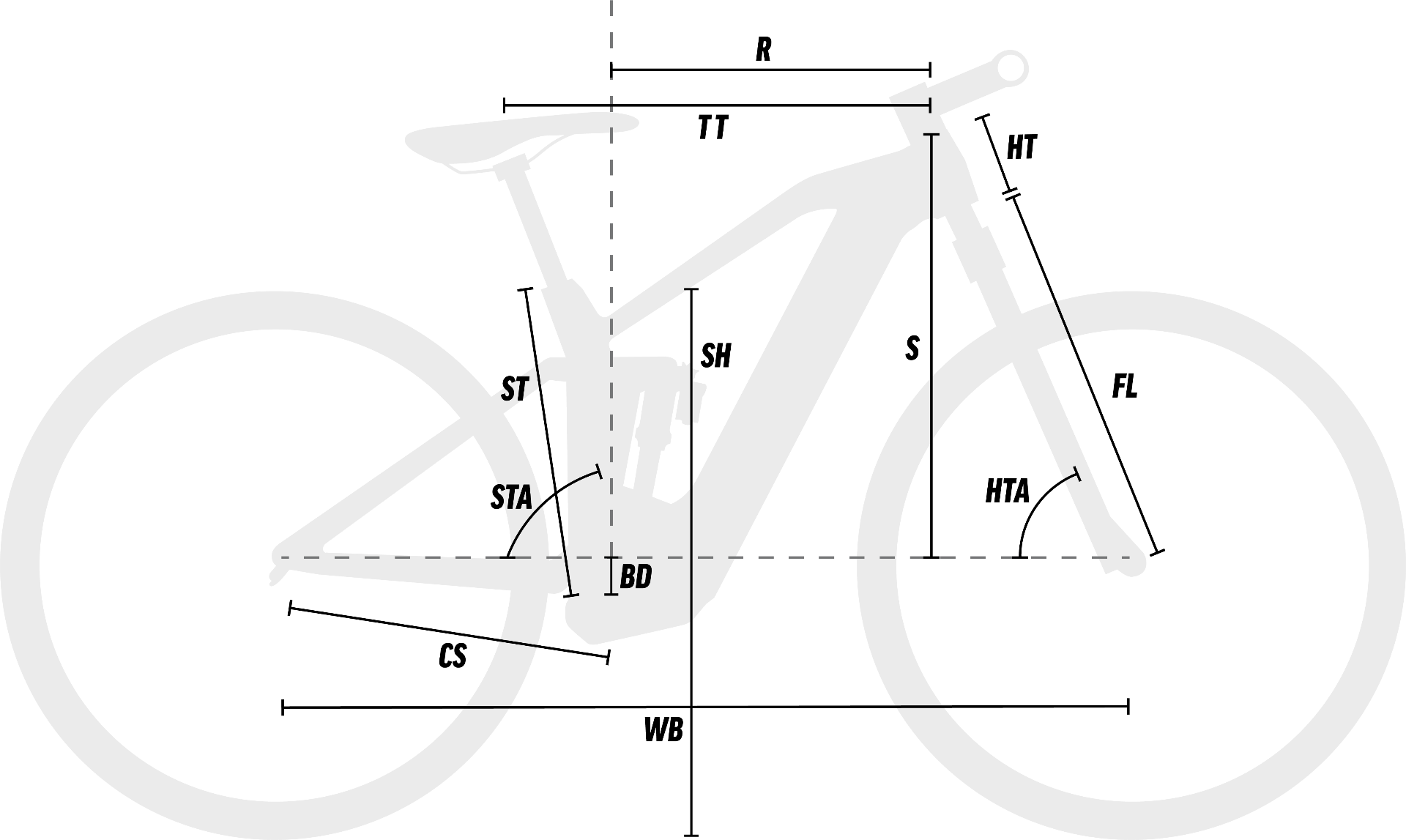

Marin Rift Zone E Electric Trail Bike Grey/Blue geometry diagram

Legend

ST Seat Tube
STA Seat Tube Angle
R Reach
TT Top Tube
BD Bottom Bracket Drop
S Stack
CS Chain Stay Length
HT Head Tube
WB Wheel Base
HTA Head Tube Angle
FL Fork Length

Wheel Size

29"

Stack

607

614

625

634

Reach

445

465

485

515

Top Tube Length

585

607

629

661

Seat Tube Length

390

400

425

435

Seat Tube Angle

77.0

Fork Length

Head Tube Length

100

110

120

130

Head Tube Angle

100.0

110.0

120.0

130.0

Handlebar Height

Bottom Bracket Drop

Chainstay Length

Wheelbase

Standover Height

694

696

710

720

Minimum Seat Height

Maximum Seat Height
