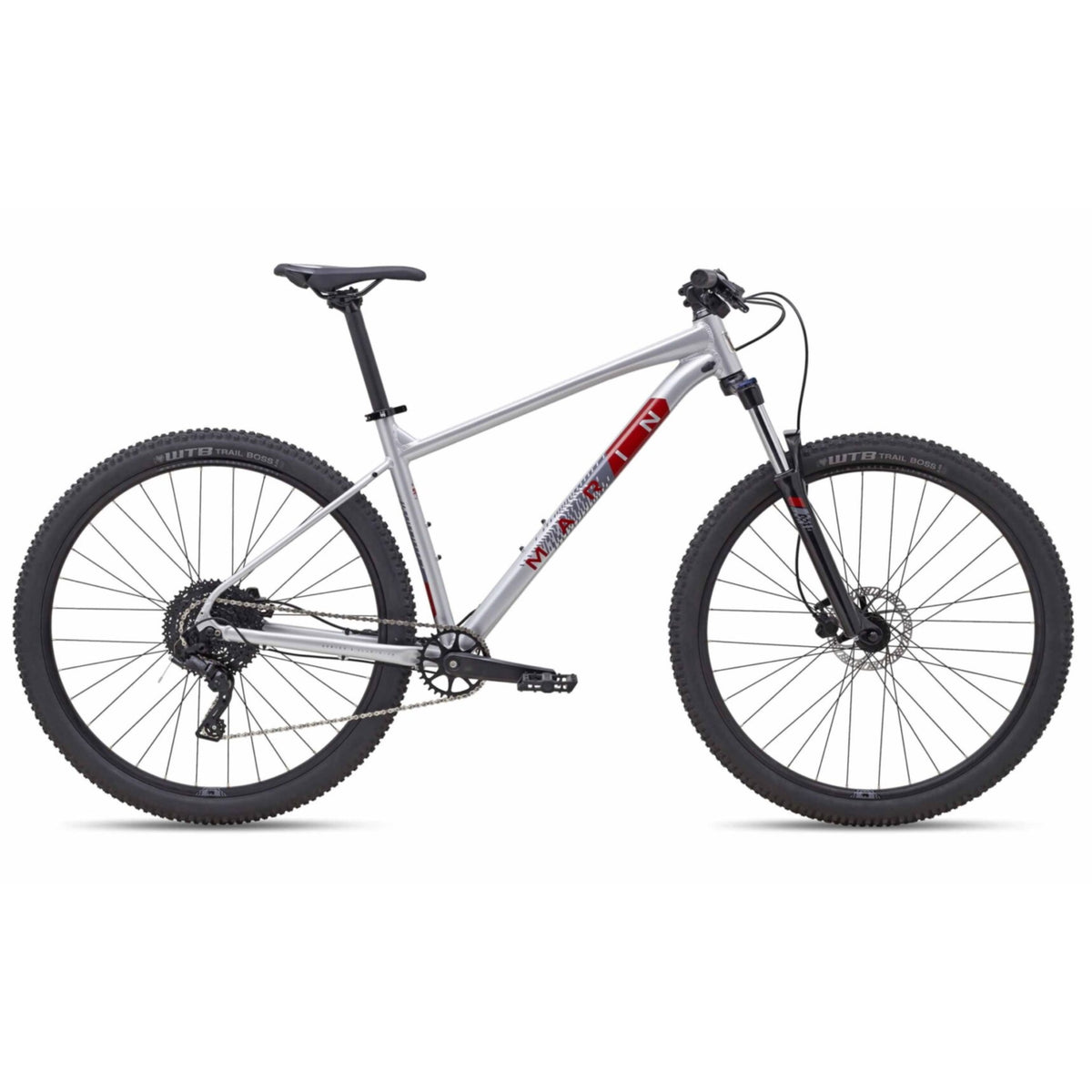

Marin Bobcat Trail 4 Hardtail Mountain Bike 29" Wheels Silver (2022)

$1,199$1,299.99
Save $100.99

Yours now with 4 interest free payments of $299.75 NZD fortnightly with More info

SKU: HQ42JFWR

Stock:
Low stock

5% Best Price Guarantee

If you find a cheaper price, we will beat it by 5%*

- Applies to any cheaper price found in New Zealand.

- When the competitor's final price inclusive of any taxes and delivery fees.

- Excludes Garmin products, other exclusions apply.

Check available shipping methods

Click & Collect Available

• Pick-up In-store in 1-2 days* • Only available on items already in-stock at your local store  More info »

No Courier Delivery

• This item is unavailable to be shipped with a courier More info »

99 Bikes Home Delivery Available

Assembled Bikes delivered straight to your door • Available on all Bikes in Auckland & Christchurch • $29 flat rate More info »

Perfect Ride Guarantee

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

Free Bike Build

We'll build your bike for free when you click and collect at any 99 Bikes store.

First Free Tune-up

Every bike come with a complimentary free tune-up and safety check. Learn more »

Please note, due to challenges in the product supply chain, bike specifications are subject to change without notice. Specifications listed below may not match exactly as shown in the photo.

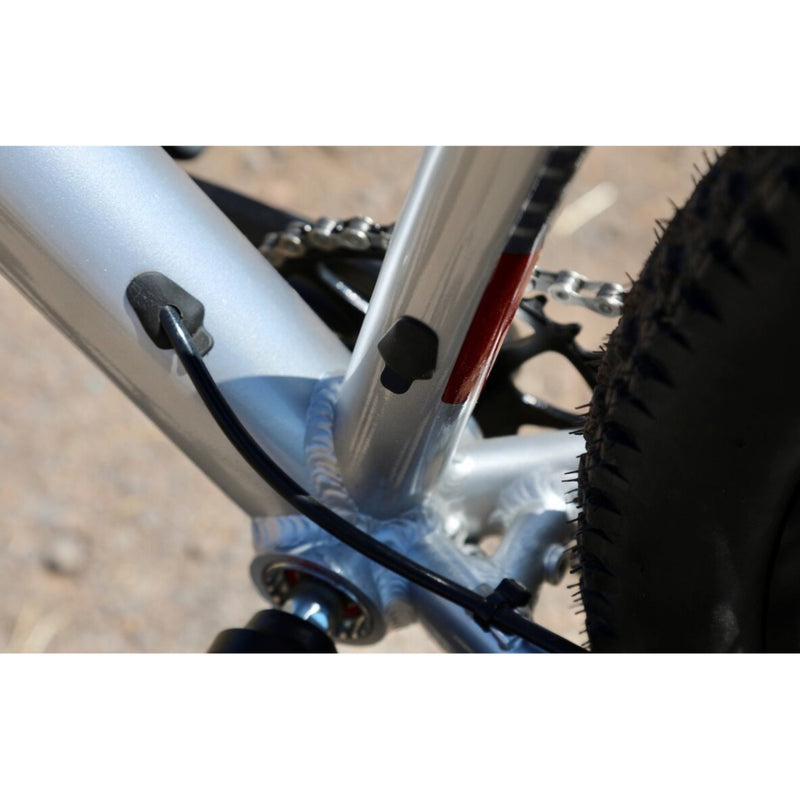

The Bobcat Trail family of hardtail mountain bikes are designed for the rider looking for a capable singletrack machine. All Bobcat Trail models feature Marin Trail geometry, offering a long-ish reach, low standover, slack head tube, and steep seat tube angles, giving riders confidence and predictable handling to have a blast on the trail. The Bobcat Trail 4 is built around a series 2 6061 butted and hydroformed alloy frame, fitted with a 120mm travel SR Suntour XCM HLO-DS suspension fork with remote lockout. Internal cable routing minimizes servicing needs and routing for a dropper post is provided for future upgrades. Fastback seatstays add vertical compliance without sacrificing power transfer and feature rack mounts for extended trail adventures. The Trail specific MicroSHIFT Advent 1x9 speed drivetrain provides a modern gear ratio and is paired with Tektro hydraulic disc brakes for high performance brake control in any trail conditions.
Bottom bracket: Sealed Cartridge Bearings, Square Taper

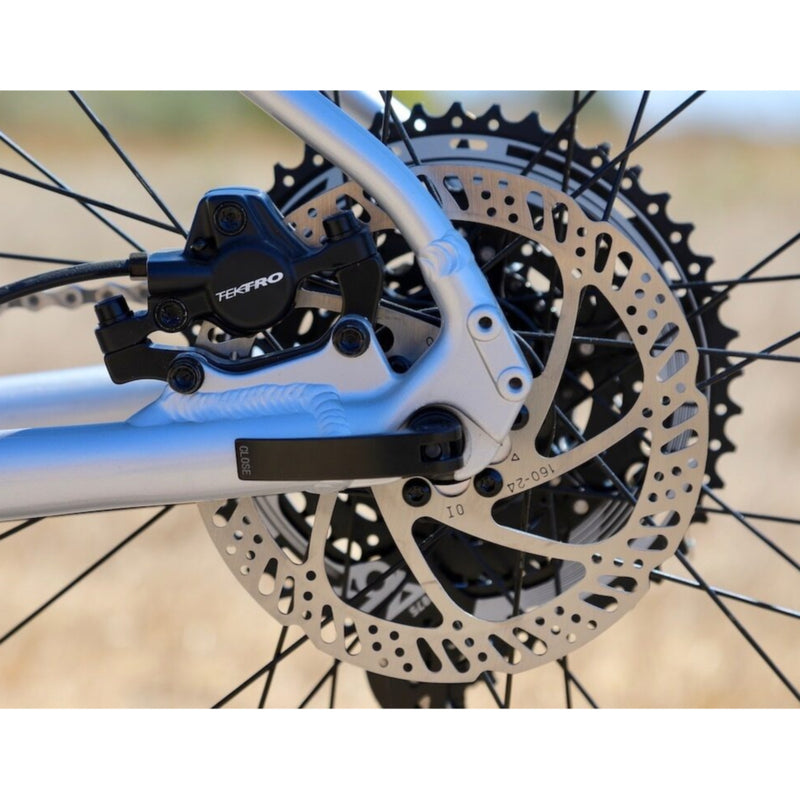

Brakes: Tektro M275 Hydraulic Disc
Chain: KMC X9
Crankset: Alloy Crank, Steel Narrow-Wide Chainring, 32T

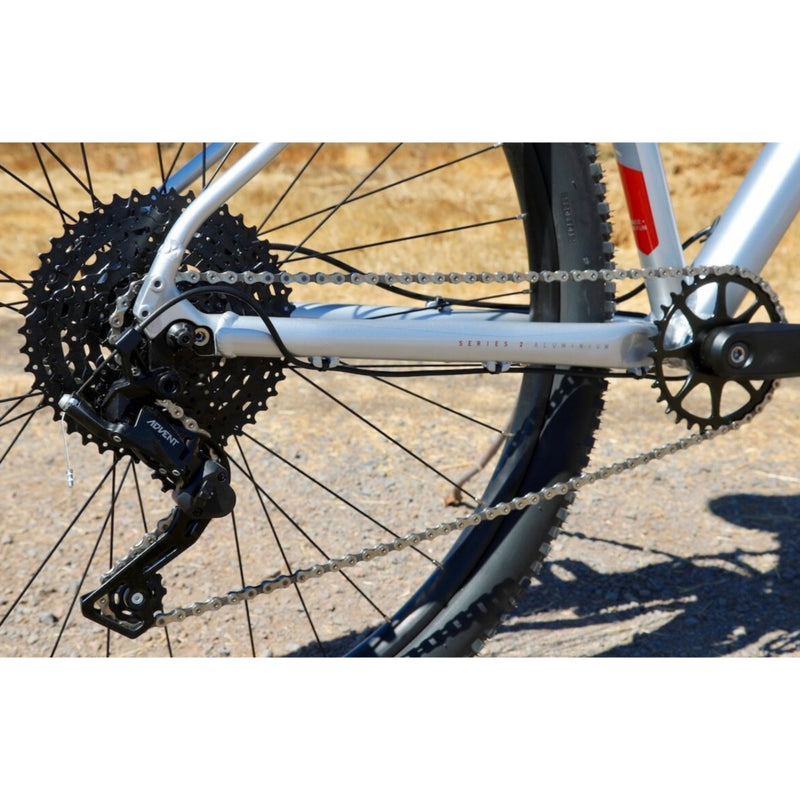

Derailleur rear: MicroSHIFT Advent 9, Clutch
Fork: SR Suntour XCM HLO-DS, 120mm Travel, Hydraulic Lockout, 46mm Offset
Frame: Series 2 6061 Aluminum, 27.5" or 29” Wheels, Low Standover, 68mm BB shell, 135mm Forged Dropouts, IS Chainstay Disc Mount, Internal Housing & Dropper Post Routing
Freewheel: SunRace 9-Speed, 11-46T Cassette
Grip: Marin MTB, Closed End
Handlebar: Marin 31.8 Riser, 12mm Rise, 780mm Width
Handlebar stem: Marin Alloy, 31.8mm Clamp, 45mm
Headset: FSA No.10-P
Hubs: Forged Alloy, Disc, 32H
Pedals: Nylon Platform
Rim: Marin Aluminum Double Wall, 25mm Inner, Pinned Joint, Disc Specific
Rotor front: 180mm
Rotor rear: 160mm
Saddle: Marin MTB
Seat post: Marin Alloy, 30.9
Spokes: 14g Black Stainless Steel
Tyre front: WTB Trailboss Comp, 27.5 or 29x2.25, Wire Bead
Tyre rear: WTB Trailboss Comp, 27.5 or 29x2.25, Wire Bead
Wheel size: 29"

(27.5) M (27.5)M (29)L (29) XL (29)
Stack599.3604629.3634638.5
Reach435445445465480
Headtube Angle67.5°67.5°67.5°67°67°
Headtube Length105110110115120
Seattube Angle74.5°74.5°74.5°74.5°74.5°
Seattube Length381431431482520
Toptube Effective601612.5619.5640.8657
BB Height307307307311.5311.5
BB Drop4848486161
Chainstay425425425440440
Wheelbase1133.31145.21177.41199.31216.3
Standover Height659.07705.48714.04744.93774.59
Fork Offset4646464646
Seatpost Diameter30.930.930.930.930.9
Handlebar Width780780780780780
Stem Length4545454545
Crank Length170170170170170

All lengths in millimeters

Marin Bobcat Trail Bike Sizing Chart

Marin Bikes are Made For Fun. Since the first mountain bikes bearing the Marin name debuted in 1986, the brand has been dedicated to enriching the lives of riders by making fun, high caliber bicycles, which provide years of riding enjoyment. They operate their business based on hard work, fueled by passion, and fulfilled by the satisfaction of bringing the joy of cycling to riders across the world.
