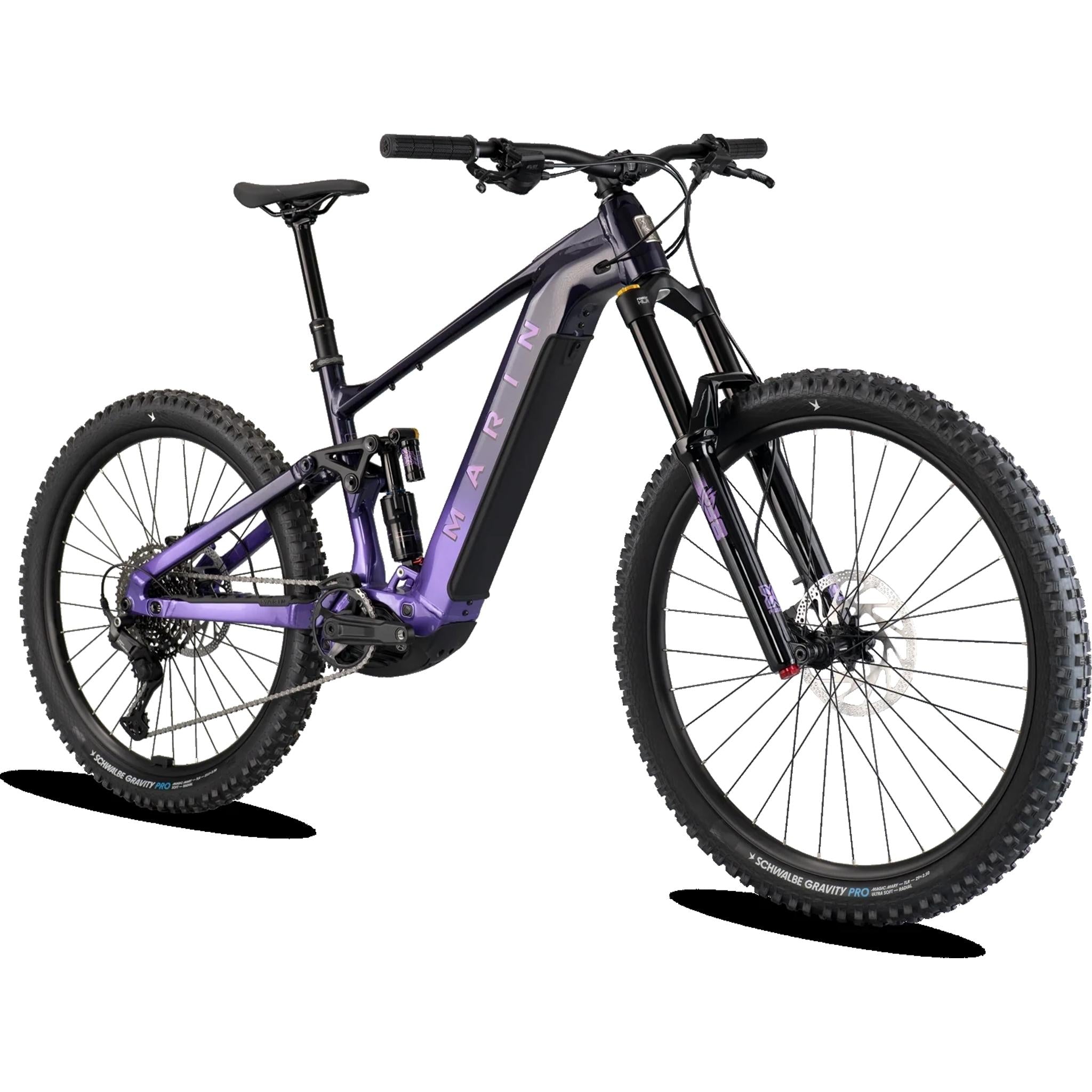

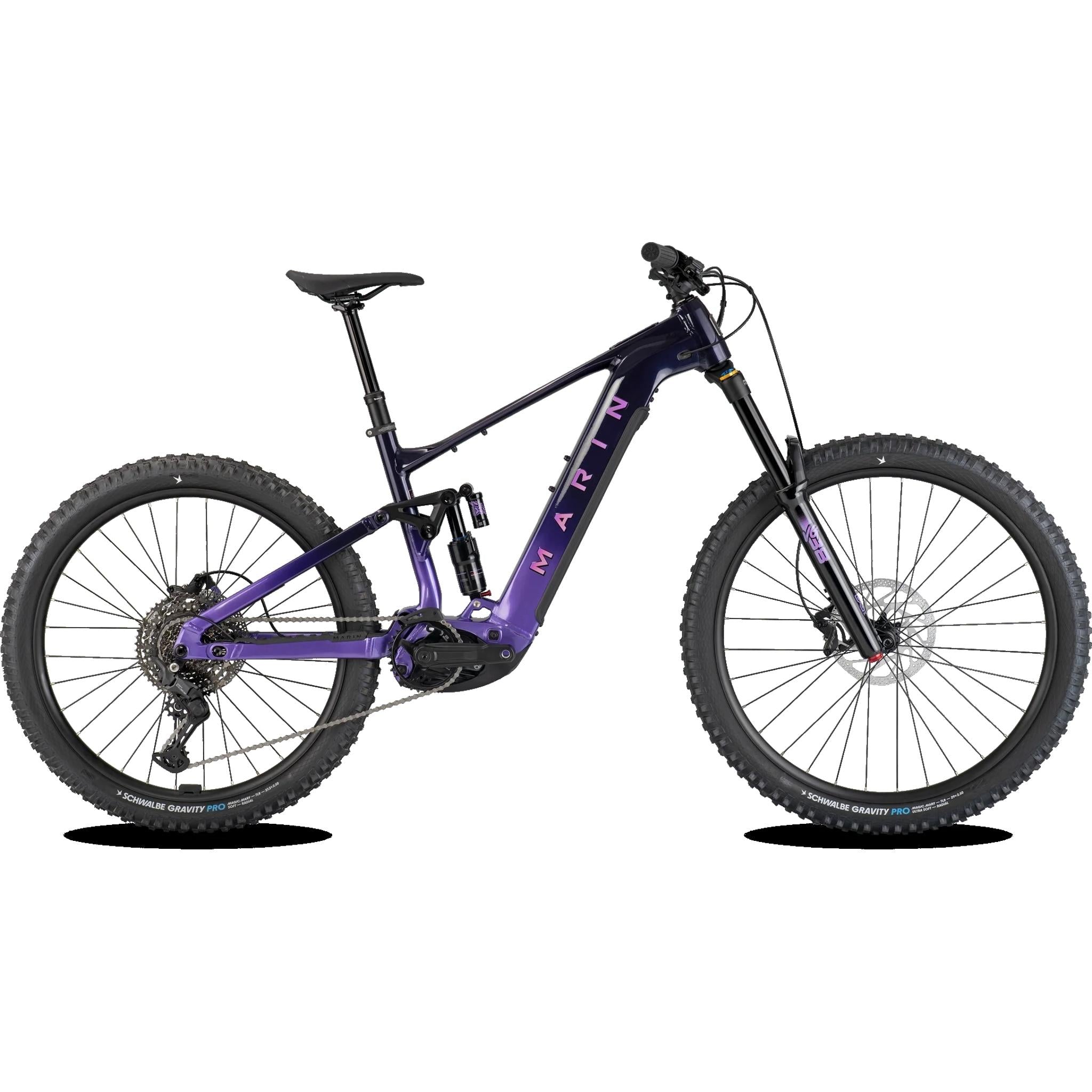

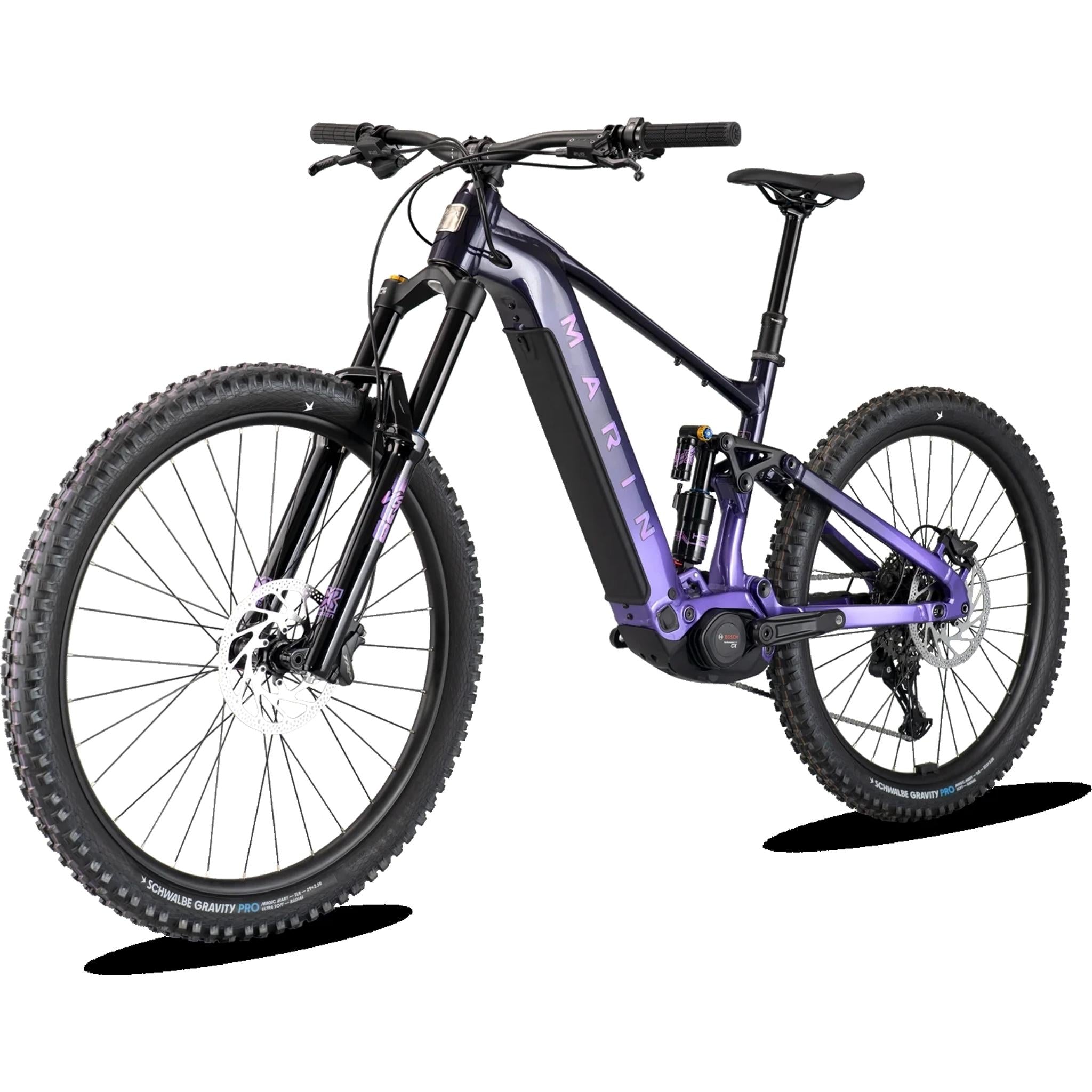

Marin Alpine Trail 29 E1 Electric Enduro Bike Purple

Marin Alpine Trail 29 E1 Electric Enduro Bike Purple

Name: Marin Alpine Trail 29 E1 Electric Enduro Bike Purple XL
SKU: EASS1DTX

Brand: Marin

SKU: Select a size

Size: Select a size

SM MD LG XL

$9,799.00 Full price

$9,799.00

Club price

$9,999.00 Full price

Club Price is automatic when shopping online.
Join club 99 for $5 and unlock benefits for life! Learn more.

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Select a size to view stock availability at this location.

Alloy Frame/ X-Fusion Alloy Fork

170mm Front Travel / 160mm Rear

29" / 27.5" (Mullet Bike) Wheel Size

Hydraulic Disc Brake

Shimano Cues Groupset

1 x 10 Speed

Have a Question? Ask an expert on 0800 000 283

Product Details

Description

The Marin Alpine Trail 29 E1 Electric Enduro Bike is built for riders who want big mountain-bike confidence with the effortless boost of an ebike. With the Bosch eBike Flow App, Bosch Kiox 400 display, and Bluetooth remote, you can dial in your ride feel while the PT800 horizontal battery and integrated charging port keep things simple. It rolls on tubeless-compatible 29-inch gravity-focused tyres and backs it up with serious suspension, including 160mm MultiTrac LT front travel and a custom-tuned rear air setup for traction over rough enduro lines. From steep climbs to fast, technical descents, this electric mountain bike is ready for trail days, enduro sessions, and all-day exploring.

Key Features

800Wh battery 100Nm mid-drive motor

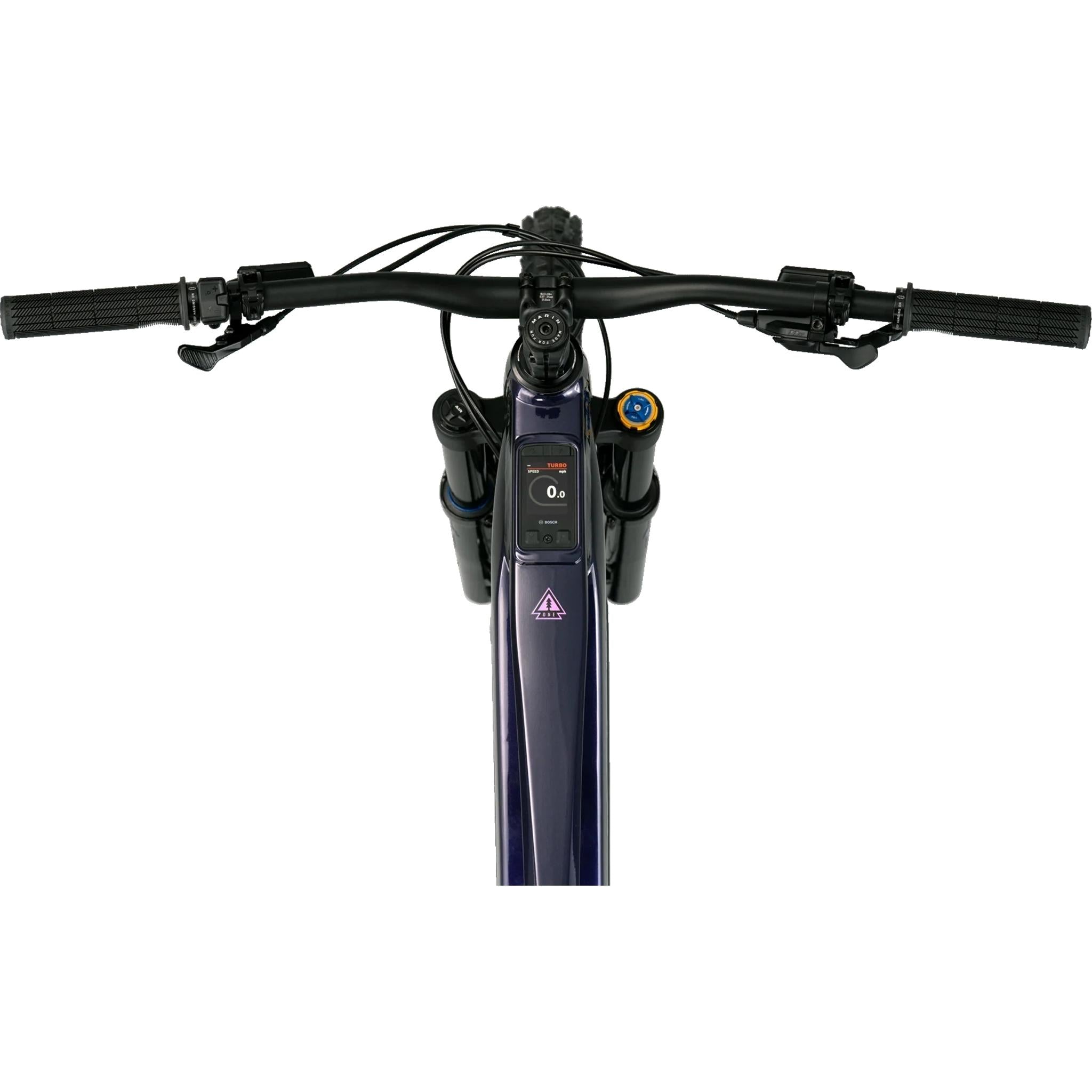

Bosch Kiox 400 display and Bluetooth remote
160mm MultiTrac LT front suspension travel
170mm X-Fusion Vengence and 205x65 rear air
PT800 battery with integrated charging port

Specifications

Product Overview

Product

Marin Alpine Trail 29 E1 Electric Enduro Bike Purple

Brand

Marin

Parent SKU

ER0A5F56

Size SKUs

SM: MAEB2639062001
MD: MAEB2639062002
LG: MAEB2639062003
XL: MAEB2639062004

Matrix Barcodes

SM: 843346129628
MD: 843346129642
LG: 843346129666
XL: 843346129680

Year Model

2026

Product Features

Frame Material

Alloy

Frame Style

Crossbar

Colour

Purple

Wheel Size

29" / 27.5" (Mullet Bike)

Brake Type

Hydraulic Disc Brake

Gears

1 x 10

Fork Material

Alloy

Front Travel

170mm

Rear Travel

160mm

Build

Frame

All New Series 4 Alloy for Gen 5 CX Drive Unit, 160mm MultiTrac LT Suspension, Adjustable Headset & CS Length/Height, Integrated Battery/Charging Port, 148mm Rear Thru-Axle

Fork

X-Fusion Vengeance, 170mm Travel, 44mm Offset, 110x15mm Bolt-on Axle

Handlebars

Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back

Headset

FSA Custom Headset, Adjustable HTA Design

Grips

Marin Grizzly Lock-On

Stem

Marin 3D Forged Alloy, 35mm

Bottom Bracket

Integrated Drive Unit (Bosch Gen 5 Performance Line CX)

Pedals

Pedals not included

Saddle

Marin Short Nose

Seat Post

TranzX YS160QL Adjustable Travel Dropper Post, Size S=150, M=170mm Travel, Size L-XL 200mm Travel, 34.9mm

Wheels

Wheel Size

29" / 27.5" (Mullet Bike)

Rims

New Marin, Double Wall Alloy, 29mm Inner, Sleeved Joint, Disc Specific, 32H, Tubeless Compatible

Hubs

F: Shimano HF-MT500B, 110x15mm, Centerlock / R: Shimano HB-MT501B, 148x12mm, Centerlock, Micro Spline Freehub Body

Tyres

F: Schwalbe Magic Mary, Gravity Pro, Ultra Soft, Radial, 29x2.5" / R: Schwalbe Magic Mary, Gravity Pro, Soft, Radial, 27.5x2.5"

Spokes

14g Black Stainless Steel

Groupset

Crankset

Marin Forged eMTB Cranks, 150mm

Chain

Shimano LG500

Brakes

TRP DHR EVO Comp, 200mm Rotors

Shifters

Shimano CUES SL-U6000-10R, 10-Speed

Rear Derailleur

Shimano CUES RD-U6000 GS, 10-Speed

Cassette

10 Speed

Cassette Model

Shimano CS-LG300-10, 11-48T

Frequently Asked Questions

What is the Marin Alpine Trail 29 E1 Electric Enduro Bike used for?

The Marin Alpine Trail 29 E1 Electric Enduro Bike is used for riding demanding mountain trails, including steep climbs, technical descents, and enduro-style terrain where extra traction and control matter.

Why choose the Marin Alpine Trail 29 E1 Electric Enduro Bike?

Choose the Marin Alpine Trail 29 E1 Electric Enduro Bike for its Bosch eBike system, including the PT800 battery and integrated charging, plus ride-friendly tech like the Bosch eBike Flow App and Kiox 400 display. The long-travel front suspension, custom-tuned rear air shock, and gravity-ready tyres make it an electric mountain bike that stays capable when the route gets rowdy.

Who is the Marin Alpine Trail 29 E1 Electric Enduro Bike designed for?

The Marin Alpine Trail 29 E1 Electric Enduro Bike is designed for riders who want a capable pedal ebike for MTB adventures and enduro days, and who prefer confidence-inspiring geometry, comfort features like the adjustable dropper post, and proper electric support for longer rides.
