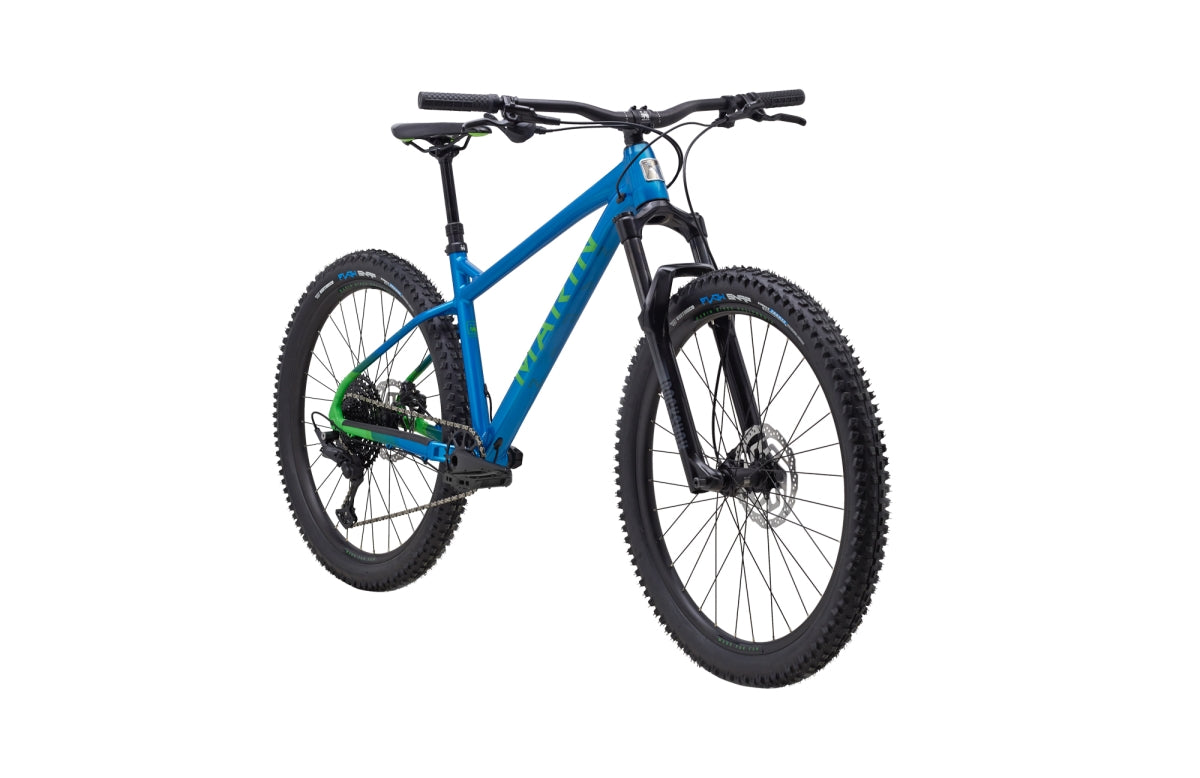

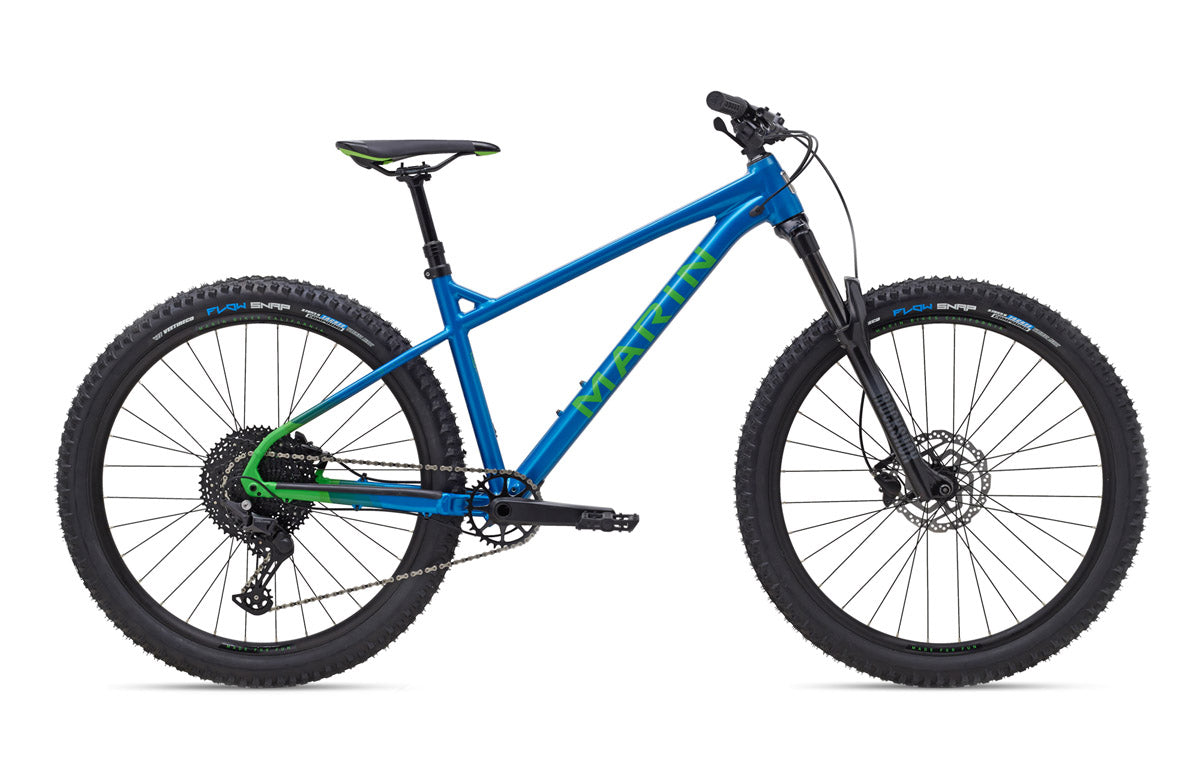

Marin San Quentin 2 Hardtail Mountain Bike Gloss Blue/Green

Marin San Quentin 2 Hardtail Mountain Bike Gloss Blue/Green

Brand: Marin

SKU: Select a size

Size: Select a size

MD LG

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Select a size to view stock availability at this location.

Alloy Frame/ RockShox Alloy Fork

130mm Front Travel

27.5" (650b) Wheel Size

Hydraulic Disc Brake

Shimano Mixed Groupset

1 x 11 Speed

Have a Question? Ask an expert on 0800 000 283

Product Details

Description

The San Quentin is for the aggressive hardtail trail rider looking for a blend between singletrack capabilities and extended airtime. Blending the strength and style of Marin's Alcatraz dirt jump frame with the trail-savvy Nail Trail, the San Quentin family of aggressive trail hardtails are the perfect mash-up for the modern trail rider. The San Quentin 2 is built around a Series 3 6061 aluminium frame, with more advanced tube forming, more complex dropouts, post mount disc tabs, full internal cable routing, and a boost 148mm thru-axle. Added ISCG 05 tabs ensure chain retention when the terrain gets super nasty. The slack head tube angle paired with a steep seat tube angle creates a ride that will fly uphill with perfect front wheel precision but then descend like it is on rails. View our Video tab to see the full features of the San Quentin in its natural habitat.

Key Features

Aggressive hardtail design for trail riding
Series 3 6061 aluminum frame construction
Slack head tube for downhill stability
Full internal cable routing for clean look
Boost 148mm thru-axle for enhanced performance

Specifications

Product Overview

Product

Marin San Quentin 2 Hardtail Mountain Bike Gloss Blue/Green

Brand

Marin

Parent SKU

L0P41RBA

Size SKUs

MD: MAHA2132413002
LG: MAHA2132413003

Matrix Barcodes

MD: 843346107671
LG: 843346107688

Year Model

2022

Product Features

Frame Material

Alloy

Colour

Blue

Wheel Size

27.5" (650b)

Brake Type

Hydraulic Disc Brake

Gears

1 x 11

Fork Material

Alloy

Front Travel

130mm

Build

Frame

Series 3 6061 Aluminum, Double Butted Frame, Internal Cable Routing, 12x148mm Thru-Axle, 73mm Threaded BB

Fork

RockShox Recon RL, 110x15mm Boost Spacing, Fast Black Stanchions, 130mm Travel, Bolt-On Thru-Axle

Handlebars

Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back

Headset

FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8" x 1 1/2”

Grips

Marin MTN, Closed End

Stem

Marin 3D Forged Alloy, 45mm

Bottom Bracket

External Sealed Cartridge Bearing

Pedals

Nylon Platform

Saddle

Marin Speed Concept

Seat Post

TranzX, YSP18, 1x Remote, Size S 125mm Travel, Size M-XL 150mm Travel, 30.9m

Wheels

Wheel Size

27.5" (650b)

Rims

Marin Aluminum Double Wall, Disc Specific, 29mm Inner, Pinned Joint, 32H, Tubeless Compatible

Hubs

REAR: Shimano HF-MT400B, 148x12, Centerlock, Standard Freehub Body / FRONT:Shimano HF-MT400B, 110x15mm, Centerlock

Spokes

14g Black Stainless Steel

Groupset

Crankset

Marin Forged Alloy, Integrated Steel 32T Narrow Wide Chainring, Boost Spacing

Chain

KMC X-11 Silver and Black

Brakes

Shimano BR-MT201 Hydraulic Disc, 180mm Rotor

Front Rotor

180mm Rotor

Rear Rotor

180mm Rotor

Shifters

Shimano Deore, 11-Speed, SL-5100R

Rear Derailleur

Shimano Deore, 11-Speed, SGS

Cassette

11 Speed

Find Your Size

Step 1: Measure your height

Take off your shoes
Stand with your back straight against a wall
Balance a book on your head to mark your height on the wall
Measure your height by the distance from the floor to the mark

Your height:

Find Your Size

Step 2: Adjust your inseam

Based on your height, we’ve calculated a starting point.
You can measure your inseam by tucking a book between your legs so there is pressure but it isn’t uncomfortable.
Inseam typically falls with 5cm of the average.

Your inseam:

Find Your Size

Your results

For the Marin San Quentin 2 Hardtail Mountain Bike Gloss Blue/Green we suggest the following size.

More comfort More speed

Height: --

Inseam: --

Adjusted Height: --

Find Your Size

We have saved your measurements.

Recommended sizes will now be highlighted on the page.

PERFECT RIDE GUARANTEE

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

FREE BIKE BUILD

We'll build your bike for free when you click and collect at any 99 Bikes store.

FIRST FREE TUNE-UP

Every bike comes with a complimentary free tune-up and safety check. Learn more »

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

Your selected size: -

Legend

Available size

Current size

Unavailable size

Suggested sizing

Marin San Quentin 2 Hardtail Mountain Bike Gloss Blue/Green geometry diagram

Legend

ST Seat Tube
STA Seat Tube Angle
R Reach
TT Top Tube
BD Bottom Bracket Drop
S Stack
CS Chain Stay Length
HT Head Tube
WB Wheel Base
HTA Head Tube Angle
FL Fork Length

Wheel Size

27.5" (650b)

Stack

Reach

Top Tube Length

Seat Tube Length

Seat Tube Angle

Fork Length

Head Tube Length

Head Tube Angle

Handlebar Height

Bottom Bracket Drop

Chainstay Length

Wheelbase

Standover Height

Minimum Seat Height

Maximum Seat Height
