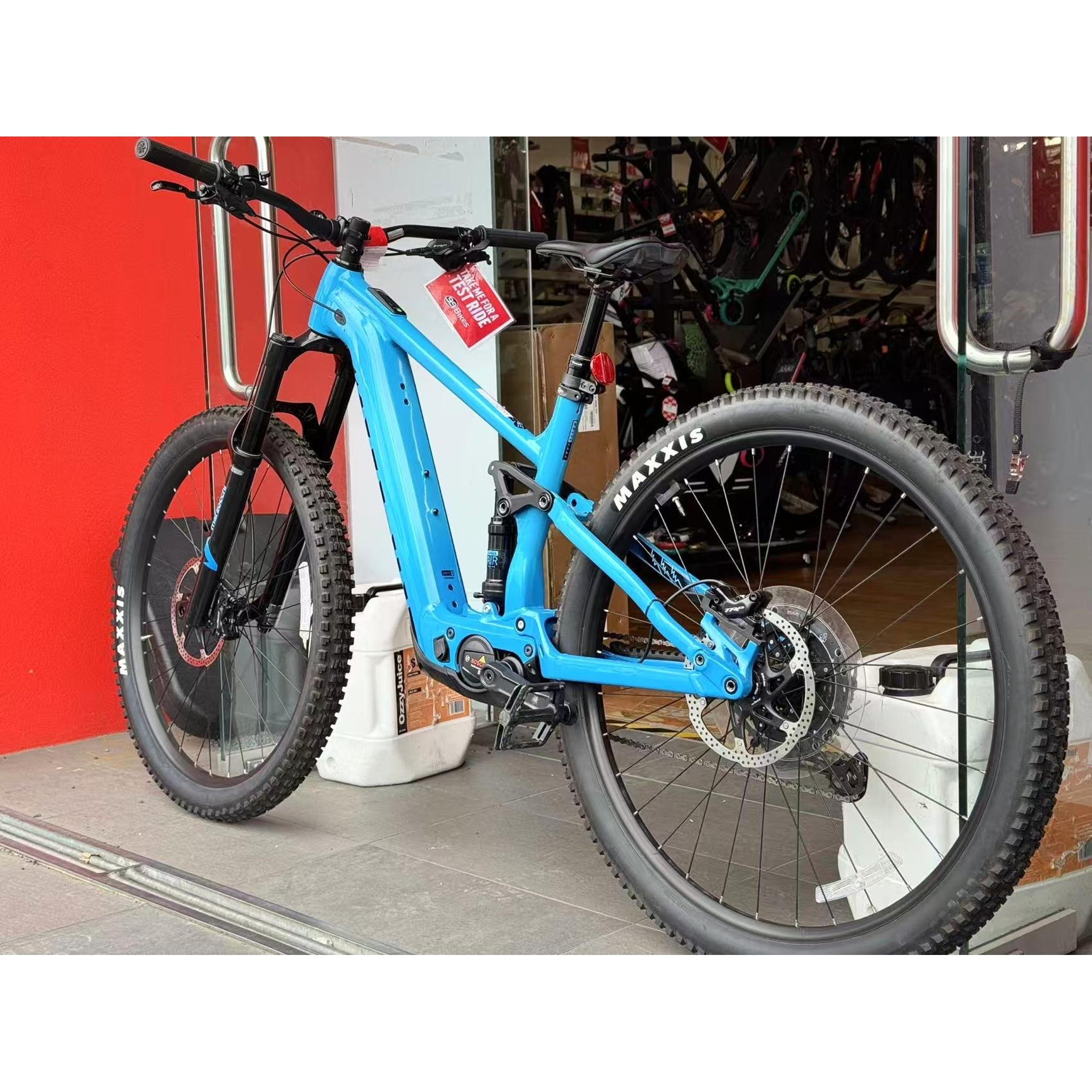

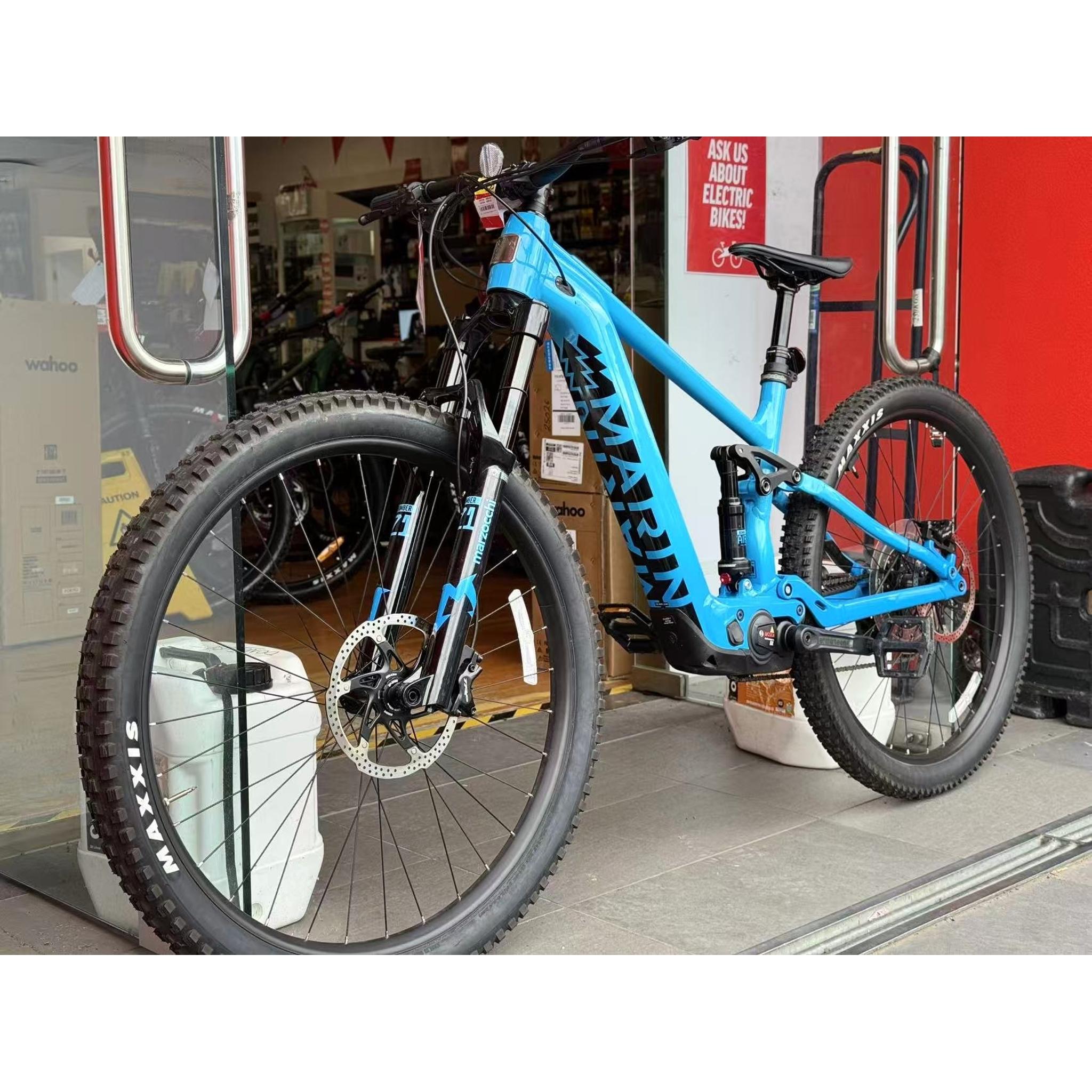

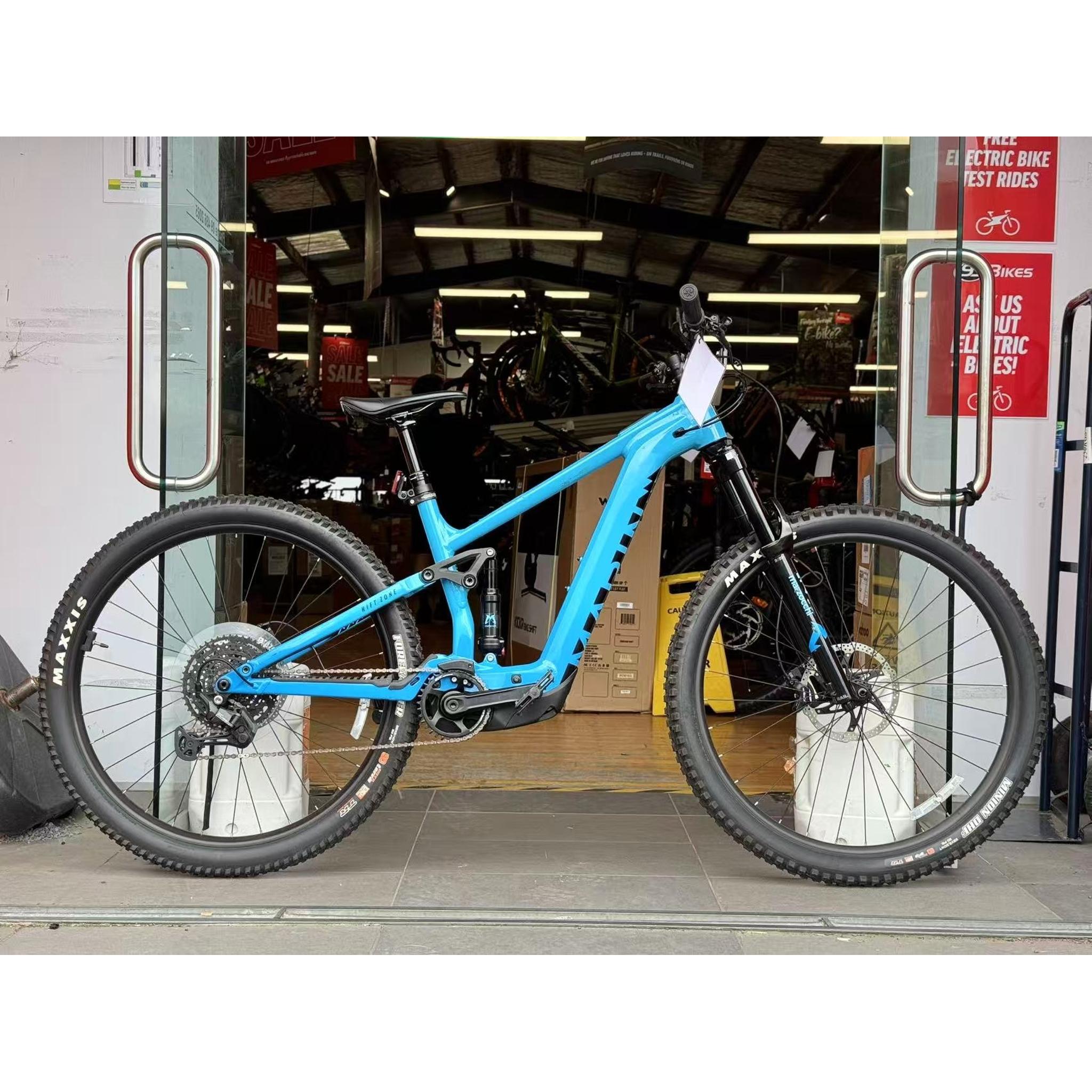

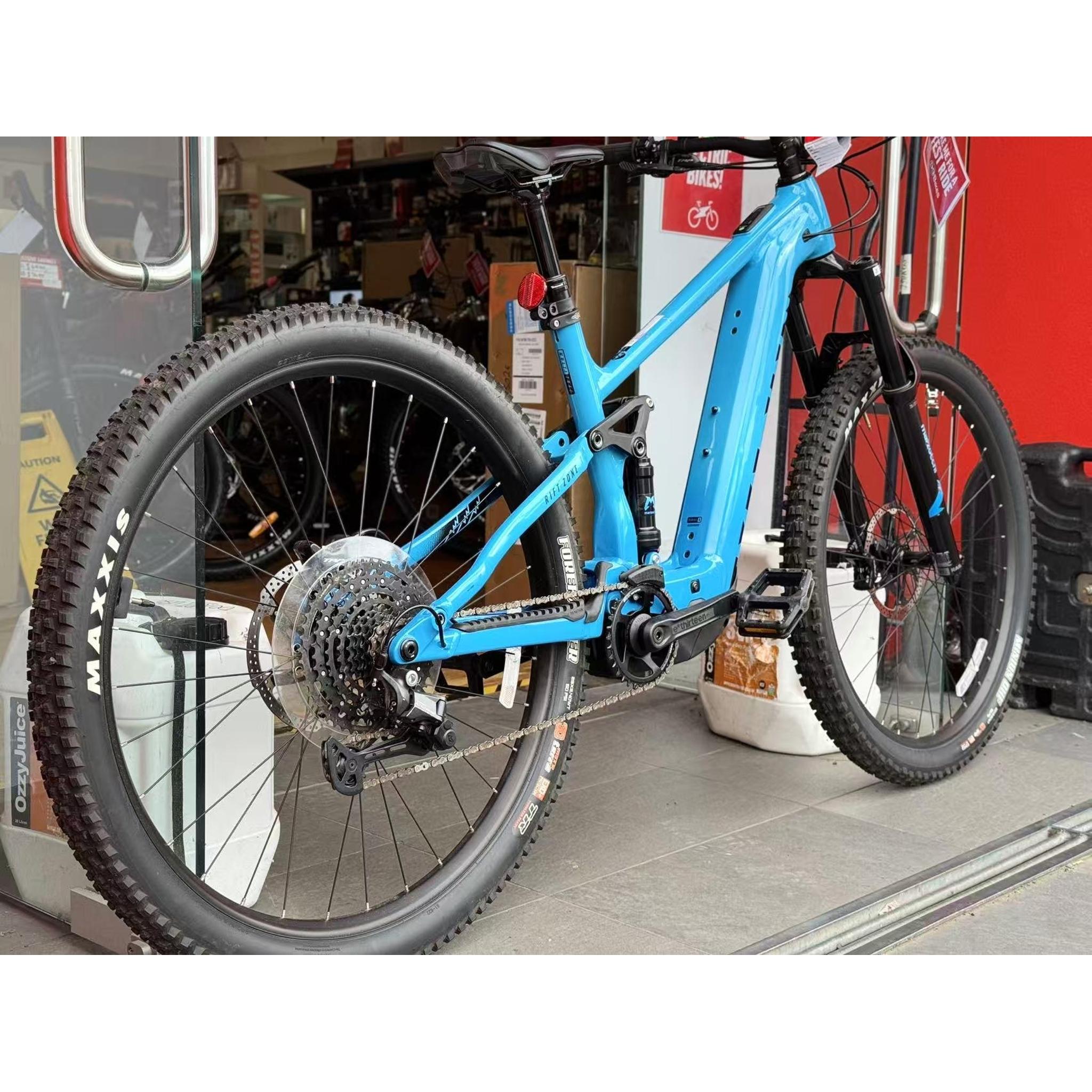

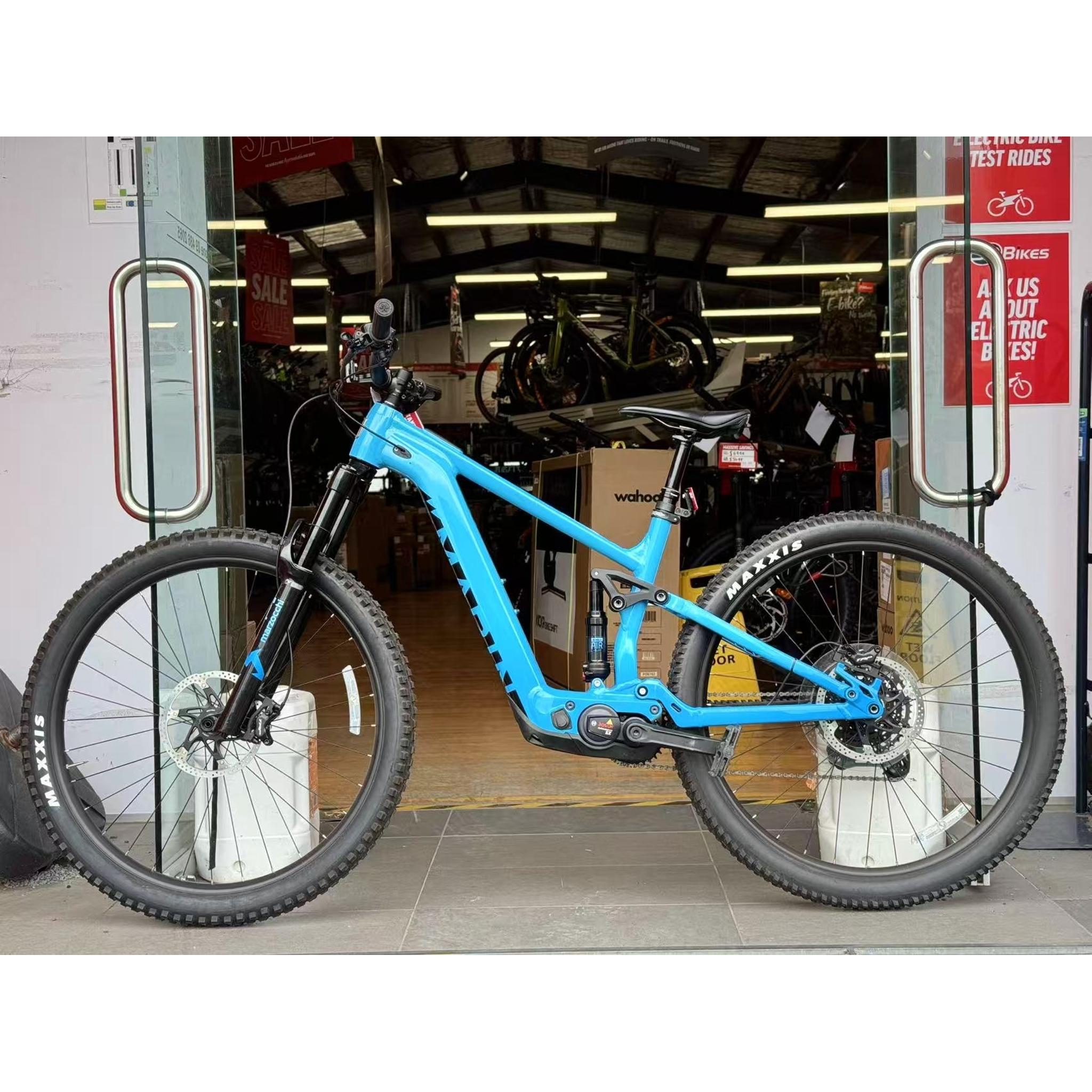

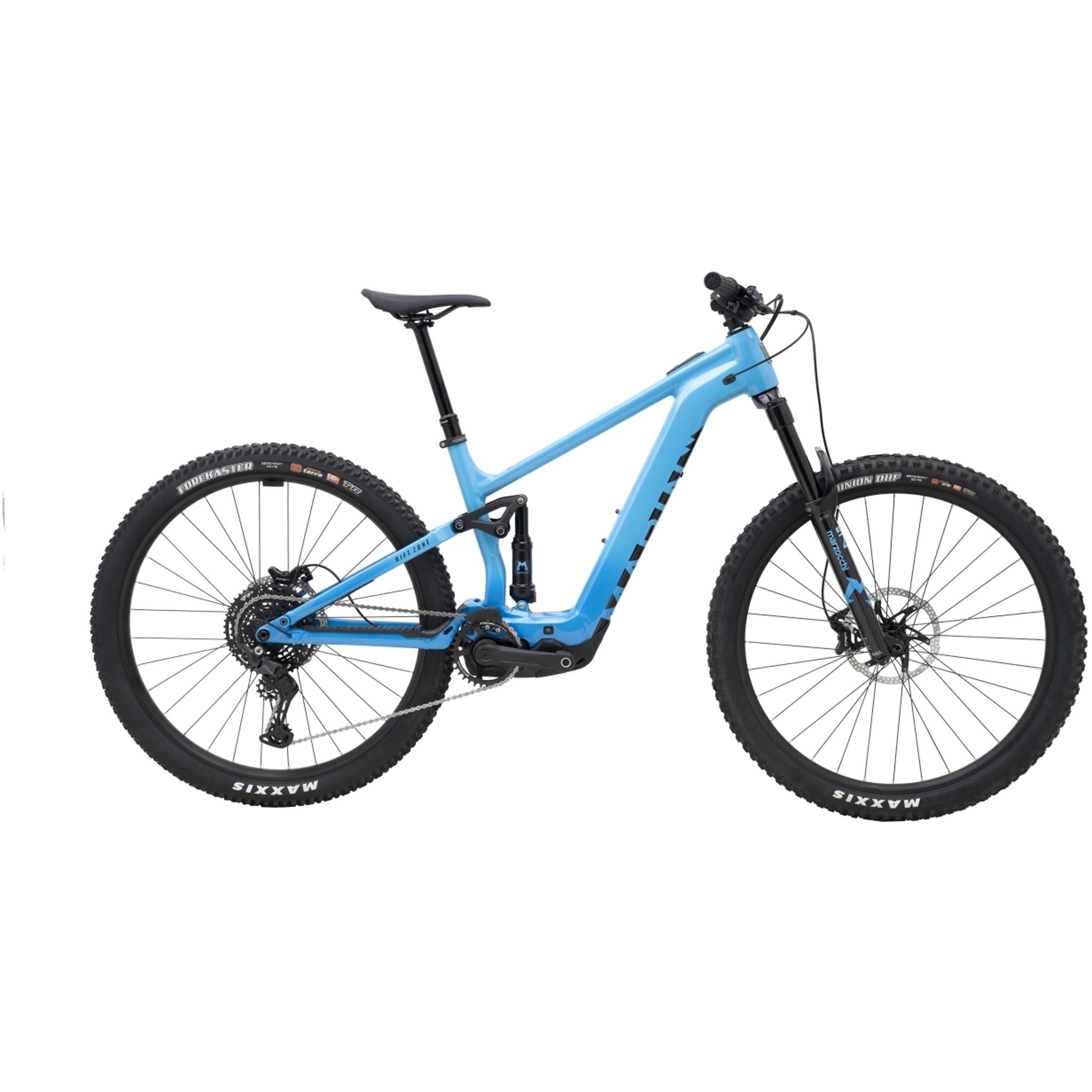

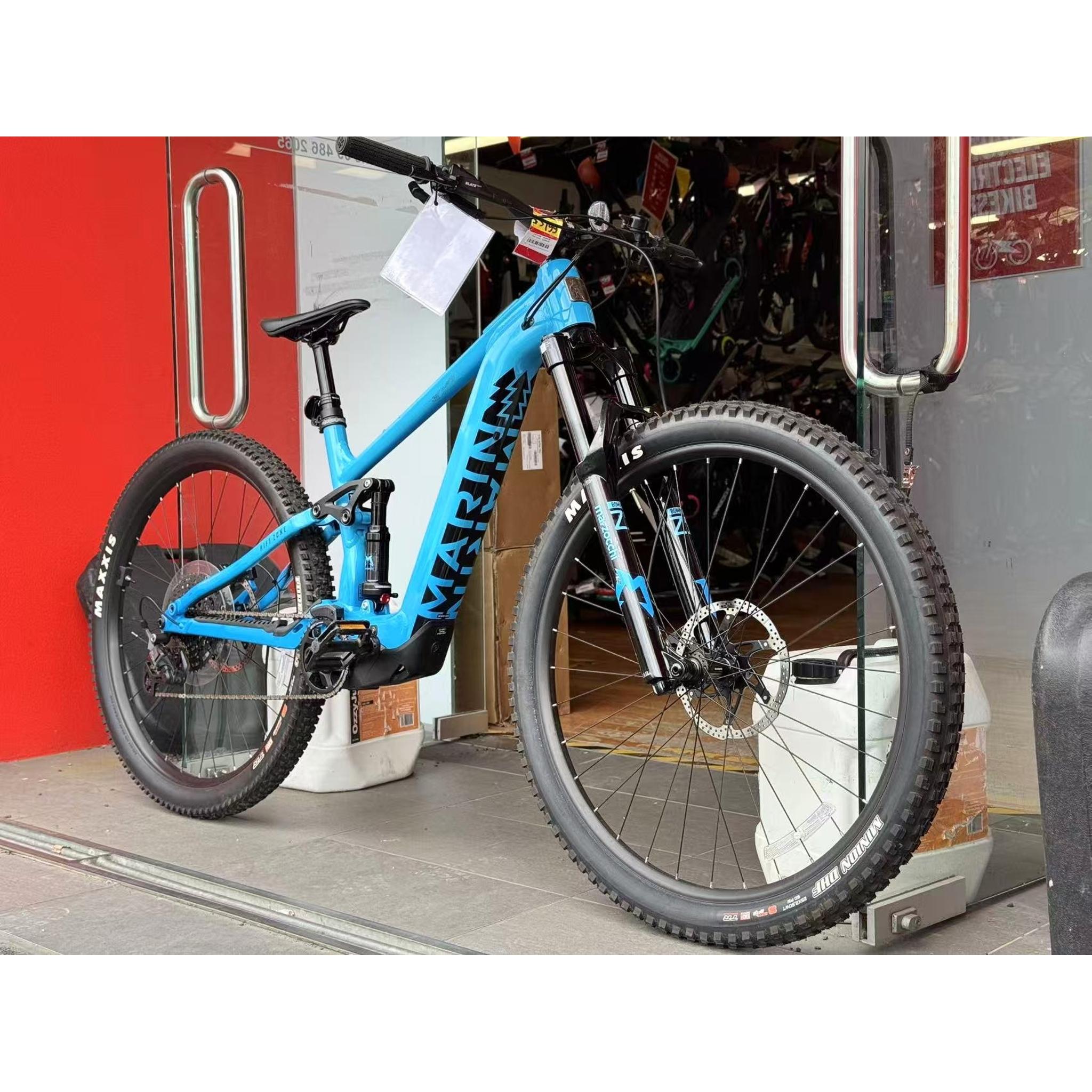

EX-DEMO Marin Rift Zone EL 1 Electric Trail Bike 400Wh Battery Blue/Navy Fade (Medium)

EX-DEMO Marin Rift Zone EL 1 Electric Trail Bike 400Wh Battery Blue/Navy Fade (Medium)

Brand: Merida

SKU: ZOAPWO2M

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Select a size to view stock availability at this location.

Moderately Steep Hills / 55 Nm Torque

Up to 61 km Range

Bosch Performance Line SX Motor

Alloy Frame/ Marzocchi Alloy Fork

140mm Front Travel / 130mm Rear

400Wh Battery

Have a Question? Ask an expert on 0800 000 283

Product Details

Description

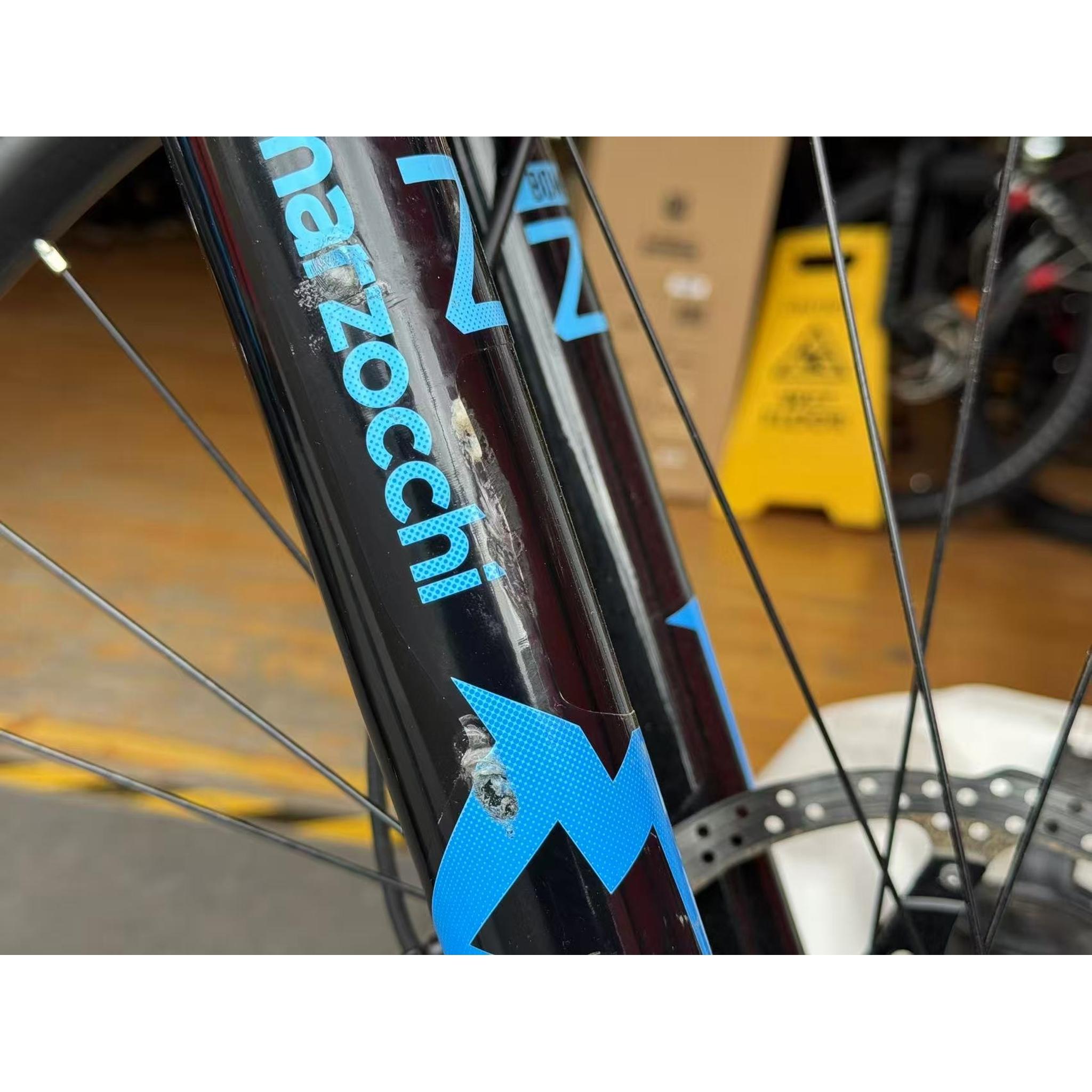

Ex-Demo Condition Report: This is an ex-demo bike. Small scratch on the right fork leg and outer edges of the rear derailleur. Some minor scratches on the frame down tube and top tube. It has 45 kms on odometer at time of listing. All Ex-Demo bikes are subject to the standard manufacturer warranty. The Marin Rift Zone EL 1 Electric Trail Bike combines performance and innovation for an exhilarating ride on challenging trails. Featuring a lightweight alloy frame and advanced suspension, this bike delivers a powerful boost with its Bosch motor, making it ideal for both novice and experienced riders seeking adventure.

Specifications

Product Overview

Product

EX-DEMO Marin Rift Zone EL 1 Electric Trail Bike 400Wh Battery Blue/Navy Fade (Medium)

Brand

Merida

Supplier SKU

FY25EMTBLRA_MAEB24737594002

Year Model

2025

Product Features

Frame Material

Alloy

Colour

Blue

Wheel Size

29"

Brake Type

Hydraulic Disc Brake

Gears

1 x 10

Fork Material

Alloy

Front Travel

140mm

Rear Travel

130mm

Motor and Battery System

Motor Brand

Bosch

Motor

Bosch Performance Line SX, 600W, 55Nm torque

Torque (Nm)

Motor Climbing Ability

Moderately Steep Hills

Battery Size (Watt-Hours)

400

Battery

Bosch 400Wh Internal

Max. Range (KMs)

Display

Bosch BRC3100 Systems Controller / Switch: Bosch BRC3300 Bluetooth Remote 22.2mm Clamp

Build

Frame

All New Series 4 Alloy Lightweight E, 140mm MultiTrac Suspension, Integrated Battery/Charging Port, 148mm Rear Thru-Axle

Fork

Marzocchi Bomber Zl 140mm Travel, 29, 110xl 5 Kabolt Thru Axle, 44mm Offset

Shock

All New Marzocchi Bomber Air Shock

Handlebars

Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5Â° Up, 9Â° Back

Headset

FSA Custom Headset, Adjustable HTA Design

Grips

Marin Grizzly Lock On

Stem

Marin 3D Forged Alloy, 35mm

Pedals

Marin MTB Plastic

Saddle

Marin Speed Concept

Seat Post

TranzX, YSl34 QL, Plastic lx Remote, Size S 150mm Travel, Size Mand L 170mm Travel, Size XL 200mm Travel, 34.9mm

Accessories

e*thirteen e*Spec Chainguide, Bolt-On 12mm Thru-Axle, 17 4mm Length, 1.0 Thread Pitch, 16.5mm, Tapered Head

Wheels

Wheel Size

29"

Rims

Front: 29" Diameter, 32mm Inner Rim Width; Rear: 27.5" Diameter, 32mm Inner Rim Width, Tubeless Compatible

Hubs

FRONT: Shimano HB-TCS00, 110x10 Thru Axle, 32H, Centerlock / REAR: Shimano FHTCS00, 148x12 Thru Axle, Mircospline, 32H, Centerlock

Tyres

Front: Maxxis Minion DHF, 29x2.4" MAXXGRIP, Tubeless ready, EXO+, Rear: Maxxis Forecaster 29x2.4", Tubeless Ready MAXX TERRA EXO+

Groupset

Crankset

e*thirteen e*spec Plus, 160mm Length, 34T

Chain

Shimano LG500

Brakes

TRP Slate EVO, 4-Piston Hydraulic Disc, Resin Pads, 203mm Rotor

Shifters

Shimano CUES SL-U6000-10R,10-Speed

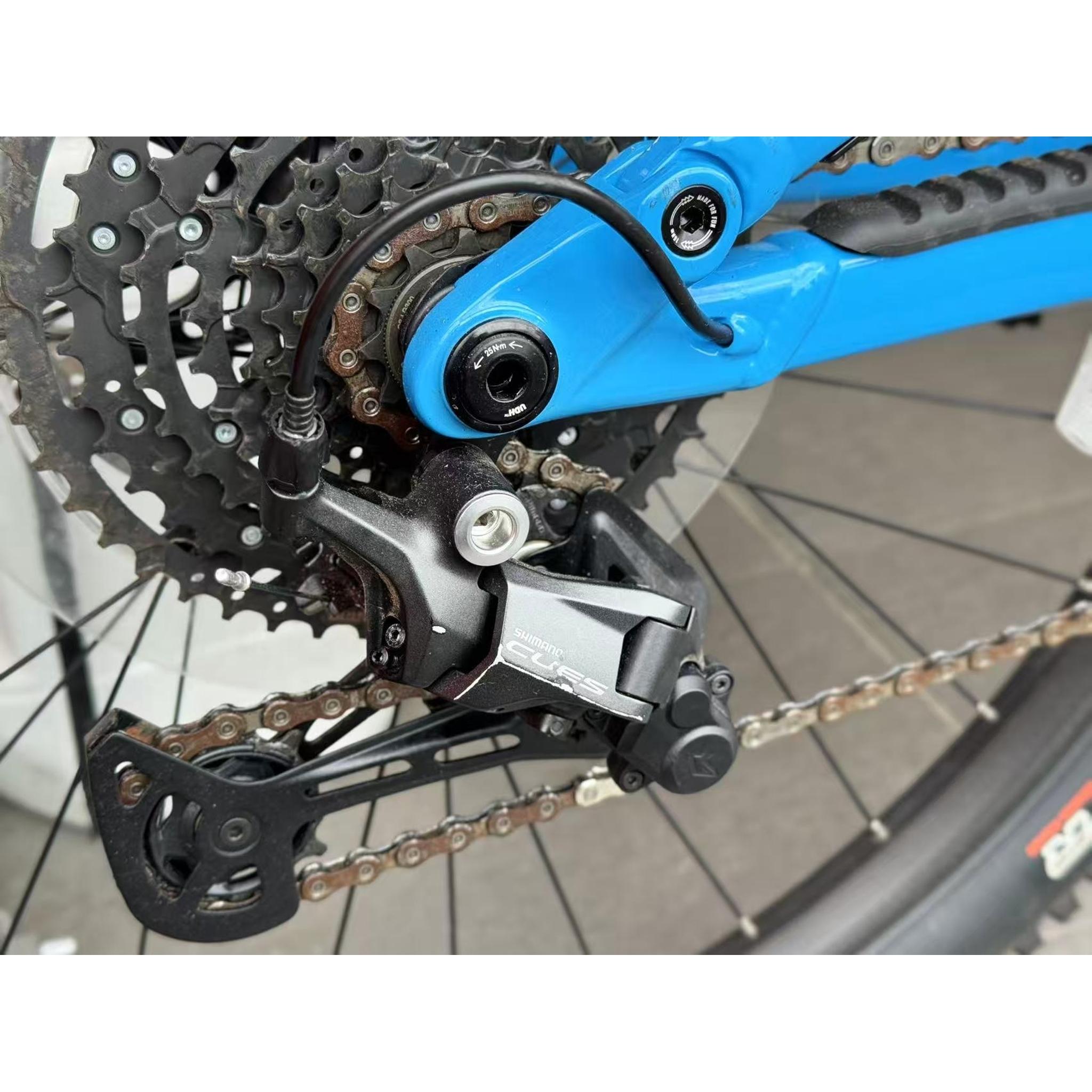

Rear Derailleur

Shimano CUES RD-U6000 GS, 10-Speed

Cassette

10 Speed
