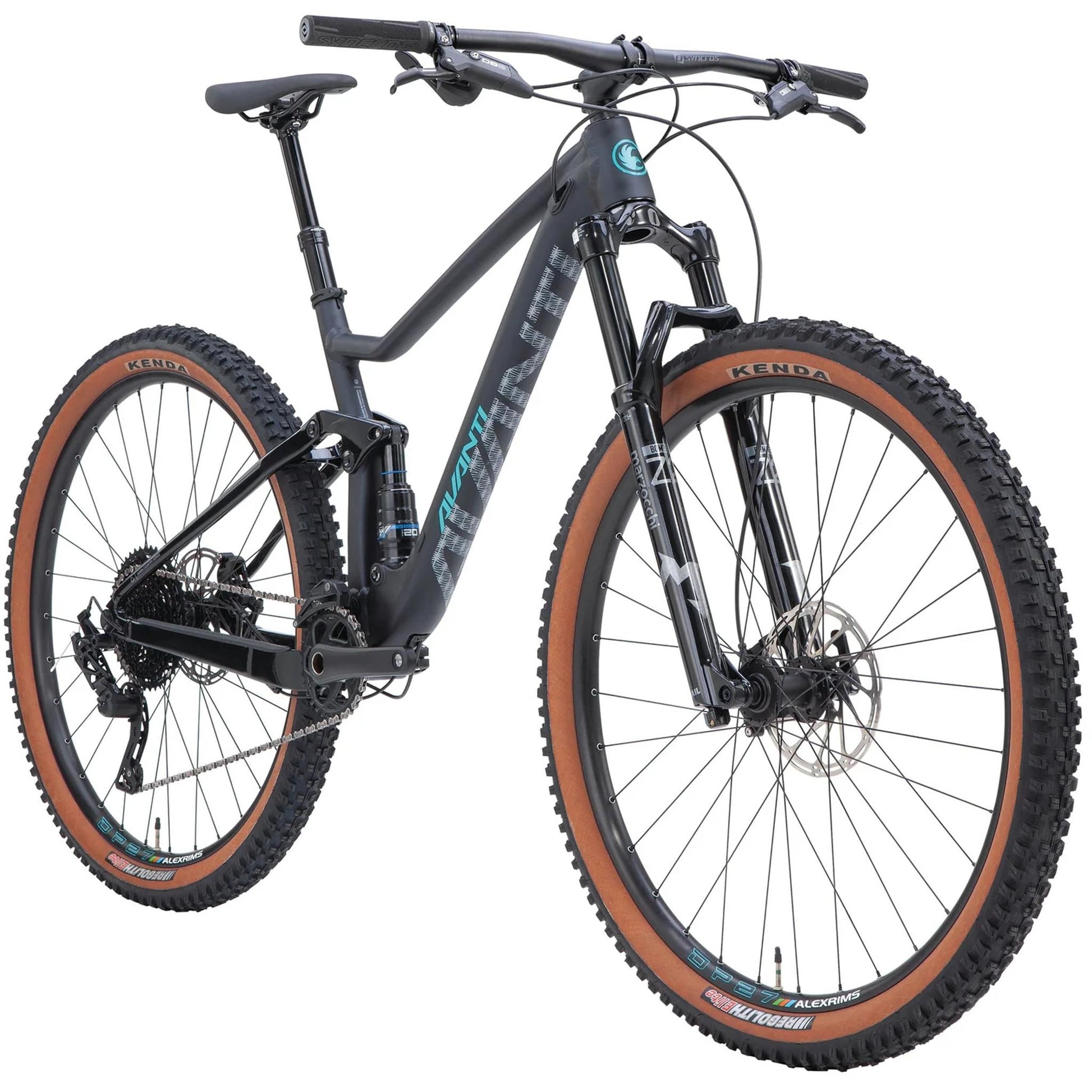

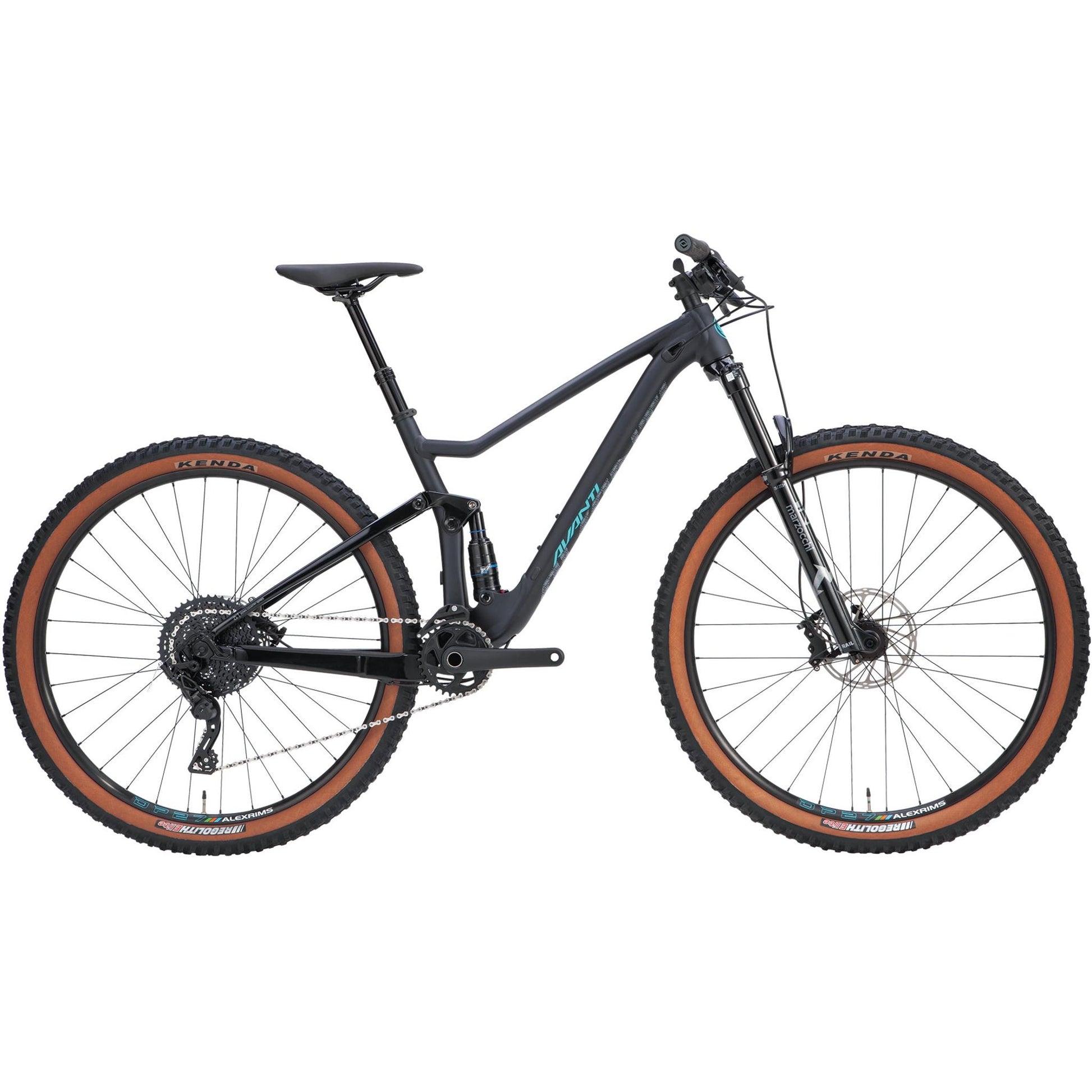

Avanti Hammer S 29" Trail Bike Steel Blue

Avanti Hammer S 29" Trail Bike Steel Blue

Brand: Avanti

SKU: Select a size

Size: Select a size

SM MD LG XL

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

$2,399.00 Full price

$2,399.00

Club price

$3,999.00 Full price

Club Price is automatic when shopping online.
Join club 99 for $5 and unlock benefits for life! Learn more.

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Select a size to view stock availability at this location.

Alloy Frame/ Marzocchi Alloy Fork

130mm Front Travel / 120mm Rear

29" Wheel Size

Hydraulic Disc Brake

MICROshift XCD Groupset

1 x 11 Speed

Have a Question? Ask an expert on 0800 000 283

Product Details

Description

The Avanti Hammer S 29" Trail Bike is built for riders who want confident control and smooth speed across rough terrain. Its Swiss-engineered superlight alloy frame with modern down-country geometry helps you stay stable, while the 130mm fork and 120mm rear travel soak up trail hits for real comfort and traction. Wide tubeless-ready 2.4" tyres grip hard, and SRAM’s responsive 4-piston hydraulic brakes bring you back under control fast, so you can push on with more assurance and fewer worries.

Key Features

Superlight 6061 SL alloy down-country frame
Stable 29 inch trail confidence geometry
130mm front and 120mm rear travel
Tubeless-ready 2.4 inch grippy tyres
Powerful SRAM 4 piston hydraulic braking

Specifications

Product Overview

Product

Avanti Hammer S 29" Trail Bike Steel Blue

Brand

Avanti

Parent SKU

O01UGPH0

Year Model

2026

Product Features

Frame Material

Alloy

Frame Style

Crossbar

Colour

Blue

Wheel Size

29"

Brake Type

Hydraulic Disc Brake

Gears

1 x 11

Fork Material

Alloy

Front Travel

130mm

Rear Travel

120mm

Build

Frame

AL-6061 Ultralight Butted Tubing, 130mm travel, Cartridge Bearing pivots, 1.5" Tapered Headtube, PF92 BB, 12 x 148m

Fork

Marzocchi Z2 Bomber Air w/RAIL Damper, 15x110mm Axle, 1.5" Taper, 130mm Travel

Handlebars

Syncros Alloy 31.8mm, with Low Rise, 9 Degrees Sweep

Headset

Integrated Threadless Syncros OE Pressfit/ Tapered 1.5”-1 1/8”

Grips

Syncros Pro Lock-On

Stem

Syncros Alloy 31.8, 6 Degrees Rise

Bottom Bracket

Pressfit

Pedals

Pedals not included

Saddle

Syncros Belcarra 2.5

Seat Post

Syncros Duncan Dropper 31.6mm with Internal Cable Routing

Wheels

Wheel Size

29"

Rims

Alex DP-27 Double-Wall Alloy with Eyelet 32H, Tubeless Ready

Hubs

F: Formula Boost Sealed Bearing 110×15 32H / R: Formula Boost Sealed Bearing 148×12 32H

Tyres

Kenda Regolith, 29 x 2.4" Folding, 60TPI

Spokes

Stainless Steel

Groupset

Crankset

ProWheel MPX Boost, Forged Alloy Crank, w/32T Narrow/Wide Alloy (Replaceable) Chainring

Chain

KMC X11

Brakes

SRAM DB8 4-Piston Hydraulic, 180mm 6-Bolt Rotors

Shifters

Microshift XCD 11sp Trail Trigger w/Sealed Bearing

Rear Derailleur

Microshift XCD 11sp with Clutch

Cassette

11 Speed

Frequently Asked Questions

What is the Avanti Hammer S Trail Bike used for?

The Avanti Hammer S Trail Bike is used for everyday trail riding, fast descents, and tackling technical terrain with confidence.

Why choose the Avanti Hammer S Trail Bike?

Choose the Avanti Hammer S Trail Bike for its stable down-country geometry, smooth suspension travel, grippy tubeless-ready tyres, and powerful hydraulic brakes.

Who is the Avanti Hammer S Trail Bike designed for?

The Avanti Hammer S Trail Bike is designed for trail riders who want an all-round, confidence-inspiring 29 inch ride that handles rougher lines easily.

Find Your Size

Step 1: Measure your height

Take off your shoes
Stand with your back straight against a wall
Balance a book on your head to mark your height on the wall
Measure your height by the distance from the floor to the mark

Your height:

Find Your Size

Step 2: Adjust your inseam

Based on your height, we’ve calculated a starting point.
You can measure your inseam by tucking a book between your legs so there is pressure but it isn’t uncomfortable.
Inseam typically falls with 5cm of the average.

Your inseam:

Find Your Size

Your results

For the Avanti Hammer S 29" Trail Bike Steel Blue we suggest the following size.

More comfort More speed

Height: --

Inseam: --

Adjusted Height: --

Find Your Size

We have saved your measurements.

Recommended sizes will now be highlighted on the page.

PERFECT RIDE GUARANTEE

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

FREE BIKE BUILD

We'll build your bike for free when you click and collect at any 99 Bikes store.

FIRST FREE TUNE-UP

Every bike comes with a complimentary free tune-up and safety check. Learn more »

Trail-stable down-country handling

Relaxed, stable geometry helps you rail corners and remain composed on descents.

Responsive suspension for rough lines

Front and rear travel work together to absorb impacts and keep traction.

Stopping power when it matters

SRAM 4-piston hydraulics give strong, consistent braking control.

Avanti Hammer S 29" Trail Bike Steel Blue geometry diagram

Legend

ST Seat Tube
STA Seat Tube Angle
R Reach
TT Top Tube
BD Bottom Bracket Drop
S Stack
CS Chain Stay Length
HT Head Tube
WB Wheel Base
HTA Head Tube Angle
FL Fork Length

Wheel Size

29"

Stack

Reach

Top Tube Length

Seat Tube Length

Seat Tube Angle

Fork Length

Head Tube Length

Head Tube Angle

Handlebar Height

Bottom Bracket Drop

Chainstay Length

Wheelbase

Standover Height

Minimum Seat Height

Maximum Seat Height
