$501 Off Full Price

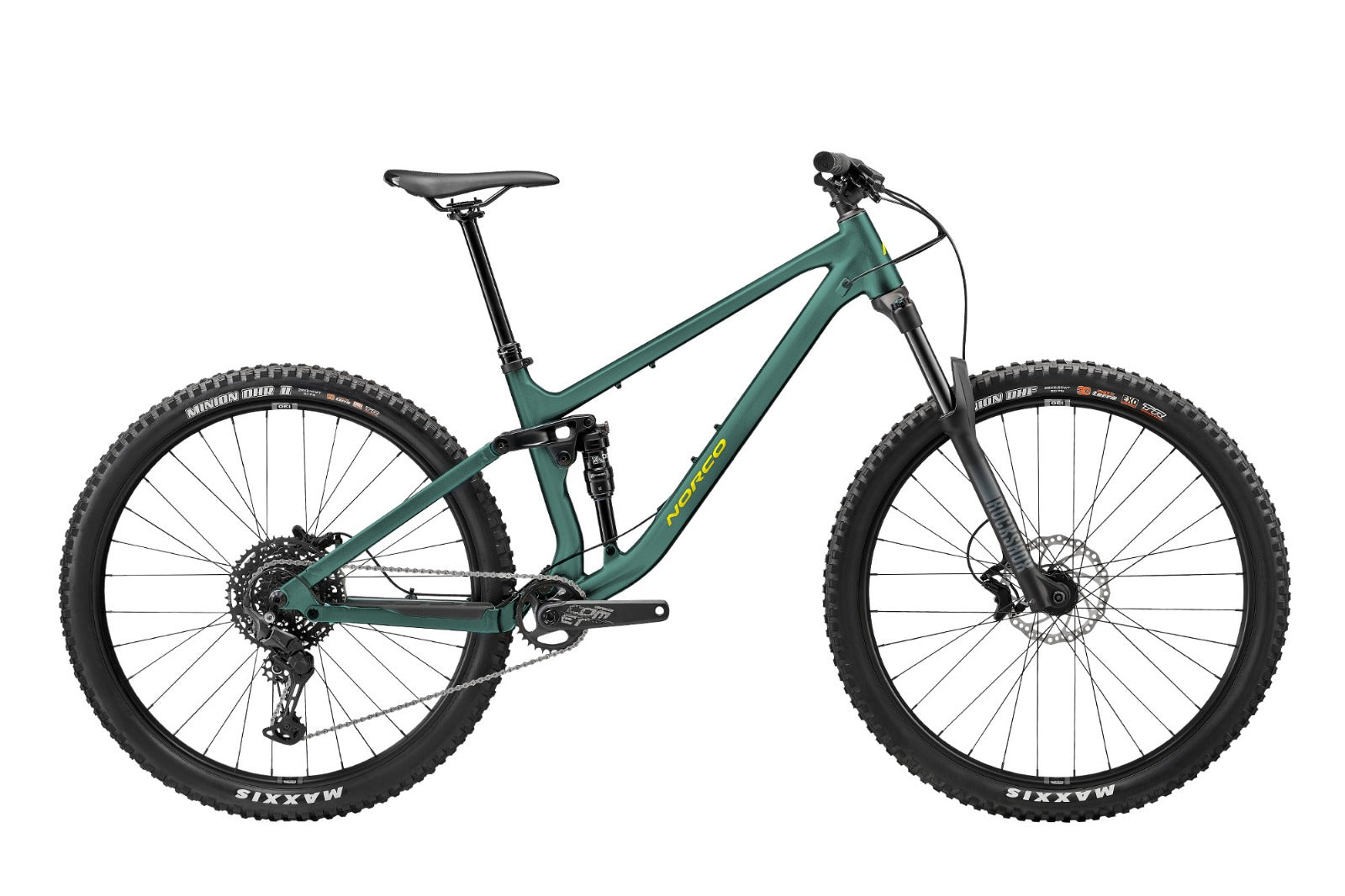

Norco Fluid FS A3 29" Trail Bike Green

Brand: Norco

SKU: Select a size

Size: Select a size

SM MD LG XL

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Select a size to view stock availability at this location.

Alloy Frame/ RockShox Fork

140mm Front Travel / 130mm Rear

Hydraulic Disc Brake

Shimano Cues Groupset

1 x 10 Speed

Have a Question? Ask an expert on 0800 000 283

Product Details

Description

The Norco Fluid FS A3 Trail Bike is built for adventurous riders seeking an all-mountain experience with precision and comfort. Featuring a 6061 aluminum frame with 130mm rear travel and a RockShox Recon RL fork with 140mm of front travel, it ensures smooth, responsive handling over rough trails. The Shimano CUES 10-speed drivetrain offers reliable shifting, while Tektro HD-M535 4-piston brakes provide superior stopping power. With durable WTB rims and Continental Kryptotal tires, the Fluid FS A3 excels in both traction and control.

Key Features

Alloy frame with 130mm rear travel
X-Fusion 02 Pro R AV shock
RockShox Recon RL fork with 140mm front travel
Shimano CUES 10-speed drivetrain
Tektro HD-M535 4-piston brakes for reliable stopping
WTB 29" rims with Continental Kryptotal tires

Specifications

Product Overview

Product

Norco Fluid FS A3 29" Trail Bike Green

Brand

Norco

Parent SKU

2DPQOIL5

Size SKUs

SM: NODT2550415924
MD: NODT2550415925
LG: NODT2550415926
XL: NODT2550415927

Year Model

2025

Product Features

Frame Material

Alloy

Frame Style

Crossbar

Colour

Green

Brake Type

Hydraulic Disc Brake

Gears

1 x 10

Front Travel

140mm

Rear Travel

130mm

Build

Frame

6061 Aluminum Frame, 130mm Travel, UDH, Eagle Transmission Compatible, Ride Aligned

Fork

RockShox Recon RL, 140mm, 44mm offset

Shock

X-Fusion 02 Pro R AV, 210x50mm standard

Handlebars

Norco 6061 DB Alloy, 800mm, 25mm rise

Headset

Sealed Bearing, Tapered 1-1/8" - 1.5", ( ZS44/28.6 | ZS56/40 )

Grips

Propalm Pro, 130mm length

Stem

Norco 6061 Alloy 40mm length, 35mm clamp

Bottom Bracket

Shimano BB-MT501, 73mm BSA

Saddle

Norco Trail

Seat Post

TranzX YSI34 Dropper, 34.9mm, 150mm (S) - 170mm (M) - 200mm (L, XL, XXL)

Wheels

Rims

WTB ST, 32H, F/R-29", 30mm ID

Hubs

F: Formula DC-511, 15x110mm, 32H, 6 bolt | R: Formula DC-3248, 12x148, HG, 32H, 6 bolt

Tyres

F: Continental Kryptotal-F, Trail, Endurance, 29" x 2.4", Folding | R: Continental Xynotal, Trail, Endurance,29" x 2.4", Folding

Spokes

Stainless Steel, 14g

Groupset

Crankset

Shimano Cues FC-U6000, 30T, CL52, 170mm (S), 175mm (M-XXL)

Chain

Shimano LG-500, 10sp

Brakes

Tektro HD-M535, 4 Piston, Resin pads

Front Rotor

TRP TR180, 180mm, 2.3mm Thickness, 6 bolt

Rear Rotor

TRP TR180, 180mm, 2.3mm Thickness, 6 bolt

Shifters

Shimano CUES SL-U6000, 10sp

Rear Derailleur

Shimano CUES SL-U6000, 10sp

Cassette

10 Speed

Frequently Asked Questions

What is the Norco Fluid FS A3 Trail Bike used for?

The Norco Fluid FS A3 29" Trail Bike Green is built for all-mountain trail riding—climbing efficiently, absorbing rough terrain, and descending confidently on technical singletrack.

Why choose the Norco Fluid FS A3 Trail Bike?

Choose the Norco Fluid FS A3 29" Trail Bike Green for its balanced 130mm rear / 140mm front suspension, durable 6061 alloy frame, reliable Shimano CUES drivetrain, and strong four-piston hydraulic brakes that combine to deliver predictable, low-maintenance performance.

Who is the Norco Fluid FS A3 Trail Bike designed for?

The Norco Fluid FS A3 29" Trail Bike Green is aimed at adventurous riders who want a capable, user-friendly trail bike—those who value a mix of comfort, control, and reliable components for all-day rides.

Find Your Size

Step 1: Measure your height

Take off your shoes
Stand with your back straight against a wall
Balance a book on your head to mark your height on the wall
Measure your height by the distance from the floor to the mark

Your height:

Find Your Size

Step 2: Adjust your inseam

Based on your height, we’ve calculated a starting point.
You can measure your inseam by tucking a book between your legs so there is pressure but it isn’t uncomfortable.
Inseam typically falls with 5cm of the average.

Your inseam:

Find Your Size

Your results

For the Norco Fluid FS A3 29" Trail Bike Green we suggest the following size.

More comfort More speed

Height: --

Inseam: --

Adjusted Height: --

Find Your Size

We have saved your measurements.

Recommended sizes will now be highlighted on the page.

PERFECT RIDE GUARANTEE

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

FREE BIKE BUILD

We'll build your bike for free when you click and collect at any 99 Bikes store.

FIRST FREE TUNE-UP

Every bike comes with a complimentary free tune-up and safety check. Learn more »

Balanced 130/140mm Suspension

A tuned 6061 alloy frame with 130mm rear travel and a 140mm RockShox Recon RL fork delivers composed, confidence-inspiring handling on rough climbs and fast descents. It soaks chatter while keeping pedaling efficient for long trail days.

Reliable, Smooth Drivetrain

The Shimano CUES 10-speed groupset provides consistent, predictable shifts across varied terrain. Paired with a single-chainring setup, it keeps weight and maintenance low while offering a wide gear range.

Confident Braking & Traction

Tektro HD-M535 4-piston hydraulic brakes give powerful, modulated stopping power when you need it most. WTB rims and Continental Kryptotal/Xynotal 29"x2.4" tires deliver durable grip and stable cornering on mixed trails.

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

Your selected size: -

Legend

Available size

Current size

Unavailable size

Suggested sizing

Norco Fluid FS A3 29" Trail Bike Green geometry diagram

Legend

ST Seat Tube
STA Seat Tube Angle
R Reach
TT Top Tube
BD Bottom Bracket Drop
S Stack
CS Chain Stay Length
HT Head Tube
WB Wheel Base
HTA Head Tube Angle
FL Fork Length

Stack

617

626

635

644

Reach

420

450

480

510

Top Tube Length

574

602

630

659

Seat Tube Length

360

390

410

460

Seat Tube Angle

76.0

76.3

76.7

77.0

Fork Length

Head Tube Length

110

120

130

140

Head Tube Angle

110.0

120.0

130.0

140.0

Handlebar Height

Bottom Bracket Drop

Chainstay Length

Wheelbase

Standover Height

678

690

699

736

Minimum Seat Height

Maximum Seat Height
