$801 Off Full Price Clearance

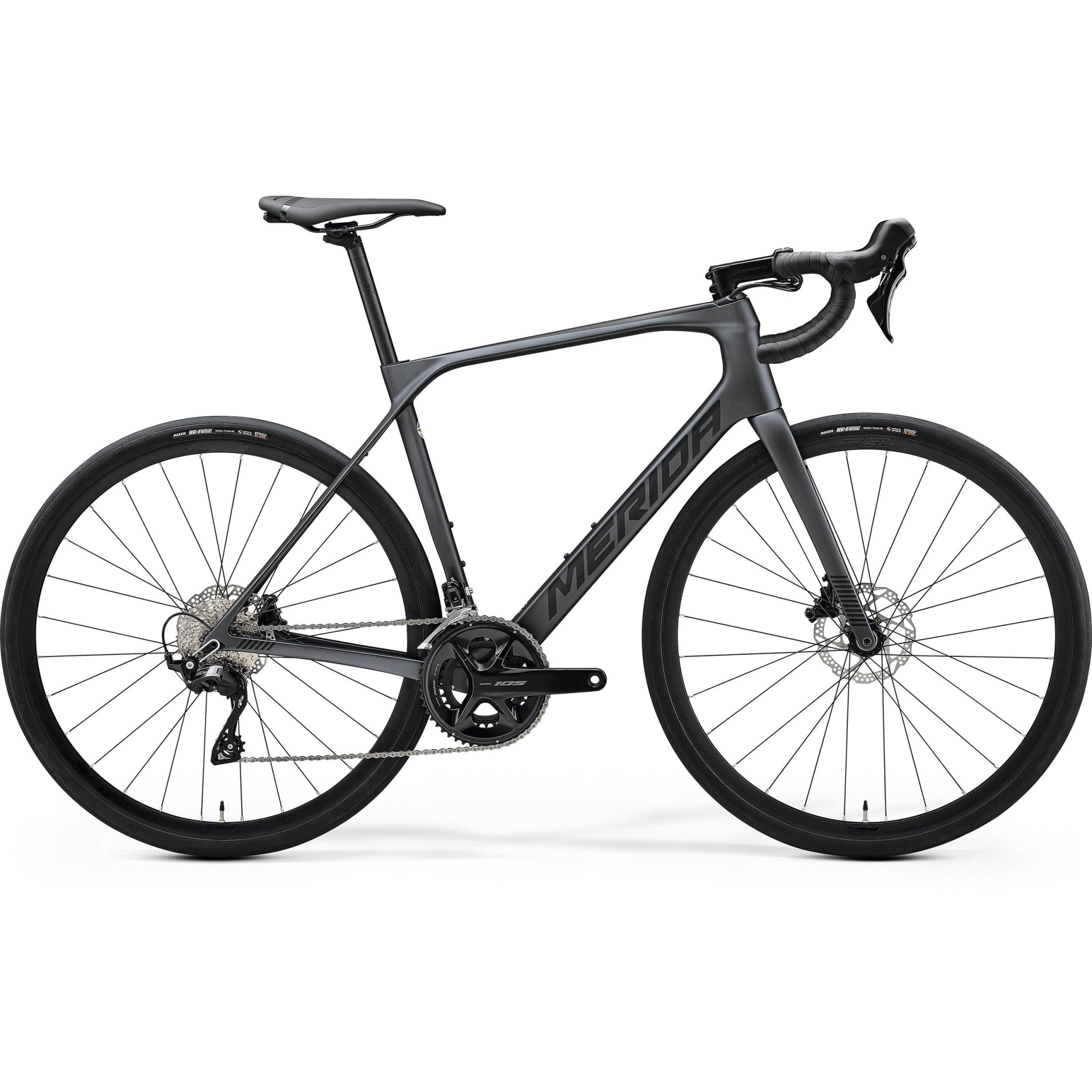

Merida Scultura Endurance 4000 Road Bike Silk Dark Silver

Brand: Merida

SKU: Select a size

Size: Select a size

SM MD LG

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Select a size to view stock availability at this location.

Carbon Frame/ Merida Carbon Fork

700c Wheel Size

Hydraulic Disc Brake

Shimano 105 Groupset

2 x 12 Speed

Have a Question? Ask an expert on 0800 000 283

Product Details

Description

The Scultura Endurance is the perfect choice for more leisure-focused cyclists who want to enjoy long hours in the saddle while being comfortable and relaxed on the bike. Wide tyres offer plenty of comfort, even on the most pothole-littered country lanes, while a longer head tube provides a more relaxed riding position. An instant hit with the international cycling press and besides being given a 'comfort' award by RennRad, it also managed to get a long list of compliments like 'excellent comfort', ‘confidence inspiring', 'lively feel' and 'enjoyable' by reference cycling media such as Gran Fondo, Cyclingnews, Cyclingtips and Road.cc.

The Scultura Endurance 4000 is far from being a conventional entry-level carbon bike. Featuring the same test and award-winning CF3 carbon frame as its 'bigger brothers', it comes equipped with the latest Shimano 105 12-speed groupset and matching hydraulic disc brakes that offers accurate shifting and pinpoint braking. The well-proven Wire Port cable management system is Di2 ready and keeps the cockpit free of cables and helps to give the bike a super sleek overall appearance. Packed with premium proprietary Merida components and rolling on legendarily durable Maxxis RE-FUSE tyres, the Scultura Endurance 4000 strikes the perfect balance between affordability and top-end technology in a sleek carbon fame.

Key Features

Lightweight aluminum frame for agility
Endurance geometry for comfort on long rides
Shimano 105 groupset for reliable shifting
Disc brakes for superior stopping power
Sleek Silk Dark Silver finish

Specifications

Product Overview

Product

Merida Scultura Endurance 4000 Road Bike Silk Dark Silver

Brand

Merida

Parent SKU

M8ZCYXC6

Size SKUs

SM: MERC2500622
MD: MERC2500623
LG: MERC2500624

Year Model

2025

Product Features

Frame Material

Carbon

Colour

Silver

Wheel Size

700c

Brake Type

Hydraulic Disc Brake

Gears

2 x 12

Fork Material

Carbon

Build

Frame

SCULTURA ENDURANCE CF3; MAT carbon; 700x35C max./ 700x32C (with fender) max. WHS; 100x12/ 142x12 AST; BB86 BBR

Fork

SCULTURA ENDURANCE CF3 DISC; MAT carbon; 700x35C max. WHS

Handlebars

MERIDA EXPERT SLII; MAT aluminium; 380mm (XXS-XS-S), 400mm (M-L), 420mm (XL)

Headset

MERIDA TEAM SL (SE-301 neck)

Grips

MERIDA ROAD Expert

Stem

EXPERT SL 2PII; MAT aluminium; -9 ASD 90 mm-XXS/XS/S, 100 mm-M, 110 mm-L/XL

Bottom Bracket

SM-BB71-41B, Pressfit 86.5

Saddle

MERIDA COMP SL; 25% recycled material; V-mount

Seat Post

MERIDA EXPERT CC; 27.2 DSP; 15 SSB; Carbon

Seat Clamp

MERIDA EXPERT

Wheels

Wheel Size

700c

Rims

MERIDA EXPERT SLII; 23 IWR; 25 HRI; MAT aluminium; Tubeless ready (tubeless tape and valves not included)

Hubs

FRONT: Shimano HB-TC500; 100x12 WHF; 28 SPH; Centerlock / REAR: Shimano FH-TC500-HL; 12-142 WHR; 28 SPH; Centerlock

Spokes

Double Butted Black stainless

Groupset

Crankset

Shimano 105; FCR7100, 50-34 ATC 165 mm-XXS, 170 mm-XS, 172.5 mm-S/M/L, 175 mm-XL

Chain

Shimano CN-M6100-12

Brakes

Shimano 105; Hydraulic disc

Front Rotor

Shimano RT54; 160mm

Rear Rotor

Shimano RT54; 160mm

Shifters

Shimano 105 disc

Rear Derailleur

Shimano 105; GS

Cassette

12 Speed

Find Your Size

Step 1: Measure your height

Take off your shoes
Stand with your back straight against a wall
Balance a book on your head to mark your height on the wall
Measure your height by the distance from the floor to the mark

Your height:

Find Your Size

Step 2: Adjust your inseam

Based on your height, we’ve calculated a starting point.
You can measure your inseam by tucking a book between your legs so there is pressure but it isn’t uncomfortable.
Inseam typically falls with 5cm of the average.

Your inseam:

Find Your Size

Your results

For the Merida Scultura Endurance 4000 Road Bike Silk Dark Silver we suggest the following size.

More comfort More speed

Height: --

Inseam: --

Adjusted Height: --

Find Your Size

We have saved your measurements.

Recommended sizes will now be highlighted on the page.

PERFECT RIDE GUARANTEE

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

FREE BIKE BUILD

We'll build your bike for free when you click and collect at any 99 Bikes store.

FIRST FREE TUNE-UP

Every bike comes with a complimentary free tune-up and safety check. Learn more »

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

Your selected size: -

Legend

Available size

Current size

Unavailable size

Suggested sizing

Merida Scultura Endurance 4000 Road Bike Silk Dark Silver geometry diagram

Legend

ST Seat Tube
STA Seat Tube Angle
R Reach
TT Top Tube
BD Bottom Bracket Drop
S Stack
CS Chain Stay Length
HT Head Tube
WB Wheel Base
HTA Head Tube Angle
FL Fork Length

Wheel Size

700c

Stack

565

584

603

Reach

376

380

389

Top Tube Length

538

553

568

Seat Tube Length

490

510

530

Seat Tube Angle

74.0

73.5

Fork Length

380

Head Tube Length

161

177

197

Head Tube Angle

161.0

177.0

197.0

Handlebar Height

Bottom Bracket Drop

Chainstay Length

Wheelbase

Standover Height

785

803

823

Minimum Seat Height

Maximum Seat Height
