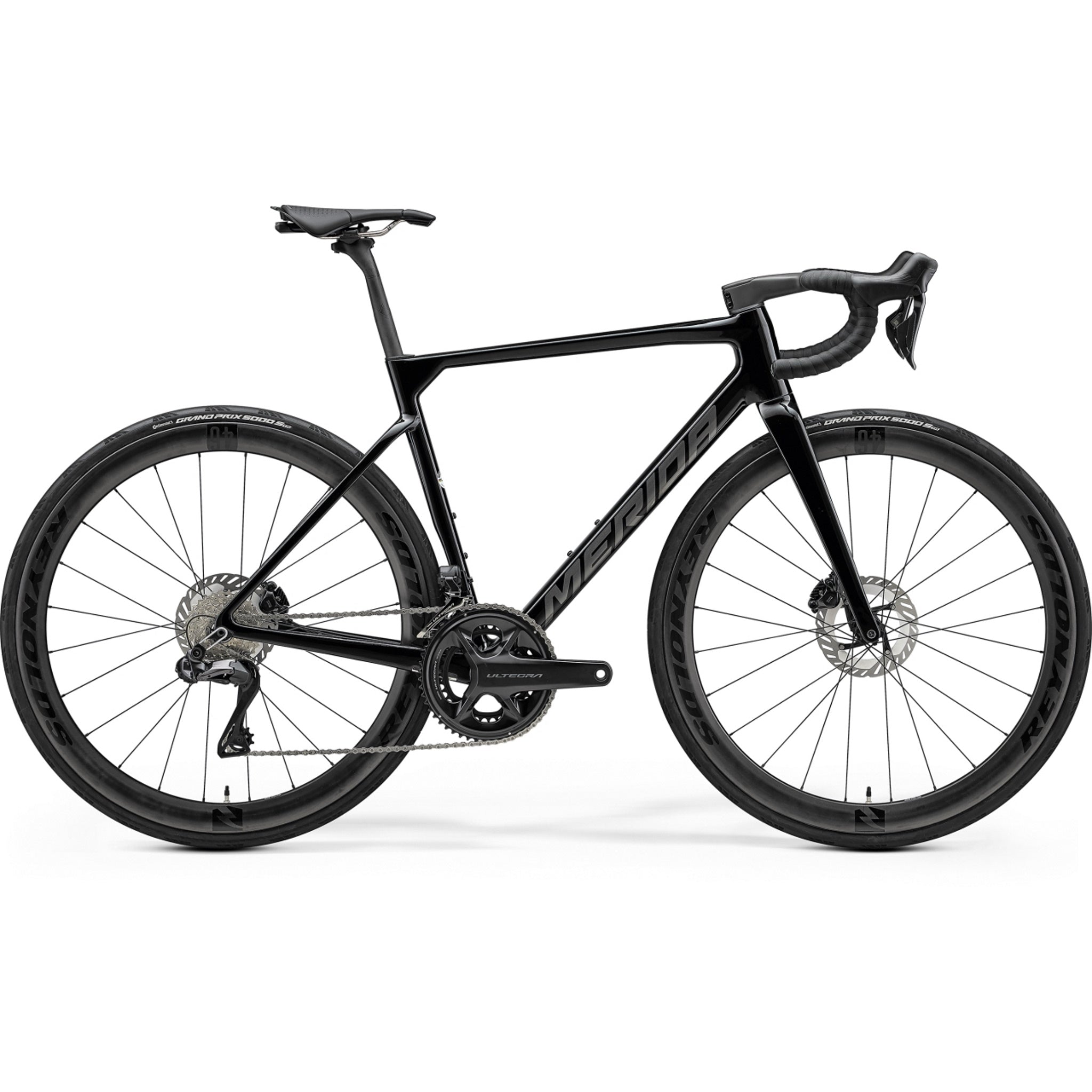

Merida Scultura 8000 Road Race Bike Black

Brand: Merida

SKU: Select a size

Size: Select a size

XS SM MD LG XL

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Select a size to view stock availability at this location.

Carbon Frame/ Merida Carbon Fork

Rigid Front Travel

700c Wheel Size

Hydraulic Disc Brake

Shimano Ultegra Di2 Groupset

2 x 12 Speed

Have a Question? Ask an expert on 0800 000 283

Product Details

Description

Thanks to incorporating selected aero details from Merida’s test and award-winning Reacto aero bike, the Scultura is the most aerodynamic version ever. Yet, it remains true to its lightweight, agility and rider comfort focus; in fact it takes these factors to the next level. The Scultura demonstrates outstanding compliance, providing the rider with class-leading riding comfort that will help to keep the body fresh for the final sprint or ascent. This classic road bike combines outstanding comfort with whippet-like acceleration and class-leading climbing pedigree.

The Scultura 8000 combines impressive climbing performance, razor-sharp handling, aerodynamic efficiency and class-leading compliance. Featuring the same race-proven geometry as Merida’s aero specialist, the Reacto, but equipped with a lightweight, comfort-focused CF3 frame. Packed with class leading technology such as the X-taper headtube which significantly boost precision, Merida’s S-Flex carbon seat post and internal seatpost clamp, or the smart wire port cable housing which semi-integrates cables through the headset for a clean uncluttered look as well as a more aerodynamic frame structure. The Scultura 8000 is decked out with a fantastic spec package including Shimano’s Ultegra Di2 2 x 12 speed electric drivetrain for precision shifting performance, matching Shimano Ultegra hydraulic disc brakes for all conditions braking performance and Reynolds AR 46 DB wheelset fitted with 28mm Continental Grand Prix 5000S tubeless ready tyres. Pairing high end components with a newly designed high tech frame, gives the Scultura 8000 the edge over the competition.

Key Features

Lightweight carbon frame construction
High-performance Shimano Ultegra groupset
Aerodynamic design for speed
Disc brakes for superior stopping power
Internal cable routing for clean aesthetics

Specifications

Product Overview

Product

Merida Scultura 8000 Road Race Bike Black

Brand

Merida

Parent SKU

6AAAY31G

Size SKUs

XS: MERR2500504
SM: MERR2500505
MD: MERR2500506
LG: MERR2500507
XL: MERR2500508

Year Model

2025

Product Features

Frame Material

Carbon

Colour

Black

Wheel Size

700c

Brake Type

Hydraulic Disc Brake

Gears

2 x 12

Fork Material

Carbon

Weight

7.6 kg weighed at frame size M / Weight Limit: 120 kg Total weight of bike, rider and luggage

Build

Frame

SCULTURA CF3 V; MAT carbon; 700x30C max. WHS; 100x12/ 142x12 AST; Pressfit 86,5

Fork

SCULTURA CF3 disc; MAT carbon; 700x30C max. WHS

Handlebars

TEAM SL 1P INTEGRATED; MAT carbon; 380mm (3S-XXS-XS-S), 400mm (M-L-XL)

Headset

MERIDA TEAM SL (OP-203 neck)

Grips

MERIDA ROAD Expert

Stem

TEAM ONE-PIECE INTEGRATED; MAT carbon 90mm-3S/XXS/XS, 100 mm-S, 110 mm-M/L, 120 mm-XL

Bottom Bracket

SM-BB72-41B, Pressfit 86.5

Saddle

SCRATCH M5; V-mount adapter; incl. MERIDA minitool

Seat Post

MERIDA TEAM SL; 27.2 DSP; 15 SSB; Carbon; S-Flex

Seat Clamp

MERIDA EXPERT

Wheels

Wheel Size

700c

Rims

Reynolds AR 46 DB, 100x12 WHF; 142x12 WHR; 21 IWR; 41 HRI; Centerlock; MAT carbon; Tubeless ready (tubeless tape and valves included)

Groupset

Crankset

Shimano Ultegra; 52-36 ATC 165 mm-3S/XXS, 170 mm-XS, 172.5 mm-S/M/L, 175 mm-XL

Chain

Shimano CN-M6100-12

Brakes

Shimano Ultegra; Hydraulic disc

Front Rotor

Shimano CL800; 160mm

Rear Rotor

Shimano CL800; 160mm

Shifters

Shimano Ultegra disc Di2

Rear Derailleur

Shimano Ultegra Di2; RD-R8150

Cassette

12 Speed

Find Your Size

Step 1: Measure your height

Take off your shoes
Stand with your back straight against a wall
Balance a book on your head to mark your height on the wall
Measure your height by the distance from the floor to the mark

Your height:

Find Your Size

Step 2: Adjust your inseam

Based on your height, we’ve calculated a starting point.
You can measure your inseam by tucking a book between your legs so there is pressure but it isn’t uncomfortable.
Inseam typically falls with 5cm of the average.

Your inseam:

Find Your Size

Your results

For the Merida Scultura 8000 Road Race Bike Black we suggest the following size.

More comfort More speed

Height: --

Inseam: --

Adjusted Height: --

Find Your Size

We have saved your measurements.

Recommended sizes will now be highlighted on the page.

PERFECT RIDE GUARANTEE

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

FREE BIKE BUILD

We'll build your bike for free when you click and collect at any 99 Bikes store.

FIRST FREE TUNE-UP

Every bike comes with a complimentary free tune-up and safety check. Learn more »

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

Your selected size: -

Legend

Available size

Current size

Unavailable size

Suggested sizing

Merida Scultura 8000 Road Race Bike Black geometry diagram

Legend

ST Seat Tube
STA Seat Tube Angle
R Reach
TT Top Tube
BD Bottom Bracket Drop
S Stack
CS Chain Stay Length
HT Head Tube
WB Wheel Base
HTA Head Tube Angle
FL Fork Length

Wheel Size

700c

Stack

529

542

557

571

593

Reach

383

390

395

400

409

Top Tube Length

535

545

560

575

590

Seat Tube Length

458

481

501

521

550

Seat Tube Angle

74.0

73.5

73.0

Fork Length

385

Head Tube Length

112

128

140

155

176

Head Tube Angle

112.0

128.0

140.0

155.0

176.0

Handlebar Height

Bottom Bracket Drop

Chainstay Length

Wheelbase

Standover Height

745

765

782

800

823

Minimum Seat Height

Maximum Seat Height
