$1106 Off Full Price Clearance

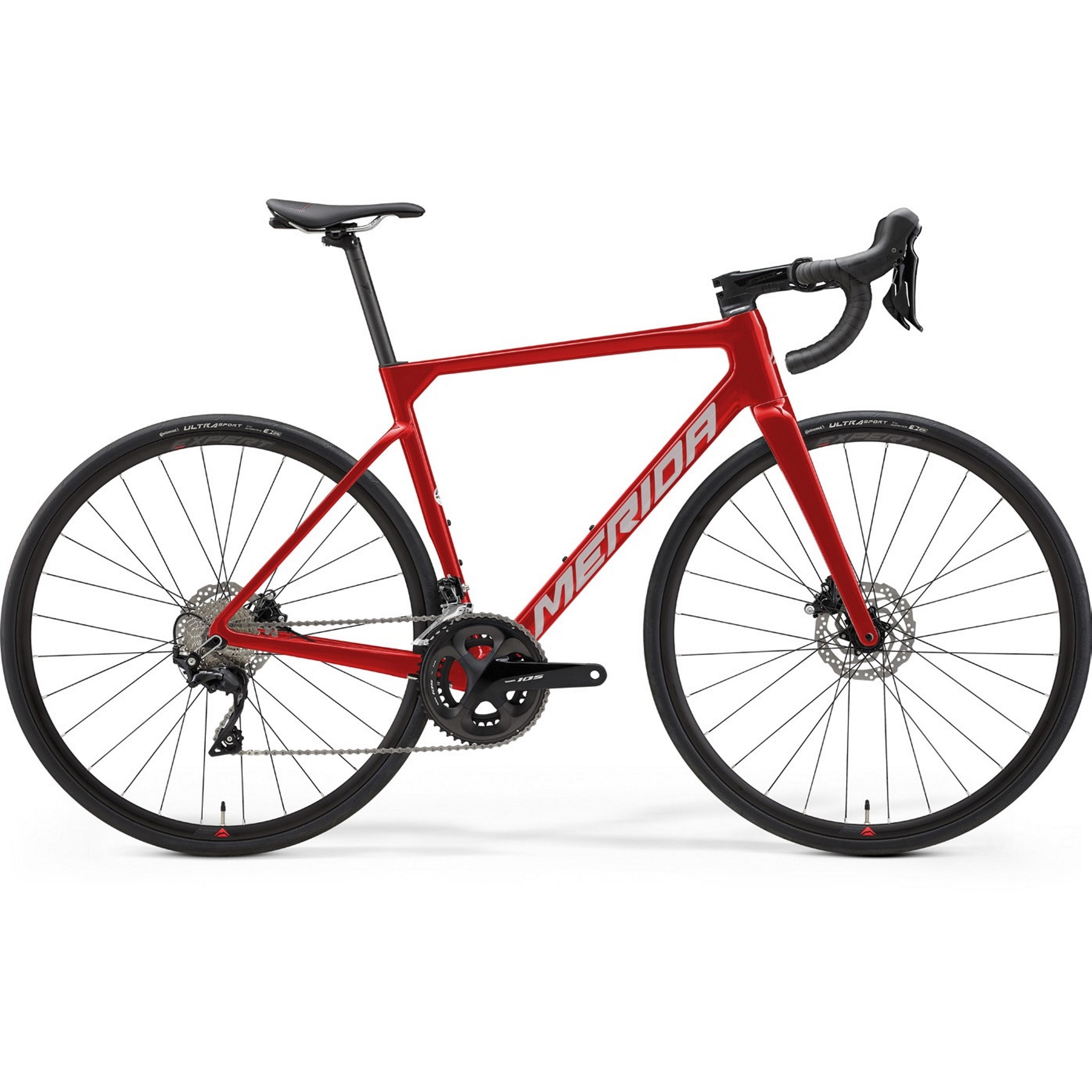

Merida Scultura 4000 Road Race Bike Heritage Red

Brand: Merida

SKU: Select a size

Size: Select a size

XS SM MD LG XL

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Select a size to view stock availability at this location.

Carbon Frame/ Merida Carbon Fork

Rigid Front Travel

700c Wheel Size

Hydraulic Disc Brake

Shimano 105 Groupset

2 x 12 Speed

Have a Question? Ask an expert on 0800 000 283

Product Details

Description

Thanks to incorporating selected aero details from Merida’s test and award-winning Reacto aero bike, the Scultura is the most aerodynamic version ever. Yet, it remains true to its lightweight, agility and rider comfort focus; in fact it takes these factors to the next level. The Scultura demonstrates outstanding compliance, providing the rider with class-leading riding comfort that will help to keep the body fresh for the final sprint or ascent. This classic road bike combines outstanding comfort with whippet-like acceleration and class-leading climbing pedigree.

The Scultura 4000 features the same race-proven geometry as Merida’s aero specialist, the Reacto, in a lightweight, comfort-focused CF3 full carbon frame and fork. Packed with class leading technology such as the X-taper headtube which significantly boost precision, the Di2 ready internal cable routing and the smart wire port cable housing which semi-integrates cables through the headset for a clean uncluttered look as well as a more aerodynamic frame structure. Equipped with the latest, super smooth Shimano 2 x 12-speed 105 groupset and matching hydraulic disc brakes. Rolling on durable Merida Expert CC rims with Shimano hubs and Continental Ultra Sport III 700 x 28c tyres for a perfect balance of fast rolling race speed and durability. With low weight and class-leading riding comfort the Scultura 4000 is the complete package.

Key Features

Lightweight carbon frame for agility
Carbon fork for improved handling
Shimano 105 groupset for reliable shifting
Disc brakes for enhanced stopping power
Sleek Heritage Red finish for style

Specifications

Product Overview

Product

Merida Scultura 4000 Road Race Bike Heritage Red

Brand

Merida

Parent SKU

GS7FU088

Size SKUs

XS: MERR2500567
SM: MERR2500568
MD: MERR2500569
LG: MERR2500570
XL: MERR2500571

Year Model

2025

Product Features

Frame Material

Carbon

Colour

Red

Wheel Size

700c

Brake Type

Hydraulic Disc Brake

Gears

2 x 12

Fork Material

Carbon

Weight

FRAME: approx. 997 g - in size M

Build

Frame

SCULTURA CF3 V; MAT carbon; 700x30C max. WHS; 100x12/ 142x12 AST; Pressfit 86,5

Fork

SCULTURA CF3 disc; MAT carbon; 700x30C max. WHS

Handlebars

MERIDA EXPERT SLII; MAT aluminium; 380mm(3S-XXS-XS-S) , 400mm (M-L-XL)

Headset

MERIDA TEAM SL (OP-203 neck)

Grips

MERIDA ROAD Expert

Stem

EXPERT SL 2PII; MAT aluminium; -9 ASD 90mm-3S/XXS/XS, 100 mm-S, 110 mm-M/L, 120 mm-XL

Bottom Bracket

SM-BB71-41B, Pressfit 86.5

Saddle

MERIDA EXPERT SL; 6% recycled and 23% nature material; V-mount; incl. MERIDA minitool

Seat Post

MERIDA EXPERT CC; 27.2 DSP; 15 SSB; Carbon

Seat Clamp

MERIDA EXPERT

Wheels

Wheel Size

700c

Rims

MERIDA EXPERT SL; 17 IWR; 22 HRI; MAT aluminium

Hubs

FRONT: Shimano HB-TC500; 100x12 WHF; 28 SPH; Centerlock / REAR: Shimano FH-TC500-HL; 12-142 WHR; 28 SPH; Centerlock

Spokes

Double Butted Black stainless

Groupset

Crankset

Shimano 105; FCR7100, 52-36 ATC 165 mm-3S/XXS, 170 mm-XS, 172.5 mm-S/M/L, 175 mm-XL

Chain

Shimano CN-M6100-12

Brakes

Shimano 105; Hydraulic disc

Front Rotor

Shimano RT10; 160mm

Rear Rotor

Shimano RT10; 160mm

Shifters

Shimano 105 disc

Rear Derailleur

Shimano 105; GS

Cassette

12 Speed

Frequently Asked Questions

What is the Merida Scultura 4000 Road Race Bike used for?

The Merida Scultura 4000 Road Race Bike is designed for road racing, fast group rides and serious climbing where lightweight performance, aerodynamics and comfort matter.

Why choose the Merida Scultura 4000 Road Race Bike?

Choose the Merida Scultura 4000 Road Race Bike for its blend of a lightweight CF3 carbon frame, aero refinements, reliable Shimano 105 12‑speed drivetrain and hydraulic disc brakes that together deliver speed, precision and comfort.

Who is the Merida Scultura 4000 Road Race Bike designed for?

The Merida Scultura 4000 Road Race Bike is aimed at enthusiastic racers and committed road cyclists who want a fast, comfortable, race‑capable bike that performs on climbs and in group efforts.

Find Your Size

Step 1: Measure your height

Take off your shoes
Stand with your back straight against a wall
Balance a book on your head to mark your height on the wall
Measure your height by the distance from the floor to the mark

Your height:

Find Your Size

Step 2: Adjust your inseam

Based on your height, we’ve calculated a starting point.
You can measure your inseam by tucking a book between your legs so there is pressure but it isn’t uncomfortable.
Inseam typically falls with 5cm of the average.

Your inseam:

Find Your Size

Your results

For the Merida Scultura 4000 Road Race Bike Heritage Red we suggest the following size.

More comfort More speed

Height: --

Inseam: --

Adjusted Height: --

Find Your Size

We have saved your measurements.

Recommended sizes will now be highlighted on the page.

PERFECT RIDE GUARANTEE

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

FREE BIKE BUILD

We'll build your bike for free when you click and collect at any 99 Bikes store.

FIRST FREE TUNE-UP

Every bike comes with a complimentary free tune-up and safety check. Learn more »

Featherweight carbon agility

A lightweight CF3 carbon frame and fork deliver snappy acceleration and effortless climbing. Aerodynamic details borrowed from Merida’s Reacto add speed without sacrificing comfort.

Smooth, reliable 12‑speed shifting

Shimano 105 2x12 drivetrain provides precise, confidence‑inspiring gear changes for fast group rides and long days in the saddle. Internal Di2‑ready routing keeps cables tidy and shifting consistent.

Confident stopping and all‑day comfort

Hydraulic disc brakes and 700x28c tyres offer strong, predictable braking and control in varied conditions. Class‑leading compliance keeps you fresher for sprints and climbs.

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

Your selected size: -

Legend

Available size

Current size

Unavailable size

Suggested sizing

Merida Scultura 4000 Road Race Bike Heritage Red geometry diagram

Legend

ST Seat Tube
STA Seat Tube Angle
R Reach
TT Top Tube
BD Bottom Bracket Drop
S Stack
CS Chain Stay Length
HT Head Tube
WB Wheel Base
HTA Head Tube Angle
FL Fork Length

Wheel Size

700c

Stack

529

542

557

571

593

Reach

383

390

395

400

409

Top Tube Length

535

545

560

575

590

Seat Tube Length

458

481

501

521

550

Seat Tube Angle

74.0

73.5

73.0

Fork Length

385

Head Tube Length

112

128

140

155

176

Head Tube Angle

112.0

128.0

140.0

155.0

176.0

Handlebar Height

Bottom Bracket Drop

Chainstay Length

Wheelbase

Standover Height

745

765

782

800

823

Minimum Seat Height

Maximum Seat Height
