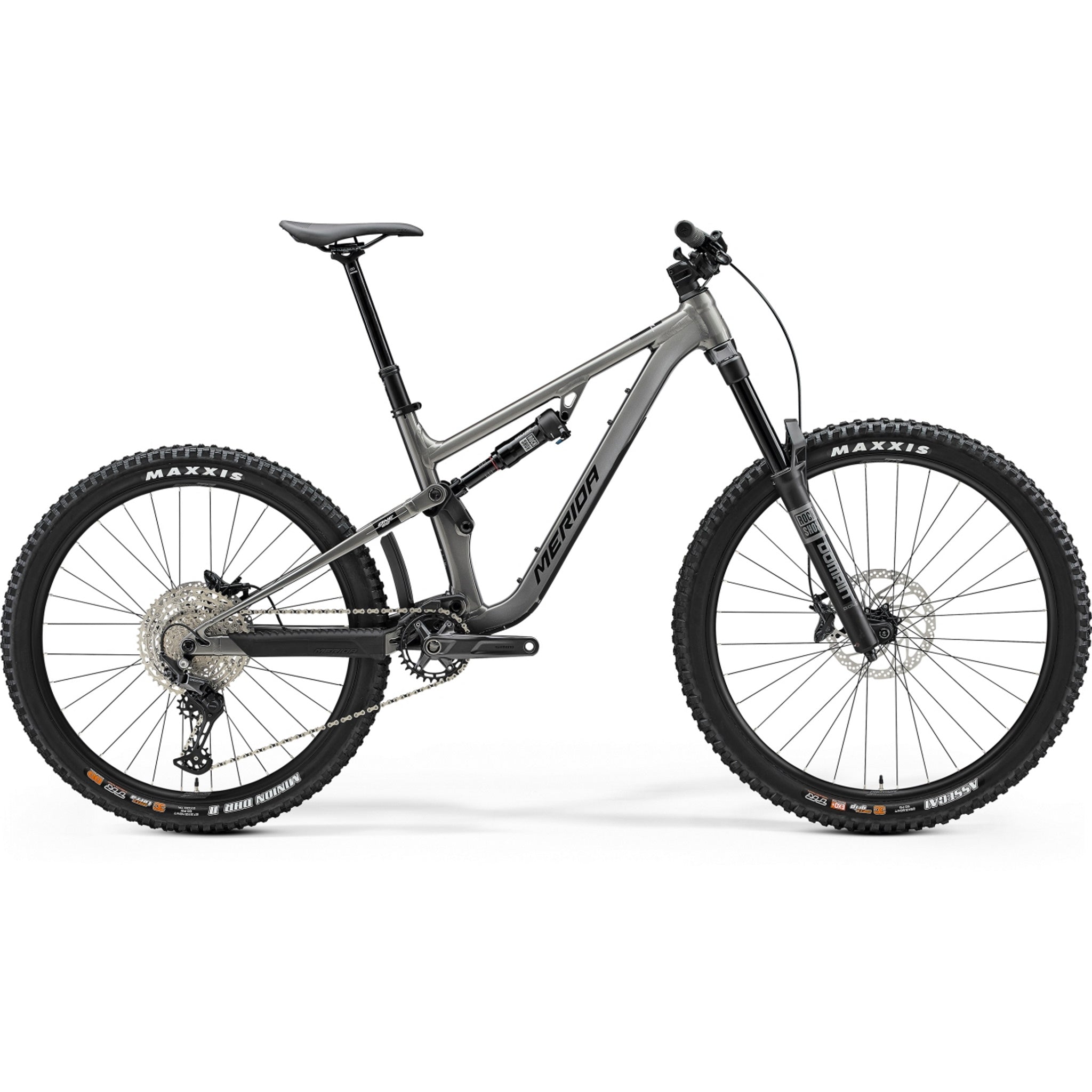

Merida One Sixty 500 Enduro Bike Gunmetal Grey

Brand: Merida

SKU: Select a size

Size: Select a size

SM MD LG XL

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Select a size to view stock availability at this location.

Alloy Frame/ RockShox Alloy Fork

170mm Front Travel / 160mm Rear

29" / 27.5" (Mullet Bike) Wheel Size

Hydraulic Disc Brake

Shimano Deore Groupset

1 x 12 Speed

Have a Question? Ask an expert on 0800 000 283

Product Details

Description

Evolution or revolution? How about both? The ONE-SIXTY is a radical, award-winning design that pushes Merida’s hard-hitting enduro platform to new heights. Just as well, because once it’s there it’s ready to rip the longest, toughest descents too. Their proven suspension system uses a flexstay design with an adjustable rocker, so whether you choose to run it as a full 29er (162 mm travel) or mixed 29/27.5” setup (171 mm travel), the geometry is preserved. There’s a radically steep 79° seat tube angle for goat-like climbing and slack 64° head angle plus 170 mm fork to deal with downhill trail chaos. Patented AGILOMETER sizing allows riders to run a longer or shorter reach frame independently of their height, while suspension becomes more progressive as you size up, all with long-travel dropper posts. WIRE PORT cable routing plus reliable threaded bottom bracket round out the package, while carbon frames offer on-board tool storage and FidLock magnetic bottle cages.

The ONE-SIXTY 500 gets Merida’s radical test and award-winning geometry and suspension design in a tough all-aluminium frame package, paired to components that deliver rock-solid performance and ironclad value. A RockShox Domain fork and Deluxe shock can take the rough with the rougher, while the four-piston Shimano brakes with burly 203mm rotors and wide-range Shimano Deore M6100 12 speed drivetrain are tough and consistent.

Key Features

Lightweight aluminum frame construction
160mm front and rear suspension
Shimano Deore 12-speed drivetrain
Hydraulic disc brakes for reliable stopping
Versatile geometry for all-terrain performance

Specifications

Product Overview

Product

Merida One Sixty 500 Enduro Bike Gunmetal Grey

Brand

Merida

Parent SKU

79S2ZPHV

Size SKUs

SM: MEDE2500915
MD: MEDE2500916
LG: MEDE2500917
XL: MEDE2500918

Year Model

2025

Product Features

Frame Material

Alloy

Colour

Grey

Wheel Size

29" / 27.5" (Mullet Bike)

Brake Type

Hydraulic Disc Brake

Gears

1 x 12

Fork Material

Alloy

Front Travel

170mm

Rear Travel

160mm

Weight

16.5 kg weighed at frame size M / Max Weight: 135 kg Total weight of bike, rider and luggage

Build

Frame

ONE-SIXTY LITE III; 171 STR mullet / 162 STR 29"; MAT aluminium; 29x2.5" max. WHS; 148x12 AST; BSA BBR

Fork

Rock Shox Domain Gold R; Air; 170 STR; Tapered; 44mm fork offset; 29.5x2.8" max. WHS

Shock

Rock Shox Deluxe Select+; lockout

Handlebars

MERIDA EXPERT TR II; MAT aluminium; 780 WHB; XS/S 18 RHB; M/L/XL 30 RHB

Headset

Acros ICR MERIDA EXTERNAL neck; Upper and lower IPS sealing

Grips

MERIDA EXPERT EC

Stem

MERIDA EXPERT eTRII; MAT aluminium; 35 DSH; 0 ASD 40 mm

Bottom Bracket

Shimano BB-MT-501; 24mm

Saddle

MERIDA COMP SL; 25% recycled material; V-mount

Seat Post

MERIDA EXPERT TR II; 34.9 DSP; 0 SSB; XSHORT/SHORT: 150 SPT - MID: 170 SPT - LONG: 200 SPT - XLONG: 230 SPT

Seat Clamp

MERIDA EXPERT

Accessories

Chainguard: MERIDA EXPERT TR ISCG05

Wheels

Wheel Size

29" / 27.5" (Mullet Bike)

Rims

MERIDA COMP TR II; 28 IWR; MAT aluminium; Tubeless ready (tubeless tape and valves not included); rear 27.5" up to Size M / L & XL rear 29"

Hubs

FRONT: Shimano TC500-B; 110x15 WHF; 32 SPH; Centerlock / REAR: Shimano TC500-MS-B; 148x12 WHR; 32 SPH; Centerlock

Spokes

Double Butted Black stainless

Groupset

Crankset

Shimano Deore MT512; 32 ATC 170 mm for all sizes

Chain

KMC X12

Brakes

Shimano Deore M6120; 4 piston

Front Rotor

Shimano RT30; 203mm

Rear Rotor

Shimano RT30; 203mm

Shifters

Shimano Deore M6100

Rear Derailleur

Shimano Deore M6100; SGS

Cassette

12 Speed

Find Your Size

Step 1: Measure your height

Take off your shoes
Stand with your back straight against a wall
Balance a book on your head to mark your height on the wall
Measure your height by the distance from the floor to the mark

Your height:

Find Your Size

Step 2: Adjust your inseam

Based on your height, we’ve calculated a starting point.
You can measure your inseam by tucking a book between your legs so there is pressure but it isn’t uncomfortable.
Inseam typically falls with 5cm of the average.

Your inseam:

Find Your Size

Your results

For the Merida One Sixty 500 Enduro Bike Gunmetal Grey we suggest the following size.

More comfort More speed

Height: --

Inseam: --

Adjusted Height: --

Find Your Size

We have saved your measurements.

Recommended sizes will now be highlighted on the page.

PERFECT RIDE GUARANTEE

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

FREE BIKE BUILD

We'll build your bike for free when you click and collect at any 99 Bikes store.

FIRST FREE TUNE-UP

Every bike comes with a complimentary free tune-up and safety check. Learn more »

Your selected size: -

Legend

Available size

Current size

Unavailable size

Suggested sizing

Merida One Sixty 500 Enduro Bike Gunmetal Grey geometry diagram

Legend

ST Seat Tube
STA Seat Tube Angle
R Reach
TT Top Tube
BD Bottom Bracket Drop
S Stack
CS Chain Stay Length
HT Head Tube
WB Wheel Base
HTA Head Tube Angle
FL Fork Length

Wheel Size

29" / 27.5" (Mullet Bike)

Stack

615

625

638

Reach

442

470

498

525

Top Tube Length

562

589

621

653

Seat Tube Length

410

425

445

470

Seat Tube Angle

79.0

Fork Length

581

Head Tube Length

105

120

Head Tube Angle

95.0

105.0

120.0

Handlebar Height

Bottom Bracket Drop

Chainstay Length

Wheelbase

Standover Height

740

743

740

735

Minimum Seat Height

Maximum Seat Height
