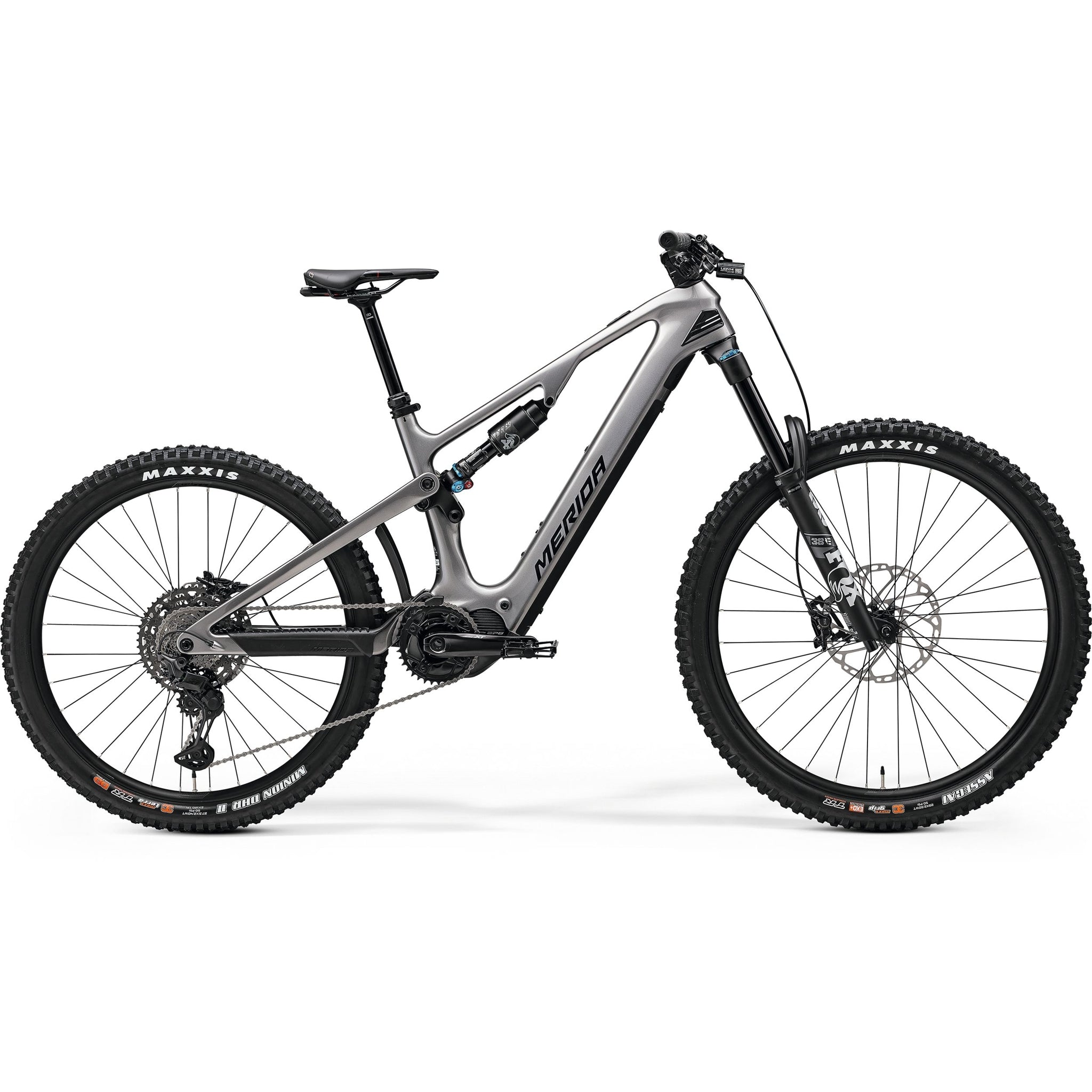

Merida eOne-Sixty 7000 Electric Enduro Bike 600Wh Battery Gunmetal Grey/Black

Brand: Merida

SKU: Select a size

Size: Select a size

SM MD LG XL

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Select a size to view stock availability at this location.

Steep Hills & Heavy Loads / 85 Nm Torque

Up to 70 km Range

Shimano STePS EP801 Motor

Carbon Frame/ Fox Fork

170mm Front Travel / 160mm Rear

600Wh Battery

Have a Question? Ask an expert on 0800 000 283

Product Details

Description

The Merida eOne-Sixty 7000 Electric Mountain Bike brings together power, precision, and versatility for the ultimate off-road experience. Featuring a lightweight full carbon fibre chassis, it delivers 170 mm of front and 174 mm of rear travel, perfect for tackling challenging terrains. The Shimano EP801 motor and 600 Wh battery provide impressive range, with the option to boost it with a 360 Wh range extender. Equipped with Fox Performance suspension and Shimano XT components, the eOne-Sixty 7000 ensures smooth handling and reliable performance across varied trails.

Key Features

Lightweight full carbon fibre frame
Shimano XT Linkglide 11-speed drivetrain
Fox 38 fork with 170 mm travel
Integrated 600 Wh battery with extender
Mixed wheel size, 29" front, 27.5" rear

Specifications

Product Overview

Product

Merida eOne-Sixty 7000 Electric Enduro Bike 600Wh Battery Gunmetal Grey/Black

Brand

Merida

Parent SKU

5V854H7W

Size SKUs

SM: MEEB25500044
MD: MEEB25500045
LG: MEEB25500046
XL: MEEB25500047

Year Model

2025

Product Features

Frame Material

Carbon

Frame Style

Crossbar

Colour

Grey

Wheel Size

29" / 27.5" (Mullet Bike)

Brake Type

Hydraulic Disc Brake

Gears

1 x 11

Front Travel

170mm

Rear Travel

160mm

Motor and Battery System

Drive Type

Mid Drive

Motor Brand

Shimano

Motor

Shimano EP801; 85Nm

Torque (Nm)

Motor Climbing Ability

Steep Hills & Heavy Loads

Battery Size (Watt-Hours)

600

Battery

Trendpower TPS-C15-58SD; 600Wh integrated

Max. Range (KMs)

Display

Shimano SC-EM800

Build

Frame

eONESIXTY CF III MAT carbon 160 STR 29 x 26 max WHS 148x12 AST intube max 630 Wh

Fork

FOX 38 Performance Elite eMTB+; Air; 170 STR; Tapered; 44mm fork offset; 29x2.6" max WHS

Shock

Fox Float X Performance; 2 Pos Lever

Handlebars

MERIDA EXPERT eTR; 780 WHB; XS,S 20RHB ; M,L,XL 30RHB

Headset

Acros ICR MERIDA INTEGRATED neck w/ Blocklock

Grips

MERIDA EXPERT EC

Stem

MERIDA EXPERT eTR II; MAT aluminium; 35 DSH; 0 ASD; Supernova mount

Pedals

VP VPE-527

Saddle

PROXIM Nembo Steel; V-mount adapter; incl. MERIDA minitool

Seat Post

MERIDA TEAM TR II; 34.9 DSP; 0 SSB; all sizes 30-230 SPT

Wheels

Wheel Size

29" / 27.5" (Mullet Bike)

Rims

MERIDA EXPERT TR II; 110x15 WHF; 148x12 WHR; 28 IWR; MAT aluminium; Tubeless ready (tubeless tape and valves not included); front 29"; rear 27.5"

Tyres

F: Maxxis Assegai; 29x2.5 "; fold; TR EXO+ 3C MaxxGrip | R: Maxxis DHR II; 27.5x2.4 "; fold; 3C DD TR MaxxTerra

Groupset

Crankset

Shimano FC-E8150; 165 mm all sizes;

Chain

CNLG500

Brakes

Shimano XT 4 Piston

Front Rotor

Shimano RT64; 220 mm

Rear Rotor

Shimano RTEM600; 203 mm

Rear Derailleur

Shimano XT RDM8130 LinkGlide 11

Cassette

11 Speed

Frequently Asked Questions

What is the Merida eOne‑Sixty 7000 Electric Enduro Bike used for?

The Merida eOne‑Sixty 7000 Electric Enduro Bike is built for aggressive trail and enduro riding, tackling steep climbs, technical descents, and all-day off‑road adventures with electric assist.

Why choose the Merida eOne‑Sixty 7000 Electric Enduro Bike?

Choose the Merida eOne‑Sixty 7000 Electric Enduro Bike for its lightweight carbon frame, powerful Shimano EP801 motor with 600 Wh battery (plus optional extender), and high‑performance Fox suspension and Shimano XT components that deliver confidence on demanding trails.

Who is the Merida eOne‑Sixty 7000 Electric Enduro Bike designed for?

The Merida eOne‑Sixty 7000 Electric Enduro Bike is designed for experienced trail and enduro riders who want serious capability, longer range, and a high‑performance build for fast, technical mountain riding.

Disclaimer

Please Note: Before using this vehicle, check the applicable local laws relating to your intended use of the vehicle on roads and road related areas. Please ride responsibly and follow your local laws. We do not recommend modifying your electric bike or electric scooter.

Find Your Size

Step 1: Measure your height

Take off your shoes
Stand with your back straight against a wall
Balance a book on your head to mark your height on the wall
Measure your height by the distance from the floor to the mark

Your height:

Find Your Size

Step 2: Adjust your inseam

Based on your height, we’ve calculated a starting point.
You can measure your inseam by tucking a book between your legs so there is pressure but it isn’t uncomfortable.
Inseam typically falls with 5cm of the average.

Your inseam:

Find Your Size

Your results

For the Merida eOne-Sixty 7000 Electric Enduro Bike 600Wh Battery Gunmetal Grey/Black we suggest the following size.

More comfort More speed

Height: --

Inseam: --

Adjusted Height: --

Find Your Size

We have saved your measurements.

Recommended sizes will now be highlighted on the page.

PERFECT RIDE GUARANTEE

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

FREE BIKE BUILD

We'll build your bike for free when you click and collect at any 99 Bikes store.

FIRST FREE TUNE-UP

Every bike comes with a complimentary free tune-up and safety check. Learn more »

Range

Calculate your range

E-Bike Range Estimator

Free Test Rides

Come into your local store to test ride an E-Bike today

Find a store

Shop Our E-bikes

Shop our collection of electric bikes

Shop Now

Lightweight Carbon Enduro Chassis

A full carbon fibre frame keeps weight low while maintaining stiffness for aggressive trail riding. Integrated 600 Wh battery (with optional 360 Wh extender) preserves clean lines and balanced handling.

Potent Shimano EP801 Powertrain

The Shimano EP801 motor delivers smooth, instant 85 Nm torque and reliable pedal assistance up to 25 km/h. Paired with a Shimano XT Linkglide 11-speed drivetrain, it offers efficient, precise shifting on steep climbs and fast descents.

Trail-Ready Suspension & Mullet Wheels

Fox 38 fork (170 mm) and Fox Float X rear shock provide 170/160 mm of plush, controlled travel for technical terrain. The mullet setup (29" front, 27.5" rear) plus Maxxis rubber balances roll-over capability with nimble rear-end traction.

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

Your selected size: -

Legend

Available size

Current size

Unavailable size

Suggested sizing

Merida eOne-Sixty 7000 Electric Enduro Bike 600Wh Battery Gunmetal Grey/Black geometry diagram

Legend

ST Seat Tube
STA Seat Tube Angle
R Reach
TT Top Tube
BD Bottom Bracket Drop
S Stack
CS Chain Stay Length
HT Head Tube
WB Wheel Base
HTA Head Tube Angle
FL Fork Length

Wheel Size

29" / 27.5" (Mullet Bike)

Stack

628

633

637

642

Reach

439

459

479

499

Top Tube Length

567

589

610

632

Seat Tube Length

410

425

445

465

Seat Tube Angle

78.5

78.4

78.3

Fork Length

581

Head Tube Length

105

110

115

120

Head Tube Angle

105.0

110.0

115.0

120.0

Handlebar Height

Bottom Bracket Drop

Chainstay Length

Wheelbase

Standover Height

770

765

760

755

Minimum Seat Height

Maximum Seat Height
