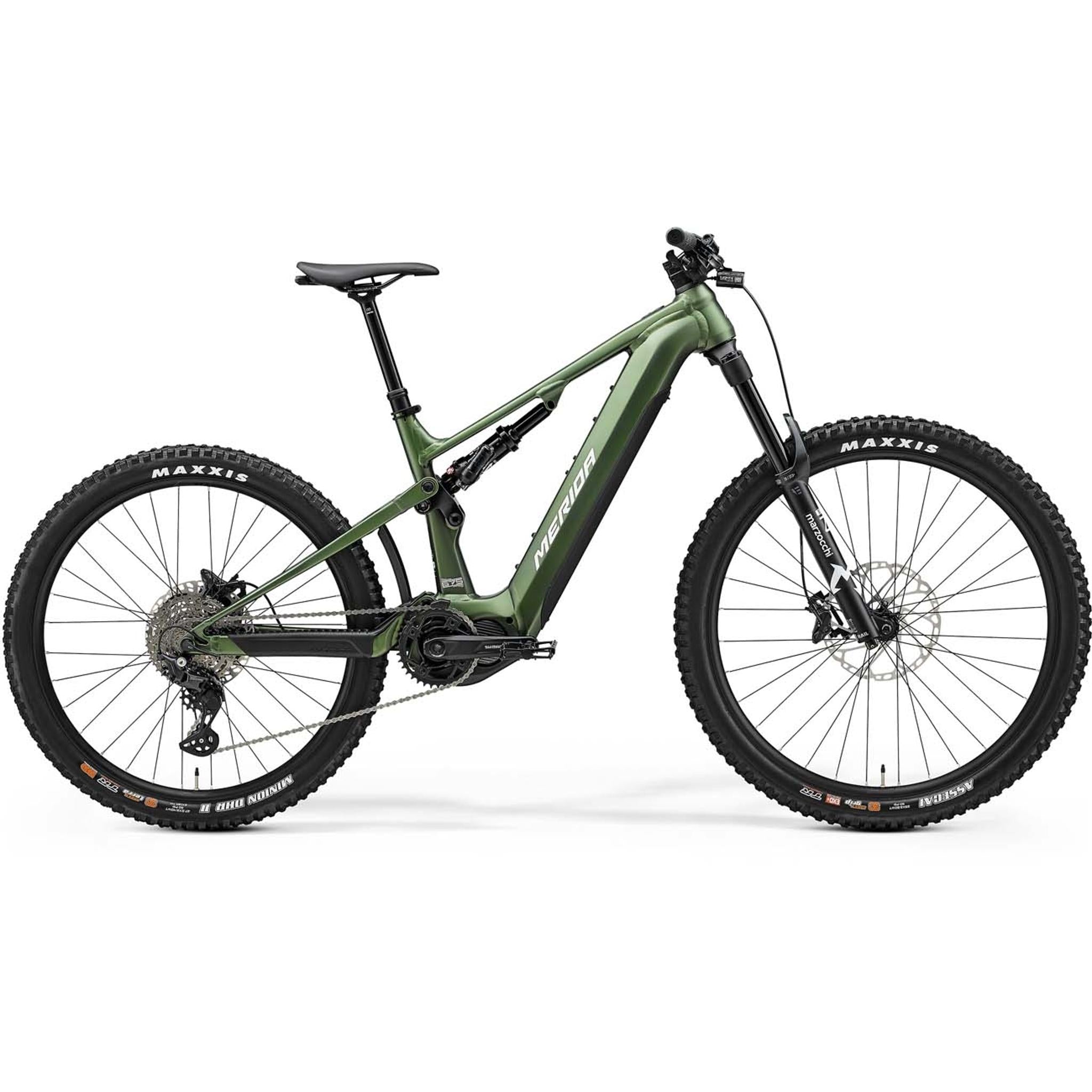

Merida eOne-Sixty 675 750Wh Electric Enduro Bike Silk Fog Green/White

Brand: Merida

SKU: Select a size

Size: Select a size

XS SM MD LG XL

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Select a size to view stock availability at this location.

Steep Hills & Heavy Loads / 85 Nm Torque

Up to 87 km Range

Shimano STePS EP8 Motor

Alloy Frame/ Marzocchi Alloy Fork

170mm Front Travel / 170mm Rear

750Wh Battery

Have a Question? Ask an expert on 0800 000 283

Product Details

Description

The Merida eOne-Sixty 675 Electric Enduro Bike boasts a durable aluminium frame and a user-removable 750Wh battery. This Electric Enduro Bike combines Merida's award-winning handling and suspension with wallet-friendly components to deliver maximum value for your investment. Featuring a robust Marzocchi Z1 170mm travel fork, Bomber Air shock, and a Shimano Deore LinkGlide drivetrain, you will be well-equipped for the rigours of daily off and on-road e-bike use.

Key Features

User-Removable Massive 750Wh Battery
Powerful Shimano EP801 85Nm Drive Unit
Robust Marzocchi Z1 Fork with 170mm Travel

Specifications

Product Overview

Product

Merida eOne-Sixty 675 750Wh Electric Enduro Bike Silk Fog Green/White

Brand

Merida

Parent SKU

N95AHCJX

Size SKUs

XS: MEEB2500078
SM: MEEB2500079
MD: MEEB2500080
LG: MEEB2500081
XL: MEEB2500082

Year Model

2025

Product Features

Frame Material

Alloy

Colour

Green

Wheel Size

29" / 27.5" (Mullet Bike)

Brake Type

Hydraulic Disc Brake

Gears

1 x 10

Fork Material

Alloy

Front Travel

170mm

Rear Travel

170mm

Motor and Battery System

Drive Type

Mid Drive

Motor Brand

Shimano

Motor

Shimano EP801; 85Nm

Torque (Nm)

Motor Climbing Ability

Steep Hills & Heavy Loads

Battery Size (Watt-Hours)

750

Battery

Trendpower Internal Battery Gen 2; 750Wh

Max. Range (KMs)

Display

Shimano SC-EM800 / SWITCH: Shimano SW-EM800-L

Build

Frame

eONE-SIXTY LITE IV; MAT aluminium; 160 STR; 29x2.6" max. WHS; 148x12 AST; intube ; 750 Wh

Fork

Marzocchi Z1 eMTB; Air; 170 STR; Tapered; 44mm fork offset; 29x2.6" max WHS

Shock

Marzocchi Bomber Air; platform

Handlebars

MERIDA EXPERT eTR; 780 WHB; XS,S 20RHB ; M,L,XL 30RHB

Headset

Acros ICR MERIDA EXTERNAL neck w/ Blocklock

Grips

MERIDA EXPERT EC

Stem

MERIDA EXPERT eTR II; MAT aluminium; 35 DSH; 0 ASD; Supernova mount 40 mm all sizes

Pedals

VP VPE-527

Saddle

MERIDA COMP SL; V-mount; incl. MERIDA minitool

Seat Post

MERIDA EXPERT TR II; 34.9 DSP; 0 SSB; XS: 125 SPT - S: 150 SPT - M/L: 200 SPT - XL: 230 SPT

Seat Clamp

MERIDA EXPERT

Wheels

Wheel Size

29" / 27.5" (Mullet Bike)

Hubs

FRONT: Shimano TC500-B; 110x15 WHF; 32 SPH; Centerlock / REAR: Shimano TC600-HM-B; 148x12 WHR; 32 SPH; Centerlock

Spokes

Black stainless

Groupset

Crankset

FSA 1x Steel Chainring; 36 ATC Shimano FC-EM600; 165 mm for all sizes

Chain

Shimano LG500

Brakes

Shimano Deore M6120; 4 piston

Front Rotor

Shimano RT64; 220 mm

Rear Rotor

Shimano RTEM600; 203 mm

Shifters

Shimano XT M5130 10

Rear Derailleur

Shimano DEORE RDM5130 LinkGlide 10

Cassette

10 Speed

Disclaimer

Please Note: Before using this vehicle, check the applicable local laws relating to your intended use of the vehicle on roads and road related areas. Please ride responsibly and follow your local laws. We do not recommend modifying your electric bike or electric scooter.
