$1401 Off Full Price

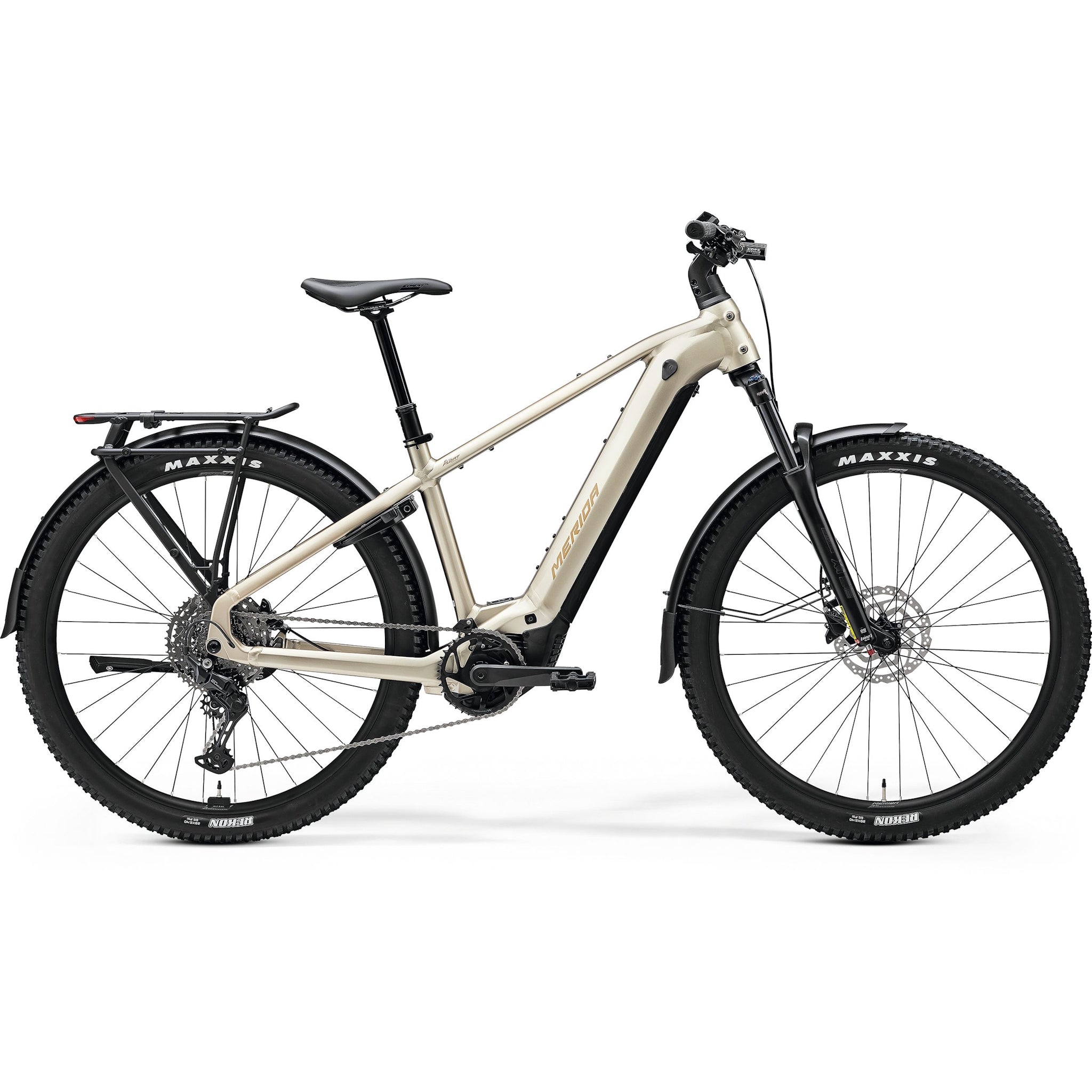

Merida eFloat CC 500 EQ Electric Hybrid Bike High Cream/Brown

Merida eFloat CC 500 EQ Electric Hybrid Bike High Cream/Brown

Brand: Merida

SKU: Select a size

Size: Select a size

MD LG

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Select a size to view stock availability at this location.

Steep Hills & Heavy Loads / 85 Nm Torque

Up to 93 km Range

Bosch Performance Line CX Motor

Alloy Frame/ Suntour Fork

120mm Front Travel

800Wh Battery

Have a Question? Ask an expert on 0800 000 283

Product Details

Description

The Merida eFloat CC 500 EQ Electric Hybrid Bike offers a perfect blend of comfort and performance for urban commuting and outdoor adventures. With its lightweight alloy step-through frame, powerful Bosch Performance Line CX motor, and a robust 800 Wh battery, this bike is designed to make every ride enjoyable and effortless.

Key Features

Lightweight alloy step-through frame
250W Bosch Performance Line CX motor
800Wh Bosch PowerTube battery
120mm front fork for comfort
Hydraulic disc brakes for reliable stopping

Specifications

Product Overview

Product

Merida eFloat CC 500 EQ Electric Hybrid Bike High Cream/Brown

Brand

Merida

Parent SKU

KN50VZDF

Size SKUs

MD: MEEB2501366
LG: MEEB2501367

Year Model

2025

Product Features

Frame Material

Alloy

Frame Style

Crossbar

Colour

Brown

Wheel Size

29"

Brake Type

Hydraulic Disc Brake

Gears

1 x 10

Front Travel

120mm

Motor and Battery System

Drive Type

Mid Drive

Motor Brand

Bosch

Motor

Bosch Performance Line CX; 250W; 85Nm (upgradeable to 100Nm);

Torque (Nm)

Motor Climbing Ability

Steep Hills & Heavy Loads

Battery Size (Watt-Hours)

800

Battery

Bosch PowerTube 800 ; 800Wh

Max. Range (KMs)

Display

Bosch Pruion 200

Build

Frame

eFLOAT LITE II ; MAT aluminium; 29"x2.4" with fender max. WHS; 148x12 AST; intube

Fork

SR Suntour X1-Boost; Air; 120 STR; 29x2.4" max WHS

Handlebars

MERIDA EXPERT CC; MAT aluminium; 720 WHB; 10 RHB

Headset

Acros ICR MERIDA INTEGRATED neck w/ Blocklock

Grips

MERIDA COMP TK

Stem

MERIDA EXPERT TK III; MAT aluminium; 31.8 DSH;; S/M/W-S/W-M :70mm, L/XL/W-L/W-XL :90mm

Pedals

VP VPE-891

Saddle

MERIDA EXPERT TK II; V-mount

Seat Post

MERIDA COMP TR IV; 34.9 DSP; 0 SSB; S/M/L/XL: 150 SPT

Accessories

Carrier: MERIDA MIK HD Carrier with Spring clip & Spanninga rear light; Fender: Sunnywheel SW-FA311-70A/ SW-FA311-70E1; Kickstand: Atranvelo ED-100-PC; Frame Lock: Abus 4650 XL

Wheels

Wheel Size

29"

Rims

MERIDA COMP TR II; 110x15 WHF; 148x12 WHR; 28 IWR; MAT aluminium; Tubeless ready (tubeless tape and valves not included); 29"

Hubs

F: Shimano TC500; 15x100 WHF; 32 SPH; Centerlock | R: Shimano TC500; 12x148 WHR; 32 SPH; Centerlock

Tyres

F: Maxxis Metropass AT; 29x2.4"; wire | R: Maxxis Metropass AT; 29x2.4"; wire

Groupset

Crankset

FSA Direct Mount Steel Chainring; 38 ATC; FSA CK-220 wide E-Bike Forged Crankset; 165mm for all sizes

Chain

Shimano LG500

Brakes

F: Shimano MT-200; 2 piston | R: Shimano MT-200; 2 piston

Front Rotor

Shimano RT10; 180mm

Rear Rotor

Shimano RT10; 180mm

Shifters

F: Shimano SL -MT500-L (Need to check if SL-MT500-L is competible with LIMOTEC post) | R: Shimano CUES U6000-10

Rear Derailleur

Shimano Cues U6000; GS

Cassette

10 Speed

Disclaimer

Please Note: Before using this vehicle, check the applicable local laws relating to your intended use of the vehicle on roads and road related areas. Please ride responsibly and follow your local laws. We do not recommend modifying your electric bike or electric scooter.
