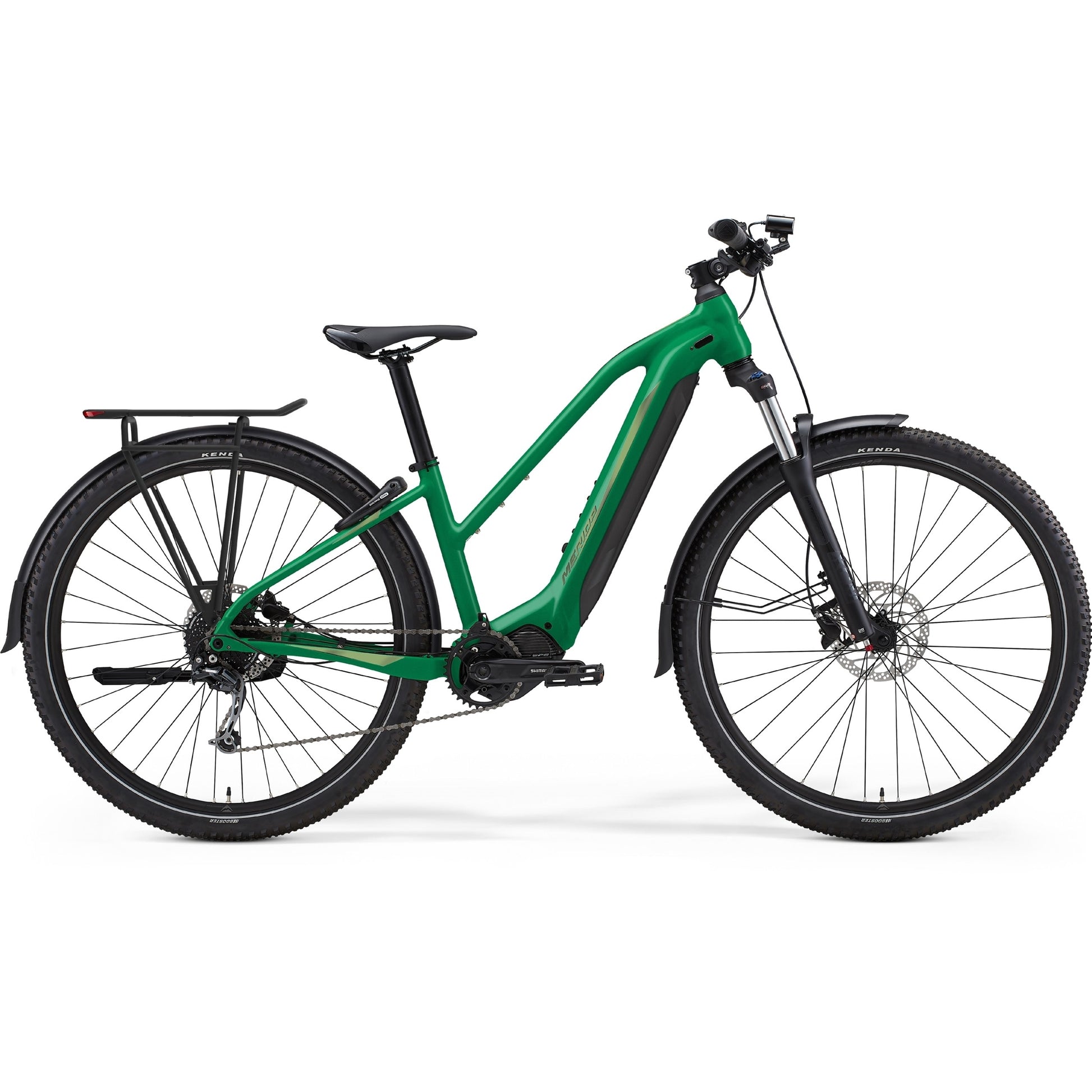

Merida eBig Tour 400 EQ Electric Hybrid Bike 630Wh Battery Matt Evergreen

Brand: Merida

SKU: Select a size

Size: Select a size

SM MD LG

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

$4,981.00 Full price

$4,981.00

Club price

$5,299.00 Full price

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Select a size to view stock availability at this location.

Off-Road Hills & Heavy Loads / 85 Nm Torque

Up to 73 km Range

Shimano STePS EP6 Motor

Alloy Frame/ Suntour Fork

100mm Front Travel

630Wh Battery

Have a Question? Ask an expert on 0800 000 283

Product Details

Description

The Merida eBig Tour 400 EQ Electric Hybrid Bike combines power and versatility, featuring a Shimano EP6 motor and a high-capacity 630Wh battery for long-distance, efficient riding. Designed with a durable aluminum frame and equipped with Shimano hydraulic disc brakes, this e-bike handles urban and off-road trails with ease. Its Suntour suspension fork and Kenda Booster tires provide stability and comfort, while integrated lights, fenders, and a rear rack make it perfect for everyday commuting and weekend adventures alike.

Key Features

Powerful Shimano EP6 motor with 85Nm torque
630Wh battery for extended range
Suntour XCM34 100mm suspension fork
Shimano CUES 10-speed drivetrain
Integrated lights and fenders for commuting

Specifications

Product Overview

Product

Merida eBig Tour 400 EQ Electric Hybrid Bike 630Wh Battery Matt Evergreen

Brand

Merida

Parent SKU

87HMWZQI

Size SKUs

SM: MEEB2500269
MD: MEEB2500270
LG: MEEB2500271

Year Model

2025

Product Features

Frame Material

Alloy

Frame Style

Crossbar

Colour

Green

Wheel Size

29"

Brake Type

Hydraulic Disc Brake

Front Travel

100mm

Motor and Battery System

Drive Type

Mid Drive

Motor Brand

Shimano

Torque (Nm)

Motor Climbing Ability

Steep Hills & Heavy Loads

Battery Size (Watt-Hours)

630

Battery

Shimano EN806; 630Wh

Max. Range (KMs)

Display

Shimano SC-EN500

Build

Frame

eBIG.TOUR LITE IV; MAT aluminium; 29x2.35" without fender max./ 29"x2.25" with fender max. WHS; 148x12 AST; intube

Fork

Suntour XCM34-Boost LOR DS; 100mm; Tapered; 51mm fork offset; 29x2.4" max WHS

Handlebars

MERIDA EXPERT CC; MAT aluminium; 720 WHB; 10 RHB

Headset

MERIDA-8155 (for the steerer 1-1/8"~1.5")

Grips

MERIDA EXPERT TK

Stem

MERIDA EXPERT CT; MAT aluminium; 31.8 DSH; adjustable; 90 mm all sizes

Pedals

VP VPE-537

Saddle

MERIDA EXPERT TK; V-mount

Seat Post

MERIDA EXPERT CC; MAT aluminium; 34.9 DSP; 0 SSB

Seat Clamp

MERIDA EXPERT

Accessories

MERIDA MA008-1 w/spring clamp + Spanninga GLOW XE Carrier; Sunnywheel SW-FA311-65A/ SW-FA311-65E1 Fender; CL-KA98, 29" Kickstand; Abus 4650SL LH-3 Frame Lock

Wheels

Wheel Size

29"

Hubs

F: Shimano TC500-B; 110x15 WHF; 32 SPH; Centerlock | R: Shimano TC500-HM-B; 148x12 WHR; 36 SPH; Centerlock

Tyres

KENDA Booster; 29x2.2"; wire

Spokes

Black stainless

Groupset

Crankset

Shimano CRE70-B; 34 ATC; Shimano FC-EM600; 165mm

Chain

Shimano LG500

Brakes

F: Shimano MT-200; 2 piston | R: Shimano MT-200; 2 piston

Front Rotor

Shimano RT30; 180 mm

Rear Rotor

Shimano RTEM300; 180 mm

Rear Derailleur

Shimano CUES U6000 ; GS

Frequently Asked Questions

What is the Merida eBig Tour 400 Electric Hybrid Bike used for?

The Merida eBig Tour 400 Electric Hybrid Bike is used for commuting, long-distance urban rides and light off-road adventures—combining electric assist with practical commuter features.

Why choose the Merida eBig Tour 400 Electric Hybrid Bike?

Choose the Merida eBig Tour 400 Electric Hybrid Bike for its powerful Shimano EP6 motor, 630Wh battery for extended range, integrated commuter gear (lights, fenders, rack) and reliable Shimano components for confident, low-maintenance riding.

Who is the Merida eBig Tour 400 Electric Hybrid Bike designed for?

The Merida eBig Tour 400 Electric Hybrid Bike is designed for riders who want a versatile e-bike—daily commuters, fitness riders and weekend explorers who need comfort, range and practical accessories.

Disclaimer

Please Note: Before using this vehicle, check the applicable local laws relating to your intended use of the vehicle on roads and road related areas. Please ride responsibly and follow your local laws. We do not recommend modifying your electric bike or electric scooter.

Find Your Size

Step 1: Measure your height

Take off your shoes
Stand with your back straight against a wall
Balance a book on your head to mark your height on the wall
Measure your height by the distance from the floor to the mark

Your height:

Find Your Size

Step 2: Adjust your inseam

Based on your height, we’ve calculated a starting point.
You can measure your inseam by tucking a book between your legs so there is pressure but it isn’t uncomfortable.
Inseam typically falls with 5cm of the average.

Your inseam:

Find Your Size

Your results

For the Merida eBig Tour 400 EQ Electric Hybrid Bike 630Wh Battery Matt Evergreen we suggest the following size.

More comfort More speed

Height: --

Inseam: --

Adjusted Height: --

Find Your Size

We have saved your measurements.

Recommended sizes will now be highlighted on the page.

PERFECT RIDE GUARANTEE

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

FREE BIKE BUILD

We'll build your bike for free when you click and collect at any 99 Bikes store.

FIRST FREE TUNE-UP

Every bike comes with a complimentary free tune-up and safety check. Learn more »

Range

Calculate your range

E-Bike Range Estimator

Free Test Rides

Come into your local store to test ride an E-Bike today

Find a store

Shop Our E-bikes

Shop our collection of electric bikes

Shop Now

Powerful mid-drive performance

Equipped with a Shimano EP6 motor delivering 85Nm torque, this bike gives confident pedal assist for hills and long rides. The mid-drive layout keeps weight balanced and responsive.

Long-range, all-day riding

A 630Wh Shimano battery provides extended range for commuting and weekend adventures, reducing range anxiety. Integrated display and efficient drivetrain help you get the most from every charge.

Ready-for-anything commuter setup

Integrated lights, fenders, rear rack and hydraulic disc brakes make it practical and safe for daily use in varied weather. A Suntour 100mm suspension fork and wide Kenda tyres add comfort and control on mixed surfaces.

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

Your selected size: -

Legend

Available size

Current size

Unavailable size

Suggested sizing

Merida eBig Tour 400 EQ Electric Hybrid Bike 630Wh Battery Matt Evergreen geometry diagram

Legend

ST Seat Tube
STA Seat Tube Angle
R Reach
TT Top Tube
BD Bottom Bracket Drop
S Stack
CS Chain Stay Length
HT Head Tube
WB Wheel Base
HTA Head Tube Angle
FL Fork Length

Wheel Size

29"

Stack

636

640

650

Reach

411

427

445

Top Tube Length

588

605

625

Seat Tube Length

380

430

480

Seat Tube Angle

74.5

Fork Length

527

Head Tube Length

115

120

130

Head Tube Angle

115.0

120.0

130.0

Handlebar Height

Bottom Bracket Drop

Chainstay Length

Wheelbase

Standover Height

630

653

665

Minimum Seat Height

Maximum Seat Height
