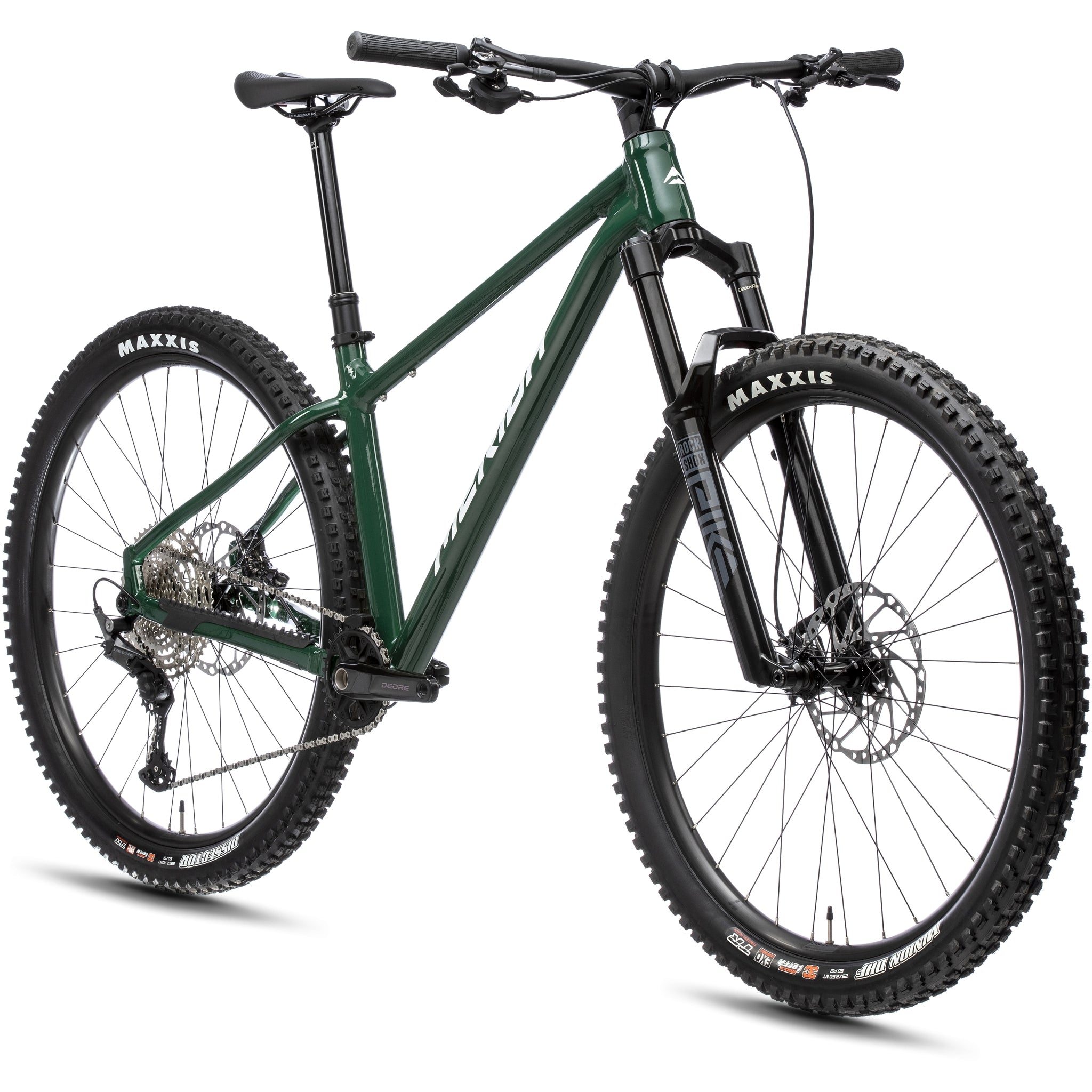

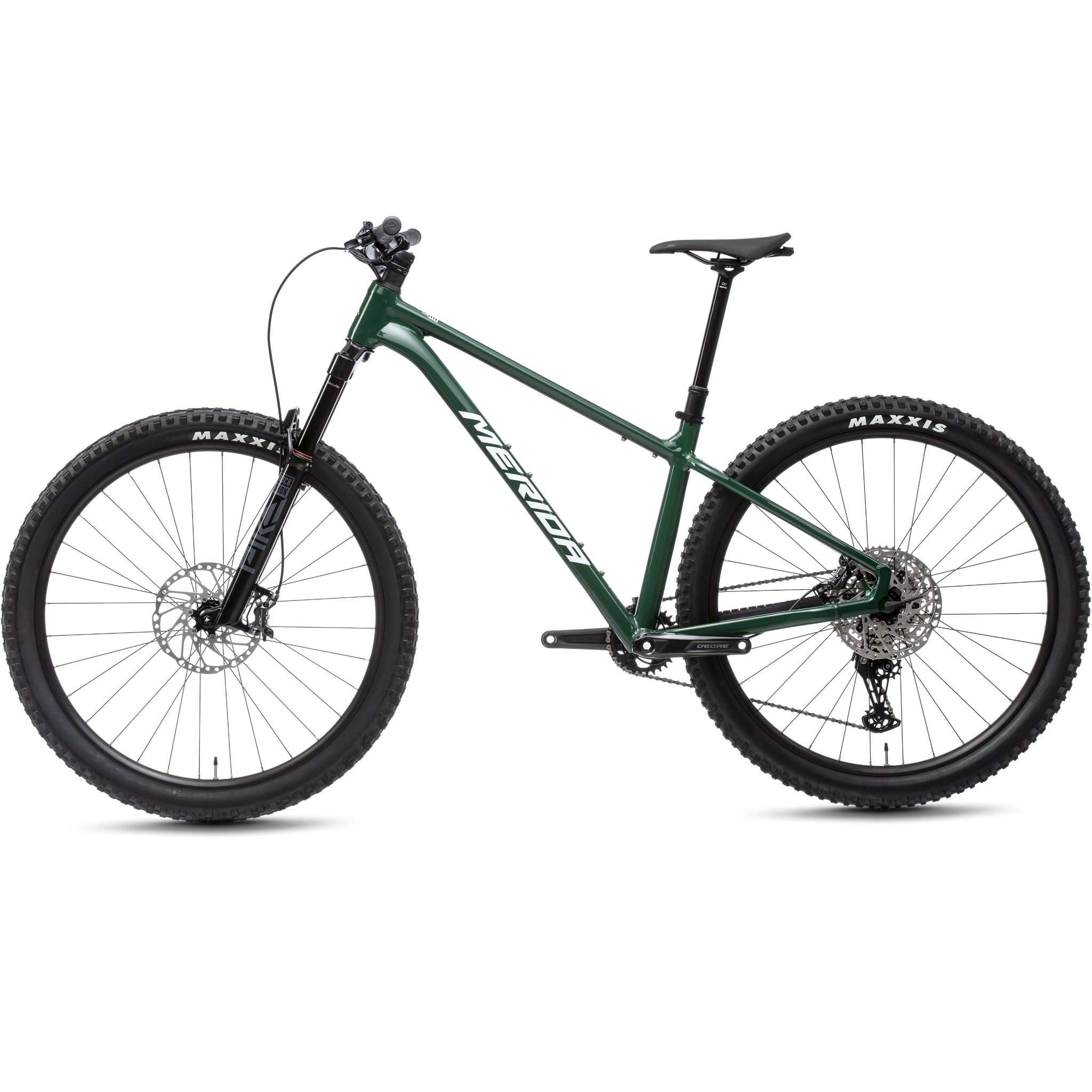

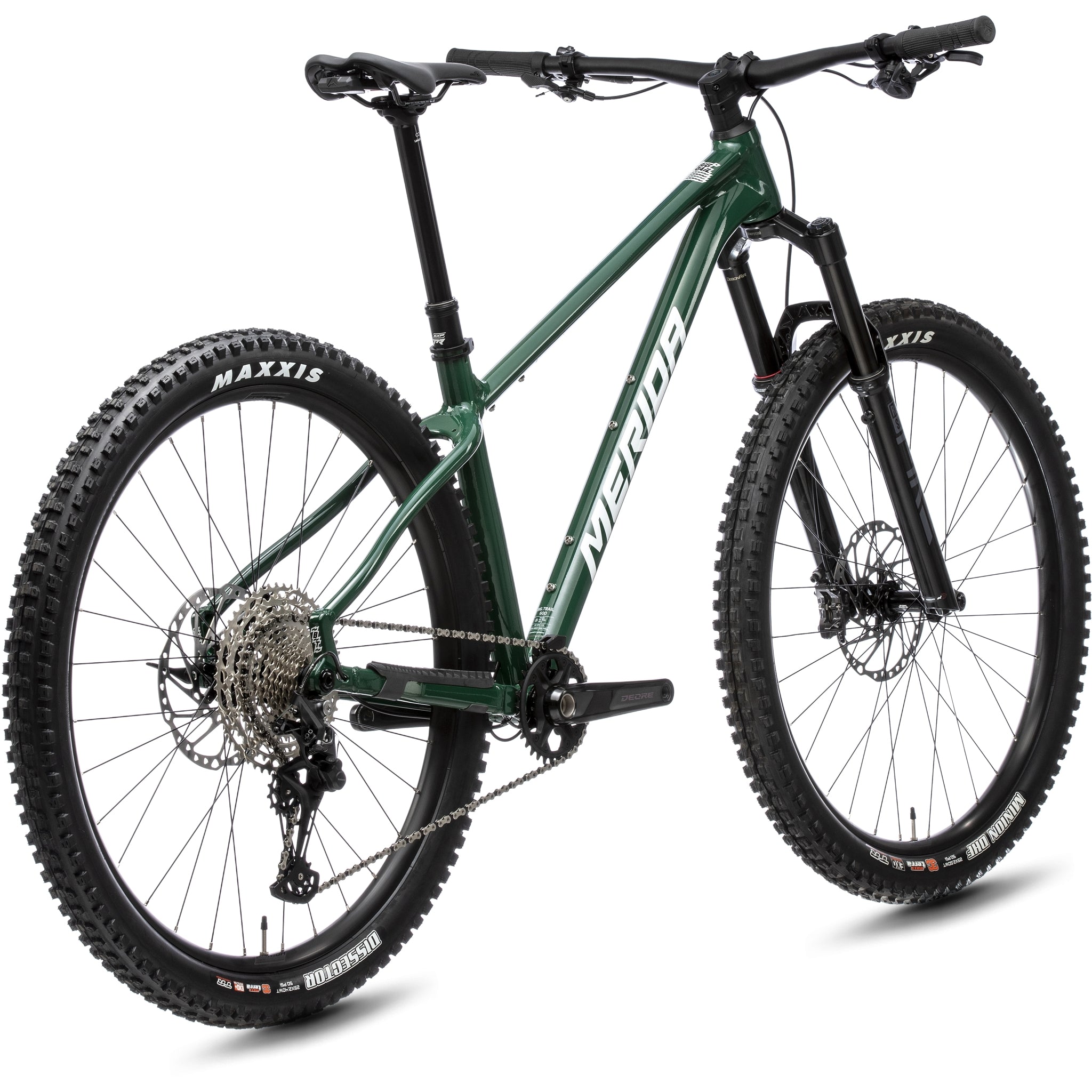

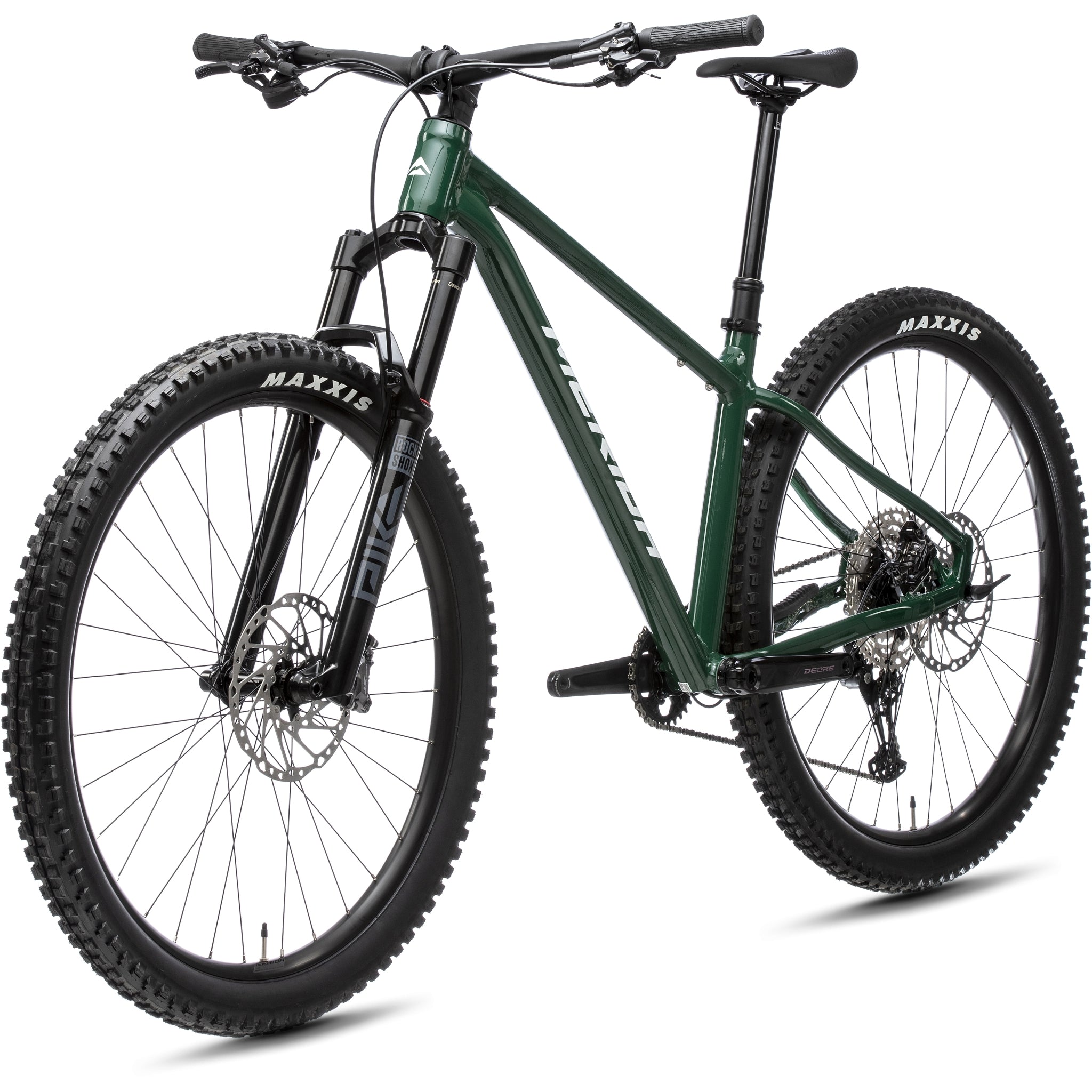

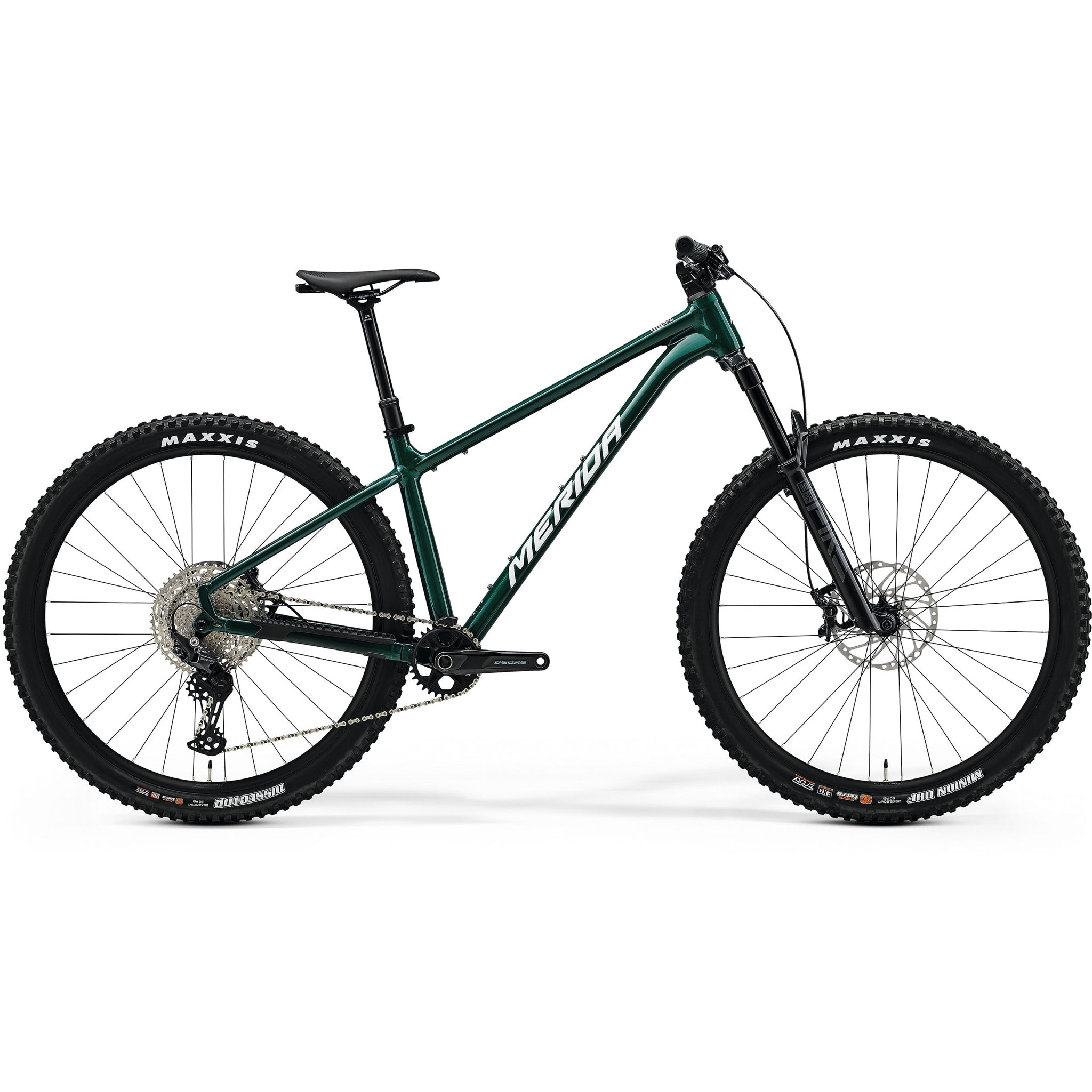

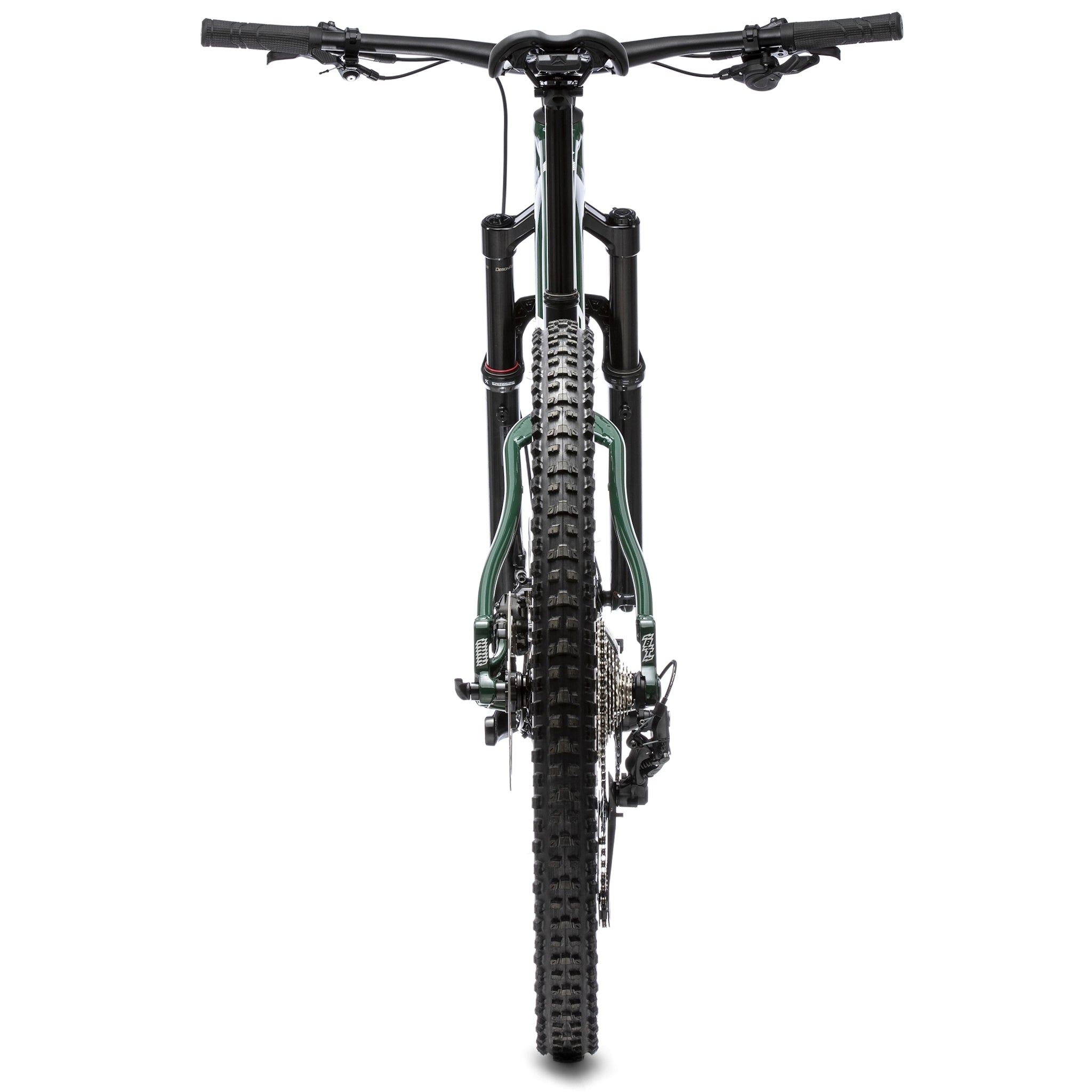

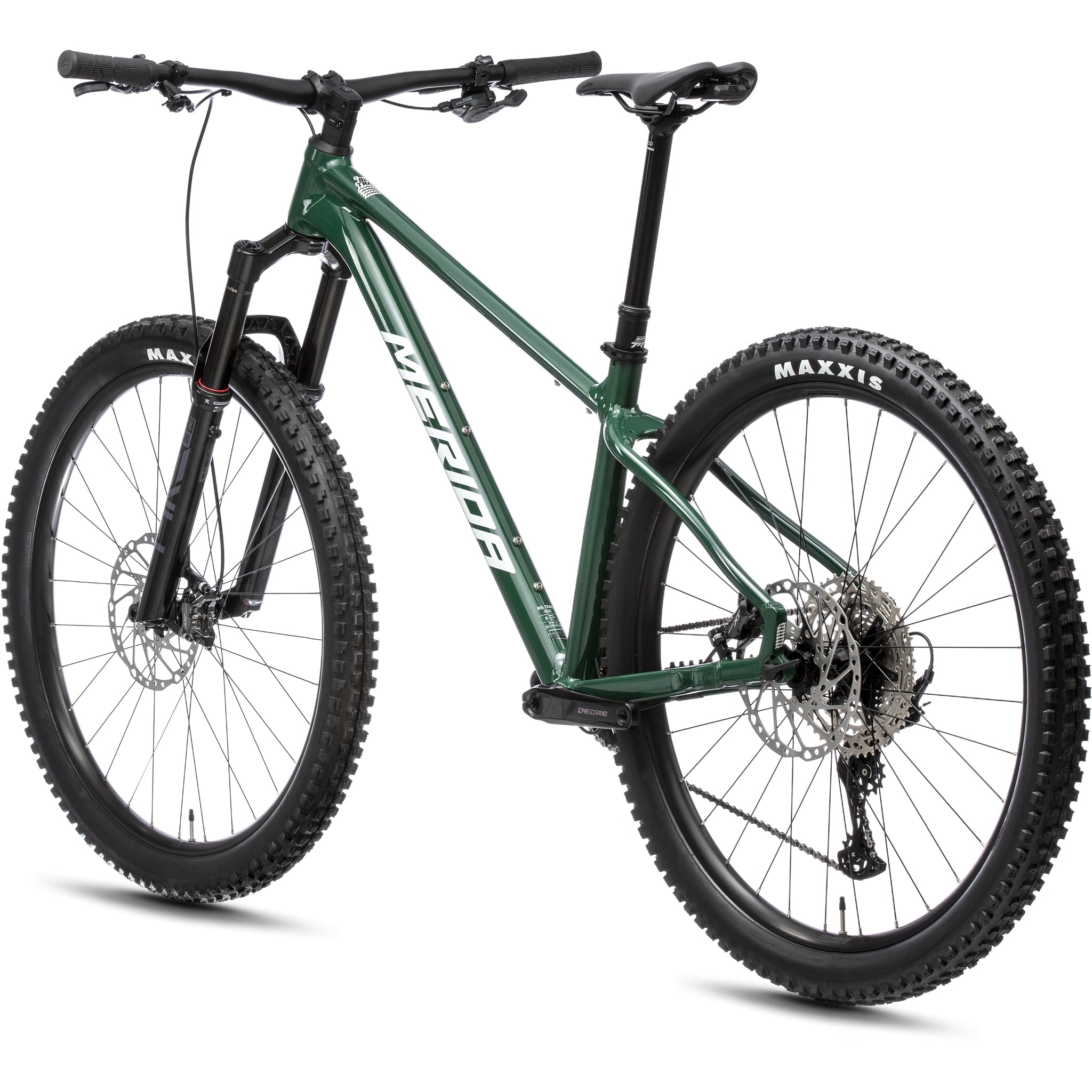

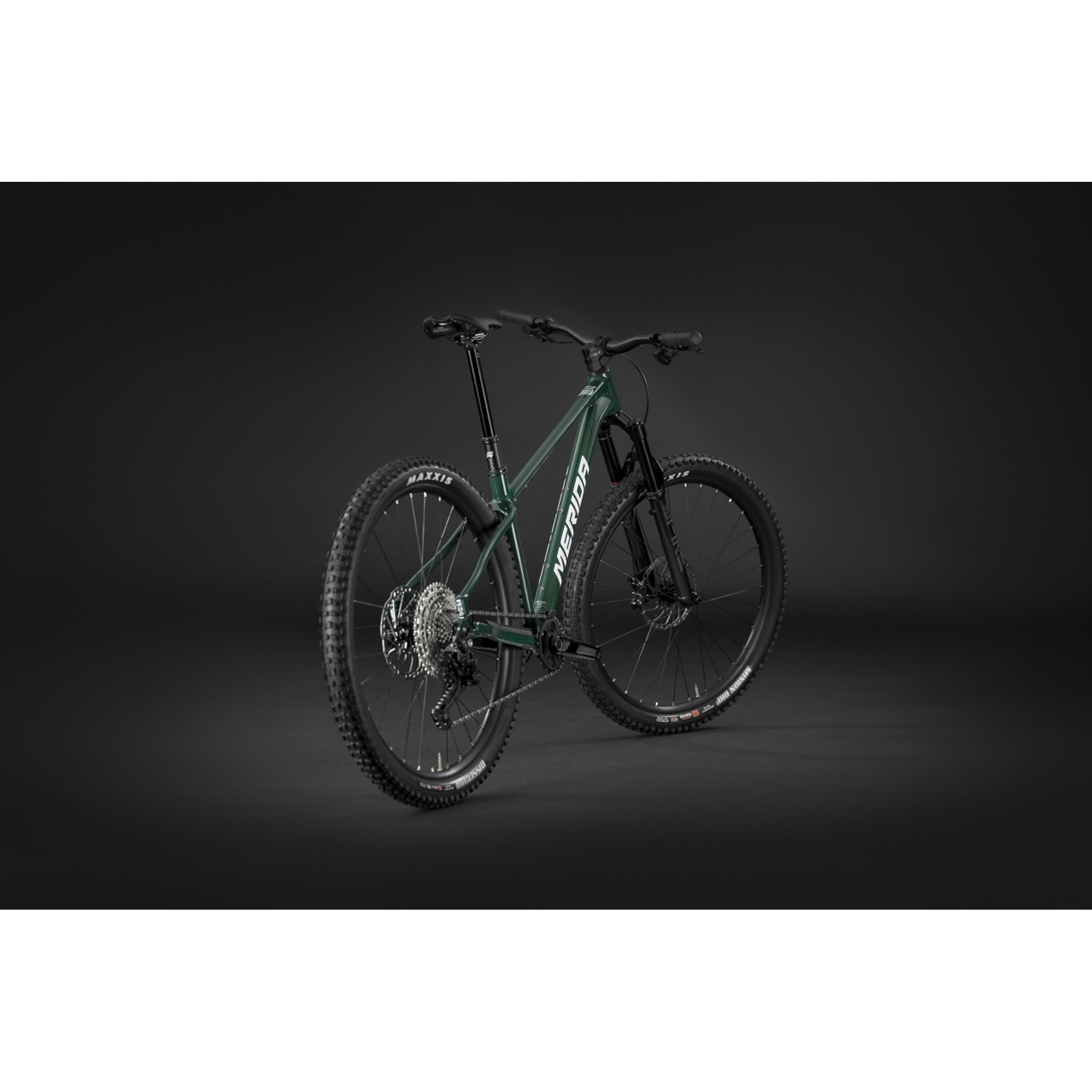

Merida Big.Trail 600 Hardtail Trail Bike Deep Forest Green/White

Merida Big.Trail 600 Hardtail Trail Bike Deep Forest Green/White

Brand: Merida

SKU: Select a size

Size: Select a size

MD LG XL

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Select a size to view stock availability at this location.

Alloy Frame/ RockShox Alloy Fork

140mm Front Travel

29" Wheel Size

Hydraulic Disc Brake

Shimano Deore M6100 Groupset

1 x 12 Speed

Have a Question? Ask an expert on 0800 000 283

Product Details

Description

The Merida Big.Trail 600 Hardtail Trail Bike is a highly capable mountain bike for anyone looking to tackle the trails or head out on an off-road adventure. You’ll have no trouble tackling the bumps with 140mm travel provided by the RockShox Pike Fork and grippy 29 inch MAxxis Minion and Dissector tyres. Put the power down with a Shimano Deore 1x12 drivetrain and come to a stop in all conditions with reliable Shimano XT M8120 hydraulic disc brakes. The Merida Expert dropper post will help you tackle any technical descents.

Key Features

Lightweight alloy frame
RockShox Pike fork with 140mm travel
Shimano Deore 1x12 gears
Shimano XT M8120 hydraulic disc brakes
Maxxis Minion and Dissector tyres
Merida Expert TR II dropper post

Specifications

Product Overview

Product

Merida Big.Trail 600 Hardtail Trail Bike Deep Forest Green/White

Brand

Merida

Parent SKU

ES43LLG6

Size SKUs

MD: MEHA2501506
LG: MEHA2501507
XL: MEHA2501508

Year Model

2025

Product Features

Frame Material

Alloy

Colour

Green

Wheel Size

29"

Brake Type

Hydraulic Disc Brake

Gears

1 x 12

Fork Material

Alloy

Front Travel

140mm

Build

Frame

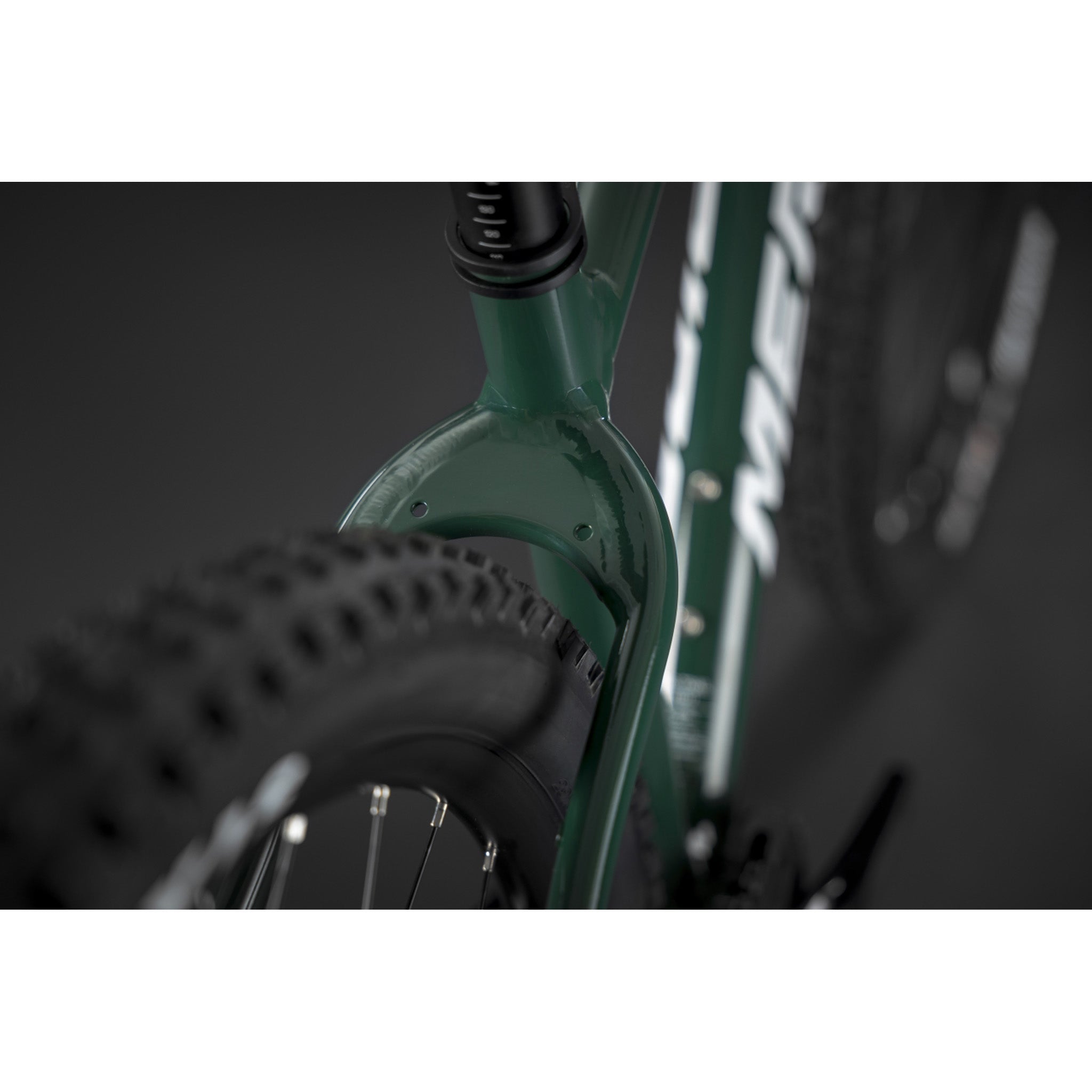

BIG.TRAIL TFS II; MAT aluminium; 29x2.5" max. WHS; 148x12 AST; BSA BBR

Fork

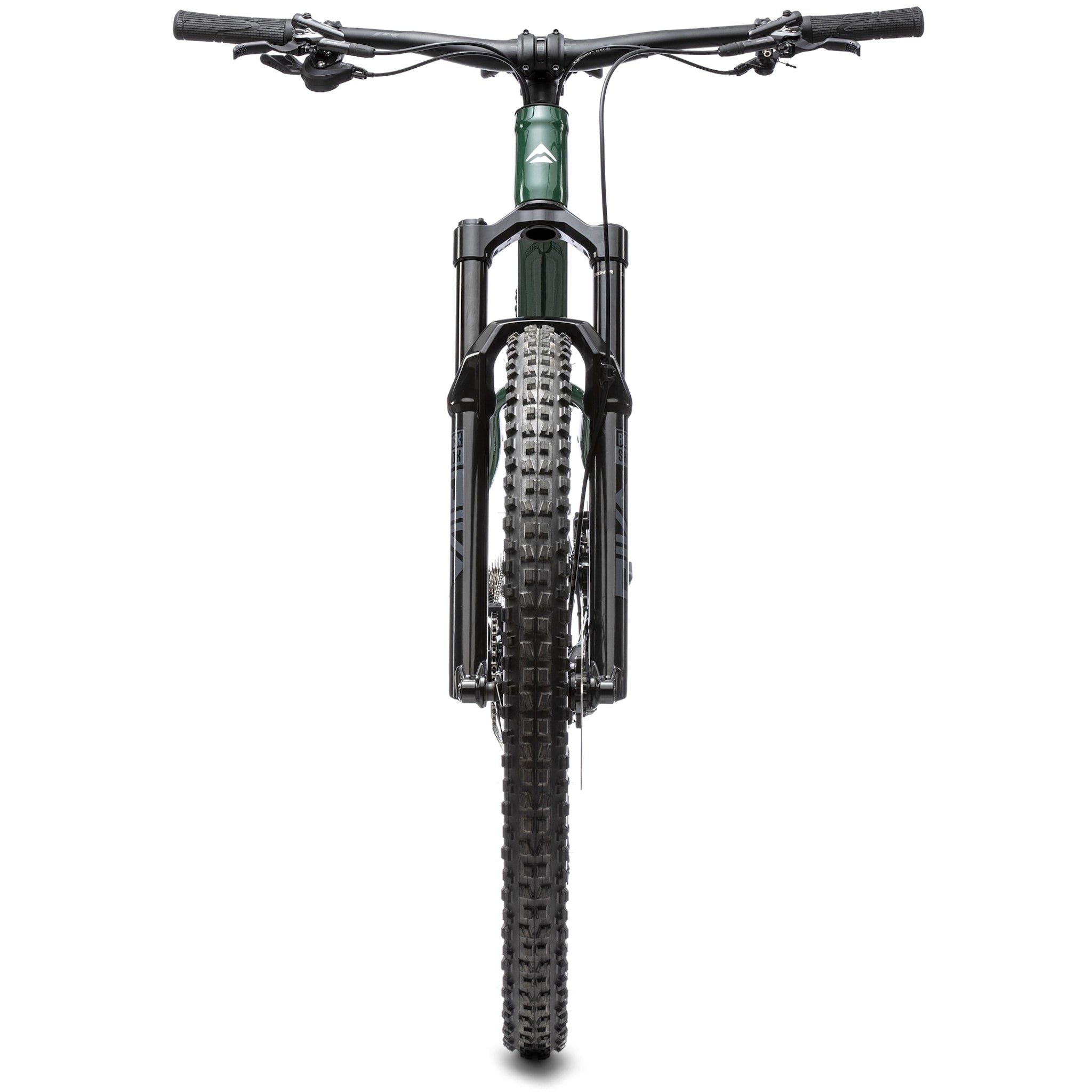

Rock Shox Pike; Air; 140 STR; tapered; platform; 44mm fork offset; 29x2.6 max. WHS

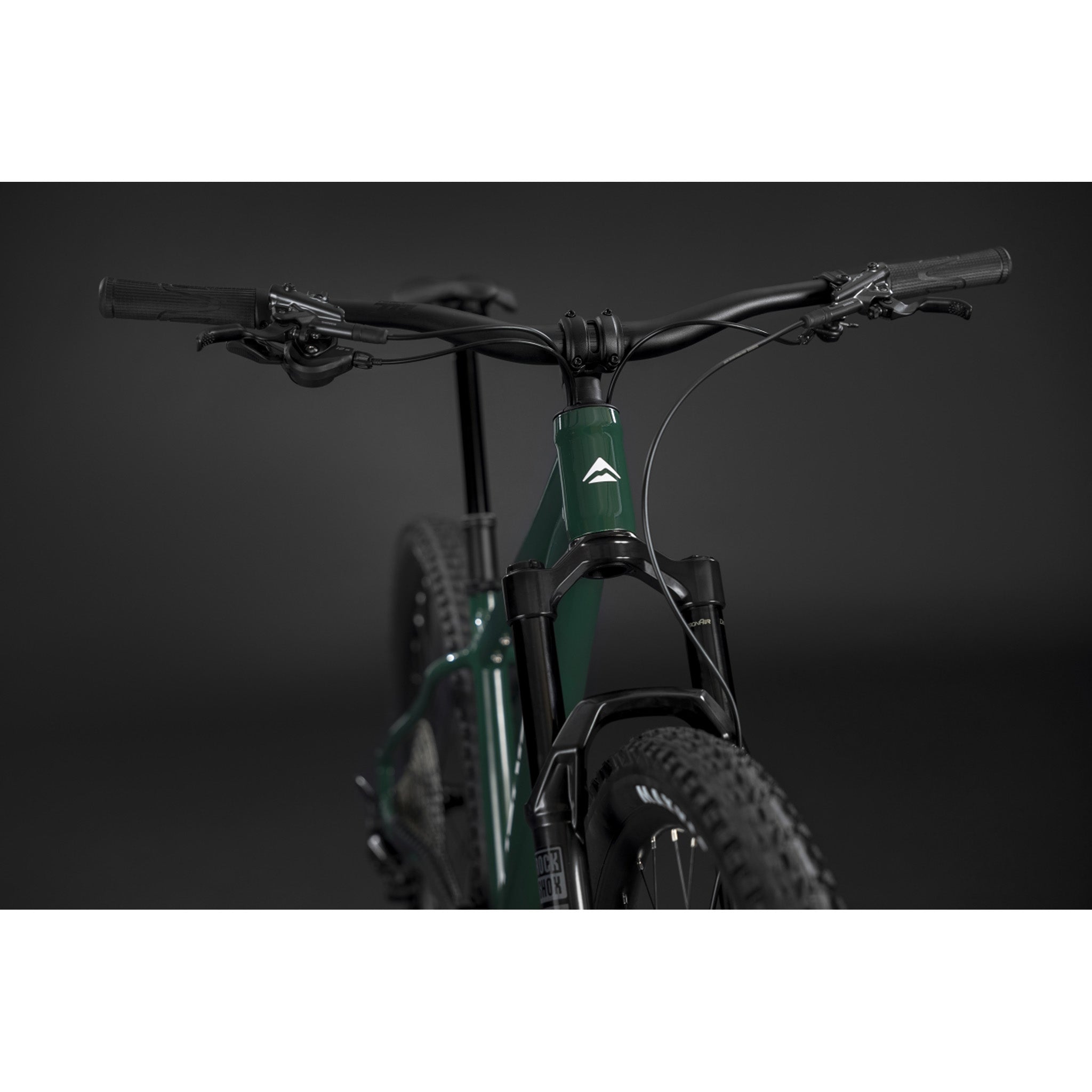

Handlebars

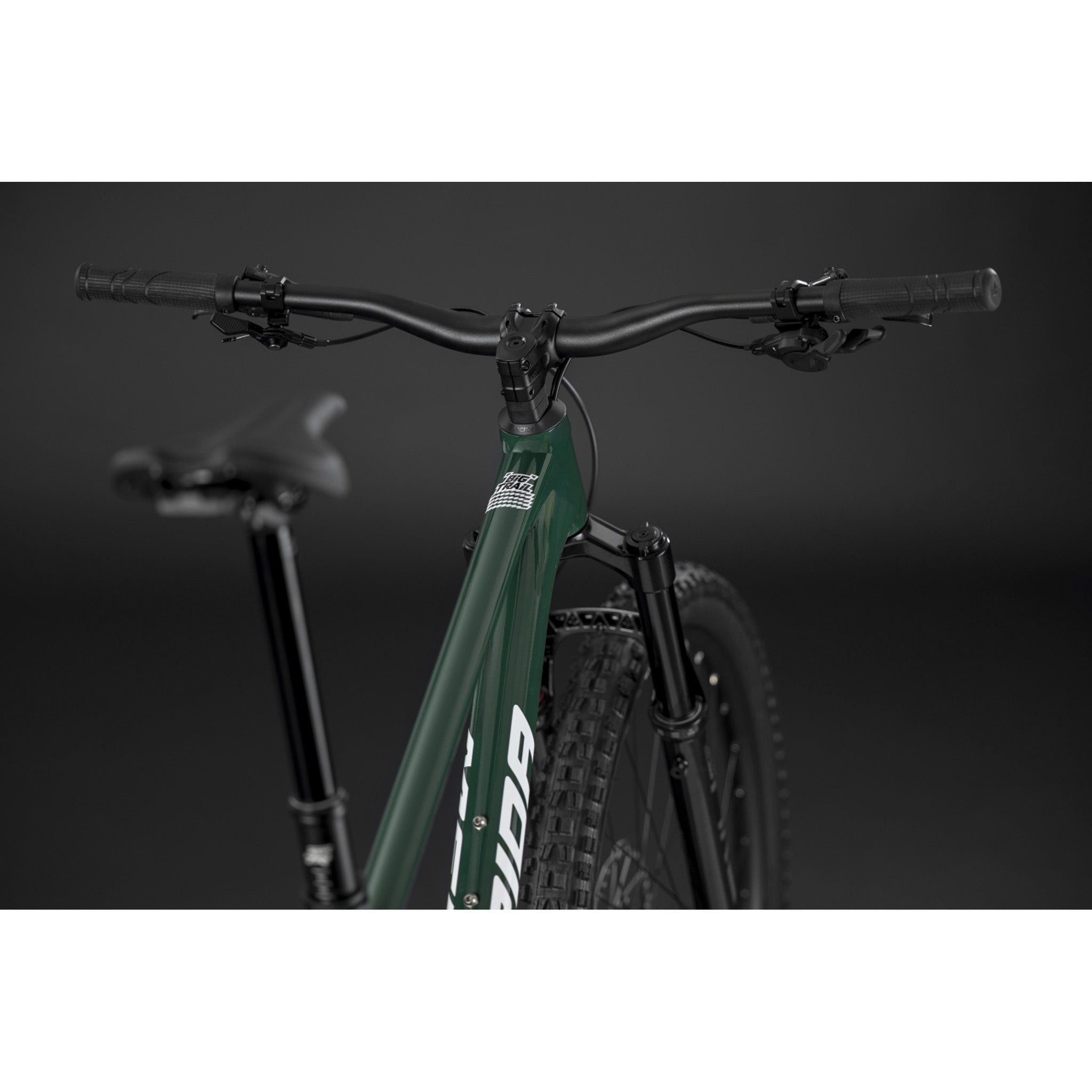

MERIDA EXPERT TR II; MAT aluminium; 780 WHB; 18 RHB

Headset

Acros ICR MERIDA EXTERNAL neck; Upper and lower IPS sealing

Grips

MERIDA COMP EC

Stem

MERIDA EXPERT eTRII; MAT aluminium; 35 DSH; 0 ASD 40 mm

Bottom Bracket

Shimano MT501; 24mm

Saddle

MERIDA COMP SL; 25% recycled material; V-mount; incl. MERIDA minitool

Seat Post

MERIDA EXPERT TR II; 34.9 DSP; 0 SSB; XS: 150 SPT，S: 170 SPT，M/L: 200 SPT，XL: 230 SPT

Seat Clamp

MERIDA EXPERT

Accessories

Chainguard: MERIDA EXPERT TR ISCG05

Wheels

Wheel Size

29"

Rims

MERIDA EXPERT TR II; 110x15 WHF; 148x12 WHR; 28 IWR; MAT aluminium; Tubeless ready (tubeless tape and valves not included); 29"

Hubs

F: Shimano TC500-B; 110x15 WHF; 32 SPH; Centerlock / R: Shimano TC500-HM-B; 148x12 WHR; 32 SPH; Centerlock

Spokes

Double Butted Black stainless

Groupset

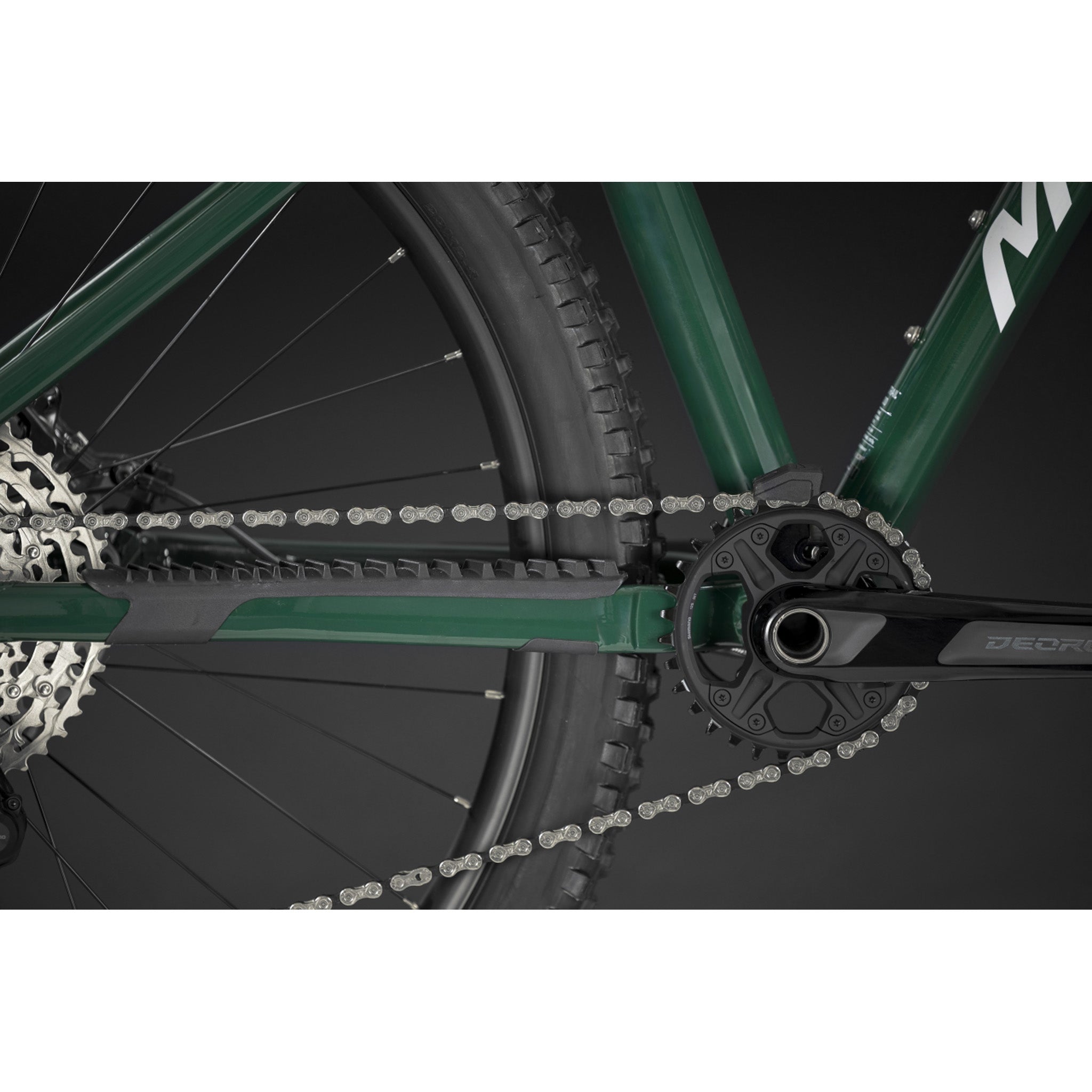

Crankset

Shimano Deore M6120; 32 ATC 165mm XSHORT and SHORT; 170mm MID, LONG und XLONG

Chain

KMC X12

Brakes

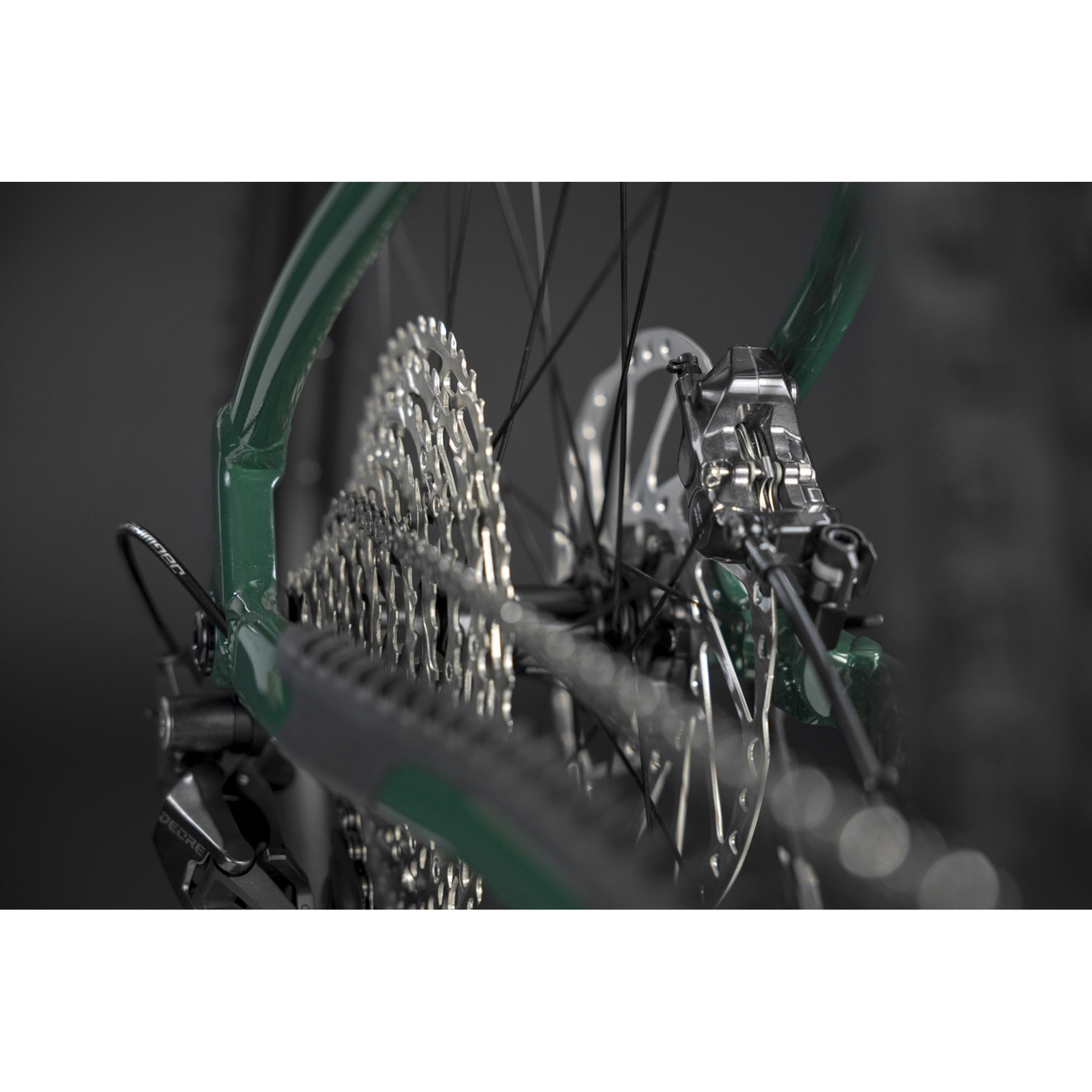

Shimano XT M8120; 4 piston

Front Rotor

Shimano RT64 Centerline; 203mm

Rear Rotor

Shimano RT64 Centerline; 203mm

Shifters

Shimano Deore M6100

Rear Derailleur

Shimano Deore M6100; SGS

Cassette

12 Speed

Find Your Size

Step 1: Measure your height

Take off your shoes
Stand with your back straight against a wall
Balance a book on your head to mark your height on the wall
Measure your height by the distance from the floor to the mark

Your height:

Find Your Size

Step 2: Adjust your inseam

Based on your height, we’ve calculated a starting point.
You can measure your inseam by tucking a book between your legs so there is pressure but it isn’t uncomfortable.
Inseam typically falls with 5cm of the average.

Your inseam:

Find Your Size

Your results

For the Merida Big.Trail 600 Hardtail Trail Bike Deep Forest Green/White we suggest the following size.

More comfort More speed

Height: --

Inseam: --

Adjusted Height: --

Find Your Size

We have saved your measurements.

Recommended sizes will now be highlighted on the page.

PERFECT RIDE GUARANTEE

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

FREE BIKE BUILD

We'll build your bike for free when you click and collect at any 99 Bikes store.

FIRST FREE TUNE-UP

Every bike comes with a complimentary free tune-up and safety check. Learn more »

Your selected size: -

Legend

Available size

Current size

Unavailable size

Suggested sizing

Merida Big.Trail 600 Hardtail Trail Bike Deep Forest Green/White geometry diagram

Legend

ST Seat Tube
STA Seat Tube Angle
R Reach
TT Top Tube
BD Bottom Bracket Drop
S Stack
CS Chain Stay Length
HT Head Tube
WB Wheel Base
HTA Head Tube Angle
FL Fork Length

Wheel Size

29"

Stack

645

654

663

Reach

455

480

505

Top Tube Length

603

630

657

Seat Tube Length

420

445

475

Seat Tube Angle

76.5

Fork Length

551

Head Tube Length

110

120

130

Head Tube Angle

110.0

120.0

130.0

Handlebar Height

Bottom Bracket Drop

Chainstay Length

Wheelbase

Standover Height

724

726

729

Minimum Seat Height

Maximum Seat Height
