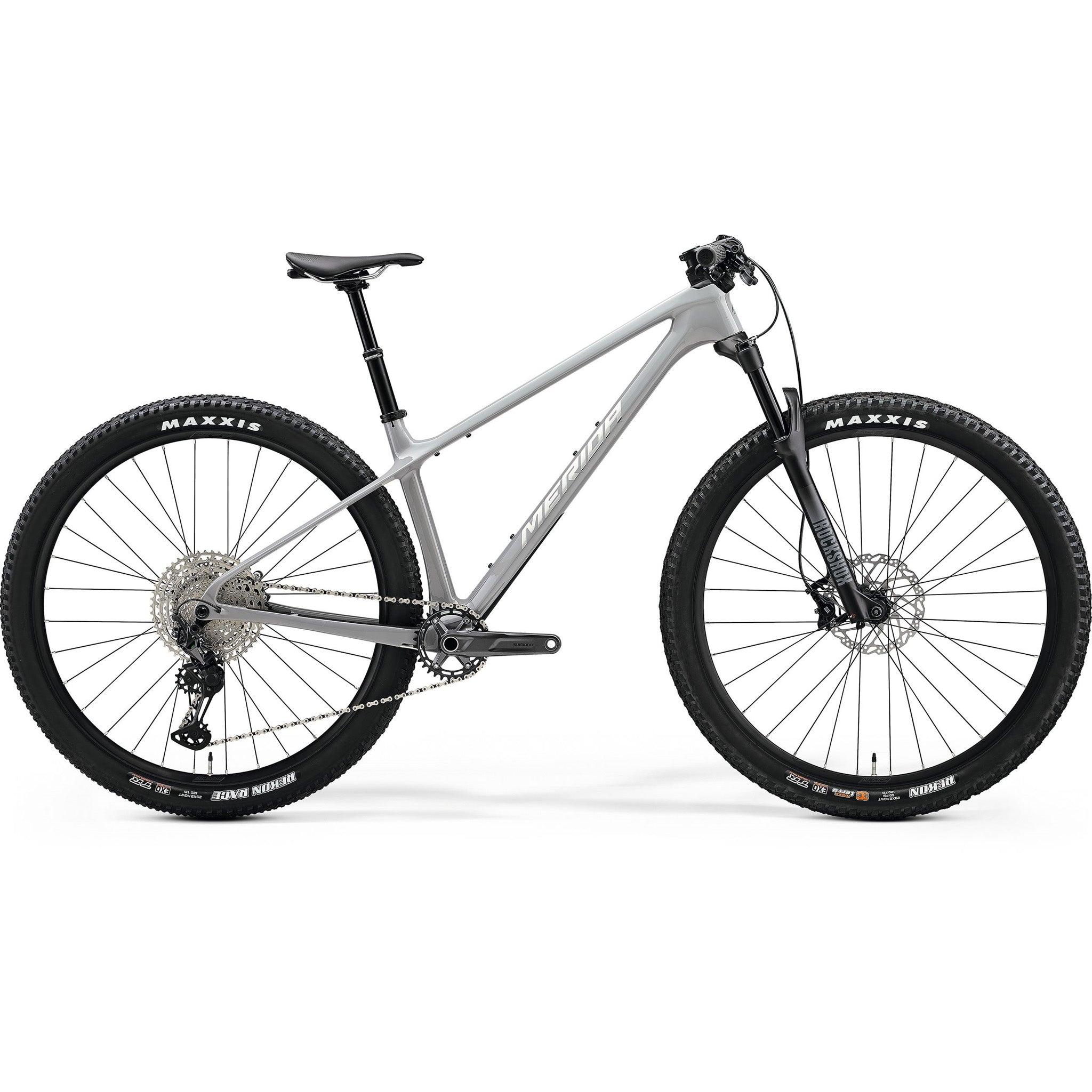

Merida Big Nine TR 5000 Cross-Country Mountain Bike Cool Grey

Brand: Merida

SKU: Select a size

Size: Select a size

MD LG

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Select a size to view stock availability at this location.

Carbon Frame/ RockShox Alloy Fork

120mm Front Travel

29" Wheel Size

Hydraulic Disc Brake

Shimano Deore M6100 Groupset

1 x 12 Speed

Have a Question? Ask an expert on 0800 000 283

Product Details

Description

Mountain biking is one of the most varied cycling disciplines and probably the most demanding when it comes to equipment. While full suspension bikes offer amazing riding characteristics, the classic hardtail remains one of the purest tools for the job. Merida’s classic hardtails are the backbone of their range and showcase the enormous wealth of experience and knowledge we could gain in over half a century of bike production and manufacturing. The Big Nine range represents the symbiosis between modern frame technology, attention to detail and craftsmanship 'Made in Taiwan' symbolizes.

The Big Nine TR 5000 is ready to push beyond what cross-country hardtails should do. With relentless speed and low weight uphill, paired with trail-hardtail swagger on the descents. The updated CF carbon frame offers truly progressive geometry with patented AGILOMETER sizing, increased standover clearance and handling stability to better deal with the tough racetracks of today, this down country ready TR option also boosts fork travel and adds in aggressive tyres and a dropper post. Add in the precision and benchmark reliability of Shimano's XT 12-speed and you're good to go.

Key Features

Lightweight aluminum frame
29-inch wheels for smooth rolling
High-performance suspension system
Hydraulic disc brakes for reliable stopping
Modern geometry for enhanced stability

Specifications

Product Overview

Product

Merida Big Nine TR 5000 Cross-Country Mountain Bike Cool Grey

Brand

Merida

Parent SKU

UMXCNF76

Size SKUs

MD: MEHA2500827
LG: MEHA2500828

Year Model

2025

Product Features

Frame Material

Carbon

Colour

Grey

Wheel Size

29"

Brake Type

Hydraulic Disc Brake

Gears

1 x 12

Fork Material

Alloy

Front Travel

120mm

Build

Frame

BIG.NINE TR CF3 III; MAT carbon; 29x2.4" max WHS; 148x12 AST; BSA BBR

Fork

Rock Shox Judy Gold; Air; 120 STR; Tapered; Remote lockout; 51 mm fork offset

Handlebars

MERIDA EXPERT CC; MAT aluminium; 760 WHB; flat

Headset

Acros ICR MERIDA INTEGRATED neck; Upper and lower IPS sealing

Grips

MERIDA EXPERT EC

Stem

MERIDA TEAM CC III; MAT aluminium; 31.8 DSH; -6 ASD; incl. MERIDA SMART MOUNT S, M, L: 60 mm, XL, XXL 70 mm

Bottom Bracket

Shimano BB-MT-501; 24mm

Saddle

MERIDA EXPERT SL; V-mount; incl. MERIDA minitool

Seat Post

MERIDA TEAM TR SL; 30.9 DSP; 0 SSB; S/M: 150 SPT - L/XL/XXL: 170 SPT

Seat Clamp

MERIDA EXPERT

Wheels

Wheel Size

29"

Rims

MERIDA EXPERT CC II; 25 IWR; MAT aluminium; Tubeless ready (tubeless tape and valves not included)

Hubs

F: Shimano TC500-B; 110x15 WHF; 32 SPH; Centerlock / R: Shimano TC500-MS-B; 148x12 WHR; 32 SPH; Centerlock

Spokes

Double Butted Black stainless

Groupset

Crankset

Shimano Deore MT512; 32 ATC 170 mm-S, 175 mm-M up

Chain

KMC X12

Brakes

Shimano SLX M7100; 2 piston

Front Rotor

Shimano RT54; 180mm

Rear Rotor

Shimano RT54; 160mm

Shifters

Shimano Deore M6100

Rear Derailleur

Shimano XT; SGS

Cassette

12 Speed

Find Your Size

Step 1: Measure your height

Take off your shoes
Stand with your back straight against a wall
Balance a book on your head to mark your height on the wall
Measure your height by the distance from the floor to the mark

Your height:

Find Your Size

Step 2: Adjust your inseam

Based on your height, we’ve calculated a starting point.
You can measure your inseam by tucking a book between your legs so there is pressure but it isn’t uncomfortable.
Inseam typically falls with 5cm of the average.

Your inseam:

Find Your Size

Your results

For the Merida Big Nine TR 5000 Cross-Country Mountain Bike Cool Grey we suggest the following size.

More comfort More speed

Height: --

Inseam: --

Adjusted Height: --

Find Your Size

We have saved your measurements.

Recommended sizes will now be highlighted on the page.

PERFECT RIDE GUARANTEE

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

FREE BIKE BUILD

We'll build your bike for free when you click and collect at any 99 Bikes store.

FIRST FREE TUNE-UP

Every bike comes with a complimentary free tune-up and safety check. Learn more »

Your selected size: -

Legend

Available size

Current size

Unavailable size

Suggested sizing

Merida Big Nine TR 5000 Cross-Country Mountain Bike Cool Grey geometry diagram

Legend

ST Seat Tube
STA Seat Tube Angle
R Reach
TT Top Tube
BD Bottom Bracket Drop
S Stack
CS Chain Stay Length
HT Head Tube
WB Wheel Base
HTA Head Tube Angle
FL Fork Length

Wheel Size

29"

Stack

614

624

Reach

440

460

Top Tube Length

614

637

Seat Tube Length

410

440

Seat Tube Angle

74.2

Fork Length

530

Head Tube Length

105

Head Tube Angle

95.0

105.0

Handlebar Height

Bottom Bracket Drop

Chainstay Length

Wheelbase

Standover Height

711

717

Minimum Seat Height

Maximum Seat Height
